COMSPHERE

3800 SERIES MODEMS

MODELS 3810, 3811, AND 3820

QUICK REFERENCE

Document No. 3810-A2-GL10-10

Printed in U.S.A.

Notice

This publication is protected by federal copyright law. No part of this publication may be

copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated

into any human or computer language in any form or by any means, electronic,

mechanical, magnetic, manual or otherwise, or disclosed to third parties without the

express written permission of Paradyne Corporation, 8545 126th Ave. N., Largo,

FL 33773.

Paradyne Corporation makes no representation or warranties with respect to the

contents hereof and specifically disclaims any implied warranties of merchantability or

fitness for a particular purpose. Further, Paradyne Corporation reserves the right to

revise this publication and to make changes from time to time in the contents hereof

without obligation of Paradyne Corporation to notify any person of such revision or

changes.

Changes and enhancements to the product and to the information herein will be

documented and issued as a new release to this manual.

Warranty, Sales, and Service Information

Contact your local sales representative, service representative, or distributor directly for

any help needed. For additional information concerning warranty, sales, service, repair,

installation, documentation, training, distributor locations, or Paradyne worldwide office

locations, use one of the following methods:

Via the Internet: Visit the Paradyne World Wide Web site at

http://www.paradyne.com

Via Telephone: Call our automated call system to receive current information via

fax or to speak with a company representative.

— Within the U.S.A., call 1-800-870-2221

— Outside the U.S.A., call 1-727-530-2340

Trademarks

All products and services mentioned herein are the trademarks, service marks,

registered trademarks or registered service marks of their respective owners.

Document Feedback

We welcome your comments and suggestions about this document. Please mail them

to Technical Publications, Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773,

or send e-mail to [email protected]. Include the number and title of this

document in your correspondence. Please include your name and phone number if you

are willing to provide additional clarification.

COMSPHERE 3800 Series

Modems

Models 3810 and 3820

Quick Reference

Document Number 3810-A2-GL10-10

November 1998

Product Documentation on the World Wide Web

We provide complete product documentation online. This lets you search the

documentation for specific topics and print only what you need, reducing the waste of

surplus printing. It also helps us maintain competitive prices for our products.

Complete documentation for this product is available at www.paradyne.com.

Select

Service & Support

→

Technical Manuals

→

Business Class Analog Modems.

Then select the following document:

3810-A2-GB30

COMSPHERE 3800 Series Modems, Models 3810, 3811, and 3820, User’s Guide

To request a paper copy of a Paradyne document:

Within the U.S.A., call 1-800-PARADYNE (1-800-727-2396)

Outside the U.S.A., call 1-727-530-8623

Before installing the modem, read the

Important Safety Instructions

beginning on

page 19.

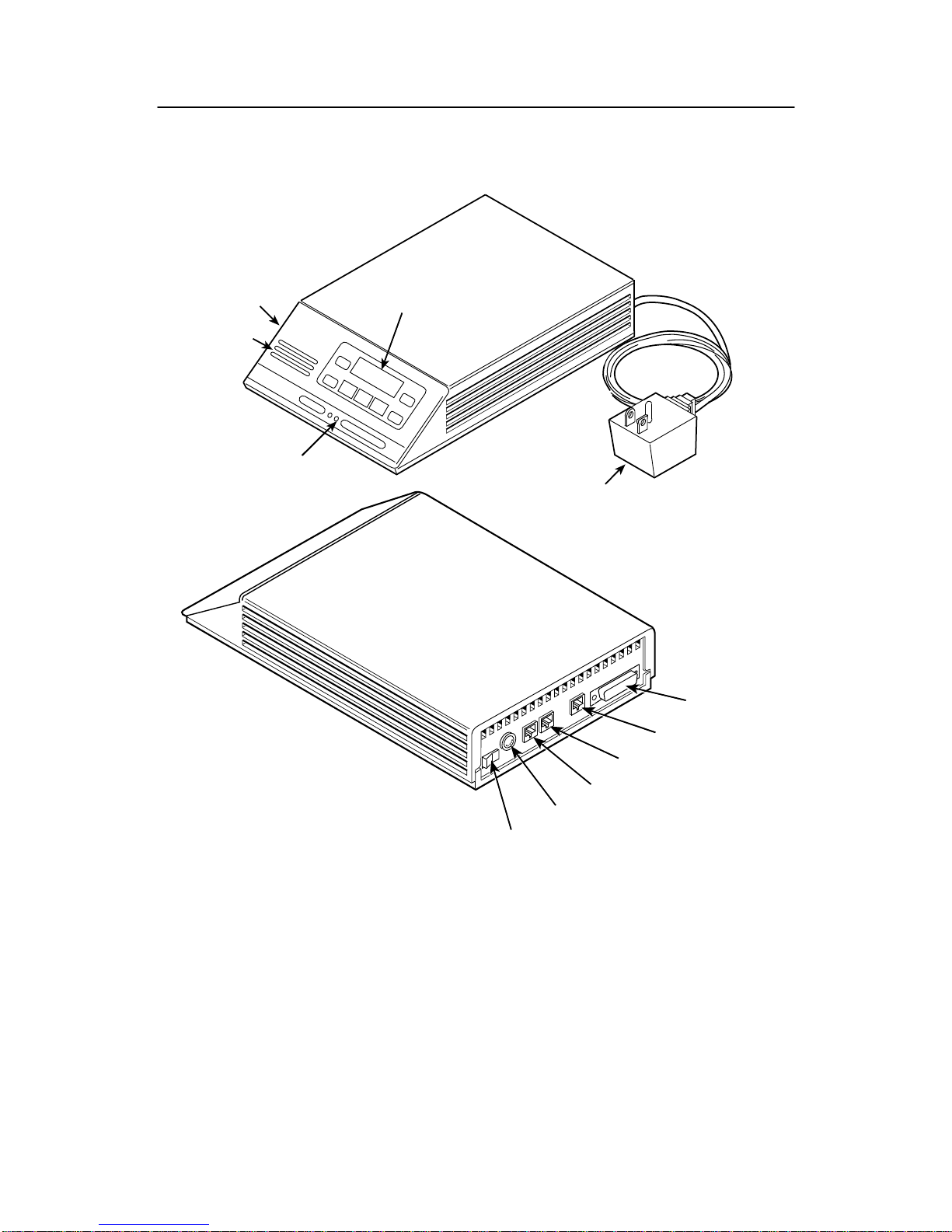

Models 3810 and 3820 Installation

496-13096-02

EIA-232-D

INTERFACE

NMS

DIAL/LEASED (3820)

PHONE/LEASED (3810)

AC POWER IN

ON/OFF

STATUS

INDICATORS AC TRANSFORMER

LCD AND KEYPAD

DIAGNOSTIC

CONTROL

PANEL

SPEAKER

Customer-Supplied Equipment

The following customer-supplied equipment is required to complete a data

communications system using either the Model 3810 or Model 3820 modem:

A DTE with an available EIA-232-D serial port.

A standard EIA-232-D male-to-female cable with a male DB-25-S connector at one

end to attach to the modem.

One of the following modular dial or leased network interfaces:

— RJ11C for dial permissive applications

— An 8-position to 6-position crossover cable for JM8 leased-line applications

only

Telephone Connection

Use the following procedures to connect the modem to a telephone:

1. Insert the 6-position, 4-conductor modular plug into the jack labeled

PHONE/LEASED (3810).

2. Insert the other end of the modular cord into the telephone.

Dial Network Management System Connection

For Model 3810 and 3820 modems, use the following procedures to connect the

modem to the network management system interface:

1. Insert the subminiature 4-conductor modular plug of the 3600 Hubbing Device into

the jack labeled NMS.

2. Connect the 3600 Hubbing Device to the network management system.

Refer to the

3600 Hubbing Device, Feature Number 3600-F3-300, Installation

Instructions

(3610-A2-GZ45) for more information. Installation for the Model 3810 and

3820 modems is the same as for the 3610 DSU.

AC Power Transformer Connection

Use the following procedures to connect the modem to an ac power outlet:

1. Make sure the modem’s power switch is in the Off position.

2. Insert the power transformer’s 5-pin DIN male connector into the modem’s rear

panel ac power receptacle.

3. Insert the power transformer into a grounded ac power outlet.

Model 3810 Dial Connection

For the Model 3810, use the following procedures to connect the modem to the dial

network interface:

1. Insert the 6-position, 4-conductor modular plug into the jack labeled DIAL/LEASED

(3820).

2. Insert the other end of the modular cord into the network interface.

Model 3810 Leased-Line Connection

Use the following procedures to connect a Model 3810 to the 2-wire or 4-wire

leased-line network interface:

1. Insert the 8-position, 8-conductor modular plug into the jack labeled

PHONE/LEASED (3810).

2. Insert the other end of the modular cord into the leased-line network interface.

PHONE DIAL NMS DTE

PWR

LEASED

(3820)

LEASED

(3810)

98-16197

8-POSITION,

8-CONDUCTOR PLUG

FOR LEASED LINE

NETWORK OPERATION

(CONNECTS WITH

JM8 TYPE JACK)

6-POSITION,

4-CONDUCTOR PLUG

FOR TELEPHONE SET

6-POSITION,

4-CONDUCTOR PLUG

FOR PERMISSIVE

DIAL NETWORK

OPERATION

(CONNECTS WITH

RJ11C TYPE JACK)

HUBBING

DEVICE

Model 3820 Network Connection

Use the following procedures to connect a Model 3820 to the dial or 2-wire leased-line

network interface:

1. Insert the 6-position, 4-conductor modular plug into the jack labeled DIAL/LEASED

(3820).

2. Insert the other end of the modular cord into the network interface.

PHONE DIAL NMS DTE

PWR

LEASED

(3820)

LEASED

(3810)

98-16196

6-POSITION,

4-CONDUCTOR PLUG

FOR TELEPHONE SET

6-POSITION, 4-CONDUCTOR

PLUG FOR PERMISSIVE

DIAL NETWORK OPERATION

(CONNECTS WITH

RJ11C TYPE JACK)

2-WIRE LEASED-LINE

NETWORK OPERATION

(CONNECTS WITH

6-POSITION CENTER PAIR

LEASED JACK)

– OR –

HUBBING

DEVICE

DTE Connection

Use the following procedures to connect the EIA-232-D cable and ferrite choke from

the modem to the DTE:

1. Make sure the modem’s rear panel power switch is Off.

2. Connect the DB-25 plug on the cable to the DB-25 socket labeled DTE on the

modem’s rear panel. Use a small screwdriver to fasten the cable to the modem.

3. Connect the other end of the cable to the DTE. Use a small screwdriver to fasten

the cable to the DTE.

To ensure compliance with FCC Part 15 Regulations, a ferrite choke must be installed

on the EIA-232-D interface cable.

1. Open the ferrite choke and place it around the DTE cable as close as possible to

the connector attached to the modem.

2. Close the two halves around the cable and snap the ferrite choke shut, pressing

down on the plastic latch to secure it.

3. Install a cable tie behind the ferrite choke to prevent it from sliding along the cable.

98-13144-01

Ferrite

Choke

DTE

Connector

Cable Tie

Diagnostic Control Panel (DCP) – Models 3810 and 3820

The DCP is the user interface to the modem. It provides a 2-line, 32-character liquid

crystal display (LCD), a keypad, speaker grill, and status indicators.

KEYPAD HIDDEN

CHOICE

INDICATOR

STATUS INDICATORS

SPEAKER

Idle:19.2

Call_Setup

PWR ALRM CTS TXD LSD RXD TEST RATE

105 106 103 109

108 142

COMSPHERE 3810

F1 F2 F3

SQRTS

DTR

104

DIAG

CTS TXD LSD RXD

105 106 103 109

COMSPHERE 3820

RTS

104

Administrative Password

The Administrative Password is an 8-digit decimal number password that allows only

authorized users to access Security branch functions. The Administration Password

must be entered every time the Security branch is accessed. The factory default

Administration Password is 00000000.

The Reset_Security function of the Security branch resets the Administrative Password

to the value above the bar code on the last page of this document.

Configuration Option Procedures – DCP Commands

1. Move to the Configure branch and select a configuration area to load from: Active

(Operating), Active (Saved), Customer 1, Customer 2, or Factory (Async Dial,

Sync Dial, Sync Leased, or UNIX Dial). If Enhanced Throughput Cellular (ETC) is

installed, Factory areas Cellular (Mobile) and Cellular (PSTN) are also available.

Select Configure from the Top-Level menu.

Idle : 19.2

Test Configure

F2 F3

Scroll to the area you wish to load.

Ld EditArea frm <

Factory

F2 F3

2. Select Edit to choose the set of configuration options to be edited: DTE Interface,

DTE Dialer, Line Dialer, Dial Line, Leased Line, V.42/MNP/Buffer, Tests, Misc, or

Security.

Edit StrapGroup <

Test Misc

F2 F3

3. When the new configuration is completed, Save the edited configuration options to

the desired configuration area: Active (Saved), Customer 1, Customer 2.

Sav EditArea to >

Active (Saved)

F2 F3
