Digiplex LCD Keypad 1n

1.0 Introduction

Thank you for choosing Paradox Security Systems. Digiplex

security systems offer advanced technology and provide reliable

security protection and powerful features that are easy to use.

The elegant and user-friendly LCD Keypad allows easy access

to the security system's functions and information at the touch of

a button. Since all programming is accomplished through the

keypad, please read this manual carefully.

1.1 Specifications

Power input: 12 to 16 Vdc, 80mA maximum

PGM current limit: 50 mA

Number of inputs: 1

Power indication: Yellow LED on

Locate indication:

Green and yellow LEDs flash simultaneously

Bus fault indication: Red and yellow LEDs flash alternately

Anti-tamper switch: Yes (also used to deactivate locate)

LCD: Super Twisted Nematic display (STN), wide

viewing angle, 2 lines of 16 characters, backlight

and contrast adjustable

Compatibility: Any Digiplex control panel

DGP2641-EI14.fm Page 1 Monday, February 20, 2006 9:35 AM

2 Reference & Installation Manual

2.0 Installation

The LCD keypad (DGP2-641BL) is connected to the control

panel's combus in a star and/or daisy chain configuration. The 4-

wire combus provides power and two-way communication

between the control panel and all modules connected to it.

Connect the four terminals labeled red, black, green and yellow

of each keypad to the corresponding terminals on the control

panel (refer to Figure 2.1 on page 3). Refer to DGP-848 or DGP-

NE96 Reference & Installation Manual for the maximum

allowable installation distance from the control panel.

2.1 Connecting Keypad Zones

Each keypad has one traditional hardwired input terminal,

allowing you to connect one detector or door contact directly to

the keypad. For example, a door contact located at the entry

point of an establishment can be wired directly to the input

terminal of the entry point keypad instead of wiring the door

contact all the way to the control panel.

Connect the device to the keypad's input terminal as shown in

Figure 2.1 on page 3. In order to communicate its status to the

control panel, the keypad's input must be assigned to a zone in

the control panel and the zone's parameters must be defined.

For more information on zone assignment, please refer to DGP-

848 or DGP-NE96 Reference & Installation Manual. Please note

that even with the ATZ (zone doubling) feature enabled, the

keypad supports only one detection device.

DGP2641-EI14.fm Page 2 Monday, February 20, 2006 9:35 AM

Digiplex LCD Keypad 3n

2.2 Programmable Output

Each keypad has one on-board PGM. A PGM is a programmable

output that switches to its opposite state (i.e. a normally open

PGM will close) when a specific event has occurred in the

system (refer to section 5.0 on page 14). Upon activation, the

PGM can provide 50mA to any device connected to it. If the

current drawn is to exceed the current limit, a relay should be

connected to the PGM as shown in Figure 2.1.

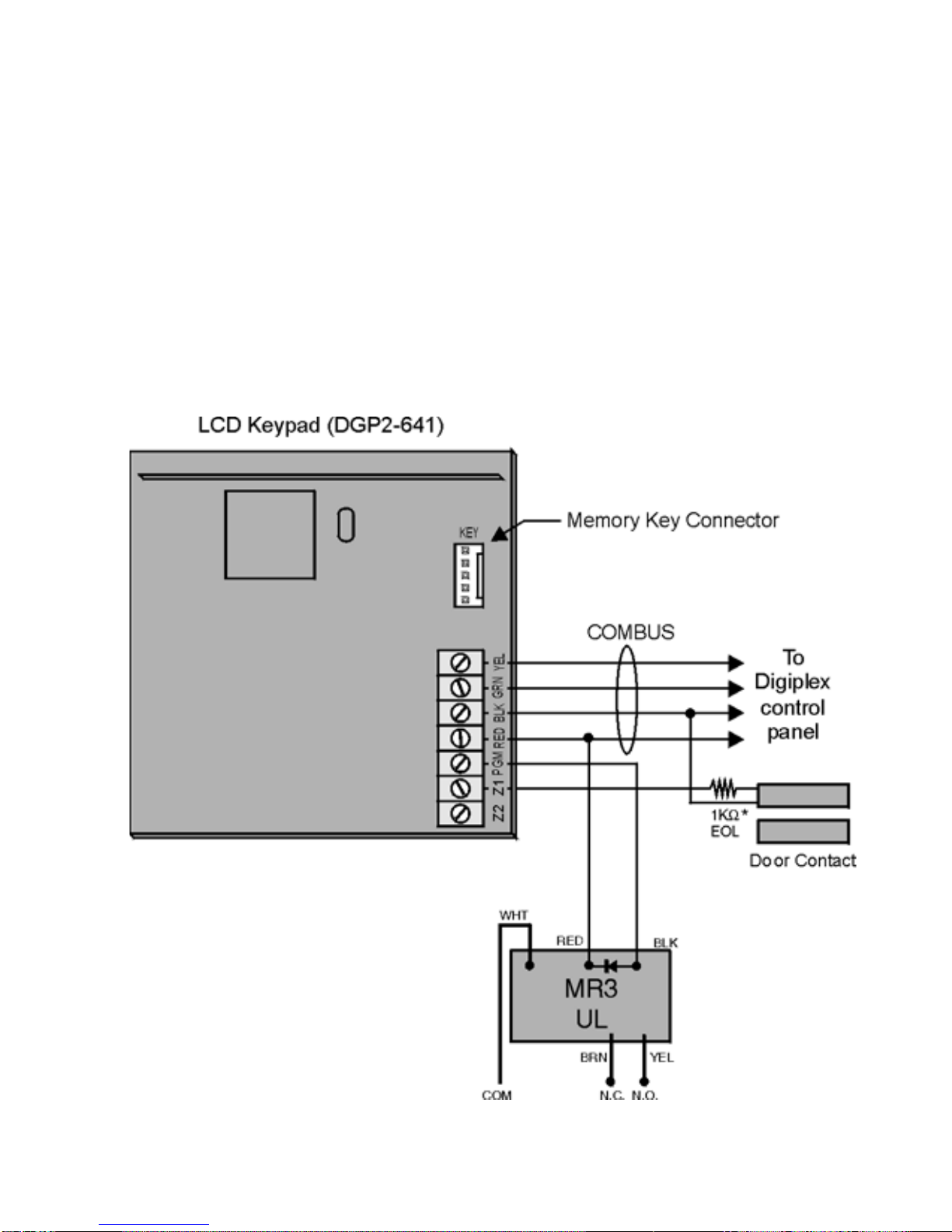

Figure 2.1: Connecting the Keypad and Keypad Zone

* The keypad

zone follows the

control panel’s

EOL definition.

The zone speed

is set at 600mS

and cannot be

programmed.

Note: The keypad’s anti-tamper

switch will communicate its status to

the control panel via the combus.

Note: A keypad’s input must be

assigned to a zone, keyswitch or

virtual input in the control panel.

DGP2641-EI14.fm Page 3 Monday, February 20, 2006 9:35 AM

4 Reference & Installation Manual

3.0 Programming

To program the DGP2-641BL keypad, enter Module

Programming Mode and then enter the desired section followed

by the required data. When programming the keypad, use the

keypad’s programming sheets (found in the Digiplex Modules’

Programming Guide) to keep track of which sections were

programmed and how. We strongly recommend you read this

entire manual before you begin programming.

The LCD keypad can also be programmed using the WinLoad

Security System Management Software. For more information,

refer to the WinLoad instructions or visit our website at

www.paradox.ca.

3.1 Entering Module Programming Mode

The keypad, like all other modules in the system, is programmed

through the control panel. To do so, you must first enter Module

Programming Mode:

1. From Normal Mode press and hold the [0] key.

2. Enter the [INSTALLER CODE](Default: 000000).

3. Enter section [953] (DGP-848) / [4003] (DGP-NE96).

4. Enter the keypad’s 8-digit [SERIAL NUMBER].

5. Enter the 3-digit [SECTION] you want to program.

6. Enter the required [DATA].

The control panel will then redirect all programming to the

selected keypad. Every time the [CLEAR]key is pressed it will

revert to the preceding step, unless entering in data in which

case it will erase the current data entry. Please note that the

DGP2641-EI14.fm Page 4 Monday, February 20, 2006 9:35 AM

Digiplex LCD Keypad 5n

serial number is located on the keypad's PC board or enter

section [000] in Step 3 to view the keypad’s serial number.

3.2 Programming Methods

The following methods can be used when programming the keypad:

3.2.1 Feature Select Programming

Some sections are programmed by enabling or disabling

options. Within the sections, numbers from [1] to [8]

represent a specific keypad option. Press the key

corresponding to the desired option and the digit will appear

in the display. This means the option is enabled. Press the

key again to remove the digit from the display thereby

disabling the option. Press [ENTER]when options are set.

3.2.2 Decimal Programming

Some sections require that a decimal value be entered. In

this method, any digit from 000 to 255 can be entered.

3.3 Module Broadcast

The control panel’s Module Broadcast feature can be used to

copy the contents of one keypad to one or more keypads.

1. From Normal Mode press and hold the [0] key.

2. Enter [INSTALLER CODE](Default: 000000).

3. Enter section [954] (DGP-848) / [4004] (DGP-NE96).

4. Enter the [SERIAL #] of the source keypad. The source is

the programmed keypad whose data you want to copy to

other keypads.

5. Enter the [SERIAL #] of the destination keypads. The

destination is the keypad(s) you want to program with the

DGP2641-EI14.fm Page 5 Monday, February 20, 2006 9:35 AM

6 Reference & Installation Manual

source’s data. If you want to program more than one

keypad with the source’s data, enter the serial numbers

of the keypads one at a time.

6. Once you have entered the serial numbers of the

keypads you want to program, press the [ACC] key.

3.4 Memory Key

Sections [510] and [520]

Download information to and from an LCD keypad using the

memory key (PMC-3).

Only the PMC-3 memory key will function with the

LCD keypad.

3.5 Download Contents of Memory Key to Keypad

Section [510]

1. Insert the memory key into the keypad’s connector

labelled “KEY” (refer to Figure 2.1 on page 3).

2. To download the contents of the memory key, enter the

keypad’s programming mode and enter section [510].

3. When the keypad emits a confirmation beep, wait 5

seconds and remove the memory key after the second

confirmation beep.

Section [510] = Download all from the memory key (LCD

keypad sections [001] to [396] and all

messages) to the LCD keypad.

Section [520] = Copy the LCD keypad sections [001] to [396]

and all messages to the memory key.

DGP2641-EI14.fm Page 6 Monday, February 20, 2006 9:35 AM

Otros manuales para Digiplex EVO DGP2-641BL

Tabla de contenidos

Otros manuales de Teclado de Paradox

Paradox

Paradox TM50 Touch Manual de usuario

Paradox

Paradox TM40 Manual de usuario

Paradox

Paradox Digiplex DGP2-648 Manual de usuario

Paradox

Paradox Digiplex DGP2-648 Manual de usuario

Paradox

Paradox K641 Manual de usuario

Paradox

Paradox Esprit 639 Manual de usuario

Paradox

Paradox Esprit+ 642 Manual de usuario

Paradox

Paradox Grafica Manual de usuario

Paradox

Paradox Grafica Manual de usuario

Paradox

Paradox Esprit 639 Manual de usuario

Paradox

Paradox K32LCD+ Manual de usuario

Paradox

Paradox Digiplex Manual de usuario

Paradox

Paradox 1686V Manual de usuario

Paradox

Paradox K641+ Manual de usuario

Paradox

Paradox Spectra 1689 Manual de usuario

Paradox

Paradox Spectra 1689 Manual de usuario

Paradox

Paradox Paradox Esprit 616LED Manual de usuario

Paradox

Paradox Esprit+ 642 Manual de usuario

Paradox

Paradox Imperial Digiplex Evo R915 Manual de usuario

Paradox

Paradox K35 Manual de usuario

Paradox

Paradox Digiplex DGP2-648 Instrucciones de montaje

Paradox

Paradox Digiplex DGP2-648 Manual de usuario

Paradox

Paradox 1686V Manual de usuario

Paradox

Paradox Magellan K636 Manual de usuario

Manuales populares de Teclado de otras marcas

BFT

BFT SELETTO Manual de usuario

Micro Id

Micro Id MP7G3BL Manual de instrucciones

WindowMaster

WindowMaster WLI 130 Manual de usuario

ACT

ACT ACT PRO 1030 Manual de usuario

Cardin

Cardin SSB Series Manual de usuario

Harman Kardon

Harman Kardon KP 1 Manual de usuario

Chamberlain

Chamberlain KPR2000 Guía del usuario

CYP

CYP CR-KP1 Manual de usuario

Aeware

Aeware k-35 Series Guía de referencia

Aritech

Aritech CS-175 Series Manual de usuario

GE NetworX NX-1600E Series Manual de usuario

Lenze AC Tech

Lenze AC Tech MC SERIES Manual de usuario

Burg Wächter

Burg Wächter secuENTRY 7711 Manual de usuario

Aeware

Aeware in.k450 Manual de usuario

Lenze

Lenze EPM-H410 Manual de usuario

Toshiba

Toshiba RKP007Z Manual de usuario

Gemini

Gemini GEM-DXK1 KEYPAD Manual de usuario

Russound

Russound MDK-C5 Manual de funcionamiento
