Order No. VES1510004CE

Drum Type Washing Machine

Model No. NA-128VB6WAE

Model No. NA-128VB6WPG

Product Colour : White

Destination : United Arab Emirates (UAE), Iran, Libya

TABLE OF CONTENTS

PAGE PAGE

1 Safety Precautions----------------------------------------------- 2

2 Specifications ----------------------------------------------------- 3

3 Location of Controls and Components ------------------- 5

4 Installation Instructions ---------------------------------------- 6

5 Operating Instructions------------------------------------------ 8

6 Test Mode ----------------------------------------------------------10

7 Service Mode -----------------------------------------------------12

8 Troubleshooting Guide ----------------------------------------14

9 Critical Torque Values -----------------------------------------15

10 Disassembly and Assembly Instructions ---------------16

11 Component Specifications -----------------------------------33

12 Wiring Connection Diagram ---------------------------------42

13 Exploded View and Replacement Parts List -----------44

1 Safety Precautions

2 Specifications

2.1. Product Specifications

2.2. Name Plate

Model NA-128VB6

Product Type Front Loader

Capacity 8 kg

Max Spin Speed 1200 rpm

Drum Volume 55 lt

Energy Label Rating A+++

Energy Consumption 194 kWh / annum

Water Consumption 9900 L/annum

Noise Level Wash 58 dBA

Spin 74 dBA

Control Panel LCD Display

Wash Programs 15 settings

Spin Speed Setting 7 setting

Dimensions

Height 84.5 cm

Width 59.7 cm

Depth 55.7 cm

Door Opening Large door opening

Delay Time Setting Yes

Colour White

Water Protection Overflow Protection

Other Features Child Lock

Packaging Shrink package

2.3. Dimension

Dimension in millimetres

NA-128VB6

3 Location of Controls and Components

4 Installation Instructions

4.1. Moving and Installing

4.1.1. Removal of Transportation Screw

1. Transportation screws, which are located at the back side

of the machine, must be removed before running the

machine.

2. Loosen the screws by turning them anticlockwise with a

suitable spanner.

3. Pull out the screws and rubber washers.

4. The holes where the transport screws have been

removed should be covered with the plastic transport

caps found in the accessories bag.

5. The transportation screws that have been removed from

the machine must be re-used in any future transporting of

the machine.

4.1.2. Foot Adjustment

1. Do not install machine on rugs or similar surfaces.

2. For machine to work silently and without any vibration, it

should be installed on a flat, non-slippery firm surface.

Any suspended floor must be suitably strengthened.

3. You can adjust the level of machine using its feet.

4. First, loosen the plastic adjustment nut away from the

cabinet base.

5. Change the level by adjusting the feet upwards or down-

wards.

6. After level has been reached, tighten the plastic adjust-

ment nut again by rotating it upwards against the base of

the cabinet.

7. Never put cartons, wooden blocks or similar materials

under the machine to balance irregularities of the floor.

4.1.3. Electrical Connection

1. Washing machine requires a 50Hz supply of 220-

240Volts.

2. A special earthed plug has been attached to the supply

cord of washing machine. This plug must be fitted to an

earthed socket. The fuse value fitted to this plug should

be 13 amps. If you have any doubts about electrical sup-

ply, consult a qualified electrician.

THIS APPLIANCE MUST BE EARTHED.

Insert the machine’s plug to a grounded socket which

you can easily reach.

4.1.4. Water Supply Connection

1. Washing machine is supplied with a single (cold) water

inlet.

2. To prevent leakage from the connection joints, a rubber

washer is included in the hose packing. Fit this washer at

the end of water inlet hose on the tap side.

3. Connect the hose to the water inlet valve. Tighten the

plastic connector by hand. Please call a qualified plumber

if you are unsure about this.

4. Water pressure of 0,1-1 MPa from tap will enable

machine to work more efficiently. (0,1 MPa pressure

means water flow of more than 8 litres in 1 minute from a

fully opened tap)

5. After connection is complete, check for leakage by turning

on tap completely.

6. Make sure that water inlet hoses can not become folded,

damaged, stretched or crushed when the washing

machine is in its final position.

7. Mount the water inlet hose to a 3/4” threaded water tap.

4.1.5. Drain Connection

1. Make sure that water inlet hoses are not folded, twisted,

crushed or stretched.

2. The drain hose should be mounted at a minimum height

of 60 cm, and a maximum height of 100 cm from the floor.

3. The end of the drain hose can be connected directly to a

drainage stand-pipe or alternatively to a specific connec-

tion point designed for that purpose on the waste outlet of

a sink unit.

4. Do not extend the drain hose or guarantee will be invali-

dated.

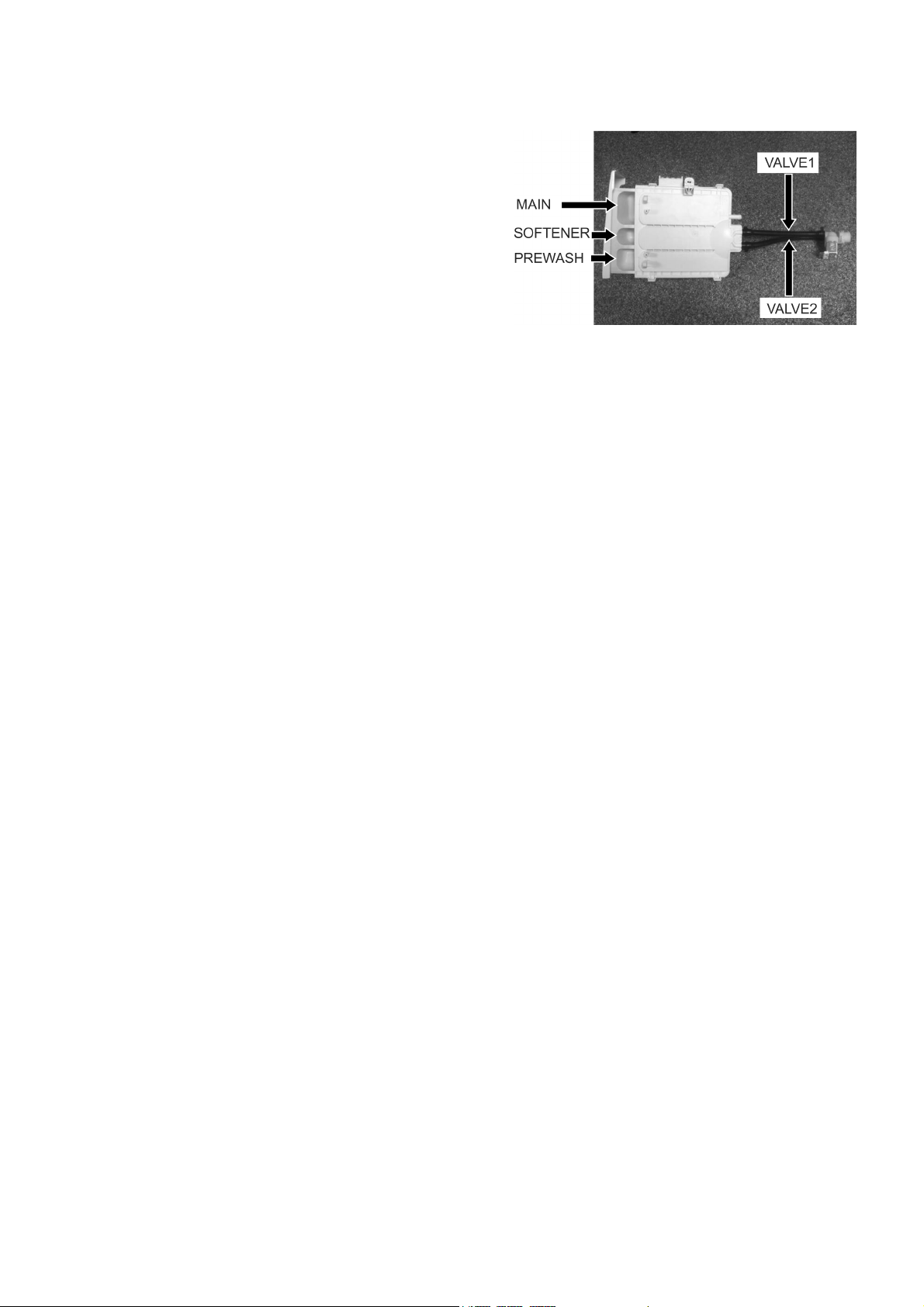

4.2. Detergent Box Group

PREWASH = WATER ENTRY VALVE 1

MAIN = WATER ENTRY VALVE 2

SOFTENER = WATER ENTRY VALVE 1 + VALVE 2

5 Operating Instructions

5.1. LCD Screen, Function Buttons & Knobs

PR Program selector 16 programs including off position

SW1 Switch 1, Start / Pause

SW2 Switch 2, Temperature Selection

SW3 Switch 3, Spin Speed Selection

SW4 Switch 4, Delay Timer Selection

SW5 Switch 5, Extra Rinse Option

SW6 Switch 6, Easy Ironing Option

SW7 Switch 7, Eco/Speed Mode Option

SS1 7 Segment LCD for Temperature Display I8 Extra Rinse Symbol

SS2 7 Segment LCD for Spin Speed Display I9 Easy Ironing Symbol

SS3 7 Segment LCD for Remaining Time I10 Eco Mode Symbol

I1 Child Lock Symbol I11 Speed Mode Symbol

I2 Door Lock Symbol I12 Cold Wash Symbol

I3 Drain Phase Symbol I13 Temperature Sign

I4 Spin Phase Symbol I14 Program Proceeding Zone

I5 Rinse Phase Symbol Slow Blink ON 0.5 sec, OFF 0.5 sec, ON 0.5 sec

I6 Wash Phase Symbol Fast Blink ON 0.10 sec, OFF 0.10 sec, ON 0.10 se

I7 Delay Symbol

5.2. Program Details

5.3. Child Lock

Activation

1. Press SW7 for 5 seconds.

2. The Child Lock Symbol on appears on the LCD display as

Child Lock is active.

Deactivation

1. Press SW7 for 5 seconds.

2. The Child Lock Symbol will disappear on LCD display

upon deactivation.

6 Test Mode

6.1. Autotest

1. Set PR to program 3 (Colours)

2. While pressing SW5 (Extra Rinse), change position of the

PR from third program to second (Cotton-Prewash), and

release SW5.

3. Autotest starts.
