Panasonic NA-F42J2T Manual de usuario

ORDERNO.MEL0010045C3

Washing Machine

NA-F42J2T / NA-F60H / NA-F5000T

SPECIFICATIONS

Specifications

MODEL NA-F42J2T NA-F60H NA-F5000T

Power Source AC 220V ~ 240V

50 Hz

Dimension Width Depth Height

582 mm 620 mm 870 mm

Water Level Selector Water Load ClothLoad

(StandardizedWater Height 53 litres 49 litres

Amount) Medium 41 litres 37 litres

Low 34 litres 32 litres

Extra Low 18 litres 17 litres

StandardizedWater

Consumption (Normal) 140 litres

Operating Water

Pressure 0.3~ 10 kgf / cm2

(8~ 25 Iitres / min)

Pulsatorr.p.m 120 r.p.m

Spinr.p.m 820 r.p.m

MachineWeight 29 Kg

MODEL NA-F42J2T NA-F60H NA-F5000T

Power Consumption

(Motor) Input 320w, Output 160w

SafetySwitch Lidand Unbalance Switch

Buzzer CycleEnd Buzzer, GiveanAlarm

Thermal Protector Motor

Rinse Case Softener

Dispenser 0

BleachInlet 0

Lint Filter 0

AutoPower Off 0

Pressure Hose

FeedValveJoint AUnit

Accessories WashBoard

Service Hose B Unit (0.8m)

Anti-rat protection base

Unauthorized copying and distribution isaviolation of law.

(CompanyNo. 6100K)

1. FEATURE AND TECHNICAL EXPLANATION

1.1. [The DoubleCascade] Structure and Washability

-Structure of the DoubleCascade

The wash water circulates from the bottom upward and shoot out

of twoopenings like waterfalls.

Spining blades below the tub act as acentrifuge to force water

upward.

1.2. Weight Sensor

Sense byinertia movement on pulsatorwhichcreate changes at the capacitorterminals which

give a wave signal. This wave is change tonumberof frequencyand loadweight is judge bythis

numberof pulse.

Fornormal course, strong course before weight, process start without water, the pulsatorwill

turnfor4.2 sec. (left and right) (0.3 sec. ON - 0.4 OFF). During motor“OFF” time it will count the

numberof edges on the pulse and judgement is base on the total accumulation. But, if waterin

the tub is more thanreset level, the waterlevel indication will always go to“High”.

1.3. Fuzzysensor control

Control systembasedon fuzzylogic detects the amount of laundryand indicates the proper

waterlevel and recommendedamount of detergent.

1.4. Wash Cycle

COURSE SOAK WATER WASH RINSE SPIN

LEVEL TIME CYCLE TIME

Maximum

NORMAL HIGH 15 min. Maximum

Maximum

30 sec. Rinse 8 min.

W60 min. MEDIUM cycle

A2 times

S STRONG LOW Minimum Minimum

Maximum

H12 min. 6 min.

30 sec.

CMEDIUM Rinse

Approx.

OSPEEDY — 3 min. cycle 3 min.

U LOW 20 sec. 3 times

EMEDIUM Rinse Mild

Approx.

GENTLE — 3 min. cycle 40 sec.

LOW 3 times

LHOME

E 8 min. Rinse Mild

Approx.

C DRY — MEDIUM 30 sec. cycle 38 sec.

T 2 times

CARE

2. INSTALLATION INSTRUCTION

2.1. Check Installation Location

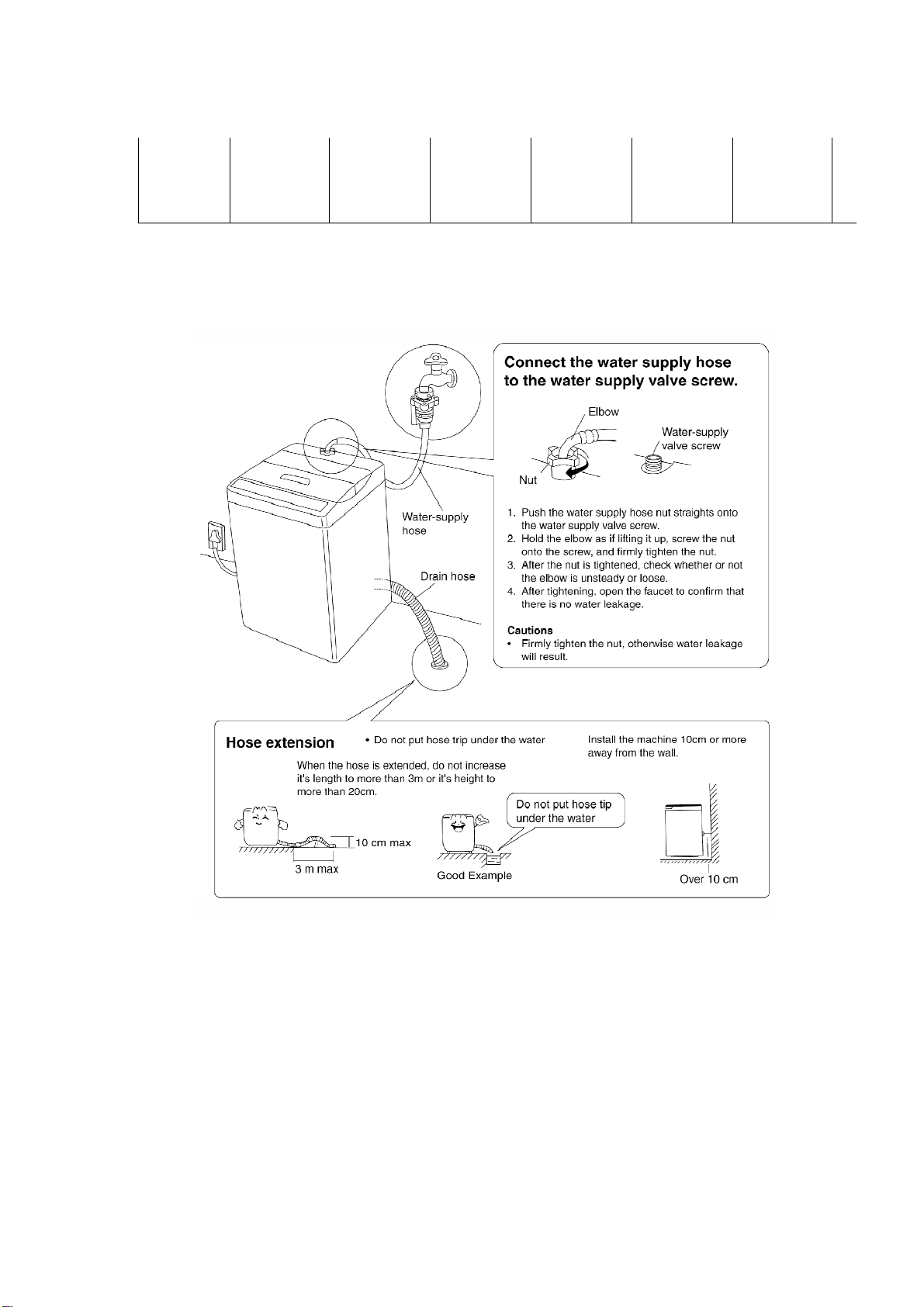

2.2. Connect supplywater hose

(Note)

- Firmlytightenpart B of the faucet joint,

otherwise waterleakage will result.

- Whenthe hose must be reinstalled(afteryou

move, forexample), turnB tothe left until about

4 mm orthe threadbecomes visible, thencarry

out the procedure describedabove.

- The connectorcannot be usedwithan

extension oranall-purpose home faucet. In

these cases, use the CB-J3 faucet (sold

separately). (Leaks will result otherwise.)

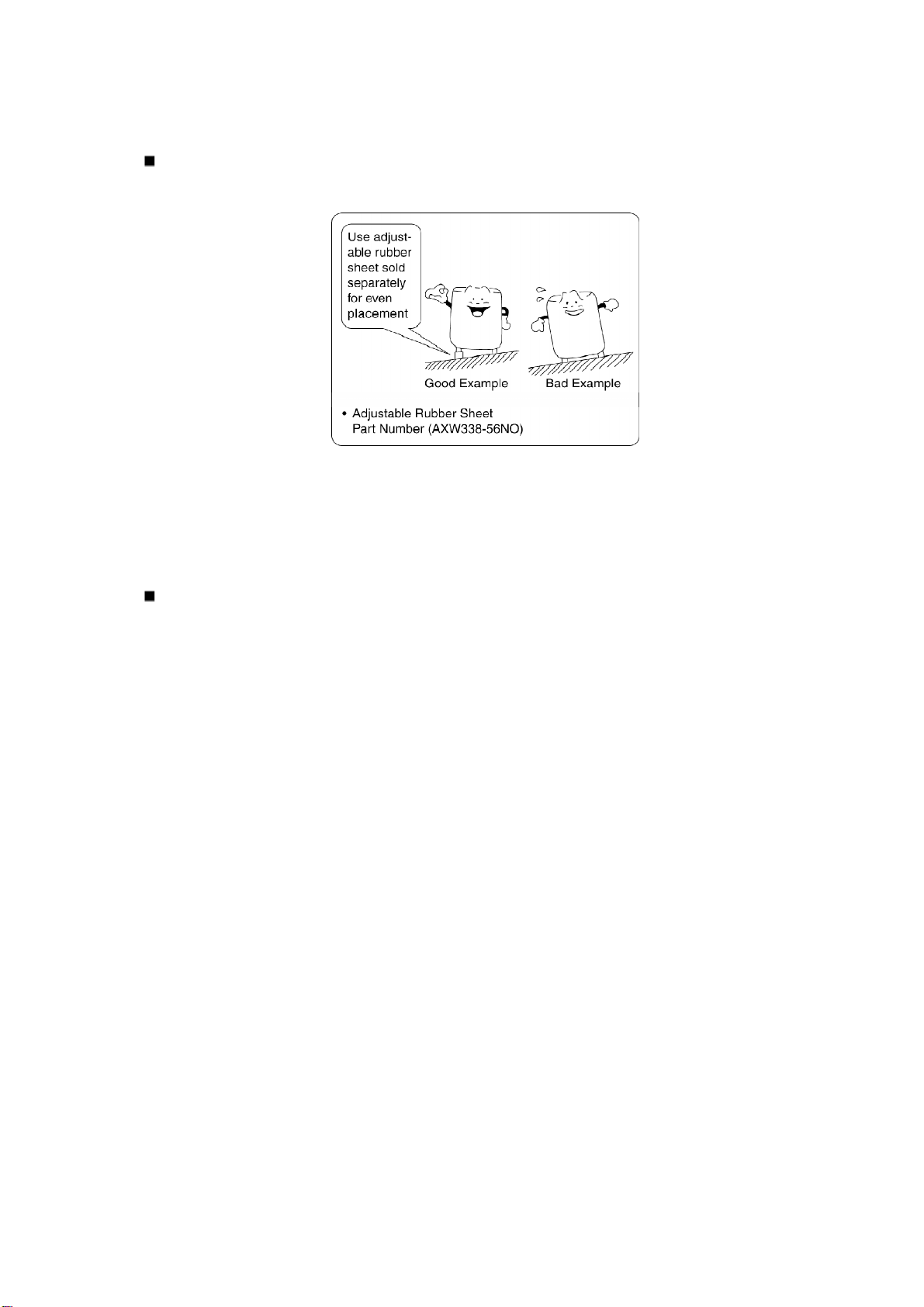

2.3. Install the washing machine under alevel sturdyfloor

HOW TO ADUSTTHE HEIGHTOFADJUSTABLE LEG

FOR THE CASE OFUNEVEN FLOOR

3. TROUBLESHOOTING GUIDE

Whendiagnosing a problem, because the electronic circuitryis socomplex, sometimes a

condition is mistakenlythought tobe a malfunction whenit is not perform check and

troubleshooting beginning withparts towhichloadis applied, similarlytotroubleshooting for

conventional mechanical circuitry.

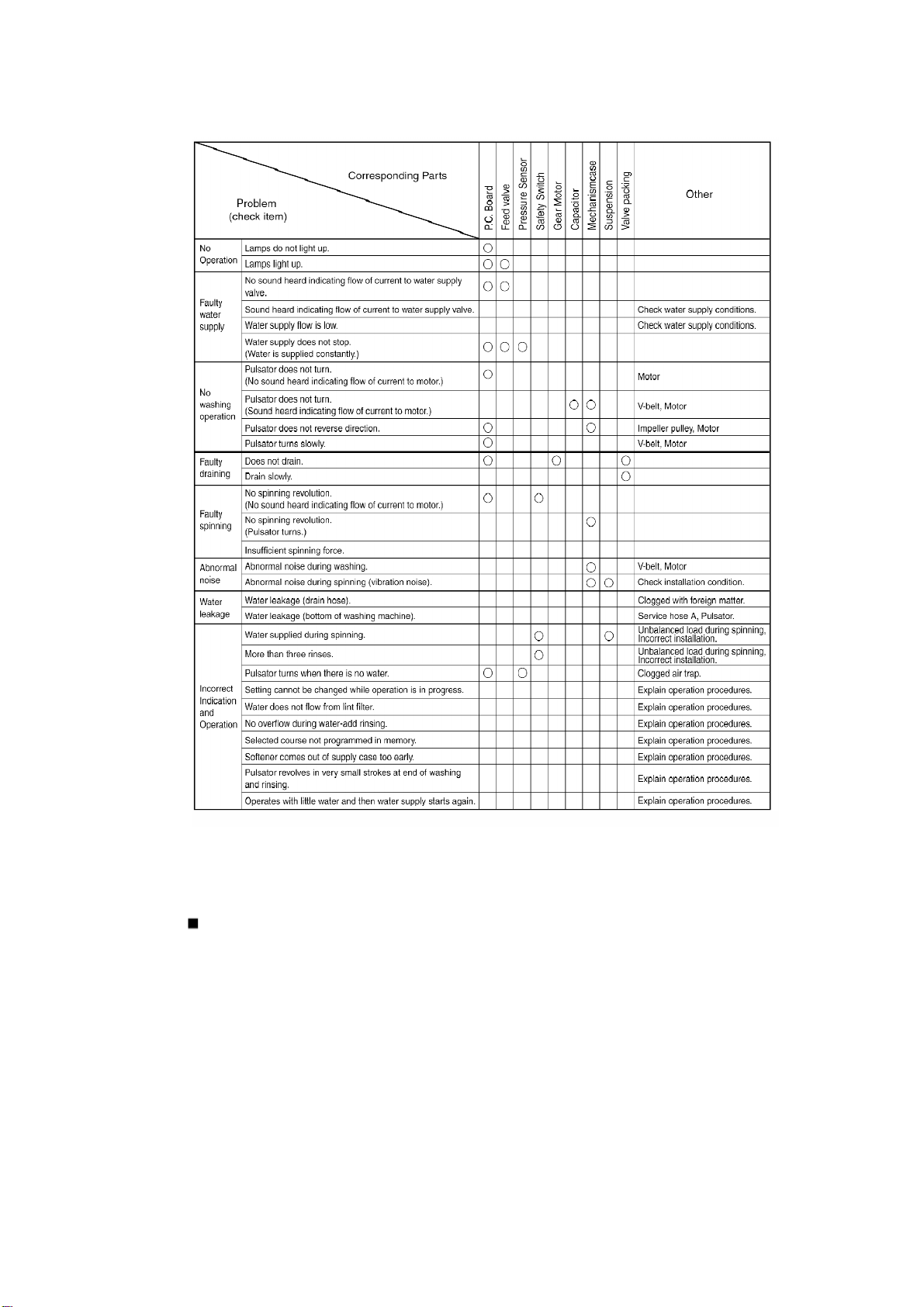

Troubleshooting table

4. TEST RUNNING WITHOUT WATER

4.1. Method to test running without water.

1. Set the power switch to “OFF”.

2. Press and holdboth the “Reserve and water level”buttons with

one hand.

3. Set the power switch to “ON”.

4. Release your fingers from the buttons and power switch which

you pressed insteps (2) and (3) above.

(Check Acan be carried out inthisstate with your fingers

released).

5. Withinthree seconds, press the “Reserve” button one or two

times to set the desired check procedure. (Carryout check Band

C).

Numberof

times

the “Reserve” Check Check

Contents Lampillumination condition Operation

condition

button is

pressed Procedures

0 A -End Signal

-Auto power off.

-Abnormal

signal semister

-When theend buzzer

sounds

times, process lamps

will

neouslyflash on and off

and

will automaticallybe

switched

immediatelyafter

operation

1 B Wash

Operation

Check

-Even ifthereisno water

washing operation will

continue

minutes.

-Water flowcan be

changed

level button.

2 C Spin

Operation

Check

-Thespinning operation

will

for fiveminutes.

-Itispossibleto check

lid

operation. Open thelid

slowly,

check.

5. ERROR INDICATION TABLE

- whenthe following indications occurthe buzzerwill sound.
