ing and distribution is a violation of law.

Order No. VES1104001CE

Drum Type Washing Machine

Model No. NA-148VB3

Model No. NA-128VB3

Model No. NA-147VB3

Model No. NA-127VB3

Product Color : White

Destination : Germany, Spain, France, Italy, Belgium,

Ireland, United Kingdom

TABLE OF CONTENTS

PAGE PAGE

1 Safety Precautions----------------------------------------------- 3

2 Specifications ----------------------------------------------------- 4

2.1. Product Specifications------------------------------------ 4

2.2. Name Plate-------------------------------------------------- 4

3 Technical Descriptions ----------------------------------------- 5

3.1. Twinjet Information ---------------------------------------- 5

4 Location of Controls and Components ------------------- 6

5 Installation Instructions ---------------------------------------- 7

5.1. Moving and Installing ------------------------------------- 7

5.2. Detergent Box Group ------------------------------------- 8

6 Operating Instructions------------------------------------------ 9

6.1. LCD Screen, Function Buttons & Knobs ------------ 9

6.2. Program List ------------------------------------------------ 9

6.3. Program Details-------------------------------------------10

6.4. Program Details with Half Load Defection ---------10

6.5. Child Lock --------------------------------------------------11

7 Test Mode ----------------------------------------------------------12

7.1. Autotest----------------------------------------------------- 12

8 Service Mode ----------------------------------------------------- 14

8.1. Service Autotest ------------------------------------------ 14

8.2. Failure Codes --------------------------------------------- 15

9 Troubleshooting Guide --------------------------------------- 16

10 Disassembly and Assembly Instructions--------------- 17

10.1. Torque Values--------------------------------------------- 17

10.2. Top Plate --------------------------------------------------- 18

10.3. Door --------------------------------------------------------- 18

10.4. Spring Wire ------------------------------------------------ 20

10.5. Detergent Drawer ---------------------------------------- 20

10.6. Control Panel---------------------------------------------- 21

10.7. Kick Plate -------------------------------------------------- 22

10.8. Front Panel ------------------------------------------------ 22

10.9. Upper Support Bracket --------------------------------- 24

10.10. Detergent Drawer Housing ---------------------------- 24

10.11. Power Cable Group and Parasite Filter ------------ 25

10.12. Electronic Pressure Switch (EPS) ------------------- 26

10.13. Door Lock -------------------------------------------------- 26

10.14. Pump Motor------------------------------------------------ 26

10.15. Front Counterweight------------------------------------- 27

10.16. Heater ------------------------------------------------------- 27

10.17. Twinjet System-------------------------------------------- 28

10.18. Tub Bellows Seal----------------------------------------- 29

10.19. Transport Screw ------------------------------------------ 29

10.20. Upper Counterweight------------------------------------ 30

10.21. Washing Group ------------------------------------------- 30

10.22. Shock Absorber PIN------------------------------------- 31

10.23. Belt----------------------------------------------------------- 31

10.24. Driven Pulley ---------------------------------------------- 31

10.25. Motor -------------------------------------------------------- 31

10.26. Tub Entrance with Bellow Hose ---------------------- 32

10.27. Pressure Switch Hose Group ------------------------- 32

10.28. Tub ----------------------------------------------------------- 32

10.29. Drum--------------------------------------------------------- 32

11 Measurements and Adjustments -------------------------- 33

11.1. Drain Pump ------------------------------------------------ 33

11.2. Circulation Pump ----------------------------------------- 34

11.3. Resistance ------------------------------------------------- 35

11.4. NTC---------------------------------------------------------- 36

11.5. Valve--------------------------------------------------------- 37

11.6. Electronic Pressure Switch (EPS) ------------------- 38

11.7. Motor (For NA-127VB3 and NA-147VB3)---------- 39

11.8. Motor (For NA-128VB3 and NA-148VB3)---------- 40

11.9. Door Lock -------------------------------------------------- 41

12 Dimensions ------------------------------------------------------- 43

13 Wiring Connection Diagram --------------------------------- 44

13.1. Wiring Diagram NA-127VB3 and NA-147VB3 ---- 44

13.2. Wiring Diagram NA-128VB3 and NA-148VB3 ---- 46

14 Exploded View and Replacement Parts List ----------- 48

14.1. Control Panel Parts -------------------------------------- 48

14.2. Front Panel Parts----------------------------------------- 50

14.3. Washing Group Parts ----------------------------------- 51

14.4. Circulation Group Parts--------------------------------- 53

14.5. Detergent Drawer Group Parts ----------------------- 54

14.6. Pressure Switch Hose Group Parts ----------------- 56

14.7. Body Group Parts ---------------------------------------- 57

14.8. Porthole Group Parts------------------------------------ 59

14.9. Accessories------------------------------------------------ 60

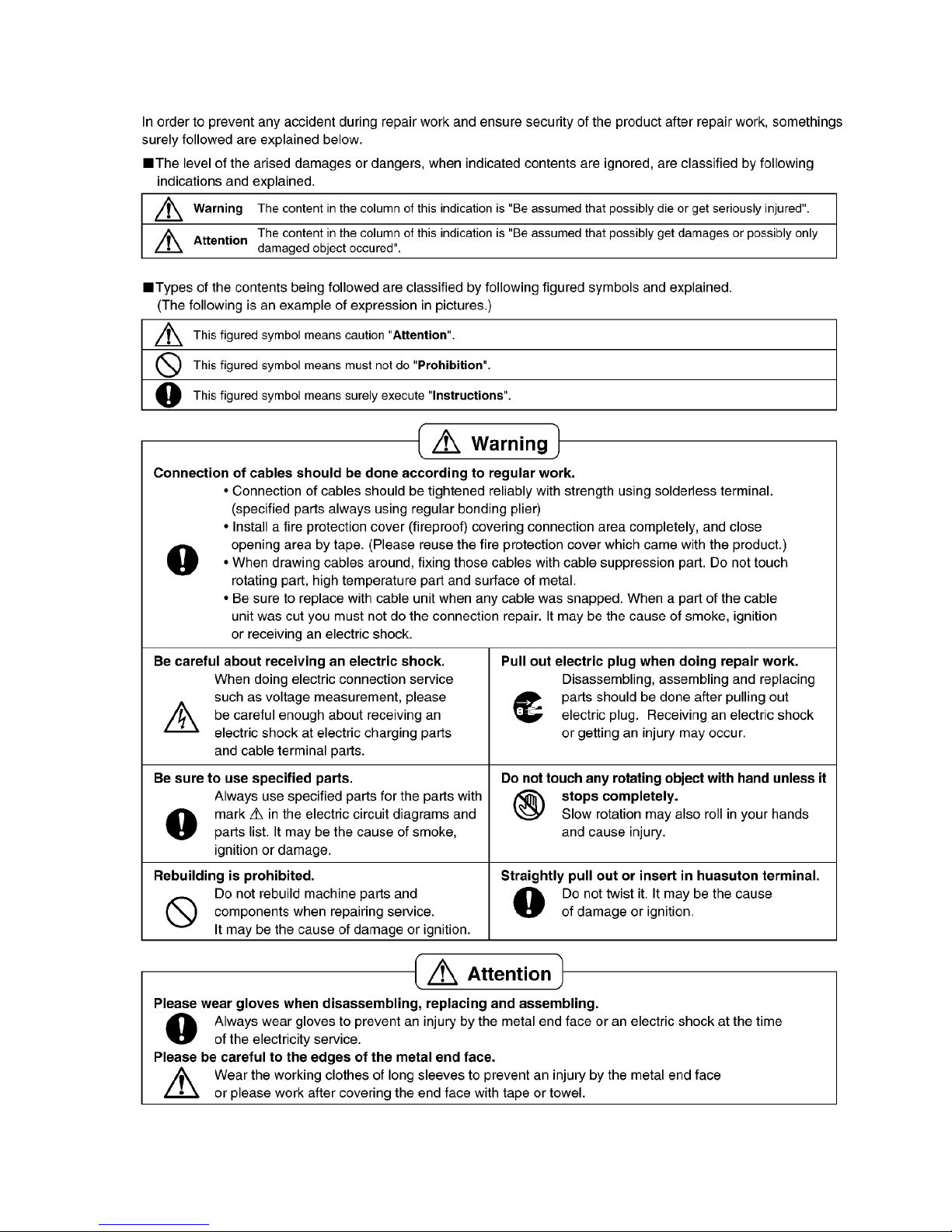

1 Safety Precautions

2 Specifications

2.1. Product Specifications

2.2. Name Plate

NA-148VB3 NA-128VB3 NA-147VB3 NA-127VB3

Product Type Front Loader Front Loader Front Loader Front Loader

Capacity 8 kg 8 kg 7 kg 7 kg

Max Spin Speed 1400 r/min 1200 r/min 1400 r/min 1200 r/min

Drum Volume 60 L 60 L 50 L 50 L

Energy Label Rating AAB AAB AAB AAB

Energy Consumption A-50% A-50% Min. A-40% Min. A-40%

Water Consumption 48 L/cycle 48 L/cycle 45 L/cycle 45 L/cycle

Noise Level Wash 58 dBA 58 dBA 58 dBA 58 dBA

Spin 76 dBA 76 dBA 75 dBA 74 dBA

Control Panel LED display, E-Type LED display, E-Type LED display, E-Type LED display, E-Type

Wash Programs 15 settings 15 settings 15 settings 15 settings

Spin Speed Setting 6 setting 6 setting 6 setting 6 setting

Dimensions Height 85 cm 85 cm 85 cm 85 cm

Width 60 cm 60 cm 60 cm 60 cm

Depth 58 cm 58 cm 53 cm 53 cm

Door Opening Large door opening Large door opening Large door opening Large door opening

Delay Start Yes Yes Yes Yes

Color White White White White

Water Protection aquastop hose for

Germany only

aquastop hose for

Germany only

aquastop hose for

Germany only

aquastop hose for

Germany only

Other Features Child Lock

Twinjet system

Child Lock

Twinjet system

Child Lock

Twinjet system

Child Lock

Twinjet system

Packaging Shrink package Shrink package Shrink package Shrink package

3 Technical Descriptions

3.1. Twinjet Information

1. Twinjet system is designed to obtain a better washing

performance by directly injecting water with detergent

using a recirculation system and two nozzles connected

to it. With twinjet system, water consumption is

decreased by 30%, energy consumption is decreased by

10% and washing time is decreased by 15%.

2. Twinjet system is valid for all programs except spin and

drain mode. The system does not function during Water

inlet, heating, spinning and drain phases.

3. Even with a large load of 8 kg. the washing machine will

have minimum energy consumption by the help of Twinjet

system.

4. Washing machines with Twinjet system are very environ-

ment-friendly by having maximum washing performance

with minimum water consumption.

• Washing machines with Twinjet system will let the customer wash a larger amount of load in a shorter period of time.

4 Location of Controls and Components

5 Installation Instructions

5.1. Moving and Installing

5.1.1. Removal of Transportation Screw

1. Transportation screws, which are located at the back side

of the machine, must be removed before running the

machine.

2. Loosen the screws by turning them anticlockwise with a

suitable spanner.

3. Pull out the screws and rubber washers.

4. The holes where the transport screws have been

removed should be covered with the plastic transport

caps found in the accessories bag.

5. The transportation screws that have been removed from

the machine must be re-used in any future transporting of

the machine.

5.1.2. Foot Adjustment

1. Do not install machine on rugs or similar surfaces.

2. For machine to work silently and without any vibration, it

should be installed on a flat, non-slippery firm surface.

Any suspended floor must be suitably strengthened.

3. You can adjust the level of machine using its feet.

4. First, loosen the plastic adjustment nut away from the

cabinet base.

5. Change the level by adjusting the feet upwards or down-

wards.

6. After level has been reached, tighten the plastic adjust-

ment nut again by rotating it upwards against the base of

the cabinet.

7. Never put cartons, wooden blocks or similar materials

under the machine to balance irregularities of the floor.

5.1.3. Electrical Connection

1. Washing machine requires a 50Hz supply of 220-

240Volts.

2. A special earthed plug has been attached to the supply

cord of washing machine. This plug must be fitted to an

earthed socket. The fuse value fitted to this plug should

be 13 amps. If you have any doubts about electrical sup-

ply, consult a qualified electrician.

THIS APPLIANCE MUST BE EARTHED.

Insert the machine’s plug to a grounded socket which

you can easily reach.

5.1.4. Water Supply Connection

1. The washing machine is supplied with a single (cold)

water inlet.

2. To prevent leakage from the connection joints, a rubber

washer is included in the hose packing. Fit this washer at

the end of water inlet hose on the tap side.

3. Connect the hose to the water inlet valve. Tighten the

plastic connector by hand. Please call a qualified plumber

if you are unsure about this.

4. Water pressure of 0,1-1 MPa from tap will enable

machine to work more efficiently. (0,1 MPa pressure

means water flow of more than 8 litres in 1 minute from a

fully opened tap)

5. After connection is complete, check for leakage by turning

on tap completely.

6. Make sure that water inlet hoses can not become folded,

damaged, stretched or crushed when the washing

machine is in its final position.

7. Mount the water inlet hose to a 3/4inch threaded water

tap.

5.1.5. Drain Connection

1. Make sure that water inlet hoses are not folded, twisted,

crushed or stretched.

2. The drain hose should be mounted at a minimum height

of 60 cm, and a maximum height of 100 cm from the floor.

3. The end of the drain hose can be connected directly to a

drainage stand-pipe or alternatively to a specific connec-

tion point designed for that purpose on the waste outlet of

a sink unit.

4. Do not extend the drain hose or guarantee will be invali-

dated.

5.2. Detergent Box Group

PREWASH = WATER ENTRY VALVE 1

MAIN = WATER ENTRY VALVE 2

SOFTENER = WATER ENTRY VALVE 1 + VALVE 2

6 Operating Instructions

6.1. LCD Screen, Function Buttons & Knobs

6.2. Program List

PR Program selector 16 programs including ON/OFF.

SW1 Switch 1, Start / Pause

SW2 Switch 2, Temperature Selection

SW3 Switch 3, Delay Time Function

SW4 Switch 4, Extra Rinse

PT PT speed potentiometer

LD1 Switch 1- Start/ Pause Led

LD2 Temperature Function Button Led

LD3 Delay Time Function Button Led

LD4 Extra Rinse Function Button Led

LD5 Spin Phase Led

LD6 Rinse Phase Led

LD7 Wash Phase Led

LD8 Child Lock Activation Led

LD9 Door Lock Led

LD10 Lack Of Water Indication Led

LD11 Pump Failure Indication Led

Knob Position Program

Pos1 Cotton

Pos2 Cotton + PW

Pos3 Cotton - Eco

Pos4 Coulors

Pos5 Easy-care

Pos6 Wool

Pos7 Rinse

Pos8 Drain

Pos9 Spin

Pos10 Sportswear

Pos11 Bedding

Pos12 Shirts

Pos13 Rapid 15’

Pos14 Quick

Pos15 15 °C Wash

Pos16 STOP

6.3. Program Details

NA-148VB3 NA-128VB3

NA-147VB3 NA-127VB3

* : Programme duration, Energy and Water Consumption are given for the cycles for programmes are started in set temperature.

WIT: Water Inlet Temperature

- : Programmes do not take water

• Temperature may vary depending on the heating time

• Durations may vary according to wash load (weight and type), tap water and ambient temperature and selected extra functions.

6.4. Program Details with Half Load Defection

NA-148VB3 NA-128VB3

NA-147VB3 NA-127VB3

Programmes Temperature Available

Temperature

Program

Duration (min)*

Energy

(kwh)*

Water

Consumption (L)*

Cotton 40 Cold - 90 120 0,92 58

Cotton Eco 60 Cold - 60 200 0,76 48

Cotton PreWash 40 Cold - 90 138 0,98 70

Easy Care 40 Cold - 60 85 0,60 55

Coulors 40 Cold - 40 100 0,91 48

Wool 30 Cold - 40 40 0,10 50

Quick 40 Cold - 60 68 0,48 38

Rapid 15 30 Cold - 30 15 0,10 30

15 °C Wash WIT WIT 100 0,21 42

Sports Wear 40 Cold - 40 100 0,63 42

Shirts 40 Cold - 60 80 0,60 45

Bedding 30 Cold - 40 65 0,28 57

Rinse WIT WIT 36 0,05 58

Spin - - 15 0,08 -

Drain - - 3 0,02 -

Programmes Temperature Available

Temperature

Program

Duration (min)*

Energy

(kwh)*

Water

Consumption (L)*

Cotton 40 Cold - 90 120 0,92 60

Cotton Eco 40 Cold - 90 138 0,98 69

Cotton PreWash 60 Cold - 60 200 0,80 45

Easy Care 40 Cold - 60 85 0,61 47

Coulors 40 Cold - 40 100 1,00 52

Wool 30 Cold - 40 40 0,11 45

Quick 40 Cold - 60 68 0,48 38

Rapid 15 30 Cold - 30 15 0,10 30

15 °C Wash WIT WIT 100 0,22 42

Sports Wear 40 Cold - 40 100 0,62 42

Shirts 40 Cold - 60 80 0,60 44

Bedding 30 Cold - 40 65 0,25 50

Rinse WIT - 36 0,05 58

Spin - - 15 0,08 -

Drain - - 3 0,02 -

Full Load / Half Load Programmes Programme Set

Temperature

Available

Temperature

Program

Duration (min)*

Energy

(kwh)*

Water

Consumption (L)

Full Load Cotton Eco 40 Cold - 60 198 0,72 48

Cotton Eco 60 Cold - 60 200 0,76 48

Half Load HL Cotton Eco 40 Cold - 60 160 0,64 42

HL Cotton Eco 60 Cold - 60 165 0,70 42

Full Load / Half Load Programmes Programme Set

Temperature

Available

Temperature

Program

Duration (min)*

Energy

(kwh)*

Water

Consumption (L)

Full Load Cotton Eco 40 Cold - 60 195 0,65 45

Cotton Eco 60 Cold - 60 200 0,78 45

Half Load HL Cotton Eco 40 Cold - 60 160 0,62 42

HL Cotton Eco 60 Cold - 60 165 0,66 42

Otros manuales para NA-148VB3

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Panasonic

Panasonic

Panasonic NA-FD10V1 Guía del producto

Panasonic

Panasonic NA-W1350T Manual de usuario

Panasonic

Panasonic NA-127VC5 Instrucciones de funcionamiento

Panasonic

Panasonic NA-140VS4 Instrucciones de funcionamiento

Panasonic

Panasonic NA-F130T1 Manual de usuario

Panasonic

Panasonic NA-F95AR1 Guía del producto

Panasonic

Panasonic NA-F953B Instrucciones de funcionamiento

Panasonic

Panasonic NA - 140VG3 Instrucciones de funcionamiento

Panasonic

Panasonic NA-106VC Instrucciones de funcionamiento

Panasonic

Panasonic NA-V11FX2 Manual de usuario

Panasonic

Panasonic NA-F100A9 Guía del producto

Panasonic

Panasonic NA-F70T1P Manual de usuario

Panasonic

Panasonic ECONAVI NA-FS20V5SRY Guía del producto

Panasonic

Panasonic NA-128VG5WAU Instrucciones de funcionamiento

Panasonic

Panasonic NA-107VC4W01 Manual de usuario

Panasonic

Panasonic NA-F70A9 Guía del producto

Panasonic

Panasonic NA-FS16V5 Guía del producto

Panasonic

Panasonic NA-107VC6 Manual de usuario

Panasonic

Panasonic NA-FS80X1 Manual de usuario

Panasonic

Panasonic NA-128VG6 Guía del producto

Panasonic

Panasonic NA-F80VS7 Guía del producto

Panasonic

Panasonic NA-148VB6WDE Manual de usuario

Panasonic

Panasonic NA-FS95G2 Guía del producto

Panasonic

Panasonic NA-168VX2 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario

Beko

Beko WKB 51231 PTMA Manual de usuario
