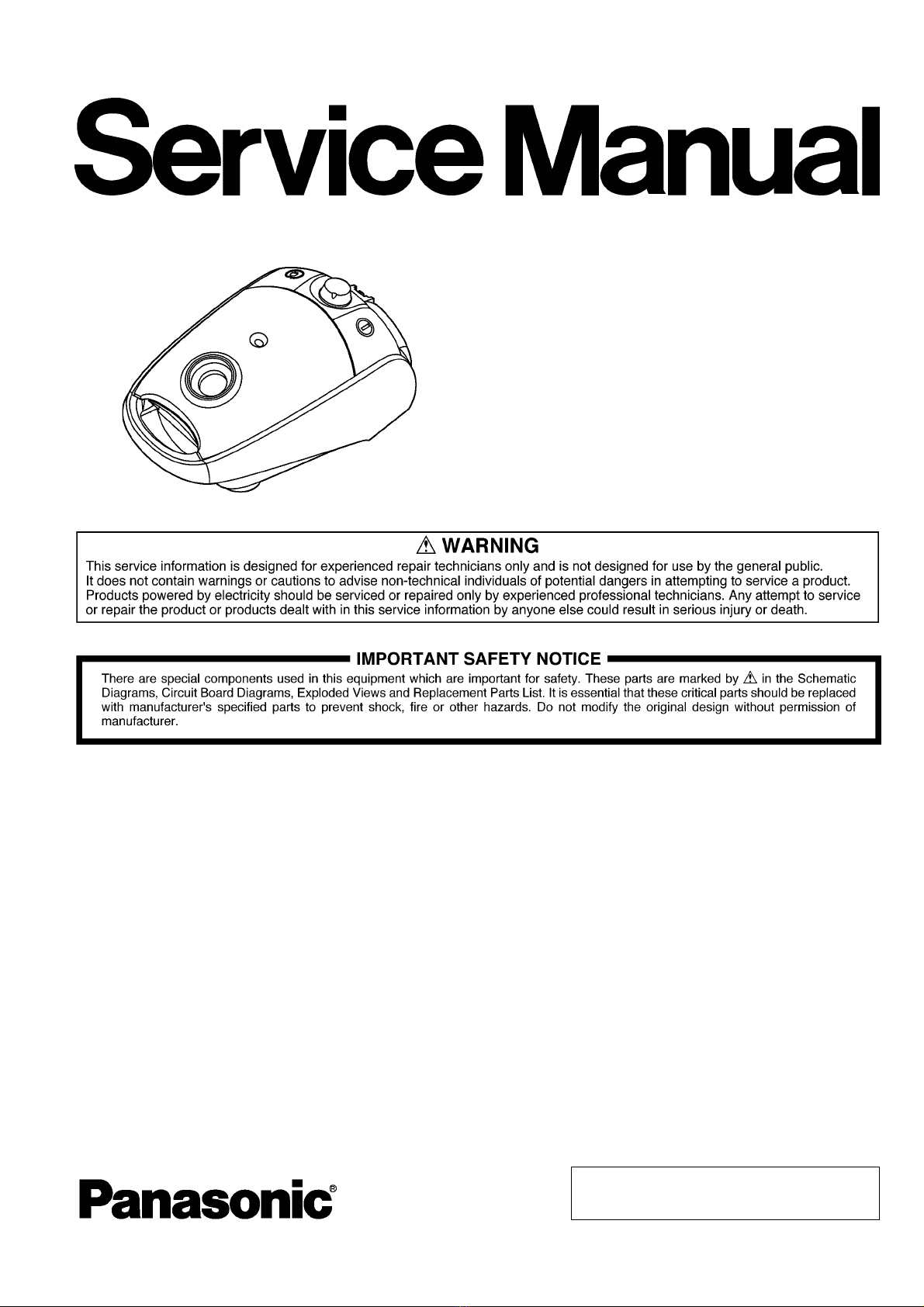

Panasonic MC-CG695-ZA76 Manual de usuario

Unauthorized copying and distribution is a violation

of law.

Order Number VCB0902001CE

Vacuum Cleaner

Model No. MC-CG695-ZA76

MC-CG695-ZC79

MC-CG695-ZC7A

MC-CG695K-ZP47

Product Color :Metallic Blue

Destination :Europe

TABLE OF CONTENTS

PAGE PAGE

1 Specifications ----------------------------------------------------- 2

2 Location of Controls and Components ------------------- 3

3 Troubleshooting Guide ----------------------------------------- 4

4 Disassembly and Assembly Instructions ---------------- 5

4.1. Dust box lid U removal ----------------------------------- 5

4.2. Separate the upper and lower body units ----------- 5

4.3. Separate the cord reel U and the body

partition U---------------------------------------------------- 6

4.4. Printed Circuit Board (PCB) AU removal ------------ 7

4.5. Motor removal ---------------------------------------------- 8

5 Wiring Connection Diagram ---------------------------------- 9

6 Exploded View and Replacement Parts List -----------10

6.1. EXPLODED VIEW (ATTACHMENTS) --------------10

6.2. PARTS LIST (ATTACHMENTS) ----------------------10

6.3. EXPLODED VIEW (BODY UNIT) -------------------- 11

6.4. PARTS LIST (BODY UNIT) ----------------------------12

6.5. PACKING INSTRUCTIONS----------------------------13

6.6. PACKING LIST--------------------------------------------14

1 Specifications

Model No. MC-CG695 MC-CG695K

Power source AC230V~50Hz AC240V~50Hz

Input power (MAX) 1300W

Power control O

Extension wand Telescopic

Floor nozzle O

Dimensions (W x L x H) 300×440×235

Cord length 7.0m

Net weight 5.0kg

Attachments (cleaning tools) Crevice nozzle/Upholstery nozzle/Dusting brush

2 Location of Controls and Components

3 Troubleshooting Guide

CONDITION CHECKPOINT METHOD OF INSPECTION CAUSE / REMEDY

Motor does not rotate. Power supply cord Check power supply cord continu-

ity. Check cord reel U electrical con-

tinuity.

If there is no continuity, replace

cord reel U.

Fuse (250V, 10A)

(above PCB)

Check for fuse meltdown.

Visual meltdown inspection:

• Investigate the cause of the

meltdown

1. Burnt-out motor, coil short

circuit

2. Lead wire short circuit (short)

3. Burnt printed circuit board

(PCB)

If there has been a meltdown,

remove the problem fuse and

replace the PCB AU.

Motor unit Check electrical continuity between

motor unit terminals.

If there is no electrical continuity,

replace the motor unit.

ON/OFF switch Turn the switch on and off to check

electrical continuity

If there is any abnormality, replace

the PCB AU.

Printed circuit board (PCB) AU Check that there are no internal

part abnormalities (burnt, melted,

split, etc.).

If there is any abnormality, replace

the PCB AU.

Triac

(inside the printed circuit board AU)

Perform the following examination

and check the triac.

If there is any abnormality, replace

the PCB AU.

Motor runs, but there is no suction. Paper dust bag, dust box, second-

ary filter

Check if the paper dust bag or the

dust box is full of waste.

Is there some blockage in the sec-

ondary filter?

If the paper dust bag is full, replace

it with a new one.

If the dust box or the secondary fil-

ter is full of waste or there is a

waste blockage, throw out the

waste and clean.

Hose, extension wand, floor nozzle Check if there are any blockages. If there is a blockage, remove it.

Excessive vibration, excessive

noise

Motor unit Check if dust has accumulated in

the motor unit.

(Dust and waste can enter the

motor unit if there is no secondary

filter.)

Check for dust and waste in the

motor unit, as well as the condition

of the filter, and replace if neces-

sary.

Motor power (suction power) does

not change.

Printed control board (PCB) AU Turn the power control knob and

check if the suction power can be

changed.

If there is any abnormality, replace

the PCB AU.

4 Disassembly and Assembly Instructions

Caution:

1. When disassembling, check the component fitting state and wirings. After repairing, always restore them to the original state.

2. Carefully handle the removed components, packing, etc. If they are damaged, then replace them with new ones.

3. After repairing, check that the components, etc., in the vicinity of the repaired sections are not damaged, the removed compo-

nents are in place, and the wirings are restored to the original state. Carry out the test run. Also check that the following

requirements are met.

• Insulation resistance

Must be 5 MΩor more when a DC voltage of 500 V is applied across the power plug and the motor core for one second.

• Dielectric strength

Must withstand an AC voltage of 1,250 V applied across the power plug and the motor core for one minute.

4. Do not alter the model, parts, or materials during repair.

5. If a wiring unit is supplied as a repair part, replace the whole unit with the new one instead of repairing or reconnecting the

broken portions only.

6. Insert/remove the fast-on terminals by pushing/pulling them straight out without jiggling them or applying unnecessary force.

4.1. Dust box lid U removal

1. Open the dust box lid U, insert a screwdriver between the

upper body and the area where the dust box lid U is

attached and move it in the direction of the arrow to

remove the dust box lid U from the upper body.

4.2. Separate the upper and lower

body units

1. Remove the four screws from the top of the body.

2. Remove the two screws on the rear side of the lower

body.

3. Remove the wheel supporter right and wheel supporter

left.

4. Remove the upper body.

4.3. Separate the cord reel U and

the body partition U

1. Remove the cord reel partition from the lower body.

2. Remove the two lead wire terminals.

*Pull the terminals out while holding down the termi-

nal lock release.

3. Slowly remove the plug from the body cover partition

stopper and release the pre-winding spring.

4. After inserting a screwdriver into the slit in the shaft and

turning 90 degrees to the left, pull the cord reel U away

from the body partition U.

*When assembling, carry out pre-winding for the

spring.

(The number of times to pre-wind is noted on the

metal plate.)

4.4. Printed Circuit Board (PCB) AU

removal

1. Remove the control terminal U, the power control and the

switch from the motor support cover U.

2. Remove the four screws affixing the motor support cover

3. Remove the motor support cover U and remove the PCB

AU.

4. Disengage the fast-on terminals of the two lead wires

connecting the PCB AU.

*Note:

When disengaging the fast-on terminals, pull straight

out without lateral movement while holding down the

lock release.

4.5. Motor removal

1. Remove the motor support rubber (rear) from the motor

support front.

2. Remove the two screws from the motor support front.

3. Remove the motor support front from the motor unit.

4. Remove the motor support rubber (front) from the motor

unit.

5. Remove the noise suppressor U from the motor unit.

6. Remove the two lead wires from the motor unit.

Note:

Make sure that the thermal protector is on the under-

side when setting the assembled motor into the lower

body.
