Panasonic KX-T7730 Manual de usuario

Quick Reference Guide

Model KX-T7730

Important Information

Proprietary Telephones

When using the KX-T7730, keep the following conditions in mind.

• If there is any problem, unplug the extension line and connect a known working phone. If

the known working phone operates properly, have the defective phone repaired by a

specified Panasonic Factory Service Centre. If the known working phone does not

operate properly, check the KX series Business Telephone Systems and the internal

extension wiring.

• Keep the unit away from heating appliances and electrical noise generating devices such

as fluorescent lamps and motors.

• The unit should be kept free of dust, moisture and vibration, and should not be exposed to

direct sunlight.

•

Do not use benzine, thinner, or any abrasive powder to clean the cabinet. Wipe it with a soft cloth.

• Do not disassemble this product. Dangerous electrical shock could result. The unit must

only be disassembled and repaired by qualified service technicians.

• Do not use any handset other than a Panasonic handset.

• Never attempt to insert wires, pins, etc, into the vents or other holes of this unit.

• When a failure occurs which exposes any internal parts, disconnect the telephone line

cord immediately and return the unit to a service centre.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR ANY TYPE OF MOISTURE.

THIS HANDSET EARPIECE IS MAGNETISED AND MAY RETAIN SMALL FERROUS OBJECTS.

IMPORTANT NOTICE:

Under power failure conditions, this telephone may not operate. Please ensure that a

separate telephone, not dependent on local power, is available for use in emergencies.

• This Class B digital apparatus complies with Canadian ICES-003.

Notes:

• In this manual, the suffix of each model number is omitted.

• For further information, refer to the Business Telephone System Manuals.

•

This product is intended to be connected to Panasonic KX series Business Telephone System.

Receiving Calls

Features List

Off-hookOutside (CO) Line button On-hook Feature number Talk

"Location of Controls" is shown on page 8.

Desired Function Operation

Calling

To set

To dial

personal speed dial no.

Redial

One-Touch

Dialling

Calling an

operator

Speed Dialling

(Personal)

To an extension To an external party

phone no.

extension no.

To program

To dial —assigned as a One-touch

dialling button

phone no.

desired no.

Speed Dialling

(System)

system speed dial no.

To dial

Making Calls

– 2 –

While on-hook

Handsfree

answerback

Picking up

a call

Group

Directed

Outside (CO) Line

extension no.

OPER

During a Conversation

Holding To retrieve a call at the holding extension

To retrieve an outside call from another extension

To retrieve a call on exclusive holdHolding

extension no. to an extension

Announce.

phone no. to an external party

Holding a call

exclusively

Transferring

a call

Features List

Desired Function Operation

To set

While hearing a busy tone

To call

If you hear callback ringing

Automatic

Callback Busy

When the Dialled Extension is Busy/No Answer

Receiver

Sender

To leave a notification

To cancel a notification

extension no.

To call back

To clear all notifications

receiver's

extension no.

Message

Waiting

Sender

While hearing a busy tone

Wait for an answer.

Call Waiting

Set

Cancel

To talk to the new party

While hearing the Call Waiting tone

Note: If the current call and new call are intercom calls, connection

with the new call is established as soon as you press the HOLD button.

Receiver

–3 –

Features List

Desired Function Operation

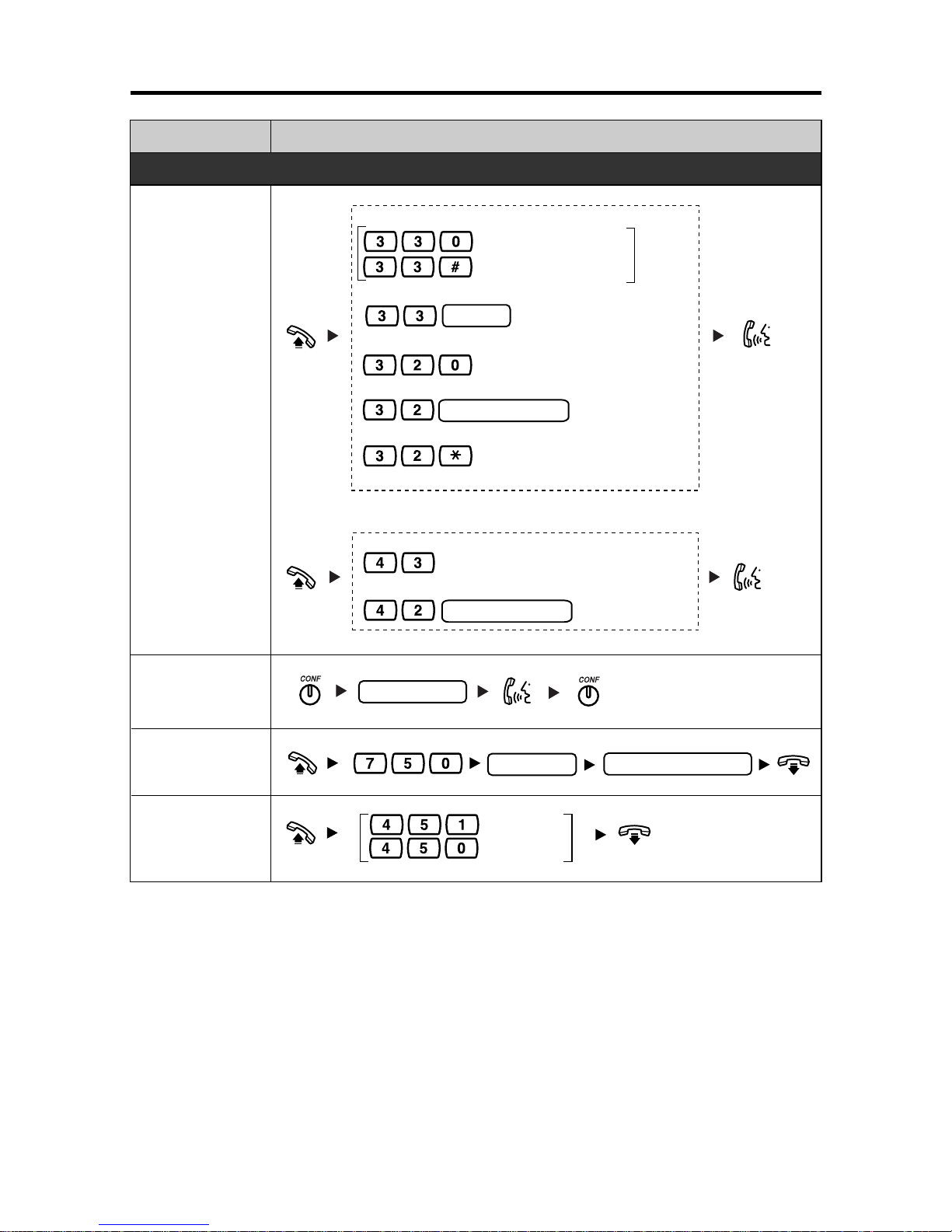

Useful Features

Paging

❑

KX-TD816/1232

❑

KX-TD500

(Check the type of your Main Unit.)

Announce.

All extensions

Group

All external speakers

All extensions & external speakers

group no.

To answer an announced page

Specific external speaker

external speaker no.

Through a telephone speaker

Through an external speaker

To page

third party's no.

Three-party

conference

Setting Absent

Message

message no. parameter (if required)

Log-In/Log-Out

For Log-In

For Log-Out

–4 –

Desired Function Operation

Useful Features

Do Not Disturb

(DND)

Busy

To an outside line

Cancel

No answer

Busy/No answer

extension no.

All calls

extension no.

Follow Me

your extension no.

Cancel Follow Me

your extension no.

phone no.

Forwarding

a call

Set

Cancel

line access

code

Locking your

extension

(Check the type of your Main Unit.)

❑

KX-TD500

Lock

Unlock

7 6

❑

KX-TD816/1232

lock code

Lock

Unlock

7 7

lock code

lock code lock code

Clearing the

setting 7 9 0

Consult your dealer for more details about the feature access numbers.

Some feature access numbers may be different in each market. Please consult your

local dealer for the details.

For KX-TD500 users, DN buttons cannot be assigned. *

–5 –

Features List

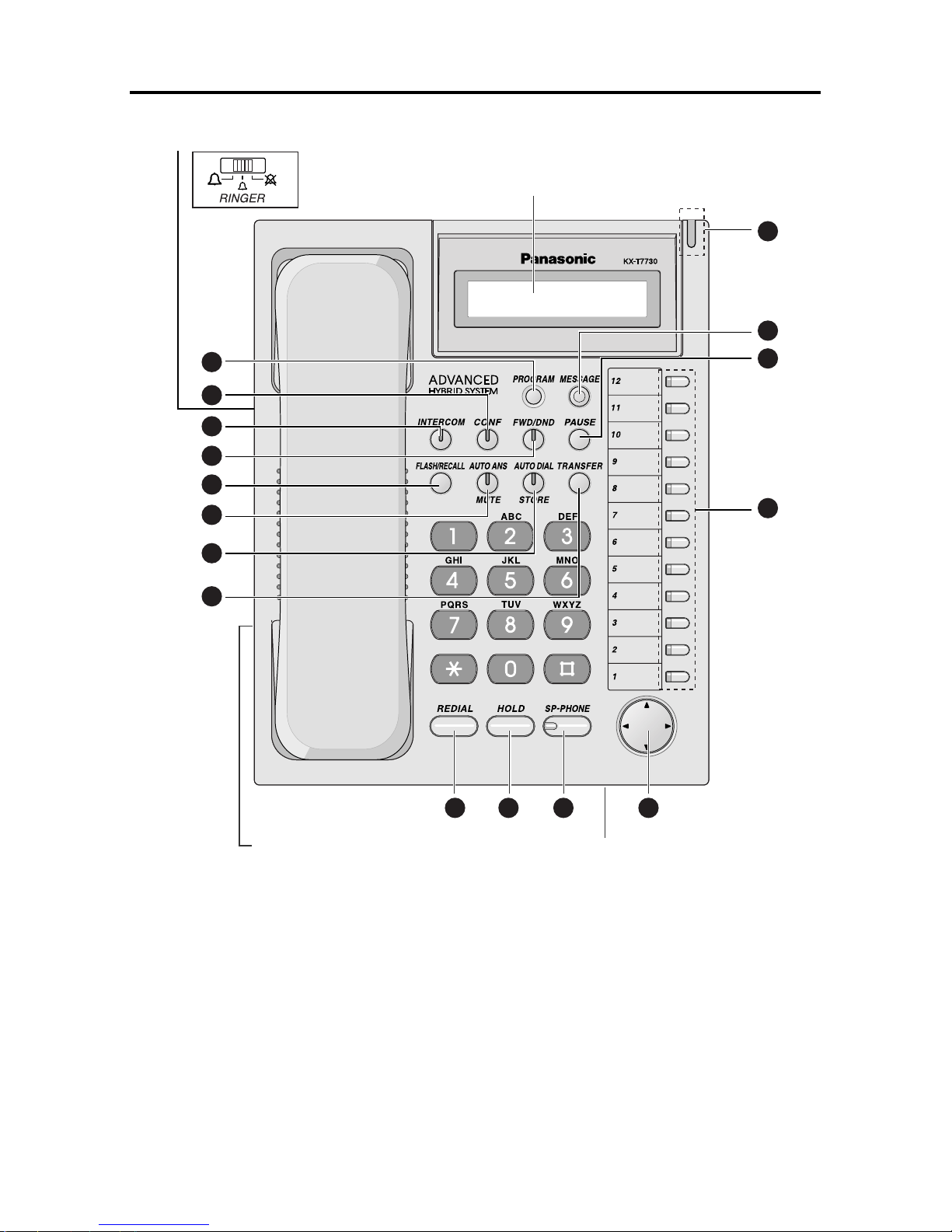

Location of Controls

*Headset (not included)

Headset Jack

LCD (Liquid Crystal Display)

RINGER Volume Selector

10 11

Microphone

OPER

–6 –

7AUTO DIAL/STORE: Used for speed

dialling or storing program changes.

8TRANSFER: Used to transfer a call to

another party.

9REDIAL: Used to redial the last dialled

number.

HOLD: Used to place a call on hold.

SP-PHONE:

Used for the handsfree

operation.

NAVIGATOR KEY: Used to

adjust the volume and the display contrast

or select desired items for each function.

PAUSE: Used to insert a pause during

dialling.

MESSAGE: Used to leave a message

waiting indication or call back the party

who left the message waiting indication.

Message/Ringer Lamp: The Message/

Ringer lamp informs you visually that you

have a message or a call.

•When you receive a call, the lamp flashes

depending on the ringing pattern. When

someone has left you a message, the

lamp is lit continuously.

•When the ringing pattern is set to Single

(Slow flash), Double (Moderate flash), or

Triple (Rapid flash) in your Business

Telephone System, the lamp flashes.

When the other ringing patterns are set in

your PBX, the lamp may not flash. (e.g.,

S-Double, Call Waiting Tone1).

Flexible Outside (CO) Line Button:

Used to make or receive an outside call.

Pressing this button seizes an idle outside

line automatically. (Button assignment is

required.) Also used as the desired

function buttons. (Button assignment is

required.)

6AUTO ANS (Auto Answer) : Used to

receive an incoming call in the hands-free

mode.

MUTE : Used to mute the microphone

during a conversation.

1PROGRAM: Used to enter and exit the

programming mode.

FWD/DND (Call Forwarding/Do Not

Disturb):

Used to perform Call Forwarding

or Do Not Disturb.

5FLASH/RECALL: Used to disconnect the

current call and make another call without

hanging up.

2CONF (Conference): Used to establish a

multiple party conversation.

3INTERCOM: Used to make or receive

intercom calls.

–7 –

Initial Settings

Speaker volume

Press SP-PHONE. Press Up or Down.

While in on-hook or during a conversation

Handset/Headset volume

Press Up or Down.

While using a handset or headset

Ringer volume

SPSP-PHONE

Display contrast

Press Left or Right.

While in on-hook or receiving a call

Slide the lever of the RINGER Volume Selector

to the desired setting (HIGH/LOW/OFF).

RINGER

*The above settings may return to default settings if the telephone line cord is

disconnected or the main unit's power is interrupted.

–8 –

Wall Mounting

1Pull down the handset hook until it locks,

so the tab holds the handset.

2Remove the attached stand.

3Mount the unit on the wall.

To temporarily place the handset down

during a conversation,

hook it over the top edge of the phone as

shown.

Connection

CAUTION

Ensure the cord is inserted in the groove

to prevent damage to the connector.

To the main unit ( )

The telephone line cord

(included)

< Back view>

TO MAIN UNIT

/PABX

Headset

–9 –
