PLEASE READ BEFORE USE AND SAVE.

Caller ID Compatible

Integrated Telephone System

Operating Instructions

Model No.

KX-TSC10FXW

Pulse-or-tone dialing capability

Thank you for purchasing your new Panasonic integrated

telephone.

For your future reference

Serial No. Date of purchase

(found on the bottom of the unit)

Name and address of dealer

Accessories

(included)

Caller ID, where available, is a telephone company service. After

subscribing to Caller ID, this phone will display a caller’s phone number.

Handset (p. 6)

one

Handset Cord (p. 6)

one

Telephone Line

Cord (p. 6)

one

Before Initial Use

Useful InformationBasic OperationPreparation Advanced Operation

Location of Controls. . . . . . . . . . 4

Display. . . . . . . . . . . . . . . . . . . . . 5

Settings . . . . . . . . . . . . . . . . . . . . 6

Installing the Batteries . . . . . . . . 6

Connecting the Handset/

Telephone Line Cord . . . . . . . . 6

Programming Summary . . . . . . . 7

Time and Date . . . . . . . . . . . . . . 8

Dialing Mode. . . . . . . . . . . . . . . 10

LCD Contrast . . . . . . . . . . . . . . 11

Ringer Volume . . . . . . . . . . . . . 11

Making Calls . . . . . . . . . . . . . . . 12

Answering Calls . . . . . . . . . . . . 13

Caller ID Service . . . . . . . . . . . . 13

Using the Caller List. . . . . . . . . 14

Viewing the Caller List . . . . . . . 14

Calling Back from the Caller

List . . . . . . . . . . . . . . . . . . . . . 16

Editing the Caller’s Phone

Number. . . . . . . . . . . . . . . . . . 16

Storing Caller List Information in

the Speed Dial List . . . . . . . . 17

Erasing Caller List

Information . . . . . . . . . . . . . . . 18

Speed Dialer . . . . . . . . . . . . . . 19

Storing Names and Phone

Numbers in Speed Dial List . . 19

Finding Stored Items . . . . . . . . 22

Dialing . . . . . . . . . . . . . . . . . . . 22

Editing . . . . . . . . . . . . . . . . . . . 23

Erasing . . . . . . . . . . . . . . . . . . . 24

Special Features . . . . . . . . . . . . 25

Temporary Tone Dialing

(For Rotary or Pulse Service

Users) . . . . . . . . . . . . . . . . . . 25

How to Use the PAUSE Button

(For PBX Line/Long Distance

Calls) . . . . . . . . . . . . . . . . . . . 25

FLASH Button . . . . . . . . . . . . . 26

Setting the Password . . . . . . . 27

Dial Lock . . . . . . . . . . . . . . . . . 28

Call Restriction . . . . . . . . . . . . 29

Wall Mounting . . . . . . . . . . . . . . 30

Battery Replacement . . . . . . . . 31

Troubleshooting . . . . . . . . . . . 32

Safety Instructions . . . . . . . . . . 34

Specifications . . . . . . . . . . . . . . 35

Preparation

Basic Operation

Advanced Operation

Useful Information

Contents

How to use the Navigator key

This key has four active areas indicated by arrows.

• Pressing the up and down arrows allows you to enter the

Caller List and select the function menu, the Caller List and

the Speed Dial List. The up and down arrows are also used

to adjust the receiver volume.

• Pressing the right and left arrows allows you to enter the

Speed Dial List and move the cursor when entering Speed

Dial items.

Throughout these Operating Instructions, the navigator key is indicated by

the arrows

[]

[FUNCTION/EXIT] Button (p. 7, 14, 19)

[CLEAR] Button (p. 16, 18, 23)

[ENTER] Button (p. 7, 17, 19)

[TONE] Button (p. 25)

[REDIAL/PAUSE] Button (p. 12, 25)

[FLASH] Button (p. 26)

[DIAL LOCK] Button (p. 28)

Display (p. 5)

Navigator Key

([ ], [ ], [ ], [ ])

(see below)

RINGER Selector (p. 11)

▼

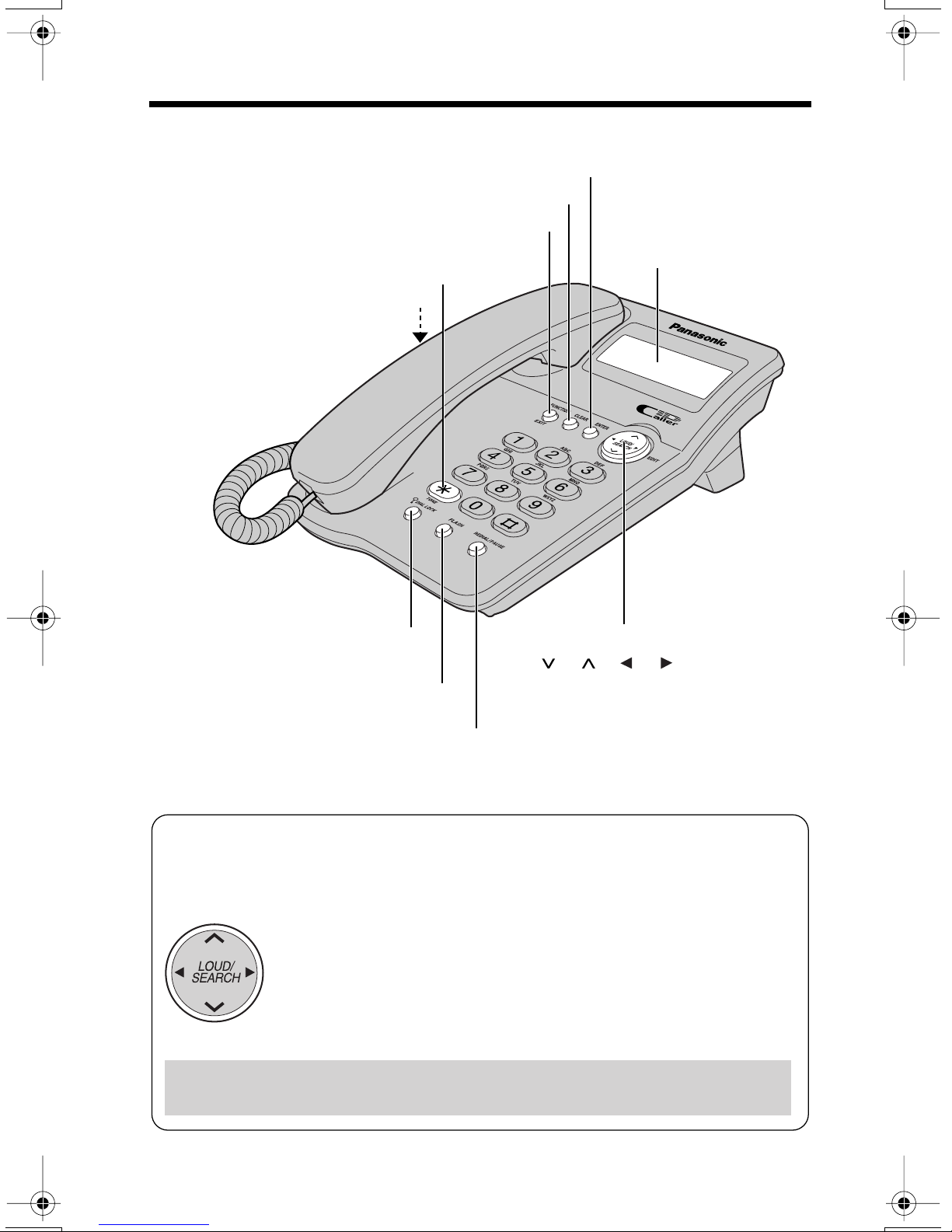

Location of Controls

Preparation

(This display shows all of the possible

conﬁgurations.)

While the unit is not in use, the display

shows the current time and date, and the

number of new calls.

If the display continuously shows “

12:00

1/1

”or “

0:00 1/1

”, the clock needs

adjustment (p. 8, 9).

During a conversation, the display shows

the length of the call (Ex. 1 hour, 6 minutes

and 35 seconds).

This is a display from the Caller List. The

display shows:

—the caller’s number,

—the time and date of the last call

(Ex. Nov. 24, 11:50 AM),

—the caller’s information is new and has

not been viewed (“

NEW

”is displayed),

and

—the number of times called (Ex. 3 times).

: The dial lock mode is set (p. 28).

: The unit enters in the Speed Dial List (p. 19).

[REDIAL/PAUSE]

was pressed while the handset is on the cradle

(p. 12).

: This display ﬂashes when the battery power is low. Replace the

batteries (p. 31).

[REDIAL/PAUSE]

was pressed while dialing or storing phone

numbers.

[FLASH]

was pressed while storing phone numbers.

1234567890123456

10 NEW CALLS

12:34

24/11

NO ITEMS STORED

12:00

1/1

01-06-35

12:34

24/11

1114447777

11:50

24/11

NEW x3

Display

Installing the Batteries

Press down in the direction of the arrow

and remove the cover ( ).

Install the batteries in the proper order

as shown ( ), matching the correct

polarity.

Close the battery cover.

•Batteries are not included in the unit.

•Install three high quality “AA”size Alkaline (LR6) or Manganese (R6, UM-3)

batteries. We recommend to use Alkaline batteries.

Battery life is: —about six months in use of Alkaline batteries.

—about three months in use of Manganese batteries.

Battery life may depend on usage conditions and ambient temperature.

Connecting the Handset/Telephone Line Cord

After connection, lift the handset to check for a dial tone.

•Use only Panasonic Handset for the KX-TSC10FXW.

•Use only the included telephone line cord.

•If your unit is connected to a PBX which does not support Caller ID services, you

cannot access those services.

The following features do not work without batteries.

—Display (p. 5) —Caller ID services (p. 13)

—Programming (p. 7) —FLASH button (p. 26)

—Memory redial (p. 12)

—Viewing/dialing the Speed Dial List while the handset is on the cradle (p. 22)

Telephone Line

Cord

To Single-Line

Telephone Jack

Handset Cord

Handset

Settings

Preparation

Programming Summary

You can program the following functions. The display shows the

programming instructions. See the corresponding pages for function

details.

Make sure that the handset is on the cradle.

During programming

* To select a desired function item, scroll through the items by pressing

[]

. Then press

[ENTER]

to go to the next step.

•You can exit the programming mode any time by pressing

[FUNCTION/EXIT]

•If you do not press any buttons for 60 seconds, the unit will exit the programming

mode.

Press

[FUNCTION/EXIT]

<Function menu>*

SAVE SPEED DIAL?

. . . . .To store names and phone numbers in

memory (p. 19).

SET CLOCK ?

. . . . . . . . . .To adjust the time and date (p. 8).

CHANGE PASSWORD?

. . . . .To change the password for the dial lock

and call restriction (p. 27).

CALL RESTRICT ?

. . . . . .To set the call restriction (p. 29).

SET FLASH TIME ?

. . . . .To select the ﬂash time (p. 26).

SET DIAL MODE ?

. . . . . .To select the dialing mode (p. 10).

LCD CONTRAST ?

. . . . . . .To select the LCD contrast (p. 11).

Settings

Time and Date

You can select AM/PM or 24-hour clock by programming.

Make sure that the handset is on the cradle.

Press

[FUNCTION/EXIT]

Scroll to “

SET CLOCK ?

”by pressing

[]

Press

[ENTER]

Enter the current year.

(Ex. To set 2002, enter “2002”.)

•You can set the year 2000 to 2099.

Press

[ENTER]

Enter the current time (hour and

minute) using a 4-digit number.

(Ex. To set 9:30, enter “0930”.)

•For AM/PM setting: Enter numbers

between 0100 and 1259.

•For 24-hour clock: Enter numbers

between 0000 and 2359.

Press

[ENTER]

•If numbers between 0000 and 0059, or

1300 and 2359 are entered, the time will

automatically be set using the

24-hour clock. Go to the step 10.

SET CLOCK ?

ENTER YEAR 0000

12:00

01/01

////

ENTER YEAR 2002

12:00

01/01

ENTER TIME

12:00

01/01

ENTER TIME

09:30

01/01

#=AM/PM

09:30 AM

01/01

Preparation

Press

[#]

to select “AM”, “PM”or 24-

hour clock.

(Ex. You select “PM”.)

•Each time you press

[#]

, the selection will

change on the display.

Press

[ENTER]

Enter the current day and month using

a 4-digit number.

(Ex. To set Dec. 27, enter “2712”.)

Press

[ENTER]

•The clock starts working.

•The display will return to step 2. To exit

the programming mode, press

[FUNCTION/EXIT]

or wait for

60 seconds.

•You can go back to the previous screen by pressing

[]

, when setting the time

and date (steps 2 through 10).

•If the time and date entered are not correct, “

ERROR

”will be displayed and you

cannot continue with setting. Enter the correct time and date.

If the batteries installed in the unit expired, the time and date will be shown as

“

12:00

1/1

”or “

0:00 1/1

”while talking or after the battery replacement.

Readjust the time/date.

For Caller ID service users (p. 13)

If a time display service is available with the Caller ID service:

The Caller ID information will re-set the clock after the ring if the adjusted time

and/or date is incorrect. However, if the time/date has not previously been set,

the Caller ID information will not adjust the clock.

#=AM/PM

09:30

01/01

Display

24-hour clock

(Blank display)

Option

ENTER DAY/MONTH

09:30

01/01

ENTER DAY/MONTH

09:30

27/12

STORED

▼

Settings

Dialing Mode

You can select the dialing mode by programming. If you have touch tone

service, set to Tone. If rotary or pulse service is used, set to Pulse.Your

phone comes from the factory set to Tone.

Make sure that the handset is on the cradle.

Press

[FUNCTION/EXIT]

Scroll to “

SET DIAL MODE ?

”by

pressing

[]

Press

[ENTER]

Select “

PULSE

”or “

TONE

”by pressing

[]

Press

[ENTER]

•The display will return to step 2. To exit

the programming mode, press

[FUNCTION/EXIT]

or wait for

60 seconds.

•You can exit the programming mode any time by pressing

[FUNCTION/EXIT]

SAVE SPEED DIAL?

SET DIAL MODE ?

:TONE

STORED

Tabla de contenidos

Otros manuales de Sistema telefónico de Panasonic

Panasonic

Panasonic KXFG2451 - B/W Thermal Transfer Manual de usuario

Panasonic

Panasonic DBS 576 Manual de usuario

Panasonic

Panasonic KX-TD1232NE Instrucciones de funcionamiento

Panasonic

Panasonic KX-TES824 Manual de usuario

Panasonic

Panasonic Easa-Phone VA-208 Manual de usuario

Panasonic

Panasonic EASA-PHONE KX-T123210 Manual de usuario

Panasonic

Panasonic KX-TA624 Especificaciones técnicas

Panasonic

Panasonic KX-TD816RUKX-TD1232RU Instrucciones de montaje

Panasonic

Panasonic KX-TDA600 - Hybrid IP PBX Control Unit Max. 1008... Manual de usuario

Panasonic

Panasonic VB-44210G Manual de usuario

Panasonic

Panasonic KX-T3186 Manual de usuario

Panasonic

Panasonic KX-TD816JT Instrucciones de funcionamiento

Panasonic

Panasonic KX-TS105BK Manual de usuario

Panasonic

Panasonic KX-TG5110M - 5.8 GHz DSS Expandable Cordless... Manual de usuario

Panasonic

Panasonic KX-TD208E Manual de usuario

Panasonic

Panasonic KX-TS105B Manual de usuario

Panasonic

Panasonic KX-TS2350CAB Manual de usuario

Panasonic

Panasonic Easa-Phone VA-30910 Manual de usuario

Panasonic

Panasonic KX-TS700B Manual de usuario

Panasonic

Panasonic KX-TA1232 Manual de usuario

Panasonic

Panasonic KXTS27W - PHONE-2 L Manual de usuario

Panasonic

Panasonic KX-TGP700 Manual de usuario

Panasonic

Panasonic KX-TA1232 Manual de uso y cuidado

Panasonic

Panasonic KX-TSC11AGW Manual de usuario

Manuales populares de Sistema telefónico de otras marcas

Teleco

Teleco Perfect Voice Tis 16 Manual de usuario

AT&T

AT&T Network Adapter 25 Manual de usuario

AVE

AVE AF902R-CE Manual de usuario

Tynetec

Tynetec Advent xt Manual de usuario

Ericsson

Ericsson DCT1800-S Manual de usuario

NEC

NEC Electra Elite 192 Manual de usuario

Alcatel

Alcatel EASY REFLEXES 4200 Manual de usuario

Bticino

Bticino PABX 28D Manual de usuario

NEC

NEC SL 2100 Manual de usuario

Sonifex

Sonifex Phone In 6 Manual de instrucciones

TransTel Communications

TransTel Communications TD-824i Instrucciones de montaje

Nortel

Nortel BCM50 Manual del producto

ASCOM

ASCOM TD 92375GB Manual del propietario

Karel

Karel MS26S Hoja de información del producto

EnGenius

EnGenius DuraFon PRO Manual de usuario

Teledat

Teledat X130 DSL Manual de usuario

SpectraLink

SpectraLink MOG400 Manual de usuario

LG-Nortel

LG-Nortel 300 Series Instrucciones de funcionamiento y seguridad
