Installation Guide

Home Network System

Window/Door Sensor

Model No. KX-HNS101

Thank you for purchasing a Panasonic product.

This document explains how to install the window/door sensor

properly.

For details about how to use the system, refer to the User’s Guide

(page 17).

Please read this document before using the unit and save it for future

reference.

For assistance, visit our Web site: www.panasonic.com/support

for customers in the U.S.A. or Puerto Rico.

Please register your product: www.panasonic.com/prodreg

Printed in China

Introduction

Accessory information ...............3

Important Information

About this system ......................4

For your safety ...........................4

Important safety instructions ......5

For best performance ................5

Other information .......................6

Setup

Part names and functions ..........8

About the LED indicator .............8

Setup overview ..........................8

Inserting the battery ...................9

Registering the window/door

sensor ........................................9

Changing the sensor type ........10

Wireless communication

range .......................................10

Temporary placement ..............11

Installation ...............................14

Appendix

Testing the window/door

sensor ......................................17

Features available when using the

[Home Network] app ................17

Accessing the User’s Guide ....17

Specifications ..........................18

FCC and other information ......19

Customer services ...................21

Warranty (For United States and

Puerto Rico) .............................22

Table of Contents

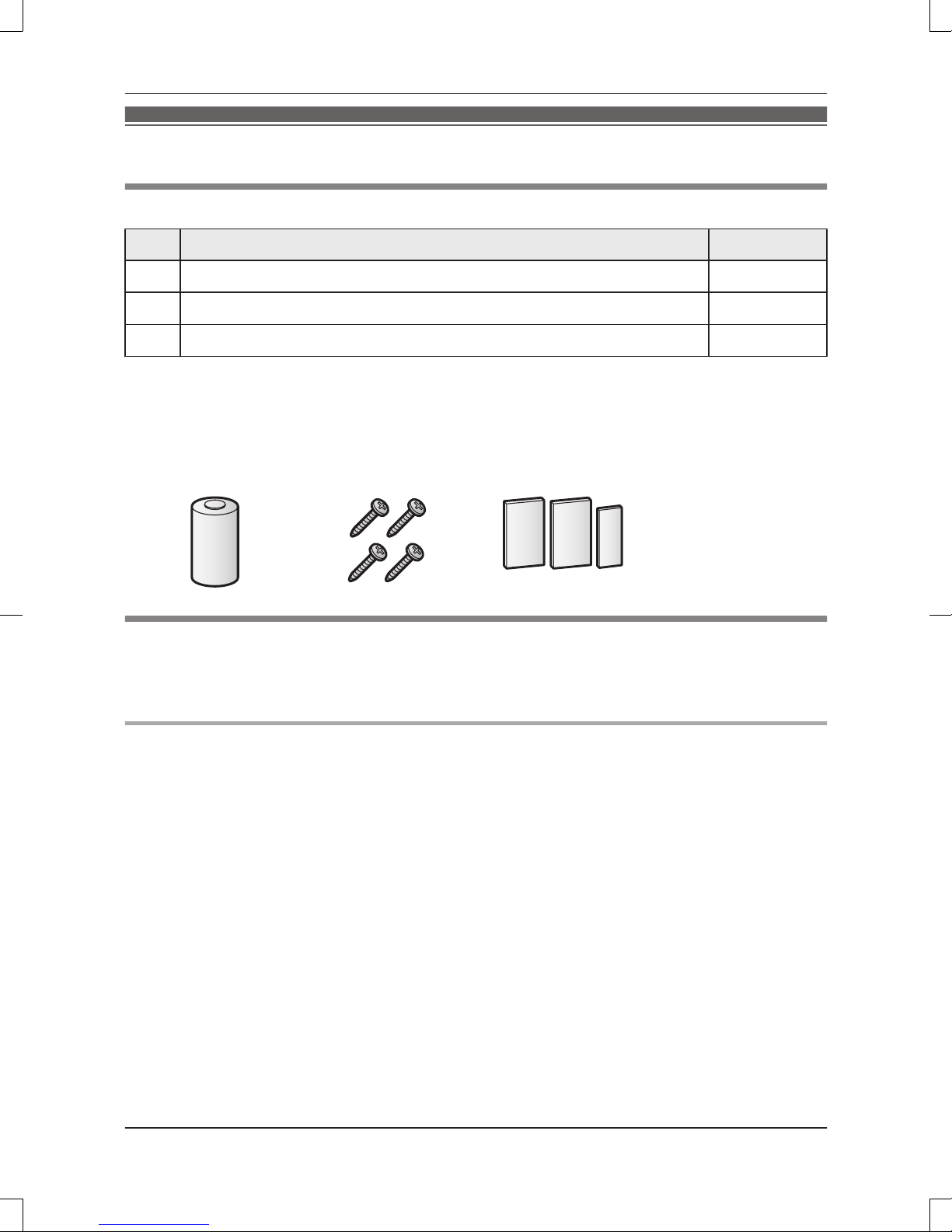

Accessory information

Supplied accessories

No. Accessory item/Part number Quantity

ABattery*1 1

BMounting screws (20 mm (25/32 inches))*2/XMM38+20VW 4

CMounting double-sided tapes*3 3

*1 When replacing the battery, see “Power source” of “Specifications”, page 18

for battery information.

*2 2 screws for the sensor unit and 2 screws for the magnet unit

*3 2 pieces of tape for the sensor unit: PNHS1620Z

1 piece of tape for the magnet unit: PNHS1621Z

A B C

Other information

RDesign and specifications are subject to change without notice.

RThe illustrations in these instructions may vary slightly from the actual product.

Trademarks

RiPhone and iPad are registered trademarks of Apple Inc.

RAndroid™ is a trademark of Google Inc.

For assistance, please visit www.panasonic.com/support 3

Introduction

About this system

This system is an auxiliary system; it is

not designed to provide complete

protection from property loss.

Panasonic will not be held responsible

in the event that property loss occurs

while this system is in operation.

For your safety

To prevent severe injury and loss of life/

property, read this section carefully

before using the product to ensure

proper and safe operation of your

product.

WARNING

Power connection

RUse only the power source marked

on the product.

RDo not connect non-specified

devices.

Installation

RTo prevent the risk of fire or

electrical shock, do not expose the

product to rain or any type of

moisture.

RDo not place or use this product

near automatically controlled

devices such as automatic doors

and fire alarms. Radio waves

emitted from this product may cause

such devices to malfunction

resulting in an accident.

RKeep small parts (magnet unit,

magnet unit cover, screws, etc.) out

of the reach of children. There is a

risk of swallowing. In the event they

are swallowed, seek medical advice

immediately.

Operating safeguards

RDo not disassemble the product.

Medical

RConsult the manufacturer of any

personal medical devices, such as

pacemakers or hearing aids, to

determine if they are adequately

shielded from external RF (radio

frequency) energy. DECT features

operate between 1.92 GHz and

1.93 GHz with a peak transmission

power of 115 mW.

RDo not use the product in health

care facilities if any regulations

posted in the area instruct you not to

do so. Hospitals or health care

facilities may be using equipment

that could be sensitive to external

RF energy.

CR Lithium battery

RDo not recharge, disassemble,

remodel, heat or throw it into fire.

RDo not touch the terminals and

with metal objects.

RRisk of explosion if battery is

replaced by an incorrect type.

Dispose of used battery according to

local regulations.

RIf any electrolyte should come into

contact with your hands or clothes,

wash it off thoroughly with water.

RIf any electrolyte should come into

contact with your eyes, never rub

your eyes. Rinse your eyes

thoroughly with water, and then

consult a doctor.

4For assistance, please visit www.panasonic.com/support

Important Information

CAUTION

General information

RDo not place magnetic cards or

similar objects near the sensor unit

and magnet unit. Magnetic data on

the cards, etc. may be deleted.

CR Lithium battery

RUse only the battery noted on

page 3.

RInsert the battery correctly.

RDo not leave the battery in an

automobile exposed to direct

sunlight for a long period of time with

the doors and windows closed.

RRemove the battery if you do not

use the product for a long period of

time. Keep it in a cool, dark area.

RDo not replace a battery with wet

hands.

RKeep out of the reach of small

children. There is a risk of

swallowing. If the battery is

swallowed, seek medical attention

immediately.

RRemove the battery if it becomes

unusable. There is a risk of leakage,

overheating, and rupture. Do not

attempt to use a battery if it is

leaking.

RExercise care when handling the

batteries. Do not allow conductive

materials such as rings, bracelets, or

keys to touch the batteries,

otherwise a short circuit may cause

the batteries and/or the conductive

material to overheat and cause

burns.

Important safety

instructions

When using your product, basic safety

precautions should always be followed

to reduce the risk of fire, electric shock,

and injury to persons, including the

following:

1. Do not use this product near water

for example, near a bathtub,

washbowl, kitchen sink, or laundry

tub, in a wet basement or near a

swimming pool.

2. Use only the batteries indicated in

this document. Do not dispose of

batteries in a fire. They may

explode. Check with local codes for

possible special disposal

instructions.

SAVE THESE INSTRUCTIONS

For best performance

Hub location/avoiding noise

The hub and other compatible

Panasonic devices use radio waves to

communicate with each other.

RFor maximum coverage and

noise-free communications, place

your hub:

– at a convenient, high, and central

location with no obstructions

between the product and hub in

an indoor environment.

– away from electronic appliances

such as TVs, radios, personal

computers, wireless devices, or

other phones.

– facing away from radio frequency

transmitters, such as external

For assistance, please visit www.panasonic.com/support 5

Important Information

antennas of mobile phone cell

stations. (Avoid putting the hub

on a bay window or near a

window.)

RIf the reception for a hub location is

not satisfactory, move the hub to

another location for better reception.

Environment

RKeep the product away from

electrical noise generating devices,

such as fluorescent lamps and

motors.

RThe product should be kept free

from excessive smoke, dust, high

temperature, and vibration.

RThe product should not be exposed

to direct sunlight.

RDo not place heavy objects on top of

the product.

RThe product should be kept away

from heat sources such as heaters,

kitchen stoves, etc. It should not be

placed in rooms where the

temperature is less than -10 °C

(14 °F) or greater than 40 °C

(104 °F). Damp basements should

also be avoided.

ROperating the product near electrical

appliances may cause interference.

Move away from the electrical

appliances.

Other information

CAUTION: Risk of explosion if battery

is replaced by an incorrect type.

Dispose of used batteries according to

the instructions.

Routine care

RWipe the outer surface of the

product with a soft moist cloth.

RDo not use benzine, thinner, or any

abrasive powder.

Information on Disposal in other

Countries outside the European

Union

123

These symbols (A, B, C) are only

valid in the European Union. If you

wish to discard these items, please

contact your local authorities or dealer

and ask for the correct method of

disposal.

6For assistance, please visit www.panasonic.com/support

Important Information

Notice

For assistance, please visit www.panasonic.com/support 7

Important Information

Part names and

functions

n Sensor unit

n Magnet unit

Sensor unit cover

M N

Used to confirm the status of the

sensor or register the sensor to

the hub.

LED indicator

Magnet unit cover

About the LED

indicator

You can press M N and check the

LED indicator to confirm the sensor’s

status.

Indicator Status

Green, lit Window/door is closed

Red, lit Window/door is open

Indicator Status

Red,

blinking

Sensor is out of range

of the hub

Green,

blinking

Registration mode

(You pressed and held

M N)

Off No battery power

Note:

RThe LED indicator does not indicate

sensor status if the sensor has not

been registered (page 9).

Setup overview

1Initial setup

Make sure you can access the

system using your mobile device.

For details, refer to the System

Setup Guide included with your

hub.

2Insert the battery

The window/door sensor is battery

powered.

3Registration

Required only if the window/door

sensor was purchased separately

(i.e., not as part of a bundle).

4Confirm the installation area

Read the information in this

document to confirm that the

desired installation area is suitable

to proper operation.

5Temporary placement

Temporarily place the window/

door sensor in the desired location

and confirm that it operates

properly (page 11).

6Installation

Install the window/door sensor on

the same position where proper

8For assistance, please visit www.panasonic.com/support

Setup

operation was confirmed

(page 14).

Inserting the battery

RUSE ONLY a CR2 Lithium battery.

RConfirm the polarities ( , ).

1Remove the sensor unit cover.

RLift from the indented area (A)

and open the sensor unit cover

(B).

2Insert the battery.

3Attach the sensor unit cover.

Registering the

window/door sensor

This procedure is not required for

devices that were included as part of

a bundle.

Before you can use the window/door

sensor, it must be registered to the hub.

If you purchased devices separately

(i.e., not as part of a bundle), you must

You can register each device by using

the registration buttons or the [Home

Network] app.

Using registration buttons

1Hub:

Press and hold M OTHER

DEVICEN until the LED indicator

blinks in green.

2Window/door sensor:

Remove the sensor unit cover and

press and hold M N until the

LED indicator blinks in green

(page 8).

RWhen registration is complete,

the hub sounds one long beep.

Note:

RTo cancel registration, press M N

on the hub and on the window/door

sensor.

RIf registration fails, the hub sounds

several short beeps.

Using the app

When you register the window/door

sensor by using the [Home Network]

app, you can assign a name to your

For assistance, please visit www.panasonic.com/support 9

Setup

devices and group them by location.

For more information, refer to the

User’s Guide (page 17).

Changing the sensor

type

You can select whether a window/door

sensor functions as a window sensor or

as a door sensor. For more

information, refer to the User’s Guide

(page 17).

Wireless

communication

range

The wireless communication range of

each device in the system from the hub

is approximately 50 m (160 feet)

indoors and approximately 300 m

(1,000 feet) outdoors. Wireless

communication may be unreliable

when the following obstacles are

located between the hub and other

devices.

RMetal doors or screens

RWalls containing aluminum-sheet

insulation

RWalls made of concrete or

corrugated iron

RDouble-pane glass windows

RMultiple walls

RWhen using each device on

separate floors or in different

buildings

Note:

RYou can check the window/door

sensor’s communication status by

pressing MN. If the LED indicator

is lit in green or red, the sensor is

communicating properly with the

hub. If the LED indicator blinks in

red, it is out of range of the hub.

10 For assistance, please visit www.panasonic.com/support

Setup

Otros manuales para KX-HNS101

Tabla de contenidos

Otros manuales de Sistema de seguridad de Panasonic

Panasonic

Panasonic AW-HS50 Series Manual de usuario

Panasonic

Panasonic VIDEOLARM PCF5 Hoja de instrucciones

Panasonic

Panasonic WV-PB5564E Manual de usuario

Panasonic

Panasonic VL-GC001A Instrucciones de funcionamiento

Panasonic

Panasonic BB-HGW700A - Network Camera Router Manual de usuario

Panasonic

Panasonic WV-SC386 Manual de usuario

Panasonic

Panasonic EBL128 Manual de usuario

Panasonic

Panasonic 2000 Manual de usuario

Panasonic

Panasonic Arbitrator-CP Manual de usuario

Panasonic

Panasonic Fire Alarm Systems Heat Detectors 6275 Manual de usuario

Panasonic

Panasonic BL-WV10 Manual de usuario

Panasonic

Panasonic 4414 Manual de usuario

Panasonic

Panasonic BL-WV10A Manual de usuario

Panasonic

Panasonic WJ-HDE400 Manual de usuario

Panasonic

Panasonic KX-HNS105 Manual de usuario

Panasonic

Panasonic AW-HE100 Manual de usuario

Panasonic

Panasonic WJ-NV200 Manual de usuario

Panasonic

Panasonic External Presentation unit 1728 Manual de lista de piezas

Panasonic

Panasonic External Presentation unit 1728 Manual de lista de piezas

Panasonic

Panasonic 4350 Manual de usuario

Panasonic

Panasonic A02-ACAM3KIT Manual de usuario

Panasonic

Panasonic KX-HNS105 Manual de usuario

Panasonic

Panasonic KX-HNB600 Hoja de especificaciones

Panasonic

Panasonic Alert annunciation unit 1736 Manual de lista de piezas

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
