Panasonic 2000 Manual de usuario

2000

Fire alarm solutions

technical description

CONTROL AND

INDICATING EQUIPMENT

EBLOne

www.panasonic-re-security.com

2000 - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

Table of Contents

1. INTRODUCTION 4

2. SAFETY INSTRUCTIONS 5

2.1. PERSONS 5

2.1.1. ORDINARY PERSON 5

2.1.2. INSTRUCTED PERSON 5

2.1.3. SKILLED PERSON 5

2.2. WARNINGS 6

3. GENERAL DESCRIPTION 7

3.1. OPTIONS 7

3.2. TOUCH SCREEN 9

3.3. ALARM PRESENTATION 9

3.4. CONTROL PANEL 9

3.5. USB 9

3.6. MAIN BOARD 10

3.7. CIE CHASSIS 11

3.8. BATTERIES 12

3.9. POWER SUPPLY 12

3.9.1. DISCONNECT DEVICE 13

4. CONNECTIONS IN THE CIE 14

4.1. INTERNAL CONNECTIONS 15

4.2. COM LOOP 15

4.2.1. EXAMPLE OF COM LOOP WIRING 16

4.3. PROGRAMMABLE VOLTAGE OUTPUTS (S1) 17

4.4. PROGRAMMABLE INPUTS (I1-I2) 17

4.4.1. USED AS GENERAL INPUT 17

4.5. RELAY OUTPUTS FOR ROUTING EQUIPMENT (TX) 18

4.5.1. FIRE ALARM OUTPUT 18

4.5.2. FAULT CONDITION OUTPUT 18

4.6. BALANCED INTERFACE FOR ROUTING EQUIPMENT 19

4.6.1. FIRE ALARM INTERFACE 19

4.6.2. FAULT CONDITION INTERFACE 19

4.7. POWER SUPPLY 24 V FOR GATEWAY 19

4.8. POWER SUPPLY OUTPUT 1 19

4.9. POWER SUPPLY OUTPUT 2 19

5. MOUNTING 20

5.1. WIRING 22

5.2. COMMISSIONING 22

6. INSTALLATION AND WIRING 24

6.1. WIRING OUTSIDE THE BUILDING 25

7. MAINTENANCE 26

2000 - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

7.1. DE-ENERGIZATION THE CIE 26

7.2. REMOVAL OF THE LCD MODULE 26

7.3. REPLACEMENT OF THE MAIN BOARD 27

7.4. REPLACEMENT OF BATTERIES 27

7.5. REPLACEMENT OF THE LCD MODULE 28

7.6. REPLACEMENT OF POWER SUPPLY 29

7.7. START UP THE CIE 29

8. TROUBLESHOOTING 30

8.1. EARTH FAULT 30

9. TECHNICAL DATA 2000 31

10. APPROVALS 32

2000 - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

1. INTRODUCTION

This document describes the control and indicating equipment (CIE), type number 2000.

The document contains information about the product and instructions on how to mount and connect it.

Article no Product name

2000 EBLOne

2000K EBLOne with key

2000 - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

2. SAFETY INSTRUCTIONS

This chapter describes precautions that must be followed to reduce the likelihood of pain, injury and, in the case of re, property

damage.

2.1. PERSONS

2.1.1. ORDINARY PERSON

An ordinary person – as not instructed or skilled – may have access to the location of this equipment and might also be expected to

investigate and initially respond to a re alarm or fault warning.

An ordinary person must not have access to operate the CIE.

This equipment is not suitable for use in locations where children are likely to be present.

2.1.2. INSTRUCTED PERSON

An instructed person - a person who have been instructed and trained by a skilled person, or who are supervised by a skilled per-

son.

An instructed person have access to the buttons on the touch screen and the menu system. The access is given by entering a pass-

word (six digits). For EBLOne with article no. 2000K, access to the buttons on the touch screen is also given with a re brigade key.

An instructed person must not dismount the cover of the CIE.

National regulations must be followed.

2.1.3. SKILLED PERSON

A skilled person has the training and experience in the equipment technology, particularly in knowing the various energies and

energy magnitudes in the equipment. Skilled persons are expected to use their training to take action for protection from injury from

those energies.

Only a skilled person may have access to the CIE when the cover is dismounted.

Only a skilled person may connect and deploy the CIE.

National regulations must be followed.

1. Touch screen

2. Cover

3. Key, only to article no. 2000K

2000 - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

2.2. WARNINGS

Element Description Markings / Instructions

1Caution! Risk of electric shock. Dangerous voltage. Make sure to disconnect the equipment from the mains power

supply before removing the cover of CIE.

2NOTE! Protective earth (ground). Make sure to connect the protective earth conductor when installing the CIE.

Caution! Risk of explosion if batteries are replaced by incorrect type.

See 3.8. BATTERIES on page 12.

4Caution! Risk of electric shock. Make sure to disconnect the terminal block J2 for the backup

batteries before touching anything in the CIE. CAUTION!

Caution! Risk of electric shock. Long cable cores should be safely secured, not to touch high/low voltage parts if

becoming loose from its terminal.

For example; secure with a cable tie. CAUTION!

6Caution! Hot parts! Risk of burned ngers when touching hot electrical components.

Do not touch any electrical components when the unit is powered. CAUTION!

2000 - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

3. GENERAL DESCRIPTION

The control and indicating equipment is a unit, to which the alarm points are connected via the COM loop. It indicates re alarm,

fault condition, and so on. EBLOne can have up to 253 addresses, and up to 253 alarm points.

The unit is intended for indoor use and in dry premises.

EBLOne conforms to the European standard EN54, part 2 and 4.

3.1. OPTIONS

EN 54-2 options with requirements Clause in EN 54-2:1997/A1:2006

Output to re alarm devices 7.8

Output to re alarm routing equipment 7.9.1

Delays to outputs 7.11.1 b) + c) + d) + e) + f)

Dependencies on more than one alarm signal (Type B) 7.12.2

Alarm counter 7.13

Fault signals from points 8.3

Output to fault warning routing equipment 8.9

Test condition 10

Standardized input/output interface 11

2000 - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

(Measures in mm)

1. CIE cover top

2. LCD

3. CIE front

4. CIE cover bottom

2000 - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

3.2. TOUCH SCREEN

The display is a colour touch screen.

Data:

• Display size: 7.0”

• TFT Screen LCD type

• Capacitive display

• Resolution: 1024 x 600 RGB

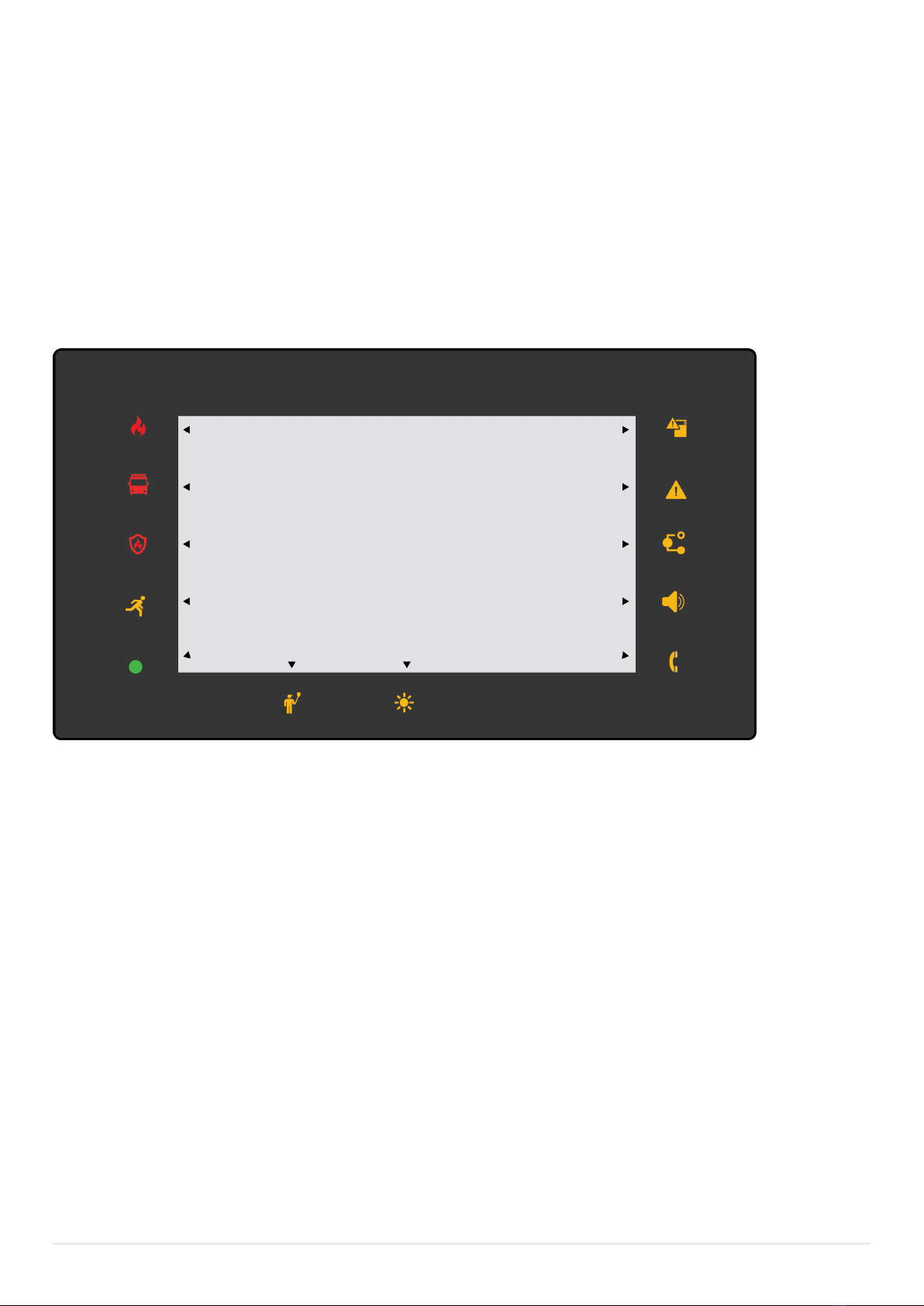

There are 12 status LEDs integrated in the display module:

Fire System Fault

Fire brigade tx activated Fault

Fire protection equipment activated Disablement

Evacuation activated

Fire brigade tx delay

Alarm device

Fault/Disablement

Operation Test Mode Fire brigade tx

Fault/Disablement

In case of no re alarms, faults, disablements or test condition, the touch screen will go into sleep mode after 2 minutes.

3.3. ALARM PRESENTATION

In case of re alarms the re brigade personnel are able to see which alarm point/points having activated re alarm and to take

required operating control of the system.

The information displayed in the upper part is depending on how many alarm points having activated re alarm. In the middle part

will the re alarms be shown, one alarm point together with an user denable alarm text (if programmed).

3.4. CONTROL PANEL

The touch screen is also used for CIE operations such as commissioning, monthly test and maintenance. To get access to operate

the CIE, a user name and password is required. Up to ten user names can be used for three different user level types.

A password (six digits) for each user name is required.

See EBLOne Operating instructions for more information about status LEDs, alarm presentation and the control panel.

3.5. USB

The CIE is equipped with an USB interface (Type C), used for PC connection.

2000 - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION

3.6. MAIN BOARD

For more information on J1 – J8, see chapter 4. CONNECTIONS IN THE CIE on page 14.

1. J13, RS232 for Gateway

2. J12, 24V for Gateway

3. J1, 24V from power supply

4. J2, batteries

5. J4, COM Loop

6. J5, 24V for external units

7. J6, S1

8. J7, I1 and ATX

9. JP1

10. J8, I2 and FTX

11. JP2

12. J11, Optional Key

13. JP3, Buzzer enabled (must be jumpered)

14. JP5, Boot

15. J14, USB port (USB 3.1 type C)

16. J9, Connector for LCD
