Panasonic EP-MA10 Manual de usuario

EP-MA10 ORDER NO. HPD1008U17CE

-1 -

MASSAGE LOUNGER

EP-MA10

USA

CANADA

SPECIFICATIONS

©2010 Panasonic Electric Works Co., Ltd.

All rights reserved. Unauthorized copying

and distribution is a violation of law.

EP-MA10 ORDER NO. HPD1008U17CE

-2 -

Contents PAGE

1 SPECIFICASTIONS………………………………………………………………………………………………………………………3

2 TURNING ON THE POWER……………………………………………………………………………………………………………6

3 REQUIRED TOOLS………………………………………………………………………………………………………………………7

4 DISASSEMBLY……………………………………………………………………………………………………………………………8

5 CHECKING………………………………………………………………………………………………………………………………38

6 AIR BAG PRESSURE…………………………………………………………………………………………………………………42

7 SECRET MODE…………………………………………………………………………………………………………………………44

8 EXPLODED VIEW………………………………………………………………………………………………………………………50

9 REPLACEMENT PARTS LIST…………………………………………………………………………………………………………55

EP-MA10 ORDER NO. HPD1008U17CE

-3 -

1.COMPONENTS IDENTIFICATION

1. MASSAGE LOUNGER 1

EP-MA10 ORDER NO. HPD1008U17CE

-4 -

1.2 CONTROLLER

EP-MA10 ORDER NO. HPD1008U17CE

-5 -

EP-MA10 ORDER NO. HPD1008U17CE

-6 -

2. TURNING ON THE POWER

1. Plug the power into power socket.

2. Turn the lock switch to the open position.

3. Turn on the power switch on the power source switch box.

･When the operating lock switch is pointing toward ‘lock’, the power switch cannot be moved to the ‘on’ position.

Timer

When the on/off button is pushed, a timer begins to prevent overuse. After approximately 15 minutes, time expires and the

massage wheel goes into storage position.

After each use

･Be sure to turn the power switch to ‘off’.

･To prevent children from using this unit, lock the power switch by moving the operating lock

switch to the ‘lock’ position.

･As a further caution, unplug the power cord from the power socket after each use.

EP-MA10 ORDER NO. HPD1008U17CE

-7 -

3. REQUIRED TOOLS

EP-MA10 ORDER NO. HPD1008U17CE

-8 -

4. DISASSEMBLY

4.1. Disassembling Rear Cushion and Armrest

1.Unhook two hooks on each side by slotted

screwdriver, etc.

2.Remove two Hexagonal bolts. Unscrew four

hexagonal bolts on the Controller stand.

3.Remove Armrest by lifting up theArmrest.

EP-MA10 ORDER NO. HPD1008U17CE

-9 -

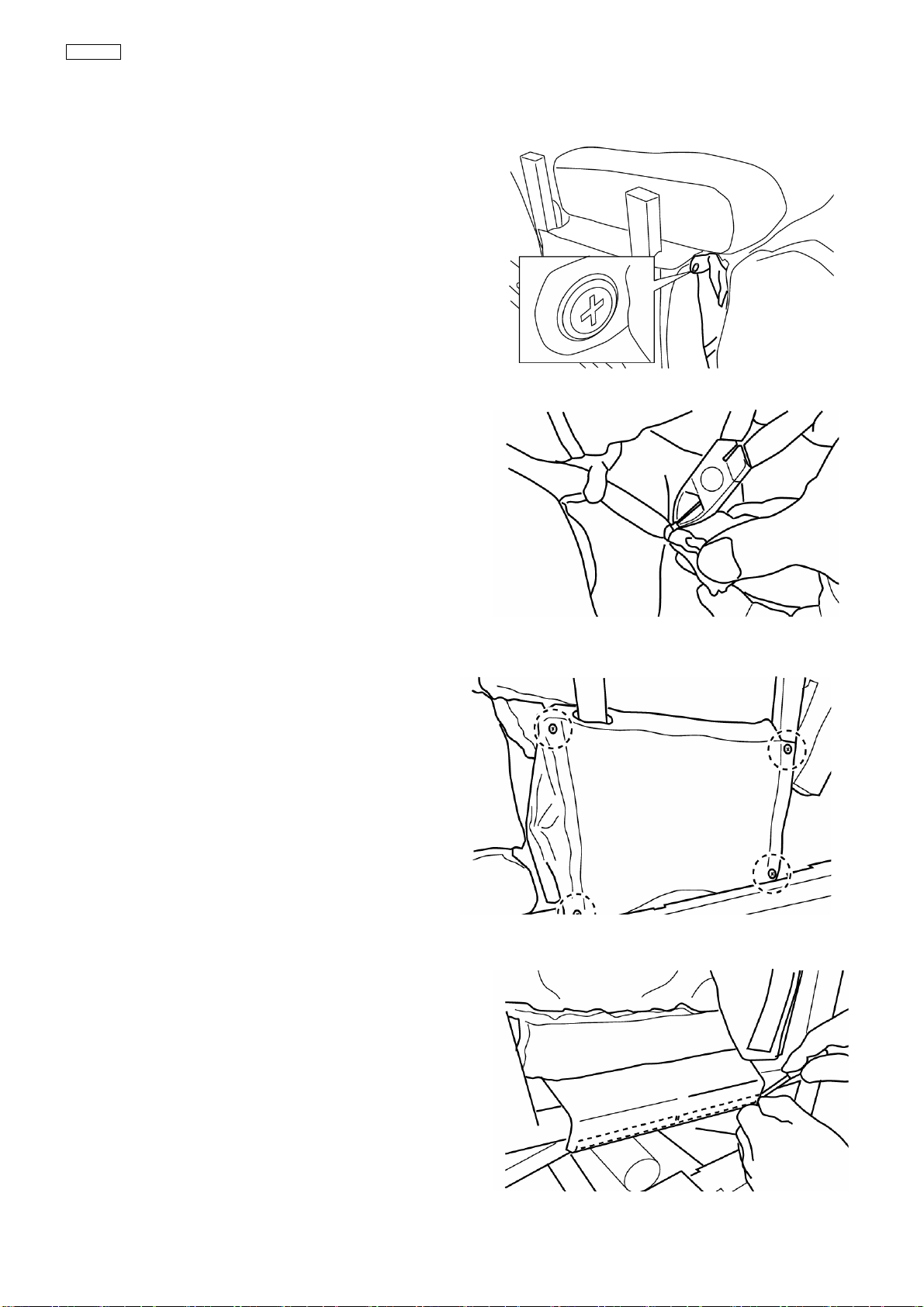

4.2. Removing the Seat

1.Proceed all the procedures of ４.1 Removing the Armrest.

2. Remove each Push-turn rivet.

3. Pull out the zippers out, cut the Cable tie, and open the

zippers which connect the Seat with the Ottoman.

4. Unscrew four screws which fit left and right Covers.

5. Unhook left and right hooks.

EP-MA10 ORDER NO. HPD1008U17CE

-10 -

6. Cut the Cable ties which connect with the right Seat

sensor cords of the Seat. Disconnect Connectors.

4.3. Removing the Ottoman

１．Execute all the procedures of 4.1 Removing the Armrest.

2. Execute all procedures of 4.2 Removing the Seat.

3. Cut five Cable ties.
