Introduction

You can select the Classic view of Control Panel or the Classic Start menu. You can also change the way a user logs on or off.

This manual explains using the Windows Vista default setting (not Classic view or Classic Start menu etc.).

User Account Control

User Account Control is a security component of Windows Vista to stop unauthorized changes to your computer.

The User Account Control message will pop up every time you try making an important change to your computer.

If the message “Check your computer security” is displayed

Select icon on the notification area and make the appropriate settings. The Windows Security Center regularly gives

you notice so that you can make the optimum settings. This is not an error message and you can use the computer. How-

ever, making appropriate measures is recommended to reduce the risk of virus and other attacks.

Windows Update

You can update to the latest patches and service packs for Windows with the following menus.

(Start) - [All Programs] - [Windows Update]

Do not apply “Driver Updates” even if a message to update a driver appears. If a driver update is required, con-

tact your technical support office.

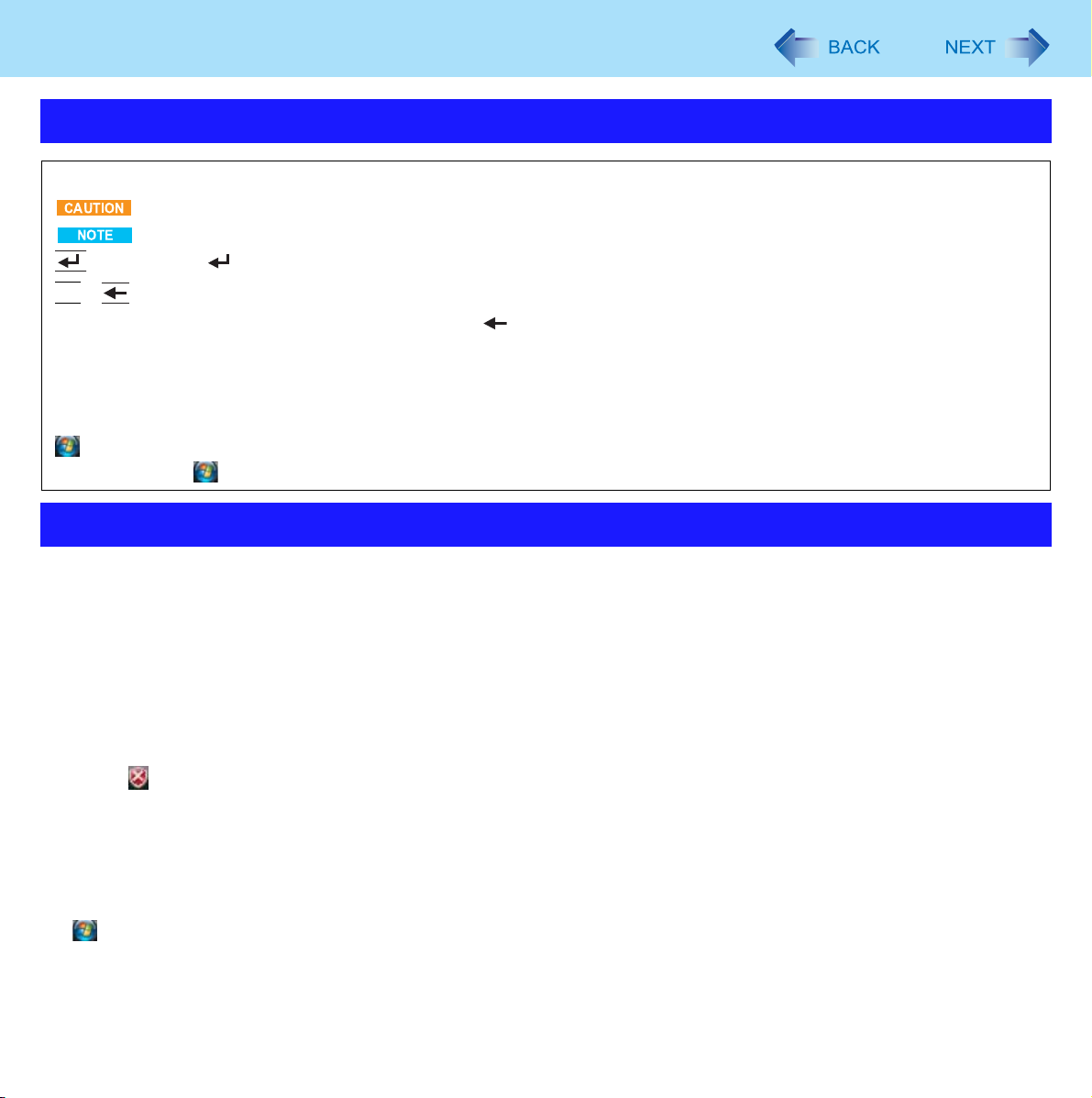

Terms and illustrations in this manual

Regarding Windows Vista

Î: Page in this Manual.

: Conditions that may result in minor or moderate injury.

: Useful and helpful information.

: Press [ ] (Enter) key.

+ (Del):

Press and hold [Fn] key, and then press [ ] (Del) key.

This manual explains key operations based on QWERTY keyboard model.

When the key combinations differ in using Numeric keyboard model, see the footnote.

Click : Touch the screen with the stylus.

Right-click

Touch and hold with the stylus, or touch and select the right button of “touch pointer”.

(Start) - [All Programs] :

Click (Start), and then click [All Programs].

Introduction

zSound (e.g. MP3, WMA) and video (e.g. MPG, WMV) recorded in SD Memory Cards may be interrupted during playback.

If this happens, copy them to the flash memory drive and play back.

zSound and video in AVI files may be interrupted or produce a time-lag during playback. If this happens, click or on

the notification area, and click [High performance]. This may remedy the problem.

zDepending on the processing status on Windows, sound may be interrupted at Windows startup. You can mute the sound

at startup.

ARight-click the desktop and click [Personalize] - [Sounds].

BRemove the check mark from [Play Windows Startup sound], and click [OK].

If high-frequency sound occurs while using the computer

This symptom is mitigated by changing the settings for the USB power saving function.

• Set [USB selective suspend setting] to [Enabled].

AClick (Start)- [Control Panel] - [System and Maintenance] - [Power Options].

BClick [Change plan settings] of the current power plan.

CIn [Change settings for the plan], click [Change advanced power settings].

DIn [Advanced settings], double-click [USB settings].

EDouble-click the displayed [USB selective suspend setting].

FChange settings of [On battery] and [Plugged in] to [Enabled].

GClick [OK] and exit the [Advanced settings] screen.

Sound and Video

Key Combinations

NOTE

zDo not repeatedly press the keys in quick succession.

zDo not use the key combinations together with touchscreen or other key operations.

zDo not use the key combinations before you log on to Windows. Wait until the flash memory drive indicator turns

off. On the Setup Utility screen, you can use the key combinations of “LCD brightness” and “Display switching”.

zThe key combinations may not work with some applications.

zThe pop-up icon appears after logging on to Windows. It may not appear in some application conditions.

QWERTY key-

board model

Numeric key-

board model

Function Pop-up icon

()

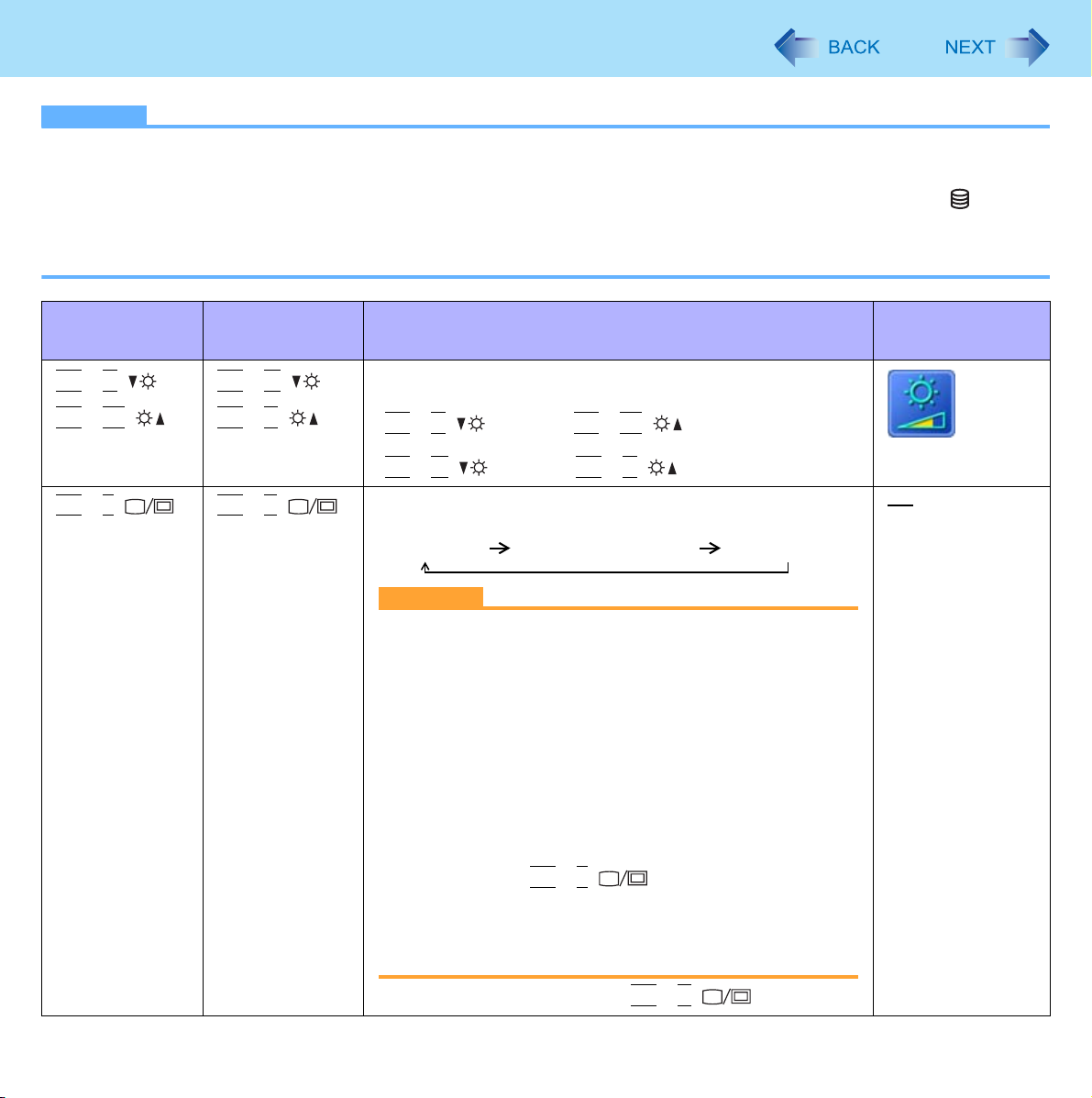

LCD brightness

(

( ) = down /

()=up)

(

( ) = down /

()=up)

()

Display switching (Îpage 54)

(When an external display is connected)

Internal LCD Simultaneous display External display

CAUTION

zDo not press any keys until the display has finished

switching.

zDo not use this function:

• When an external display is not connected.

• When playing motion video such as DVD or MPEG.

• When using the Extended Desktop.

• When operating on the Fast User Switching

display, and on the display in the process of

returning to the normal desktop from Screen Saver

with a password, or from Sleep/Hibernation.

zUntil Windows startup is completed (during Setup

Utility, etc.), the simultaneous display cannot be used

and pressing

()

*1 switches the display

between the internal LCD and the external display.

zWhen the display cannot be switched, right-click on

the desktop and click [Graphic Properties] to select

the display.

*1 For Numeric keyboard model :

()

Key Combinations

()

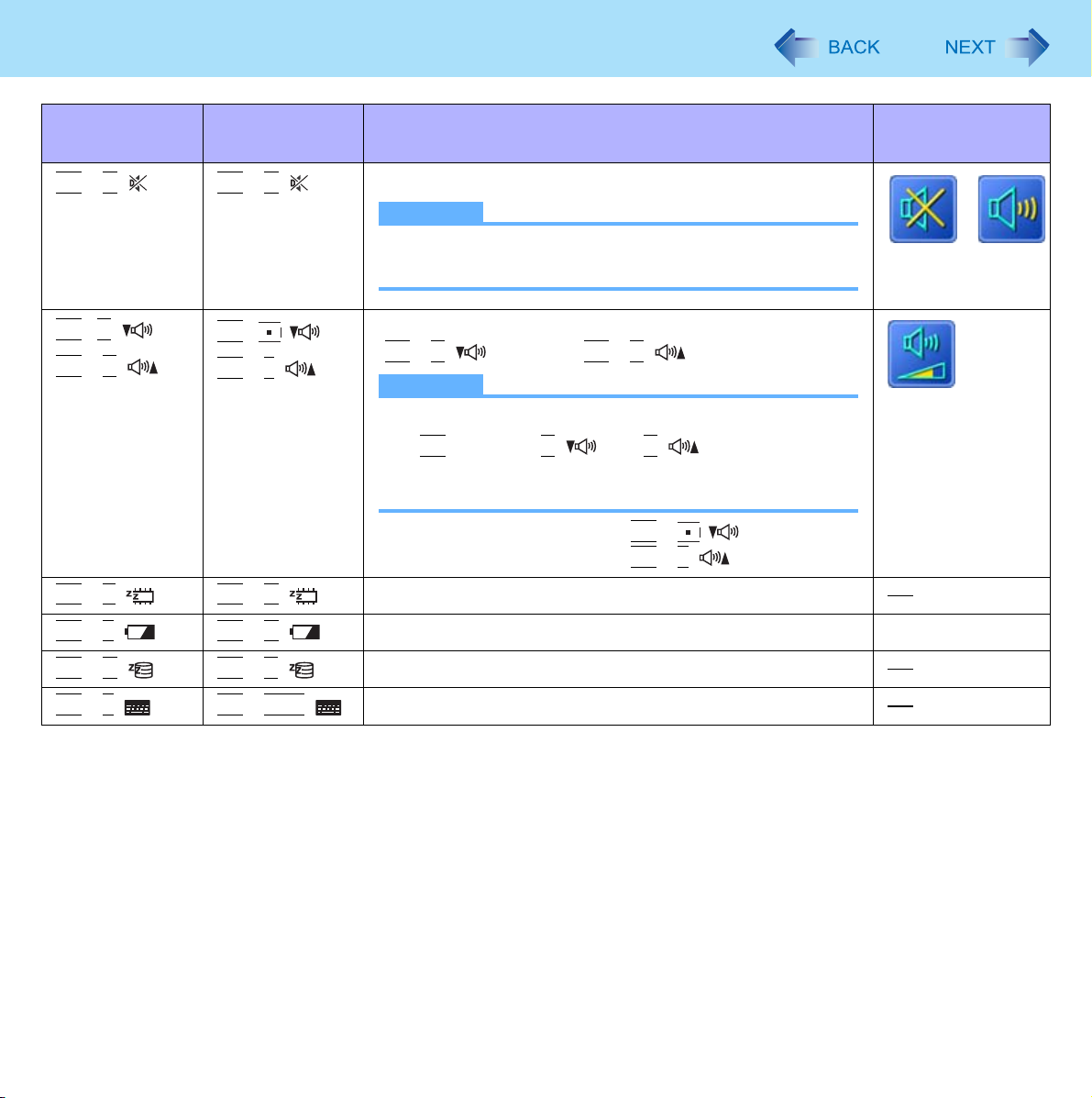

() Speaker on/off

NOTE

zBeeps do not sound if you turn off the speaker

sound. OFF

(MUTE)

()

+ ( )

()

Volume

(

()

*2 = down /

()=up)

NOTE

zWhen fine-tuning the sound volume, press and hold

, and press

()

*2 or

()

*3 intermittently.

zThis does not work on beeps or speakers connected

to the USB port.

*2 For Numeric keyboard model :

+ ( )

*3 For Numeric keyboard model :

()

() Activate sleep (Îpage 20)

()

() Remaining battery charge (Îpage 28)

()

() Activate hibernation (Îpage 20)

()

Ctrl

() Light up the keyboard

QWERTY key-

board model

Numeric key-

board model

Function Pop-up icon

Key Combinations

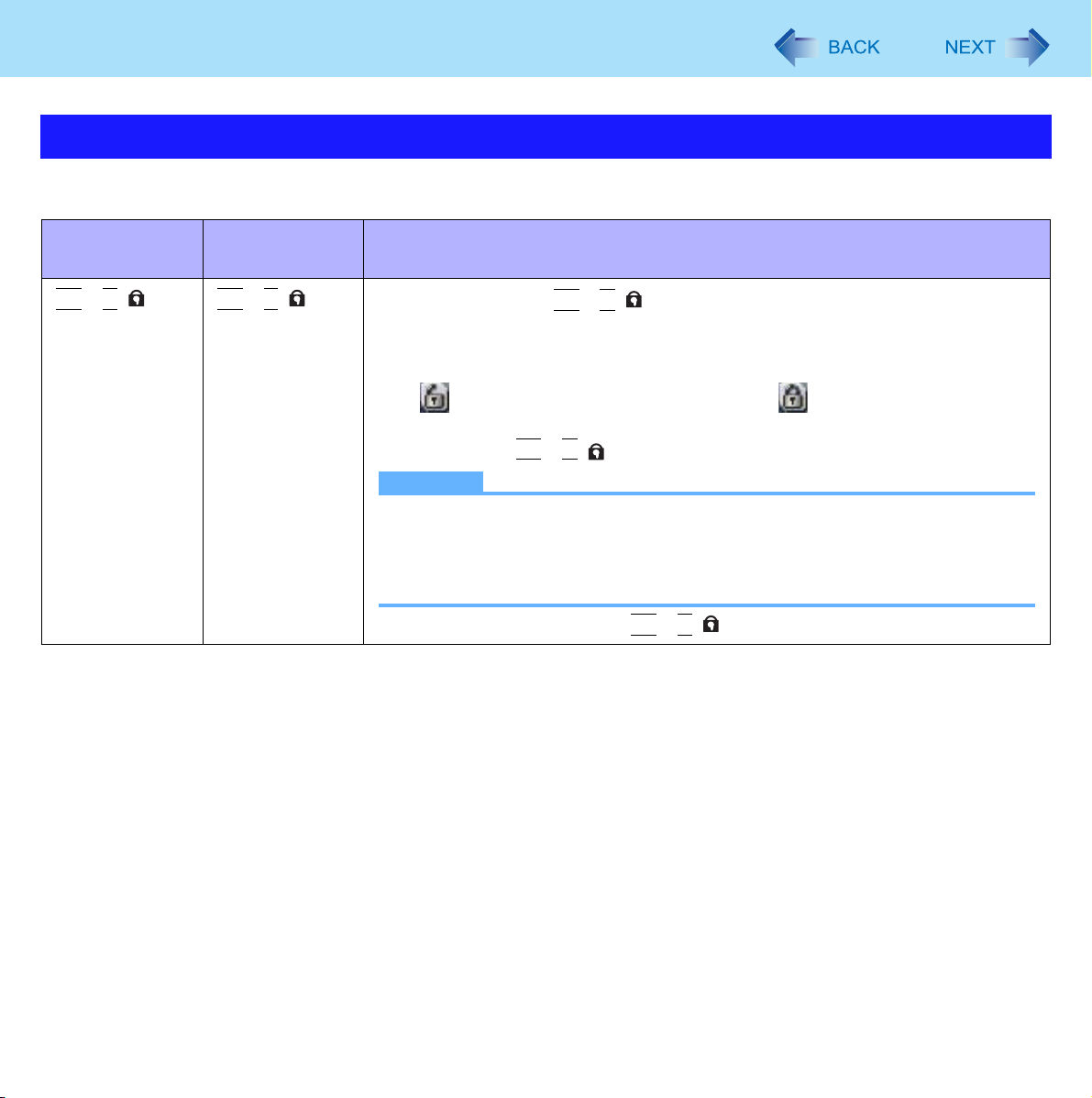

When you operate the computer only by touchscreen, etc., accidental keyboard or other button operations are ignored.

Lock the keyboard and operation buttons

QWERTY key-

board model

Numeric key-

board model

Function

()

() Keyboard (except for

())

*4, scroll button, zoom button and application

buttons are disabled.

When locked:

• The message appears to show how to unlock.

• icon on the notification area changes to .

• If a locked key is pressed, the entire keyboard gleams.

To cancel, press

()

*4 again.

NOTE

zPower switch is not disabled.

zWhen you enter the user account selection display (Switch user, etc.) in

the locked condition, unlocking is impossible.

zThis function is canceled when you turn the computer off.

*4 For Numeric keyboard model :

()

Key Combinations

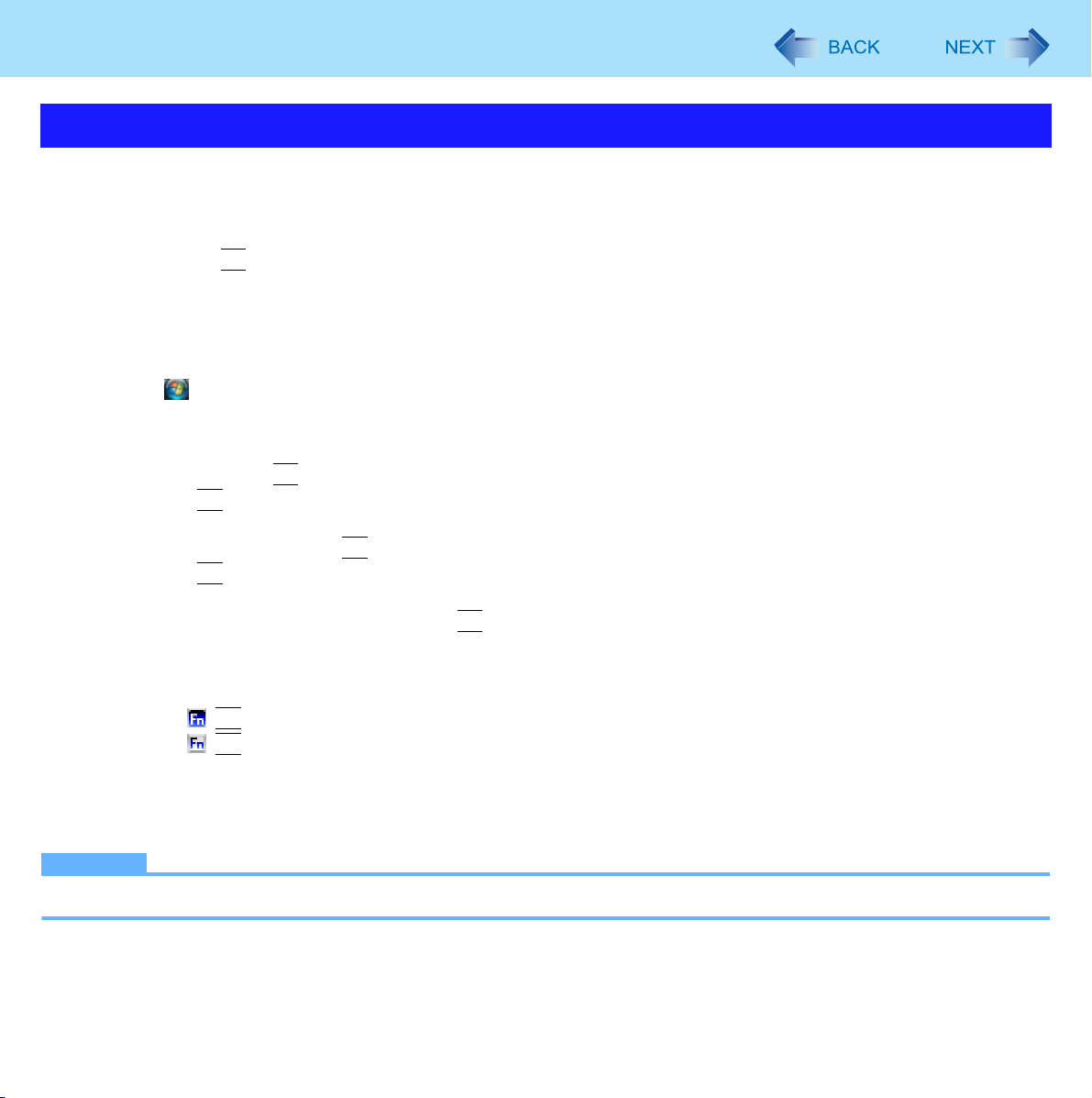

Setting Fn key operations

You can make 2 settings:

•Fn key lock

When you press

, the key is locked (pressed-down) until you press another key. Use this when pressing difficult key

combinations.

• Pop-up icon on/off

1Start up the Hotkey Settings.

Click (Start) - [All Programs] - [Panasonic] - [Hotkey Settings].

2Make the settings.

[Use Fn key lock]

zWhen using an

key combination

APress

once. (Fn key is locked and the indicator next to the key lights up.)

BPress another key. (Lock released)

zWhen using successive

key combinations

APress

twice. (Fn key is locked and the indicator next to the key lights up.)

BPress another key.

Fn key remains locked until you press

again.

[Notification]

[Make sounds when Fn key is pressed]*5

[Show status on screen]: Displays the Fn key status on the notification area.

•:

is locked.

•:

is not locked.

[Disable popup]

The pop-up icon will not be displayed.

3Click [OK].

NOTE

zYou can have different settings for each user.

*5 If the speakers are muted, beeps do not sound.

Hotkey Settings

Key Combinations

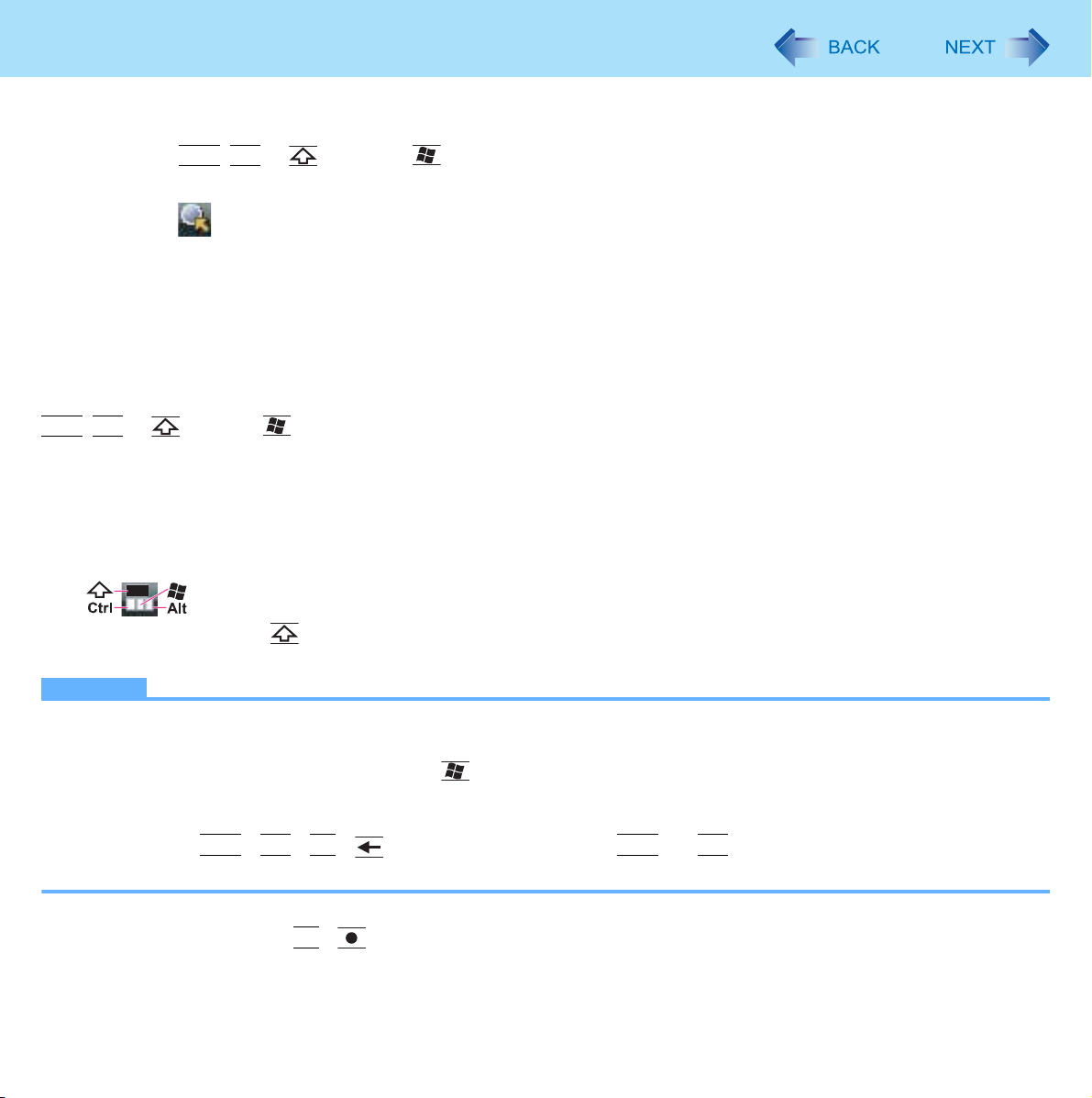

Setting Ctrl, Alt*6, Shift*6 keys and Windows key operations

When you press

Ctrl

Alt

*6, (Shift)*6 or (Windows), the key is locked (pressed-down) until you press another key.

Use this when pressing difficult key combinations.

1Click icon on the notification area.

2Setting Sticky Key function

zTo enable this function

Add a check mark for [Enable Sticky Key Function].

zTo disable this function

Remove the check mark for [Enable Sticky Key Function].

Ctrl

Alt

*6, (Shift)*6, (Windows) keys operations when Sticky key function is enabled

zPress once: The key is locked. Press another key to release the lock.

zPress twice: The key is locked. The lock cannot be released even if you press another key.

zPress 3 times: The lock is released.

• The indicator next to each key lights up while each key is locked. (except for Windows key)

• An illustration is displayed on the notification area as below.

: A locked key icon is highlighted.

(The illustration shows (Shift)*6 key is locked).

NOTE

zYou can have different settings for each user.

zWhen Sticky key is active:

The start menu is not displayed by pressing (Windows) key once. Press 3 times to display the menu. (Windows

specification)

zWhen Sticky key is not active:

After pressing

Ctrl

Alt

+ (Del)*7, the indicator next to

Ctrl

and

Alt

*6 remains lit. The light goes off when

the original display is returned.

*6 For Numeric keyboard model, use a USB keyboard or software keyboard.

*7 For Numeric keyboard model :

+ (Ctrl+Alt+Del)

Touchscreen

You can use the touchscreen function to perform the same operation as a mouse. Touch the screen surface with the stylus

(included).

For further information, click (Start) - [All programs] - [Tablet PC] - [Tablet PC Touch Training].

zTo right-click

ATouch and hold with the stylus, or touch and select the right button of “touch pointer”.

NOTE

zThe touchscreen function does not work in the Setup Utility.

zWhen inputting on the [Command Prompt] screen, apply the keyboard input mode to [Tablet PC Input Panel]. You can-

not input correctly with the Writing Pad.

zOperate the touchscreen with your finger or with an approved stylus

When using the touchscreen function, use only your finger or an approved stylus on the surface.

Operating the touchscreen with an object other than your fingertip or the stylus (a fingernail or metal object, or other hard

or sharp objects that may leave a mark) may scar or stain the surface, causing the touchscreen to malfunction.

zDo not apply too much pressure when operating the touchscreen

Only a light touch is required to operate the touchscreen. Applying too much pressure may damage the surface.

zWhen the touchscreen becomes dirty, wipe it with a soft cloth

The touchscreen is specially treated to prevent dirt from adhering to the surface, so dirt can be removed easily using a dry

cloth. If the dirt does not come off easily, breathe on the surface and try again.

Do not apply water or solvents to the soft cloth.

zClean the touchscreen while the computer is powered off

Cleaning the screen while the power is on may cause the computer to malfunction. Also, dirt on the touchscreen is easier

to see when the computer is powered off, and so is easier to clean.

zWash the soft cloth when it becomes dirty

When the soft cloth becomes dirty, wash it with mild detergent. Do not use bleach or fabric conditioner (softener), or try to

sterilize the cloth by boiling.

If the soft cloth is dirty, it may be ineffective in cleaning the touchscreen, and in fact may cause dirt to adhere to the touch-

screen.

Operation of the touchscreen

Maintaining the performance of the touchscreen

Touchscreen

zCheck the following to prevent the surface of the touchscreen from being scratched

zAre you using your finger or a stylus to operate the touchscreen?

zIs the surface clean?

zIs the soft cloth clean?

zAre you using the stylus with the tip extended?

zIs the tip of the stylus clean?

zIs your finger clean?

zDo not touch the screen outside of the LCD display area

The touchscreen input area is defined by the LCD display screen. Touching the screen outside of the display area may

result malfunctions or damage to the touchscreen.

zDo not apply excessive force to the touchscreen

Do not lift the computer while holding the LCD screen, or allow the screen to be twisted. Do not place any objects on the

LCD screen. Any of the above may cause the touchscreen glass to break, or may damage the LCD screen.

zOperation response may be slower in low temperature environments

The touchscreen may respond to operations more slowly when using the computer in temperatures less than 5°C, but this

is not a malfunction. Response time will return to normal when the computer is returned to room temperature.

zIf the cursor jumps to a location other than where the screen was touched, or if the LCD reso-

lution changes, recalibrate the touchscreen

Perform the procedure of “Touchscreen Calibration” (Îpage 11).

Things to keep in mind when using the touchscreen

Otros manuales para Toughbook CF-U1AQB1G2M

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Computadora portátil de Panasonic

Panasonic

Panasonic Toughbook CF-48 Series Manual de usuario

Panasonic

Panasonic CF-W5LWEZZBM Manual de usuario

Panasonic

Panasonic Toughbook CF-M32W5M Manual de usuario

Panasonic

Panasonic Toughbook CF-T7BWATZJM Manual de usuario

Panasonic

Panasonic CF-74ECBAXBM - Toughbook 74 - Core Duo 2 GHz Manual de usuario

Panasonic

Panasonic CF-45 Series Manual de usuario

Panasonic

Panasonic CF-53 Manual de usuario

Panasonic

Panasonic Toughbook CF-28PCJAZPM Manual de usuario

Panasonic

Panasonic CF-51JFDECBM - Toughbook 51 - Pentium M 2... Manual de usuario

Panasonic

Panasonic Toughbook CF-W8EWDZZ2M Manual de usuario

Panasonic

Panasonic Toughbook CF-U1A1B1G2M Manual de usuario

Panasonic

Panasonic Toughbook 19 Manual de usuario

Panasonic

Panasonic Toughbook CF-45DJ48AAM Manual de usuario

Panasonic

Panasonic Toughbook CF-28PMJAZQM Manual de usuario

Panasonic

Panasonic Toughbook CF-18 mk3 Diagrama de cableado

Panasonic

Panasonic CF-27 Series Manual de usuario

Panasonic

Panasonic Toughbook CF-50AAKHUDM Manual de usuario

Panasonic

Panasonic Toughbook CF-T2DWATZKM Manual de usuario

Panasonic

Panasonic FZ-55 Series Manual de usuario

Panasonic

Panasonic CF-Y2 Series Manual de usuario

Panasonic

Panasonic Toughbook CF-W4HWEZZBM Manual de usuario

Panasonic

Panasonic CF-54 Series Manual de usuario

Panasonic

Panasonic Toughbook CF-51CCCDBBM Manual de usuario

Panasonic

Panasonic Toughbook CF-25FJF4DAM Manual de usuario

Manuales populares de Computadora portátil de otras marcas

HP ze2401xt - Pavilion Notebook PC Manual de usuario

Velocity

Velocity NoteMagix M10 Manual de usuario

Dell

Dell Alienware 17 R2 Manual de usuario

Toshiba

Toshiba A105-S2236 Manual de usuario

HP ENVY 17 Manual

Winbook

Winbook LM Manual de usuario

Dell

Dell Inspiron 1464 Manual de usuario

Dell

Dell Inspiron 15R 5537 Manual de usuario

HP PROBOOK 4520S Manual

Dell

Dell Latitude ATG D620 Manual de usuario

Sony

Sony VAIO PCG-FX270 Manual de usuario

Dell

Dell Latitude 7310 Manual de usuario

Dell

Dell Precision GU806 Manual de usuario

Sony

Sony VAIO PCG-R505JLK Manual de usuario

Lenovo

Lenovo THINKPAD X32 Manual de usuario

HP Compaq tc4200 Guía de inicio rápido

Toshiba

Toshiba mini NB300 Manual de usuario

Lenovo

Lenovo ThinkPad X201 Tablet Manual
