Panasonic Toughbook CF-48 Series Manual de usuario

Model No. CF-48 Series

Reference Manual

Personal Computer

Contents

We recommend that this Reference Manual be printed.

Read Me First ..................................................... 2

Key Combinations ............................................. 3

LED Indicators ................................................... 6

Touch Pad .......................................................... 7

Standby/Hibernation Functions ....................... 9

Security Measures ......................................... 13

Computing on the Road ................................. 18

Battery Power ................................................. 20

CD Drive .......................................................... 25

PC Cards ......................................................... 30

RAM Module.................................................... 32

Port Replicator ................................................ 33

Printer.............................................................. 34

External Display ............................................. 35

USB Devices ................................................... 38

Modem ............................................................. 40

LAN .................................................................. 42

Wireless LAN .................................................. 44

Hard Disk Drive............................................... 47

Setup Utility .................................................... 48

Technical Information .................................... 53

DMI Viewer ...................................................... 54

List of Error Codes ......................................... 55

Dealing with Problems (Advanced) .................. 56

2000

When the cursor is moved to an item under [Contents] or to page (green display), the shape of the cursor will

change to . Under this condition, if characters are tapped (or a click is made), the corresponding page in the

Reference Manual will be displayed.

Read Me First

NOTE:NOTE provides a useful fact or helpful information.

CAUTION:CAUTION indicates a condition that may result in minor or moder-

ate injury.

Windows 2000 : Information for Microsoft Windows® 2000 Professional users.

Windows XP : Information for Microsoft Windows® XP Professional users.

Enter : This illustration means to press the [Enter] key.

Fn + F5 : This illustration means to press and hold the [Fn] key, then press

the [F5] key.

[Start]* - [Run]: This illustration means to click [Start]*, then to click [Run].

For some applications, you may need to double-click.

* Windows XP : [start]

page: When the cursor is moved to an item under [Contents] or to

page (green display), the shape of the cursor will change to .

Under this condition, if characters are tapped (or a click is made),

the corresponding page in the Reference Manual will be displayed.

: This illustration means to refer to the Operating Instructions.

Windows 2000 screens are used in this manual when no specific OS notes are re-

quired.

Some of the illustrations in this manual may differ slightly in shape from the actual

items in order to make the explanation easier to understand.

Circular media such as CD-ROM and DVD-ROM are described as “discs”.

In this manual, “WinDVD™4” is indicated as “WinDVD”.

The following drives may be described as “CD drive”.

DVD-ROM & CD-R/RW drive, DVD MULTI drive.

Illustrations and Terminology in this Reference Manual

If the user has logged on without the administrator authority, some functions may not

be executable, and some screens may not be displayed as shown in this manual. If

this happens, log on with the administrator authority to enable these functions.

Confirm the latest information on optional products in catalogs, etc.

Key Combinations

Do not press the following key combinations repeatedly in (quick) succession. Also, do not press different key

combinations quickly one after another.

Do not press the following key combinations while using the touch pad (mouse) or other keys.

CAUTION

NOTE

Key Functions

LCD brightness

control ( down)

LCD brightness

control ( up)

Display change

Speaker on/off

switch

Volume control

(down)

Volume control

(up)

Function Descriptions

Pressing this key combination adjusts the brightness of LCD.

The brightness setting is stored in memory separately un-

der the condition the AC adaptor is connected and under

the condition the AC adaptor is not connected.

By pressing this key combination, you can select either

an external display, internal LCD or simultaneous.

(page 35)

This combination does not work when [Command Prompt]

screen is set to “Full Screen”.

Pressing this key combination turns on/off audio from the

internal speakers and headphone jack.

Pressing this key combination adjusts the volume of the

internal speakers and headphone jack.

Popup Window

(Displayed after log-

ging on to Windows)

OFF

(MUTE)

Fn + F1

Fn + F3

Fn + F4

Fn + F2

This key combination cannot be used to adjust the

volume of the warning beep or speakers connected

to the USB port.

NOTE

Fn + F5

Fn + F6

Disabling the speakers will also disable the warn-

ing beep.

Speakers connected to the USB port cannot be

muted.

Do not press the following key combinations until you log on to Windows and the hard disk drive indicator turns off.

Note, however, that the key combinations Fn + F1 , Fn + F2 and Fn + F3 are operable in the Setup Utility.

The key combinations below may not work while some applications are running. Besides, the popup window may not be

displayed depending on the state of the application you are using (e.g., when [Command Prompt] screen is set to “Full Screen”).

Do not press another key until the display destina-

tion has been completely switched.

Do not press this key combination in the following

conditions.

• While MPEG files are playing.

CAUTION

Windows XP

When switching to a different user with the Fast User

Switching function, this key combination may not work.

In this case, log off all users, and try the operation once

more. If the problem persists, restart the computer.

The combination does not work when the computer

is in the Dualview mode.

NOTE

Key

When the bat-

tery pack is

inserted in the

computer

When the bat-

tery pack is not

inserted in the

computer

(example)

Functions

Power off using

the standby func-

tion

Remaining ca-

pacity of the bat-

tery pack

Power off using

the hibernation

function

Function Descriptions

Pressing this key combination causes the current status

of the computer to be saved to memory, and powers off

the computer. ( page 9)

Pressing this key combination displays the remaining bat-

tery capacity on the screen. ( page 21)

Pressing this key combination causes the current status

of the computer to be saved to the hard disk, and powers

off the computer. ( page 9)

Popup Window

(Displayed after log-

ging on to Windows)

Fn + F9

Fn + F7

Fn + F

Key Combinations

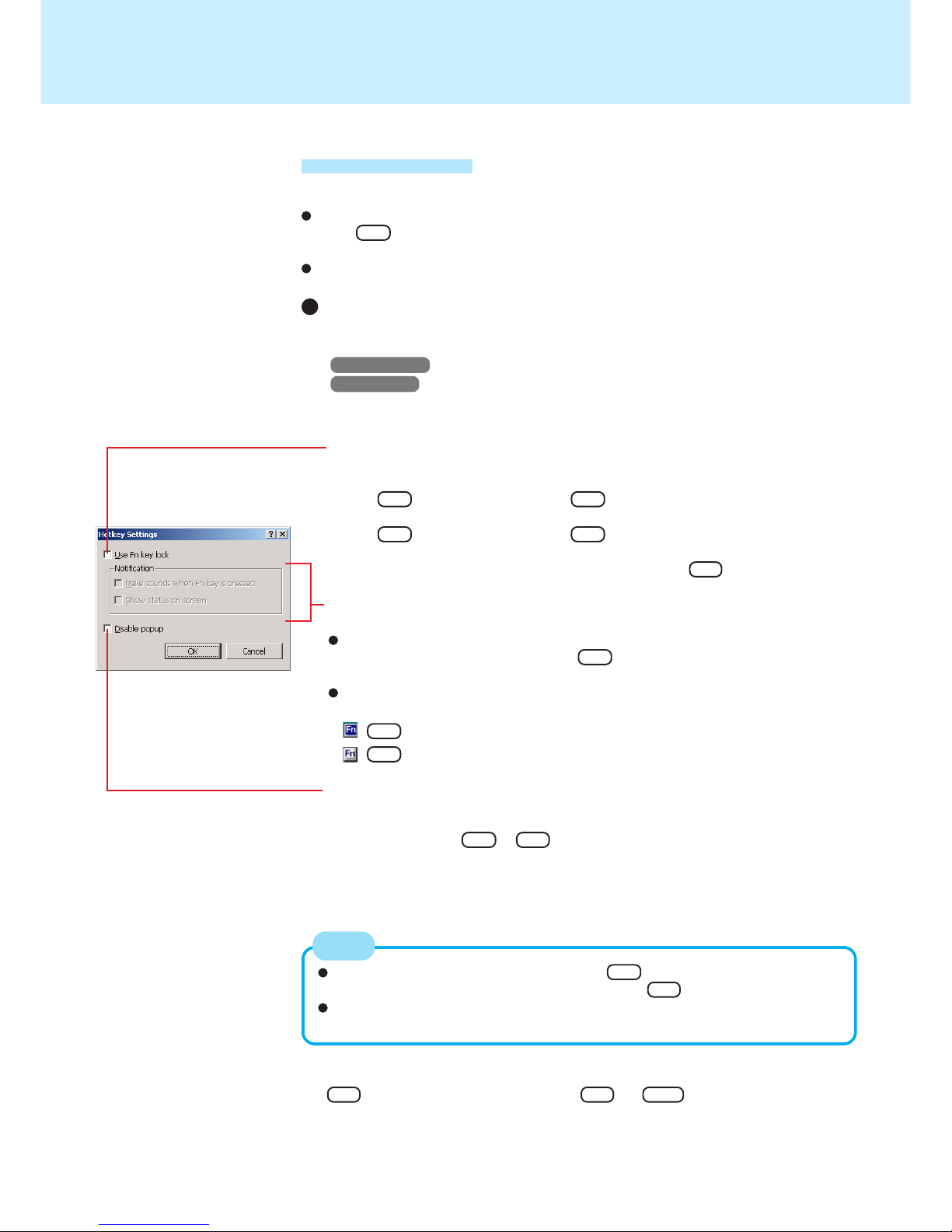

Hotkey Settings

There are two Fn key functions as follows:

Fn key lock function

After Fn is pressed once, it stays in the “pressed” position until another key is

pressed. This is convenient when it is difficult to press two buttons simultaneously.

Popup windows display ON/OFF

Settings

Run the Hotkey Settings

Windows 2000 Select [Start] - [Programs] - [Panasonic] - [Hotkey Settings].

Windows XP Select [start] - [All Programs] - [Panasonic] - [Hotkey Settings].

Set the parameters

Use Fn key lock

Add the check mark if you want to enable the Fn key lock function.

The following Fn key lock function will then be enabled.

To use Fn only once :

Press Fn once. (Locked)

Press another key for combination. (Lock released)

To use Fn successively :

Press Fn twice. (Locked)

Press another key for combination.

Fn key remains locked until Fn is pressed once more.

Notification

This setting is only available when [Use Fn key lock] is checked.

[Make sounds when Fn key is pressed]*1:

Notifies the user with a sound when Fn is pressed, locked, or released.

(If MUTE is set, you will not hear a beep.)

[Show status on screen]:

Displays the Fn key status on the taskbar.

: Fn is locked

: Fn is not locked

Disable popup

Add the check mark if you want to turn the popup window display function OFF.

The full-screen display of [Command Prompt] screen or MPEG files may change to

a window display if Fn + Fx *2are pressed. To prevent this, turn the popup

window display function OFF.

NOTE

The Fn key lock function also works with Fn and other keys (e.g., keys for

which characters are printed in blue) aside from Fx *2.

Each user can select separate settings for whether or not to use the Hotkey

settings.

Select [OK]

*1If MUTE is set, you will not hear a sound.

*2“ Fx ” indicates any function key from F1 to F10 .

This indicator lights green when Caps Lock is pressed. Subsequent

non-shifted input is capitalized.

This indicator lights green when NumLk is pressed. This causes a

portion of the keyboard to function as a numeric keypad. The [Enter]

key functions differently depending on the application.

(If an external keyboard or ten-keyboard is connected to the external

keyboard/mouse port, the numeric keypad of the internal keyboard will

not operate.)

This indicator lights green when ScrLk is pressed. Scroll lock func-

tions differently depending on the application.

This indicator lights when the CD drive is accessed.

The access lamp on the CD drive lights at the same time as this indica-

tor. (In some cases, only one of them may light.)

This indicator lights when the floppy disk drive is accessed.

This indicator lights when the hard disk drive is accessed.

Not lit : Battery pack is not connected or charging not

being performed.

Orange* : Charging in progress.

Green* : Fully-charged.

Red : The battery level is very low (the charge is approx.

9% or less).

Connect the AC adaptor. You can use the com-

puter when the indicator light is orange. If you do

not have an AC adaptor, save your data and power

off your computer. After replacing the battery pack

with a fully charged one, turn your computer on.

Blinking red* : Battery pack or charging may not be working prop-

erly. Quickly save your data and power off your

computer. Remove the battery pack and discon-

nect the AC adaptor, then connect them again.

If the problem persists, contact Panasonic Tech-

nical Support.

Not lit : Power off / Hibernation mode

Green : Power on

Blinking green : Standby mode

Blinking green rapidly : Due to extremely low temperatures, power

cannot be turned on, or computer cannot

resume from standby mode.

Caps Lock

NumLk (Numeric key)

ScrLk (Scroll lock)

CD drive status

Floppy disk drive

status

Hard disk drive sta-

tus

Battery pack status

Power status

LED Indicators

* When the AC adaptor is connected.

Touch Pad

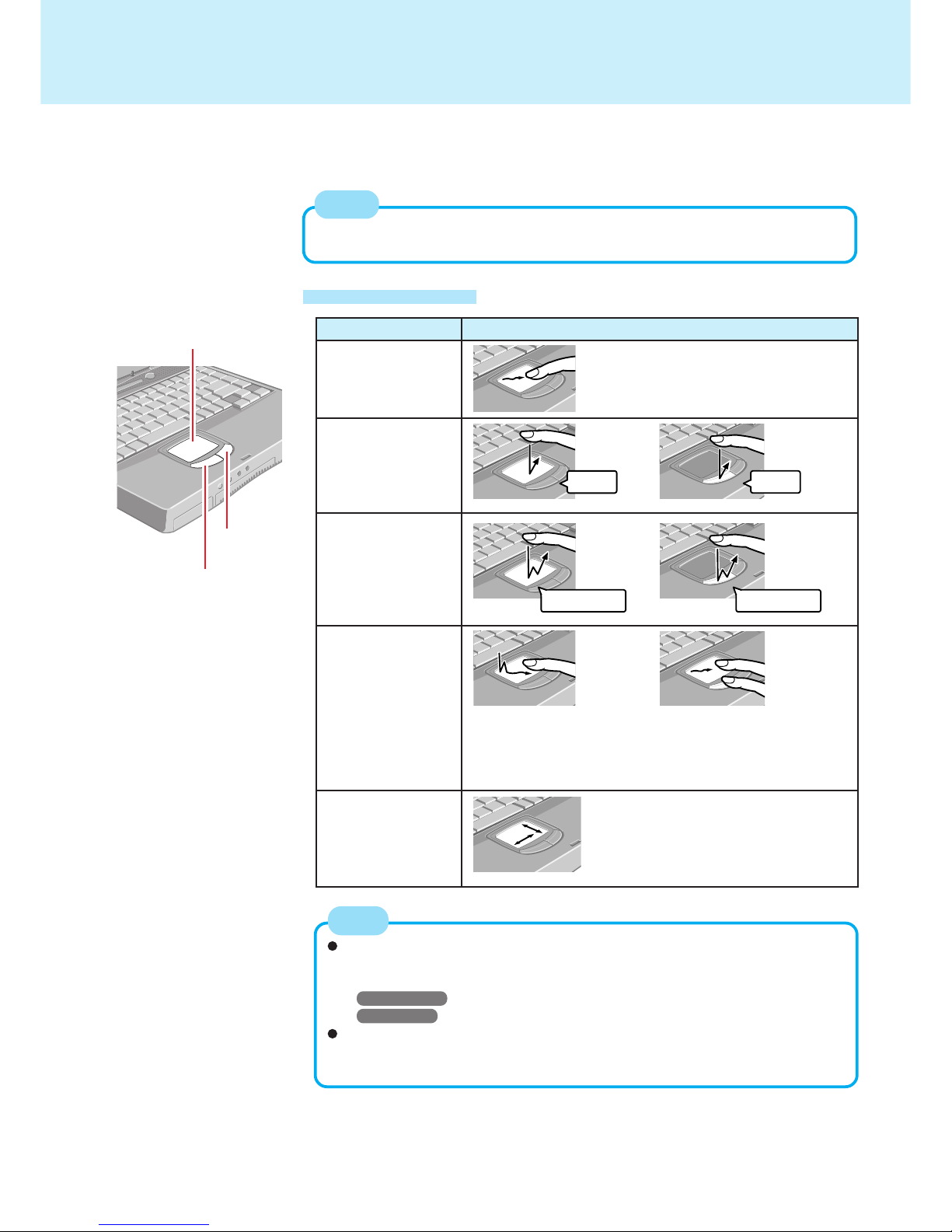

Use the touch pad to move the cursor on the display and perform normal computer

operations.

Left Button

Right Button

Work Surface

Two quick taps, but on the

second tap leaving your

finger down (applying

pressure) and moving it

on the work surface.

While holding down the

button, moving your finger

on the work surface.

Function Operation

Moving the Cursor

Tapping/Clicking

Double-Tapping/

Double-Clicking

Dragging

Scroll

Scroll a document

(The movements will dif-

fer depending on the ap-

plication.)

Move the tip of your finger

lightly over the surface.

Basic Operation

(To next page)

tapping clicking

double-tapping double-clicking

Besides the above operations, operations such as Zoom and Pan are possible

by allocating these functions to the buttons and/or pad. For more details, refer to

[Mouse Properties]*.

*Windows 2000 : In [Control Panel] - [Mouse]

Windows XP : In [Control Panel] - [Printers and Other Hardware] - [Mouse]

The operations of Scroll, Pan or Zoom will differ depending on the application.

There are cases the touch pad will not support these operations even with an

application that supports the functions.

NOTE

By design the touch pad is to be used with a finger tip only. Therefore, do not use

any implement which causes damage on the work surface.

NOTE

Touch Pad

The touch pad is designed to be used with a fingertip only. Therefore, avoid the

following actions, which may cause damage to the work surface.

·Placing any object on the work surface

·Pressing down forcefully with sharp-pointed objects (e.g., nails) or hard objects

that can leave marks (e.g., pencils and ball point pens)

Try to avoid having any harmful substances such as oil, come in contact with the

touch pad. The cursor may not work properly in such cases.

When the touch pad becomes dirty:

Wipe to remove dirt by using a dry soft cloth such as gauze or a soft cloth first

applied with detergent diluted with water and then thoroughly wrung. Do not use

benzene or thinner, or rubbing alcohol. Doing so may adversely affect the surface,

e.g., discoloration. In addition, do not use commercially-available household clean-

ers and cosmetics, as they may contain components harmful to the surface.

Handling the Touch Pad

Function Where data is saved to Time until Requires power supply

recovery

Standby Memory Short Yes (if power is cut, all data is lost)

function

Hibernation Hard disk Rather long Power is not required to maintain data

function

Standby/Hibernation Functions

Starting Up Your Computer Quickly

We recommend plugging in the AC adaptor if the standby function is to be

used for a long period of time. If the AC adaptor cannot be connected, we

recommend that hibernation mode be used instead of the standby mode.

If the standby or hibernation function is used repeatedly, the computer may

not work properly. To stabilize computer operations, we recommend shutting

down Windows on a regular basis (about once a week) without using the

standby or hibernation function.

NOTE

Use any of the following methods to enter the standby or hibernation mode.

To use the hibernation mode, make the setting below in advance. (Enabled in factory

preset.)

Fn key combinations ( page 4)

Using the power switch ( page 11)

From the shut down screen:

• Standby

Windows 2000 : In [Start] - [Shut Down], select [Stand by].

Windows XP : In [start] - [Turn Off Computer], select [Stand By].

• Hibernation

Windows 2000 : In [Start] - [Shut Down], select [Hibernate].

Windows XP :In [start] - [Turn Off Computer], press and hold Shift , then

select [Hibernate].

Entering the Standby or Hibernation mode

Setting for using the hibernation mode

Windows 2000

Select [Start] - [Settings] - [Control Panel] - [Power Options].

In [Hibernate], add the check mark for [Enable hibernate support] and select [OK].

Windows XP

Select [start] - [Control Panel] - [Performance and Maintenance] - [Power Op-

tions].

In [Hibernate], add the check mark for [Enable hibernation] and select [OK].

(To next page)

Differences between the standby and hibernation functions

If you want to immediately start up and continue an application after shutting down your

computer, you can do so by using either the standby or hibernation function.

Standby/Hibernation Functions

Precautions

Before entering the standby or hibernation mode

Be sure to save all data.

When a file in an external device such as a CD drive, external hard disk, or ATA

card is opened, close the file.

Even when a password has been set in the Setup Utility, [Enter Password] does

not appear when the computer resumes from the standby or hibernation mode.

If you want to use the security function when using the standby or hibernation

mode, use the Windows password as follows:

Windows 2000

Set the password in [Control Panel] - [Users and Passwords].

Add the check mark for [Prompt for password when computer goes off standby]

in [Control Panel] - [Power Options] - [Advanced].

Windows XP

Select the account to change in [Control Panel] - [User Accounts].

Set the password.

Add the check mark for [Prompt for password when computer resumes from

standby] in [Control Panel] - [Performance and Maintenance] - [Power Options]

- [Advanced].

Do not enter either the standby or hibernation mode under the following condi-

tions. You may corrupt your data or file, the standby or hibernation function may

not work, or the computer (or peripherals) may fail to work properly.

• When the floppy disk drive indicator ( ), hard disk drive indicator ( ), CD drive

indicator ( ) or access lamp on the CD drive is on ( page 6).

• When playing/recording audio files and displaying images (such as MPEG files).

• When using the communications software and the network function.

• When using LAN port (cards), SCSI cards and modem port (cards) etc. (If these

cards fail to work properly, restart the computer.)

When entering the standby or hibernation mode

Standby mode: until the power indicator blinks green

Hibernation mode: until the power indicator goes off

Avoid the following:

• Using the keyboard, touch pad, or power switch.

• Using external mouse or other peripheral devices.

• Connecting or disconnecting the AC adaptor.

• Closing or opening the display.

In standby or hibernation mode

Do not insert or remove peripherals; abnormal operation may result.

In standby mode, power is consumed. If PC Cards are inserted, more of that

power is consumed. When all power has been consumed, all data saved at standby

is lost since it is retained in memory. We therefore recommend plugging in the AC

adaptor when using the standby function.

Otros manuales para Toughbook CF-48 Series

Tabla de contenidos

Otros manuales de Computadora portátil de Panasonic

Panasonic

Panasonic Toughbook CF-Y7BWAZAJM Manual de usuario

Panasonic

Panasonic Toughbook CF-29CTKGZKM Manual de usuario

Panasonic

Panasonic Toughbook CF-52ELNBDAM Manual de usuario

Panasonic

Panasonic CF-53AUGZK1M Manual de usuario

Panasonic

Panasonic Toughbook 53 Manual de usuario

Panasonic

Panasonic CF-71 Series Manual de usuario

Panasonic

Panasonic Toughbook CF-T2DWATZKM Manual de usuario

Panasonic

Panasonic Toughbook CF-27EB6GCAM Manual de usuario

Panasonic

Panasonic Toughbook CF-F8EWDZZAM Manual de usuario

Panasonic

Panasonic Toughbook CF-48 Series Manual de usuario

Panasonic

Panasonic Toughbook CF-48P4FAUEM Manual de usuario

Panasonic

Panasonic Toughbook CF-18 Series Diagrama de cableado

Panasonic

Panasonic Toughbook CF-C1ADACZGM Manual de usuario

Panasonic

Panasonic CF-T8 series Manual de usuario

Panasonic

Panasonic 30 - Toughbook - Core 2 Duo Manual de usuario

Panasonic

Panasonic Toughbook CF-53AAG711M Manual de usuario

Panasonic

Panasonic VAS 6150 Manual de usuario

Panasonic

Panasonic CF-74CCBEBBM - Toughbook 74 - Core Duo 1.83... Manual de usuario

Panasonic

Panasonic Toughbook CF-29LCQGCBM Guía de inicio rápido

Panasonic

Panasonic CF-31UEU70DY Manual de usuario

Panasonic

Panasonic Toughbook CF-18BDKZXMM Manual de usuario

Panasonic

Panasonic Touchbook CF-50 Series Manual de usuario

Panasonic

Panasonic Toughbook CF-51LCMDDBM Manual de usuario

Panasonic

Panasonic CF-17 Diagrama de cableado

Manuales populares de Computadora portátil de otras marcas

HP ze2401xt - Pavilion Notebook PC Manual de usuario

Velocity

Velocity NoteMagix M10 Manual de usuario

Dell

Dell Alienware 17 R2 Manual de usuario

Toshiba

Toshiba A105-S2236 Manual de usuario

HP ENVY 17 Manual

Winbook

Winbook LM Manual de usuario

Dell

Dell Inspiron 1464 Manual de usuario

Dell

Dell Inspiron 15R 5537 Manual de usuario

HP PROBOOK 4520S Manual

Dell

Dell Latitude ATG D620 Manual de usuario

Sony

Sony VAIO PCG-FX270 Manual de usuario

Dell

Dell Latitude 7310 Manual de usuario

Dell

Dell Precision GU806 Manual de usuario

Sony

Sony VAIO PCG-R505JLK Manual de usuario

Lenovo

Lenovo THINKPAD X32 Manual de usuario

HP Compaq tc4200 Guía de inicio rápido

Toshiba

Toshiba mini NB300 Manual de usuario

Lenovo

Lenovo ThinkPad X201 Tablet Manual
