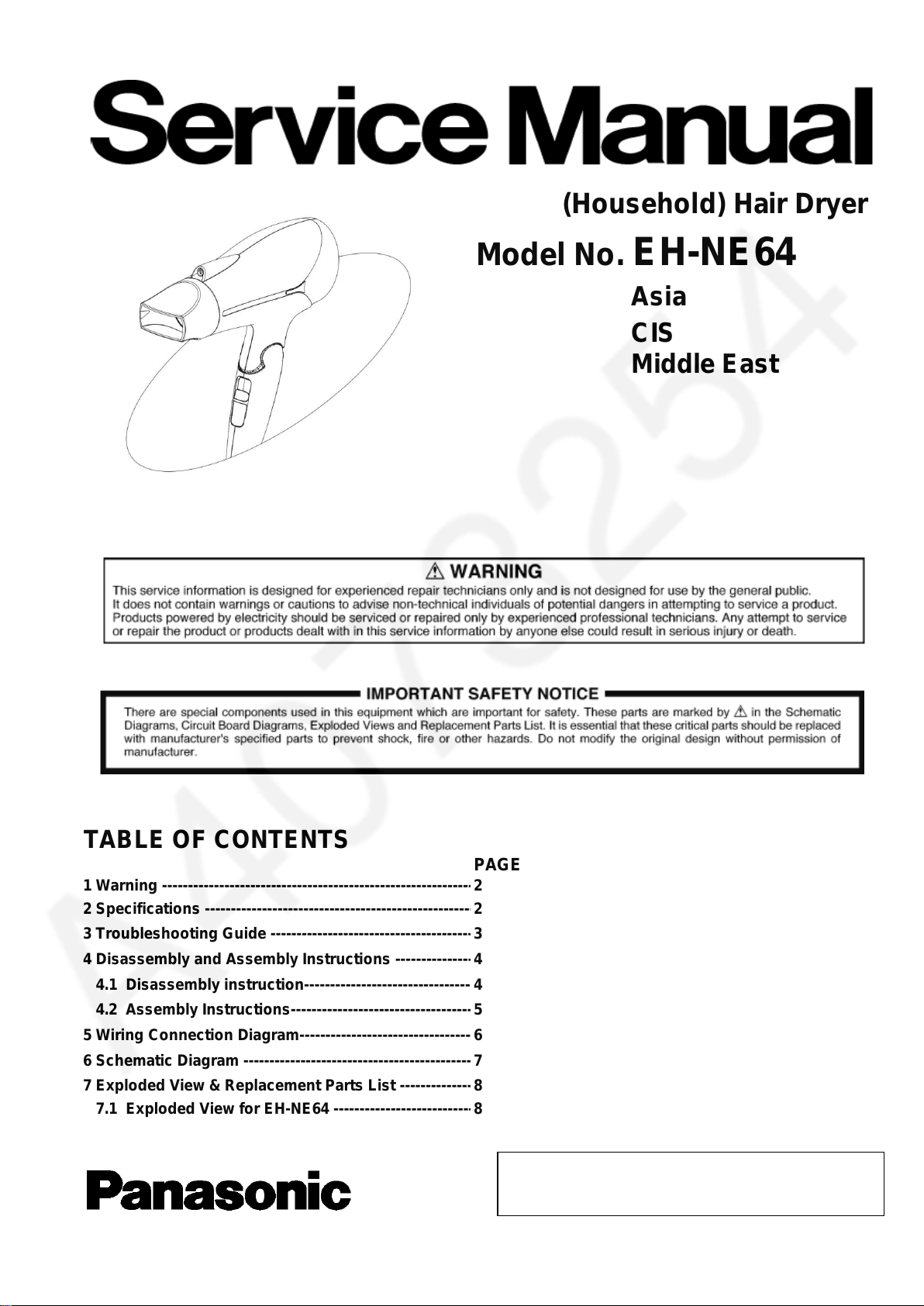

Panasonic EH-NE64 Manual de usuario

Order Number PEWT1610A21CE

(Household) Hair Dryer

Model No.

EH-NE64

Asia

CIS

Middle East

TABLE OF CONTENTS PAGE

1 Warning --------------------------------------------------------------------------------------------

2 Specifications -------------------------------------------------------------------

3 Troubleshooting Guide ------------------------------------------------------------

4 Disassembly and Assembly Instructions ----------------------------

4.1 Disassembly instruction-----------------------------------------------

4.2 Assembly Instructions----------------------------------------------------------

5 Wiring Connection Diagram--------------------------------------------

6 Schematic Diagram -----------------------------------------------------------

7 Exploded View & Replacement Parts List ------------------------------------

7.1 Exploded View for EH-NE64 ------------------------------------------------

7.2 Parts List for EH-NE64 --------------------------------------------------------------

and distribution is a violation of law.

1. Warning

Caution:

- Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40℃) higher.

Please use a oldering iron with temperature control and adjust it to 750 ±20°F (400 ± 10 ℃).

In case of using high temperature soldering iron, please becareful not to heat too long.

- Pb free solder will tend to splash when heated too high (about 1100°F / 600℃).

Power source AC 220-240 V 50-60 Hz

Power consumption Approx. "3" Turbo 220 V ~ 1700 W

230 V ~ 1850 W

240 V ~ 2000 W

Air volume without nozzle 1.45 m3/min

Air flow temperature ("3" Turbo) 90 K (in case of room temperature 30°C)

Dimensions (W) 80 x (D) 170 x (H) 260 mm

Cord length L = 1.7 m

Weight Approx. 380 g ( Without cord and Without Nozzle )

Supplied accessory EH-NE64 Set nozzle

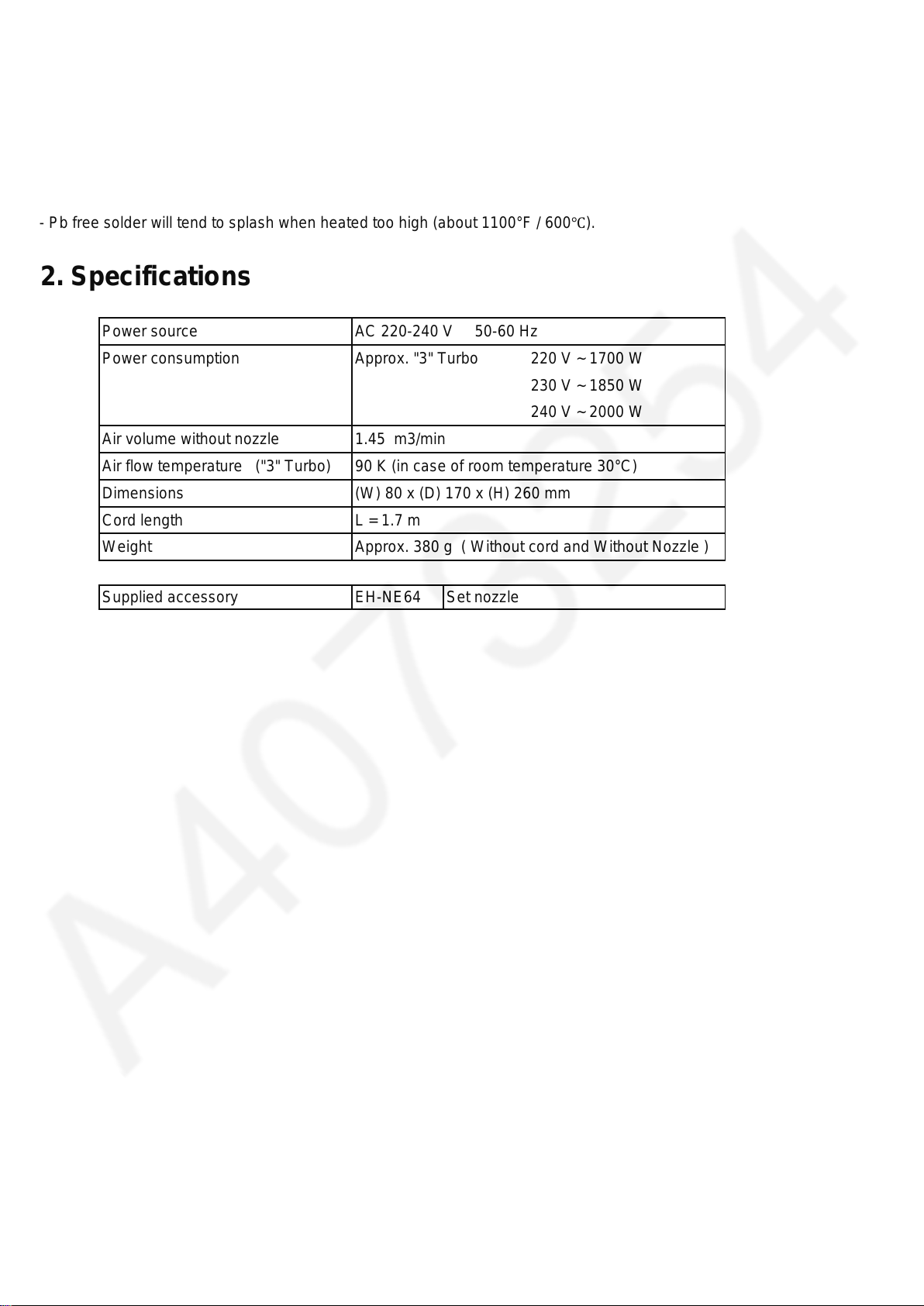

2. Specifications

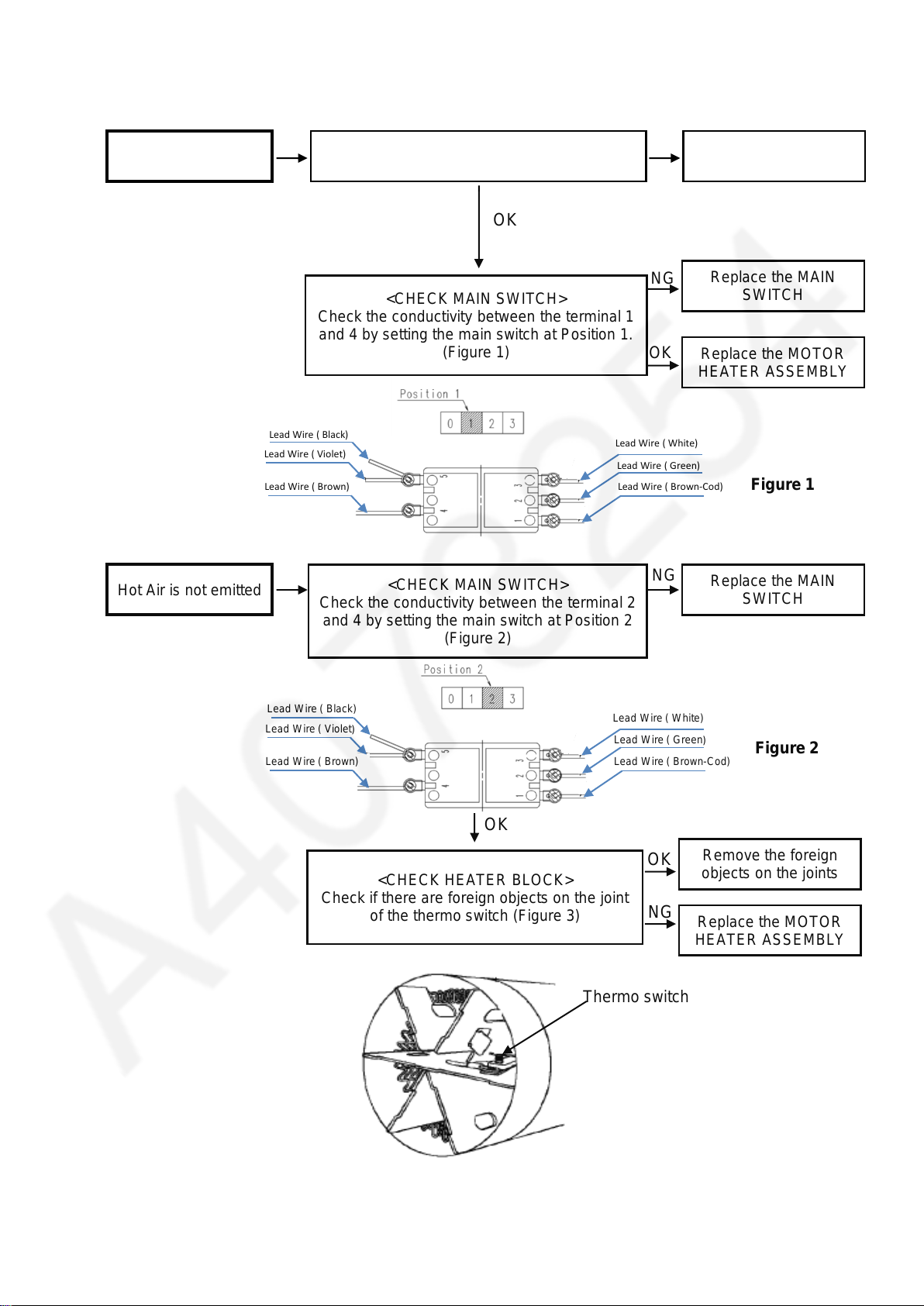

3 TROUBLESHOOTING GUIDE

Refer to WIRING CONNECTION DIAGRAM.

< TROUBLE >

< CHECK >

< REMEDY >

Main Body does not

operate

Check the conductivity of POWER CORD.

Check the conductivity between the terminal 1

and 4 by setting the main switch at Position 1.

(Figure 1)

Replace the MAIN

SWITCH

Replace the MOTOR

HEATER ASSEMBLY

Figure 1

Hot Air is not emitted <CHECK MAIN SWITCH>

Check the conductivity between the terminal 2

and 4 by setting the main switch at Position 2

(Figure 2)

Replace the MAIN

SWITCH

Figure 2

Check if there are foreign objects on the joint

of the thermo switch (Figure 3)

Remove the foreign

objects on the joints

Replace the MOTOR

HEATER ASSEMBLY

Replace the MOTOR

HEATER ASSEMBLY

Thermo switch

Lead Wire ( Violet)

Lead Wire ( Brown)

Lead Wire ( White)

Lead Wire ( Green)

Lead Wire ( Brown-Cod)

Lead Wire ( Violet)

Lead Wire ( Brown)

Lead Wire ( White)

Lead Wire ( Green)

Lead Wire ( Brown-Cod)

Figure 2

Lead Wire ( Black)

4. Disassembly and Assembly Instructions

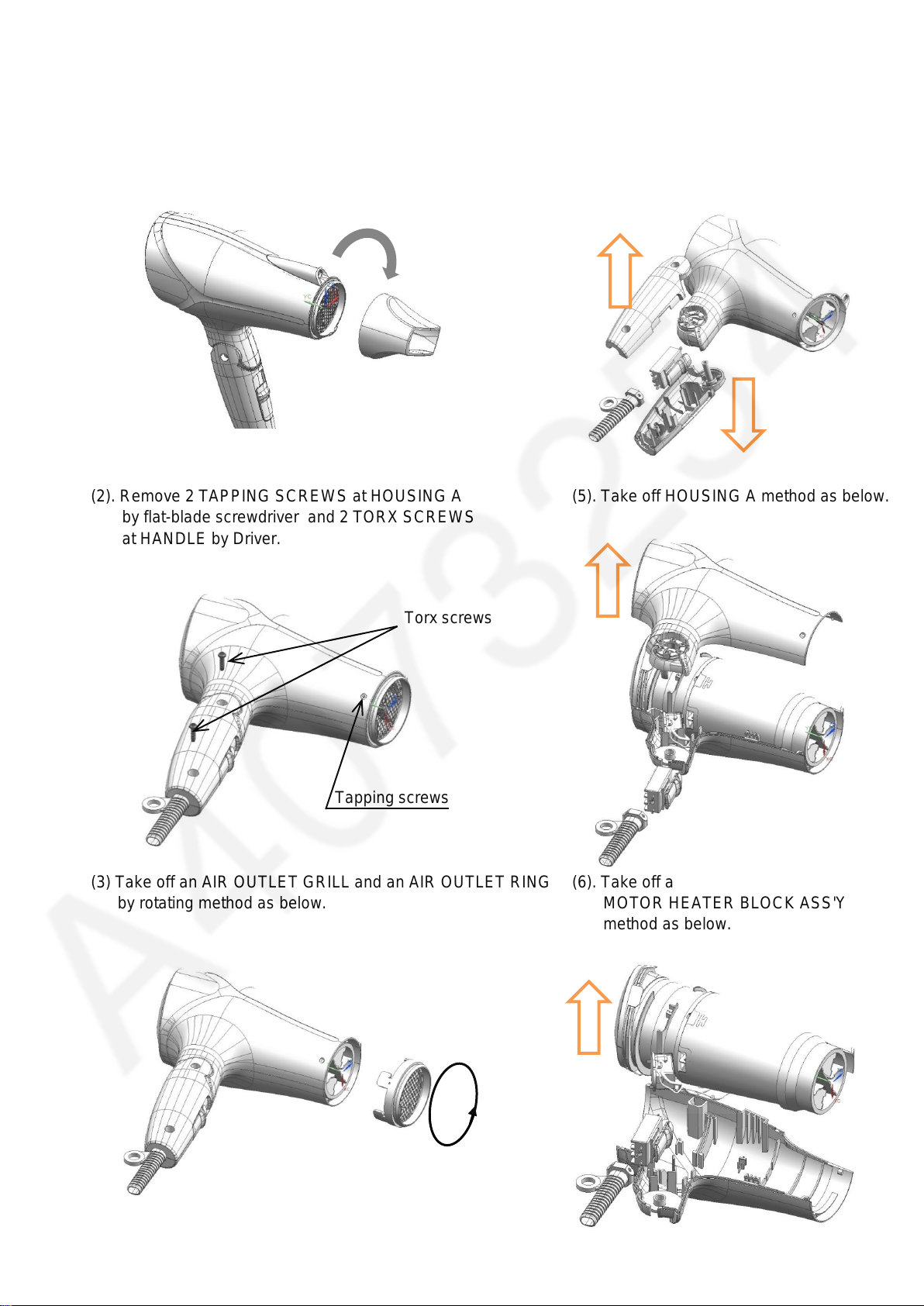

4.1. Disassembly Instructions

(1) Take off NOZZLE as same direction as below. (4). Take off HANDLE AB then take out

CLICK RING and SWIVEL RING

method as below.

(2). Remove 2 TAPPING SCREWS at HOUSING A (5). Take off HOUSING A method as below.

by flat-blade screwdriver and 2 TORX SCREWS

at HANDLE by Driver.

(3) Take off an AIR OUTLET GRILL and an AIR OUTLET RING (6). Take off a

by rotating method as below.

MOTOR HEATER BLOCK ASS'Y

method as below.

Counter clockwise

Torx screws

Tapping screws

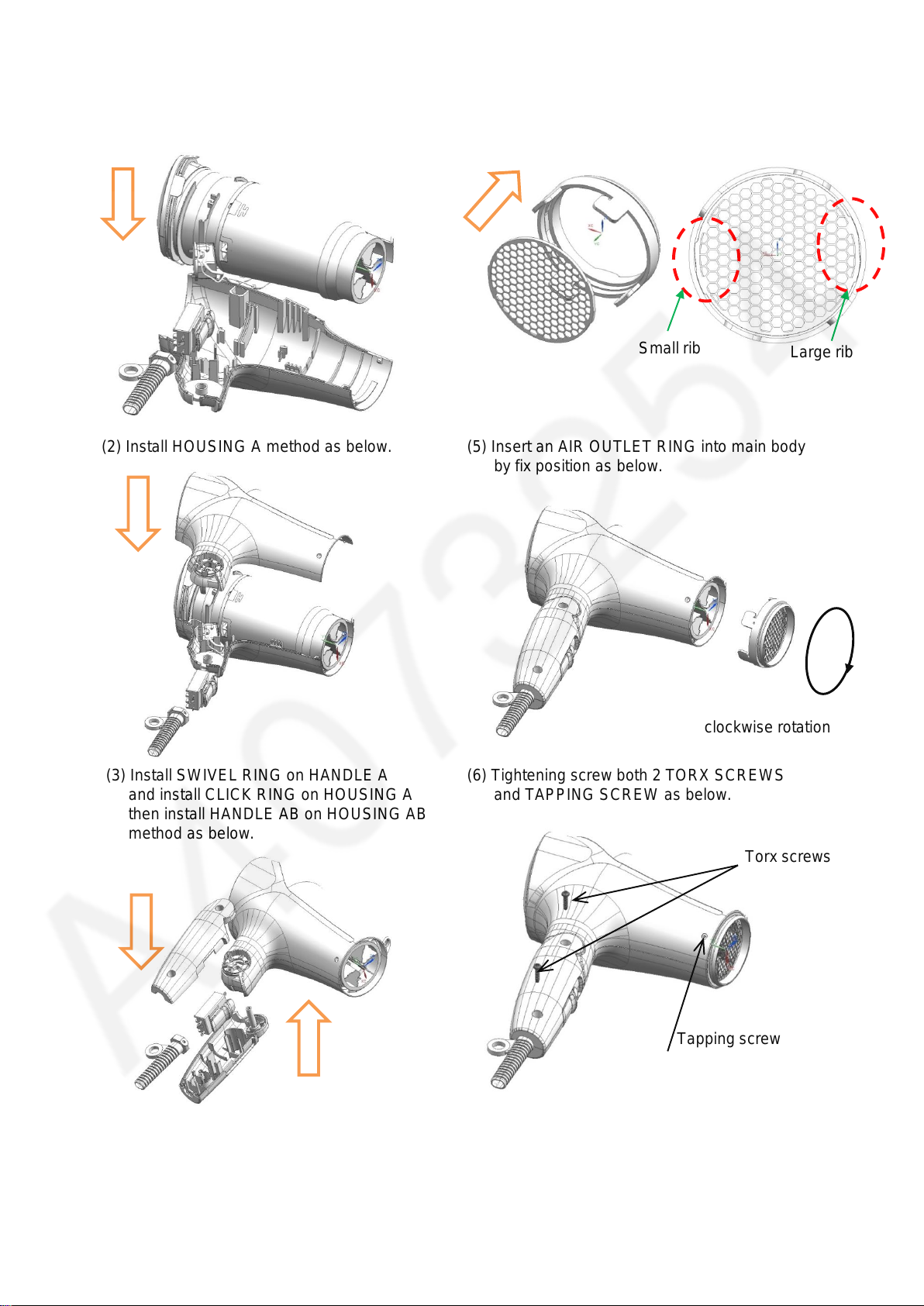

4.2 Assembly Instructions

(1) Install MOTOR HEATER ASSEMBLY (4) Insert an AIR OUTLET GRILL

into HOUSING A as below drawing. into an AIR OUTLET RING

by fix position as below.

(2) Install HOUSING A method as below. (5) Insert an AIR OUTLET RING into main body

by fix position as below.

(3) Install SWIVEL RING on HANDLE A (6) Tightening screw both 2 TORX SCREWS

and install CLICK RING on HOUSING A and TAPPING SCREW as below.

then install HANDLE AB on HOUSING AB

method as below.

Small rib

Large rib

clockwise rotation

Torx screws

Tapping screw

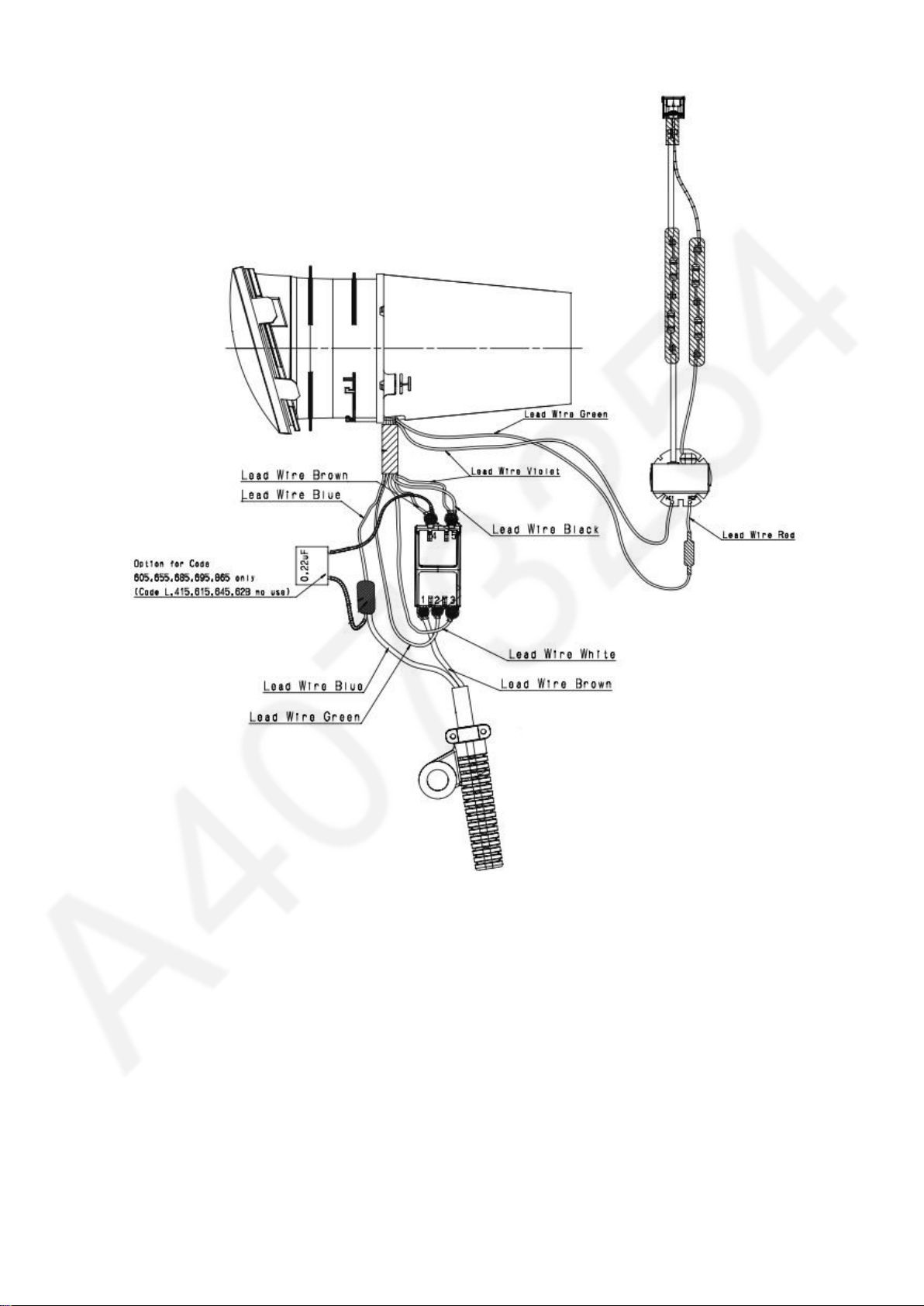

5. Wiring Connection Diagram

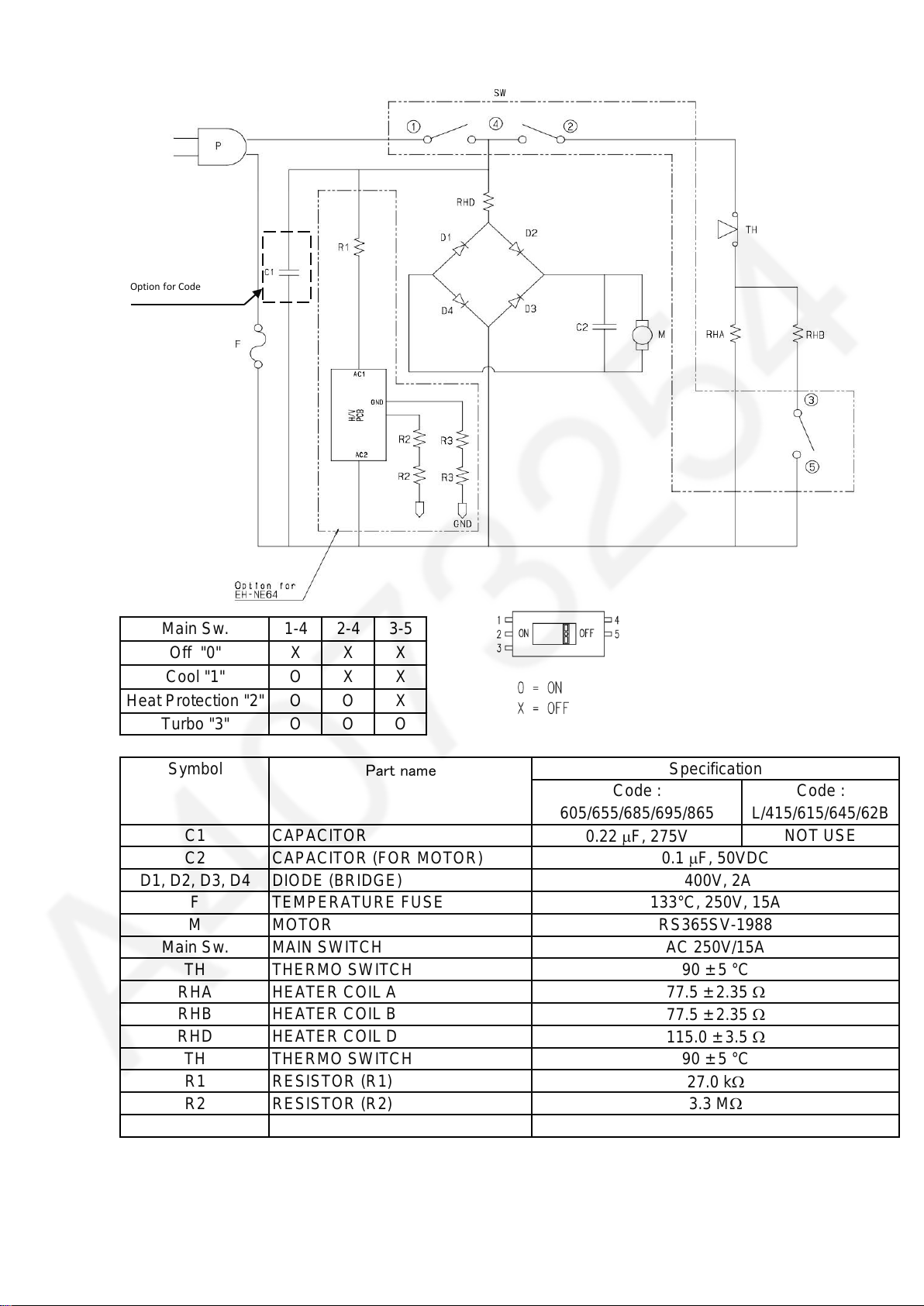

6. Schematic Diagram

(Household) Hair Dryer

Main Sw. 1-4 2-4 3-5

Off "0" X X X

Cool "1" O X X

Heat Protection "2" O O X

Turbo "3" O O O

Symbol Part name

Specification

Code : Code :

605/655/685/695/865 L/415/615/645/62B

C1 CAPACITOR

0.22 mF, 275V NOT USE

C2 CAPACITOR (FOR MOTOR)

0.1 mF, 50VDC

D1, D2, D3, D4 DIODE (BRIDGE) 400V, 2A

F TEMPERATURE FUSE 133°C, 250V, 15A

M MOTOR RS365SV-1988

Main Sw. MAIN SWITCH AC 250V/15A

TH THERMO SWITCH 90 ± 5 °C

RHA HEATER COIL A

77.5 ± 2.35 W

RHB HEATER COIL B

77.5 ± 2.35 W

RHD HEATER COIL D

115.0 ± 3.5 W

TH THERMO SWITCH 90 ± 5 °C

R1 RESISTOR (R1)

27.0 kW

R2 RESISTOR (R2)

3.3 MW

R3 RESISTOR (R3)

1.0 MW

Option for Code

7 EXPLODED VIEW & REPLACEMENT PARTS LIST

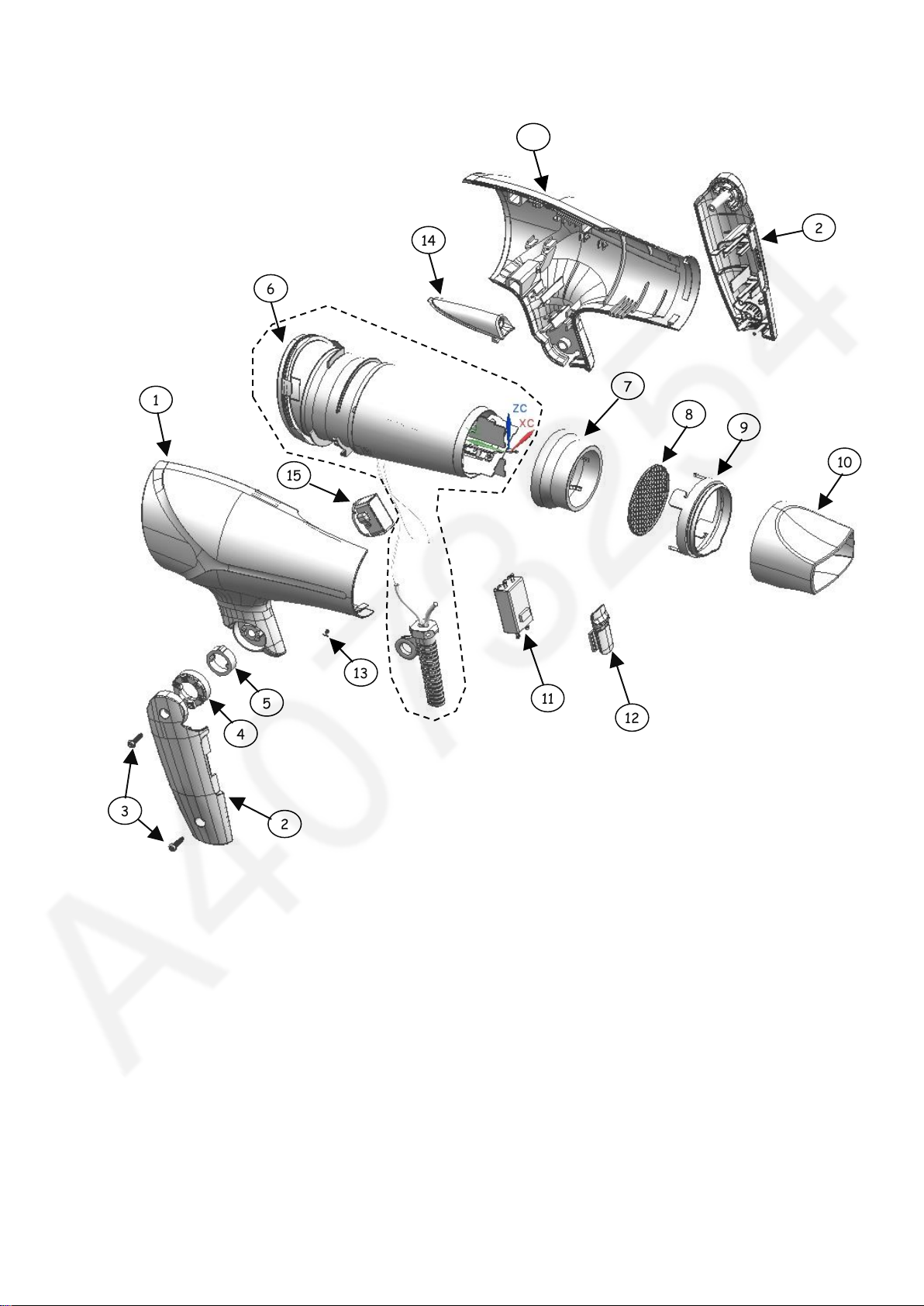

7.1. Exploded View for : EH-NE64

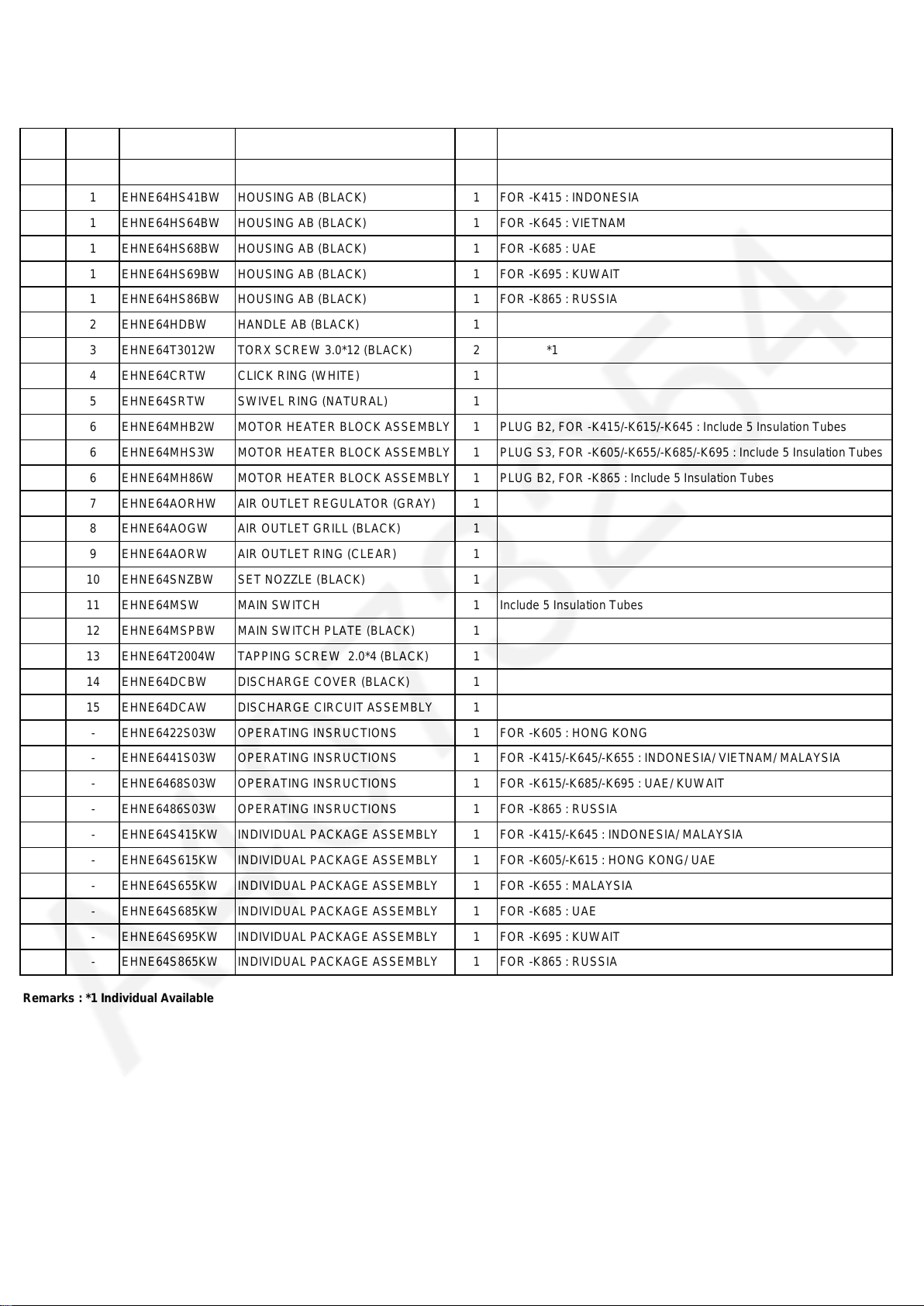

7.2 Parts List for EH-NE64

Safety Ref. No. Part No. Part Name & Description Q'ty Remarks

1 EHNE64HSBW HOUSING AB (BLACK) 1 FOR OTHER

1 EHNE64HS41BW HOUSING AB (BLACK) 1 FOR -K415 : INDONESIA

1 EHNE64HS64BW HOUSING AB (BLACK) 1 FOR -K645 : VIETNAM

1 EHNE64HS68BW HOUSING AB (BLACK) 1 FOR -K685 : UAE

1 EHNE64HS69BW HOUSING AB (BLACK) 1 FOR -K695 : KUWAIT

1 EHNE64HS86BW HOUSING AB (BLACK) 1 FOR -K865 : RUSSIA

2 EHNE64HDBW HANDLE AB (BLACK) 1

3 EHNE64T3012W TORX SCREW 3.0*12 (BLACK) 2 *1

4 EHNE64CRTW CLICK RING (WHITE) 1

5 EHNE64SRTW SWIVEL RING (NATURAL) 1

6 EHNE64MHB2W MOTOR HEATER BLOCK ASSEMBLY 1 PLUG B2, FOR -K415/-K615/-K645 : Include 5 Insulation Tubes

6 EHNE64MHS3W MOTOR HEATER BLOCK ASSEMBLY 1 PLUG S3, FOR -K605/-K655/-K685/-K695 : Include 5 Insulation Tubes

6 EHNE64MH86W MOTOR HEATER BLOCK ASSEMBLY 1 PLUG B2, FOR -K865 : Include 5 Insulation Tubes

7 EHNE64AORHW AIR OUTLET REGULATOR (GRAY) 1

8 EHNE64AOGW AIR OUTLET GRILL (BLACK) 1

9 EHNE64AORW AIR OUTLET RING (CLEAR) 1

10 EHNE64SNZBW SET NOZZLE (BLACK) 1

11 EHNE64MSW MAIN SWITCH 1 Include 5 Insulation Tubes

12 EHNE64MSPBW MAIN SWITCH PLATE (BLACK) 1

13 EHNE64T2004W TAPPING SCREW 2.0*4 (BLACK) 1

14 EHNE64DCBW DISCHARGE COVER (BLACK) 1

15 EHNE64DCAW DISCHARGE CIRCUIT ASSEMBLY 1

- EHNE6422S03W OPERATING INSRUCTIONS 1 FOR -K605 : HONG KONG

- EHNE6441S03W OPERATING INSRUCTIONS 1 FOR -K415/-K645/-K655 : INDONESIA/ VIETNAM/ MALAYSIA

- EHNE6468S03W OPERATING INSRUCTIONS 1 FOR -K615/-K685/-K695 : UAE/ KUWAIT

- EHNE6486S03W OPERATING INSRUCTIONS 1 FOR -K865 : RUSSIA

- EHNE64S415KW INDIVIDUAL PACKAGE ASSEMBLY 1 FOR -K415/-K645 : INDONESIA/ MALAYSIA

- EHNE64S615KW INDIVIDUAL PACKAGE ASSEMBLY 1 FOR -K605/-K615 : HONG KONG/ UAE

- EHNE64S655KW INDIVIDUAL PACKAGE ASSEMBLY 1 FOR -K655 : MALAYSIA

- EHNE64S685KW INDIVIDUAL PACKAGE ASSEMBLY 1 FOR -K685 : UAE

- EHNE64S695KW INDIVIDUAL PACKAGE ASSEMBLY 1 FOR -K695 : KUWAIT

- EHNE64S865KW INDIVIDUAL PACKAGE ASSEMBLY 1 FOR -K865 : RUSSIA

Remarks : *1 Individual Available
