Oregon Scientific RMR391PU Manual de usuario

Slim Projection Clock with Indoor/

Outdoor Temperature

Model: RMR391P / RMR391PA / RMR391PU

USER MANUAL

Slim Projection Clock with Indoor/

Outdoor Temperature

Model: RMR391P / RMR391PA /

RMR391PU

USER MANUAL

CONTENTS

Overview .................................................................. 2

Front view ............................................................. 2

Back view ............................................................. 2

Bottom view .......................................................... 3

Remote sensor ..................................................... 3

Getting started......................................................... 3

Power supply......................................................... 3

Remote sensor...................................................... 4

Sensor data transmission ..................................... 4

Clock ........................................................................ 5

Clock reception .................................................... 5

Manually set clock ................................................ 5

Alarm ........................................................................ 5

Temperature............................................................. 6

Projection ................................................................ 6

Backlight ................................................................. 6

Reset ........................................................................ 7

Precautions ............................................................. 7

Speciﬁcations ........................................................ 8

About Oregon Scientiﬁc ......................................... 8

EU-Declaration of conformity ................................ 8

FCC Statement......................................................... 9

OVERVIEW

FRONT VIEW

89 10 11

1. SNOOZE / LIGHT: activate snooze alarm; turn on

backlight / projector; ﬂip projected image 180º

2. Projector

3. : clock signal reception indicator

4. : adapter disconnected

5. : alarm time is displayed

6. : remote sensor reception indicator

7. : indoor temperature is displayed

8. : daily alarm is ON

9. AM/PM

10. Calendar format

11. +ZONE: time zone offset

BACK VIEW

1 2 3 4 6 7 8 5

1. ºC / ºF: select temperature unit

2. / : increase / decrease value of the setting;

activate / deactivate clock reception signal

3. ON·PROJECTION·OFF: enable / disable

continuous projection

4. : view alarm status; set alarm; activate / deactivate

alarm function

5. BACKLIGHT·HI·OFF·LO: enable / disable continuous

backlight; select brightness

6. MODE: set clock

7. TEMP: toggle between indoor / outdoor temperature

display; initiate auto-toggle

8. RESET: reset unit to default settings

BOTTOM VIEW

1. Adapter socket

2. Battery compartment

REMOTE SENSOR

1. LED status indicator

2. Wall mount hole

3. Battery compartment

4. RESET hole: Reset unit to default settings

5. CHANNEL switch: Select channel 1

GETTING STARTED

POWER SUPPLY

2 x CR2032 batteries

To insert batteries:

1. Remove the battery compartment cover.

2. Insert the batteries, matching the polarities.

3. Press RESET after each battery change.

LOCATION MEANING

Clock area Main unit batteries low

Outdoor / indoor

temperature area Sensor batteries low

1 x adapter:

Alternatively, use the adapter supplied to power the

unit. For continuous use of projector / backlight, adapter

must be installed.

Make sure the adapter is not obstructed and is easily

accessible to the unit.

NOTE The main unit and adapter should not be

exposed to wet conditions. No objects ﬁlled with liquid,

such as vases, should be placed on the main unit and

adapter.

To completely disconnect from power, the adapter

should be disconnected from the main unit.

will appear when power supply is not

connected.

REMOTE SENSOR

To set up the remote sensor:

1. Slide open the battery compartment.

2. Slide channel switch to select channel 1.

3. Insert the battery, matching the polarities.

4. Press RESET after each battery change.

5. Close the battery compartment.

6. Place the sensor within 30 m (98 ft) of the main unit

using the table stand or wall mount.

The transmission range may vary depending on many

factors. You may need to experiment with various

locations to get the best results.

NOTE We recommend that you use alkaline batteries

with this product for longer usage and consumer grade

lithium batteries in temperatures below freezing.

SENSOR DATA TRANSMISSION

Outdoor sensor:

The main unit will automatically search for the outdoor

sensor. The sensor reception icon in the remote sensor

area shows the status:

ICON DESCRIPTION

Main unit is searching for

sensor(s)

A channel has been found

The sensor cannot be

found.

NOTE If the sensor is not found, check the batteries,

obstructions, and remote unit location.

For best results:

• Place the sensor out of direct sunlight and

moisture.

• Position the sensor so that it faces the main unit,

minimizing obstructions such as doors, walls and

furniture.

• Place the sensor in a location with a clear view to

the sky, away from metallic / electronic objects.

• Position the sensor close to the main unit during

cold winter months as below-freezing temperatures

may affect battery performance and signal

transmission.

TIP Ideal placements for the sensor would be in any

location on the exterior of the home at a height of not

more than 1.5 m (5 ft) and which can shield it from direct

sunlight or wet conditions for an accurate reading.

CLOCK

CLOCK RECEPTION

This product is designed to synchronize its clock

automatically with a clock signal.

RMR391P: EU: DCF-77 signal: within 1500 km (932

miles) of Frankfurt, Germany.

RMR391PU: UK: MSF-60 signal: within 1500 km (932

miles) of Anthorn, England.

RMR391PA: WWVB-60 signal: within 3200km (2000

miles) of Fort Collins Colorado.

To enable / disable signal reception:

Press and hold to enable, or to disable signal

reception.

NOTE Reception takes 2-10 minutes. If the signal is

weak, it can take up to 24 hours to get a valid signal.

If signal reception is unsuccessful, place your unit next

to a window, press and hold to force another signal

search.

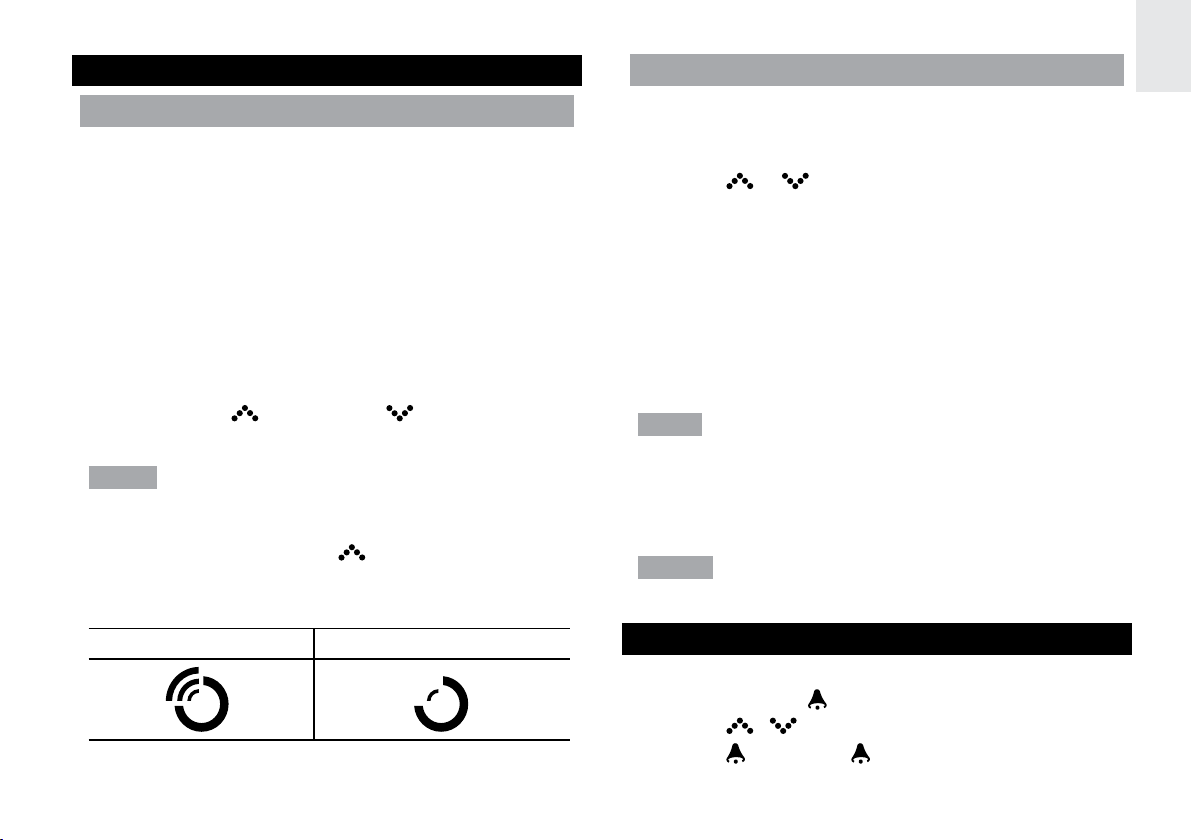

Clock signal reception indicator:

STRONG SIGNAL WEAK / NO SIGNAL

MANUALLY SET CLOCK

To set the clock manually, disable the clock signal

reception ﬁrst.

1. Press and hold MODE.

2. Press or to change the settings.

3. Press MODE to conﬁrm.

4. The setting order is: time zone offset, 12/24-hr

format, hour, minute, year, day / month format,

month, day and language.

RMR391P / RMR391PU: Time zone offset sets the

clock +/- 23 hours from the received clock signal time.

If you have deactivated the clock signal reception, do

not set a value for time zone.

NOTE If you enter +1 in the time offset setting, this will

give you your local time plus one hour. If you are in the

US (RMR391PA) set the clock to:

PA for Paciﬁc time MO for Mountain time

CE for Central time EA for Eastern time

NOTE The language options are (E) English, (S)

Spanish, (I) Italian, (F) French and (D) German.

ALARM

To set the alarm:

1. Press and hold to enter alarm-setting mode.

2. Press / to set hour / minute.

3. Press to conﬁrm. indicates alarm is ON.

To toggle alarms ON / OFF:

1. Press to display alarm time.

2. Press again to turn alarm ON / OFF.

To silence the alarm:

• Touch SNOOZE / LIGHT to silence it for 8 minutes

• Press any other key to turn the alarm off and

activate it again after 24 hours.

TEMPERATURE

To toggle temperature unit:

• Press °C / °F.

To toggle between outdoor / indoor sensor

readings:

• Press TEMP. / indicates indoor and

outdoor temperature.

To auto toggle indoor / outdoor temperature displays:

• Press and hold TEMP.

To deactivate auto toggle function, press TEMP.

PROJECTION

NOTE For continuous projection, install adapter.

To activate / deactivate continuous projection

(when adapter is connected):

• Slide PROJECTION switch to ON / OFF.

Image can still be projected when no adapter is

connected. However, when the battery power is low /

exhausted, the projection feature will be disabled.

To project image brieﬂy:

• Touch SNOOZE / LIGHT.

To ﬂip projected image by 180º:

• Touch SNOOZE / LIGHT.

To adjust location of projected image:

• Swivel the projection arm as required.

NOTE If projection is illuminated, do not look directly

into the projector.

NOTE To save battery life, the projector and backlight

will only operate continuously when adapter is

installed.

BACKLIGHT

NOTE Install adapter to use backlight function. When

the adapter is not connected, the backlight feature will

be disabled.

To activate continuous backlight:

• Slide BACKLIGHT switch to HI / LO.

For a brighter display, select HI. For a dimmer

display, select LO.

To deactivate continuous backlight:

• Slide BACKLIGHT switch to OFF. (Touch SNOOZE/

LIGHT to turn backlight on for 5 seconds).

RESET

Press RESET to return to the default settings.

PRECAUTIONS

• Do not subject the unit to excessive force, shock,

dust, temperature or humidity.

• Do not cover the ventilation holes with any items

such as newspapers, curtains etc.

• Do not immerse the unit in water. If you spill liquid

over it, dry it immediately with a soft, lint-free cloth.

• Do not clean the unit with abrasive or corrosive

materials.

• Do not tamper with the unit’s internal components

This invalidates the warranty.

• Only use fresh batteries. Do not mix new and old

batteries.

• Images shown in this manual may differ from the

actual display.

• When disposing of this product, ensure it is

collected separately for special treatment and not

as normal household waste.

• Placement of this product on certain types of

wood may result in damage to its ﬁnish for which

Oregon Scientiﬁc will not be responsible. Consult

the furniture manufacturer’s care instructions for

information.

• The contents of this manual may not be reproduced

without the permission of the manufacturer.

• Do not dispose old batteries as unsorted municipal

waste. Collection of such waste separately for

special treatment is necessary.

• Please note that some units are equipped with a

battery safety strip. Remove the strip from the

battery compartment before ﬁrst use.

NOTE The technical speciﬁcations for this product

and the contents of the user manual are subject to

change without notice.

NOTE Features and accessories will not be available

in all countries. For more information, please contact

your local retailer.

SPECIFICATIONS

TYPE DESCRIPTION

MAIN UNIT

L x W x H 175 x 80 x 18 mm

(6.9 x 3.2 x 0.7 in)

Weight 240 g (8.47 oz)

without battery

Temperature Unit °C / °F

Temperature range -20°C to 60°C

Signal frequency 433 MHz

Power 2 x CR2032 batteries /

3V adapter

REMOTE UNIT (THN132N)

L x W x H 92 x 60 x 20 mm

(3.6 x 2.4 x 0.8 in)

Weight 62 g (2.22 ounces)

Transmission range 30 m (98 ft) unobstructed

Temperature range -30°C to 60°C

(-22°F to 140°F)

Power 1 x UM-3 (AA) 1.5V battery

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientiﬁc.com) to learn

more about Oregon Scientiﬁc products. If you’re in

the US and would like to contact our Customer Care

department directly, please visit:

www2.oregonscientiﬁc.com/service/support.asp

For international inquiries, please visit:

www2.oregonscientiﬁc.com/about/international.asp

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientiﬁc, declares that this Slim

Projection Clock with Indoor/Outdoor Temperature

(Model: RMR391P / RMR391PA / RMR391PU) is in

compliance with the essential requirements and other

relevant provisions of Directive 1999/5/EC. A copy

of the signed and dated Declaration of Conformity

is available on request via our Oregon Scientiﬁc

Customer Service.

COUNTRIES RTTE APPROVAL COMPLIED

All EU countries, Switzerland CH

und Norwegen N

FCC STATEMENT

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and

(2) This device must accept any interference received,

including interference that may cause undesired

operation.

WARNING Changes or modiﬁcations not expressly

approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

NOTE This equipment has been tested and found

to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and receiver.

• Connect the equipment into an outlet on a

circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio / TV

technician for help.

DECLARATION OF CONFORMITY

The following information is not to be used as contact

for support or sales. Please visit our website at www2.

oregonscientiﬁc.com/service for all enquiries.

Name: Oregon Scientiﬁc, Inc.

Address: 19861 SW 95th Ave.,Tualatin,

Oregon 97062 USA

Telephone No.: 1-800-853-8883

declare that the product

Product No.: RMR391P / RMR391PA /

RMR391PU

Product Name: Slim Projection Clock with Indoor/

Outdoor Temperature

Manufacturer: IDT Technology Limited

Address: Block C, 9/F, Kaiser Estate,

Phase 1,41 Man Yue St.,

Hung Hom, Kowloon,

Hong Kong

is in conformity with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received,

including interference that may cause undesired

operation.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Reloj de Oregon Scientific

Oregon Scientific

Oregon Scientific RM602 Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA G RRM222P Instrucciones de instalación

Oregon Scientific

Oregon Scientific RMB899P Manual de usuario

Oregon Scientific

Oregon Scientific MSR939A-01 Manual de usuario

Oregon Scientific

Oregon Scientific BC100U Manual de usuario

Oregon Scientific

Oregon Scientific RM928N Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA B Manual de usuario

Oregon Scientific

Oregon Scientific RM336PES Manual de usuario

Oregon Scientific

Oregon Scientific RM968 Manual de usuario

Oregon Scientific

Oregon Scientific TW223 Manual de usuario

Oregon Scientific

Oregon Scientific WS902 Manual de usuario

Oregon Scientific

Oregon Scientific DP200 Manual de usuario

Oregon Scientific

Oregon Scientific FSP-301 Manual de usuario

Oregon Scientific

Oregon Scientific RRM320P Manual de usuario

Oregon Scientific

Oregon Scientific RM913TCN Manual de usuario

Oregon Scientific

Oregon Scientific RRM902 Manual de usuario

Oregon Scientific

Oregon Scientific RM818PA Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA R Manual de usuario

Oregon Scientific

Oregon Scientific RM912TCN Manual de usuario

Oregon Scientific

Oregon Scientific JMR868 Manual de usuario

Oregon Scientific

Oregon Scientific RM868P Manual de usuario

Oregon Scientific

Oregon Scientific BAR332ES Manual de usuario

Oregon Scientific

Oregon Scientific NAW888T Manual de usuario

Oregon Scientific

Oregon Scientific RRM612P Manual de usuario

Manuales populares de Reloj de otras marcas

Silicon Laboratories

Silicon Laboratories SI5324 Manual de usuario

Heathkit

Heathkit GC-1005 Manual de usuario

Andrew O'Malley

Andrew O'Malley DOTKLOK Manual de usuario

ALGE-Timing

ALGE-Timing ASC3 Manual de usuario

Bodet

Bodet Profil 960 Manual de usuario

Nixie Clock

Nixie Clock Divergence Meter Manual de usuario

La Crosse Technology

La Crosse Technology WS-8256-AL Manual de usuario

Mini Gadgets

Mini Gadgets MCPro Manual de usuario

Casio

Casio TMR-200 Manual de usuario

Progetti

Progetti ILTEMPOSTRINGE Manual

BVItech

BVItech BV-101 Manual de usuario

Progetti

Progetti KALIMERO Manual

La Crosse Technology

La Crosse Technology WT-3141b Manual

La Crosse Technology

La Crosse Technology W86531 Manual de usuario

Sharp

Sharp SPC900 Manual de usuario

La Crosse Technology

La Crosse Technology 404-50447 Manual de usuario

Datexx

Datexx DF0063 Manual de usuario

LG LEC-005 Manual de usuario
