Oregon Scientific Silverstone FAP-101 Manual de usuario

TABLE OF CONTENTS

About this guide ................................................. 2

Product overview ................................................ 3

Getting started ................................................... 7

Batteries ......................................................... 7

AC power adapter .......................................... 7

Change settings............................................. 7

Clock ................................................................... 8

Alarm................................................................. 10

Temperature ..................................................... 11

Backlight ........................................................... 11

Projector ........................................................... 11

Reset system .................................................... 12

Safety and care................................................ 13

Warnings........................................................... 13

Additional resources ........................................ 14

Troubleshooting................................................ 15

Specifications ................................................... 16

ABOUTTHIS GUIDE

Congratulations on your selection of the Oregon

Scientific Silverstone Radio-Controlled Projection

Clock with Indoor Temperature (FAP-101). This

powerful device bundles time keeping, alarm,

projection, and indoor temperature measurement

features.

Keep this manual handy as you use your new

product. It contains practical step-by-step

instructions, as well as technical specifications and

warnings you should know.

In this box, you will find:

• Main unit

• Batteries

• AC/DC power adapter

PRODUCT OVERVIEW

TOP VIEW

DESCRIPTIONS

1. Snooze / Light button (à10, 11, 12)

2. Projection lens (à12)

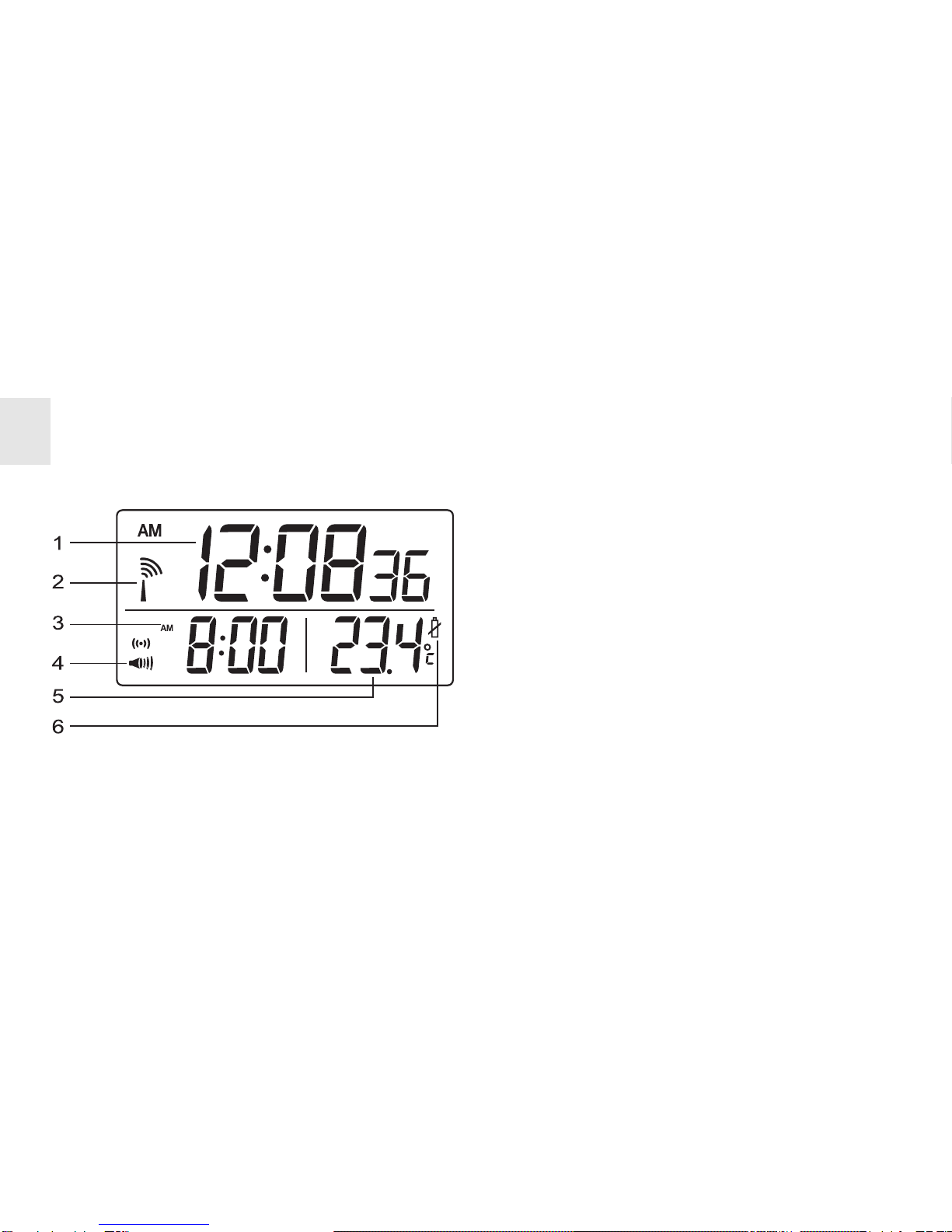

LCD DISPLAY DESCRIPTIONS

1. Clock (à8)

2. RF Reception Signal (à8)

3. Date / Alarm (à9, 10)

4. Alarm Type (à10)

5. Temperature (à11)

6. Low battery icon (à7)

FRONT VIEW BUTTON DESCRIPTIONS

1. Clock – set time / date or view seconds / day of

week (à7, 9, 10)

2. Up / Down – increase / decrease setting

or activate / deactivate auto-synchronization

(à7, 9)

3. Alarm – set / activate / deactivate alarm

(à10)

4. Projector (à11)

BACK VIEW DESCRIPTIONS

1. Projector focus knob (à12)

2. 180° rotation (flip image) button (à12)

3. Image rotation button (à12)

4. Radio signal format switch (à8)

5. Reset button (à12)

6. Projector switch (à12)

7. °C/ °F switch (à11)

AC power adapter and battery

compartment not shown.

AC POWER ADAPTER

An AC power adapter is supplied for use with this

product. You must connect the power adapter if

you wish to use the continuous projection feature.

The jack is located on the bottom of the unit.

If the AC power becomes unavailable, the

unit will automatically switch to battery power.

CHANGE SETTINGS

Press and hold CLOCK or ALARM for 2 seconds

to enter setting mode. Then, press UP or

GETTING STARTED

BATTERIES

Batteries are supplied with this product. Replace them

whenever the low battery signal ( ) displays. The

battery cover is located on the bottom of the unit. Slide

to open. Be sure to match the correct polarity, as

shown in the battery compartment. After you change

the batteries, press the RESET button with the point of

a blunt object (such as a ball point pen).

Do not use rechargeable batteries.

DOWN to change each setting. Press and hold to

enter fast-setting mode. Press CLOCK or ALARM

to switch between settings.

CLOCK

This product can automatically synchronize the date

and time with official time-keeping organizations in

Frankfurt (Germany) and Rugby (England). When

the unit is within 1500 km (932 miles) of a RF

signal, the reception icon will blink during reception.

SET RADIO SIGNAL FORMAT

The RADIO SIGNAL FORMAT switch is located on

the back of the product. Select EU (DCF) or UK

(MSF). Then, press RESET to reset the unit.

Reception takes 2 – 10 minutes to complete. Once

complete, the icon will stop blinking.

Strong signal Weak signal No signal

For best results, place the unit away from

metal or electrical objects, and near a window with

a clear view to the sky.

TO DISABLE OR ENABLE AUTO-

SYNCHRONIZATION

Press DOWN for 2 seconds to disable the auto-

synchronization. The unit will not respond to radio

signals until you reactivate the synchronization.

To enable auto-reception, press UP for 2

seconds.

SET OR CHANGETHE CLOCK

Clock auto-synchronization must be deactivated

before you manually set the clock.

1. Press and hold CLOCK for 2 seconds to enter

setting mode.

2. Select the 12/24-hour format, hour, minute,

year, date/month format, month, date, and

display language. Press UP or DOWN to

change the setting. Press CLOCK to confirm.

The language options are (E) English,

(F) French, (D) German, (I) Italian, and (S)

Spanish.

VIEW DAY OF WEEK OR SECONDS

Press CLOCK.

ALARM

When activated, the Beep Alarm starts quietly, then

gradually becomes louder until it crescendos at 1

minute. It shuts off at two minutes. The LCD display

lights up for the first 5 seconds.

SET ALARM

1. Press and hold ALARM for 2 seconds to enter

setting mode.

2. Select the hour, minute, and alarm type (

forBeep Alarm or for Ferrari Engine). Press

UP or DOWN to change the setting.

3. Press ALARM to confirm.

SNOOZE

Press SNOOZE/LIGHT to temporarily disable the

alarm for 8 minutes. The alarm icon will blink while

Snooze is activated.
