+ECO Clima Control

Model: RMR500ES / RMR500ESU /

RMR500ESA

USER MANUAL

CONTENTS

Earth Friendly....................................................................2

Overview............................................................................2

Front View.......................................................................2

LCD Display....................................................................2

Back View........................................................................3

Outdoor Sensor - THGN500.........................................3

Remote Sensor - THGR122N.......................................4

Getting Started..................................................................4

Solar Panel......................................................................4

Backup Power.................................................................5

Name Tags......................................................................5

Remote Sensors................................................................5

Clock and Calendar..........................................................6

Clock Reception..............................................................6

Manually Set Clock.........................................................7

Temperature and Humidity..............................................7

Mold Alert........................................................................7

Weather Forecast..............................................................8

Backlight............................................................................8

Reset..................................................................................8

Specications...................................................................8

Precautions.......................................................................8

About Oregon Scientic..................................................9

EU-Declaration of Conformity.........................................9

FCC Statement.................................................................10

Declaration of Conformity..............................................10

EARTH FRIENDLY

Oregon Scientic™ proudly presents +ECO Clima Control,

an environmental-friendly weather-monitoring clock that

converts solar energy into its source of power via a solar

panel. Convenient and easy to use, you only need to lift the

solar panel and face it directly towards the sun for a few

hours in order to receive the amount of energy necessary

to power the device.

OVERVIEW

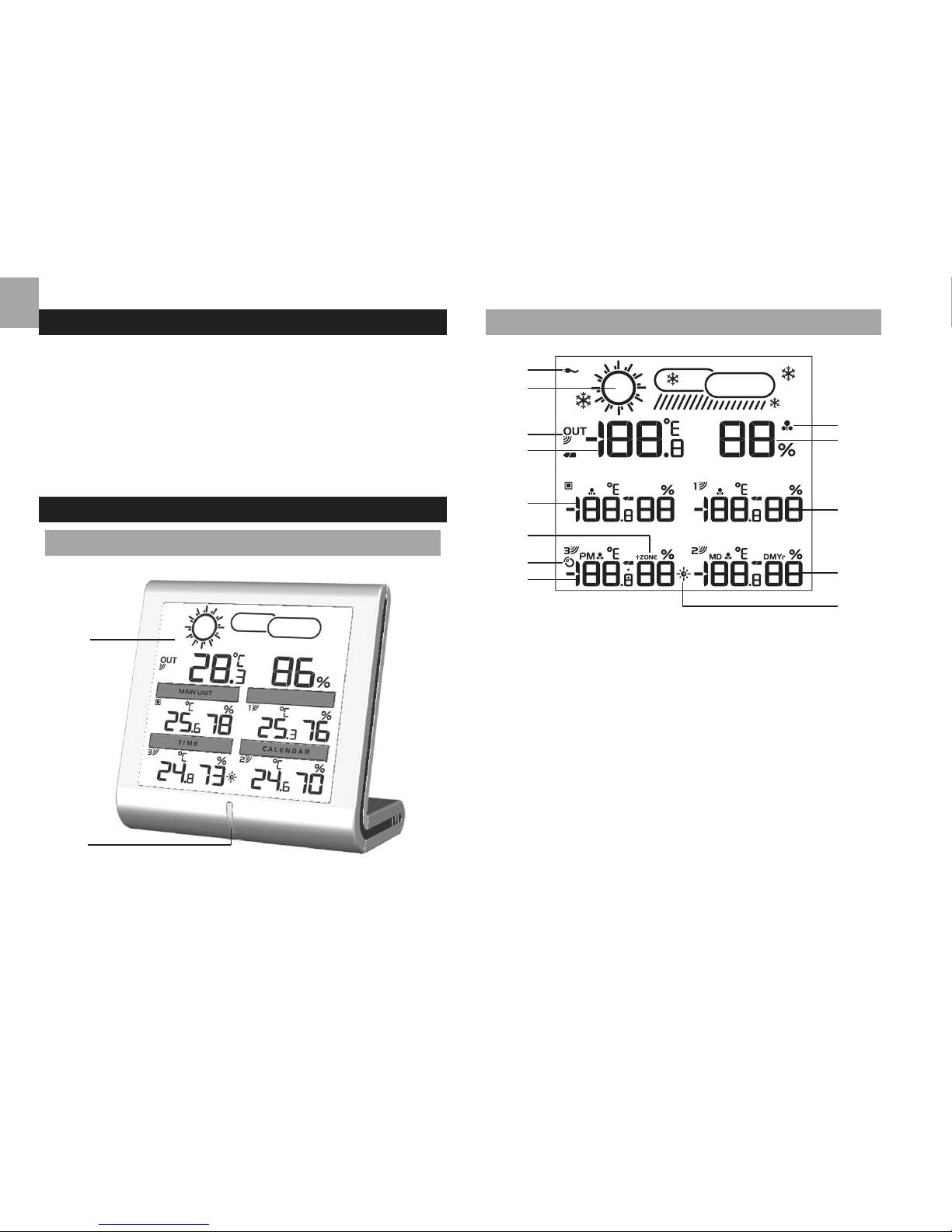

FRONT VIEW (FIG 1)

1. LCD Display

2. LED indicator

LCD DISPLAY (FIG 2)

1. AC/DC power adaptor icon

2. Weather forecast icon

3. Outdoor sensor reception icon

4. Outdoor temperature display for THGN500*

5. Temperature/humidity display for main unit

environment

6. Time zone

7. Clock signal reception indicator

8. Clock display (or temperature/humidity display for

optional sensor)

9. Sunlight icon

10. Calendar display (or temperature/humidity display for

optional sensor)

11. Temperature/humidity display for THGR122N remote

sensor

12. Outdoor humidity display for THGN500*

13. Mold alert

*This product is designed to display the temperature and

humidity reading of THGN500 in the outdoor temperature/

humidity area only.

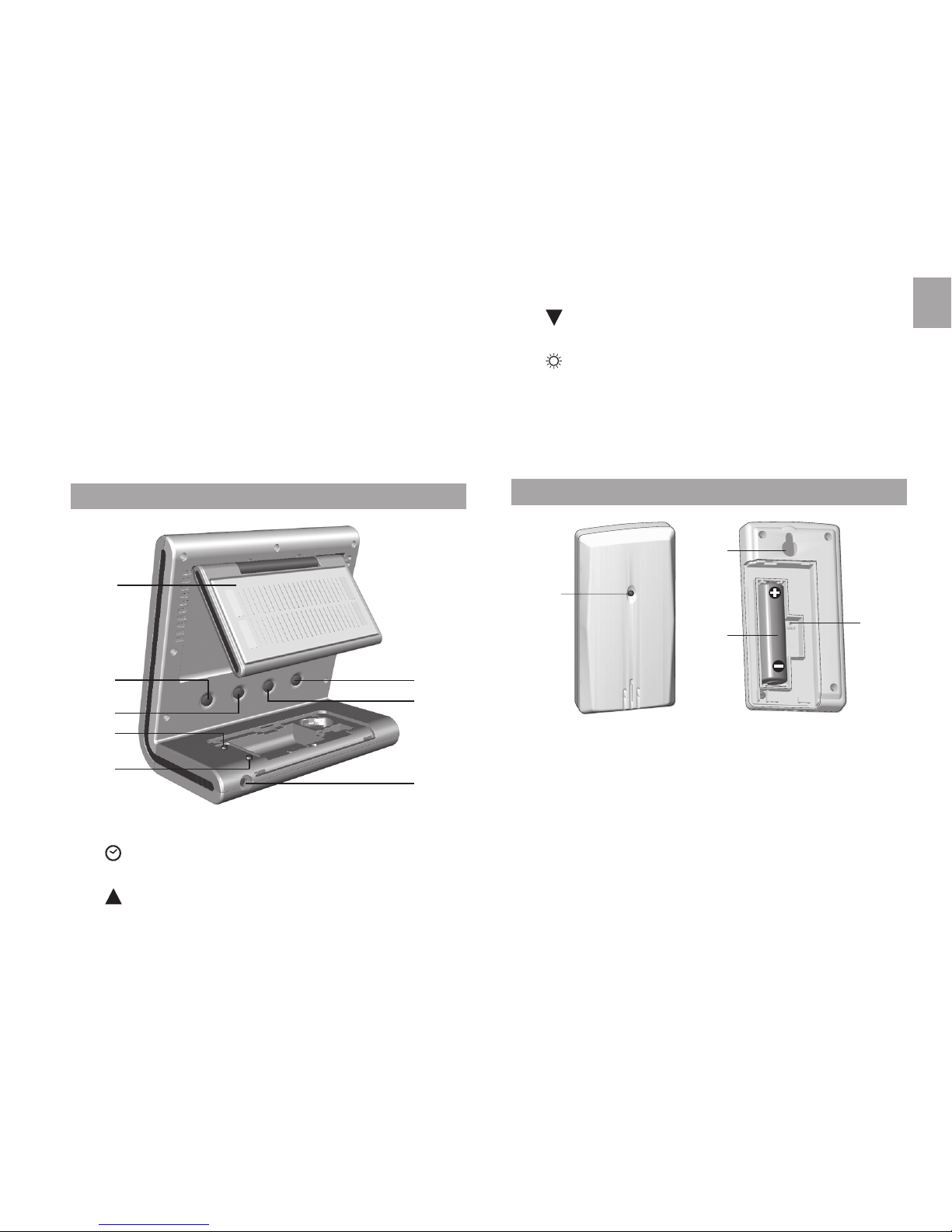

BACK VIEW (FIG 3)

1. Solar panel

2. : Toggle between clock, calendar and temperature/

humidity displays; enter setting mode

3. : Increase values in setting mode; activate clock

signal reception

4. : Decrease values in setting mode; deactivate clock

signal reception

5. : Activate backlight

6. RESET: Reset unit to default settings

7. °C / °F: Select temperature unit

8. Power adaptor jack

OUTDOOR SENSOR - THGN500 (FIG 4)

1. LED status indicator

2. Wall mount hole

3. Battery compartment

4. RESET hole

REMOTE SENSOR - THGR122N (FIG 5)

1. LCD display

2. LED status indicator

3. Wall mount hole

4. RESET hole

5. CHANNEL switch

6. Battery compartment

GETTING STARTED

SOLAR PANEL

This product uses a 600mAH rechargeable battery which

should be charged via the solar panel. For the battery’s rst

charge, it is strongly advised to charge it for at least 12 hours

by lifting and positioning the solar panel in such a way that it

faces sunlight directly.

IMPORTANT The solar panel should be lifted and

positioned at no more than 90°.

600mAH

rechargeable

battery

When the rechargeable battery is nearly at, the LED

indicator on the main unit and will ash. Expose the solar

panel directly to sunlight for approximately 5 to 6 hours to

charge the battery. Normally, the battery life will last for 2

months.

TIPS

• For best results when charging the battery, avoid

placing the product behind glass windows, but expose

the solar panel directly to sunlight.

• Do not scratch the solar panel’s surface or wipe it with

strong detergent.

• Do not expose the solar panel to rain, snow or

moisture.

• The duration of the rechargeable battery’s charging or

operating time is determined by either the intensity of

sunlight or the positioning of the solar panel towards

the sun.

BACKUP POWER

CR2032 batteries

In the case when the rechargeable battery is at or nearly

at, the 2 pieces of CR2032 batteries can act as backup

power supply for the main unit.

1. Remove the battery compartment.

2. Insert the batteries, matching the polarities.

3. Press RESET after each battery change.

2 x CR2032

LOCATIONMEANING

Outdoor temperature/

humidity area (THGN500) Outdoor sensor battery low

Main unit environment area CR2032 batteries low

Remote sensor area

(THGR122N)

Remote sensor batteries

low

Clock and calendar area

(or optional sensors area)

Optional sensors batteries

low

Power adaptor (not included)

The power adaptor can also be used for charging the

rechargeable battery. When connected to the main unit,

will be displayed.

NAME TAGS

Name tags can be inserted in the main unit as in Fig. 1.

There are 10 name tags provided in this package, with 7

blank tags and 3 tags printed as “MAIN UNIT”, “TIME” and

“CALENDAR”. You can write in the blank tags the name of

the location where THGR122N and other optional sensors

are installed.

NOTE If optional sensors are installed, “CALENDAR” and

“TIME” tags will be replaced.

REMOTE SENSORS

This product can work with up to 4 sensors at any one time

to capture temperature and relative humidity readings in

various locations.

2 remote sensors (THGN500 and THGR122N) are provided

in this package, while 2 more optional wireless remote

sensors can be purchased separately.

Optional wireless remote sensors such as those listed below

can be purchased separately:

- THGR122N / THGN122N

- THGN132N

- THGR228N / THGN228N

- THGR238N / THGN238N

To set up the remote sensor:

1. Open the battery compartment and insert batteries,

matching the polarity.

2. Select a channel then press RESET.

3. Close the battery door.

4. Place the remote sensor within 30 m (98 ft) from the

main unit.

NOTE Use alkaline batteries for longer usage and consumer

grade lithium batteries in temperatures below freezing.

To search for a sensor:

Press and hold + at the same time.

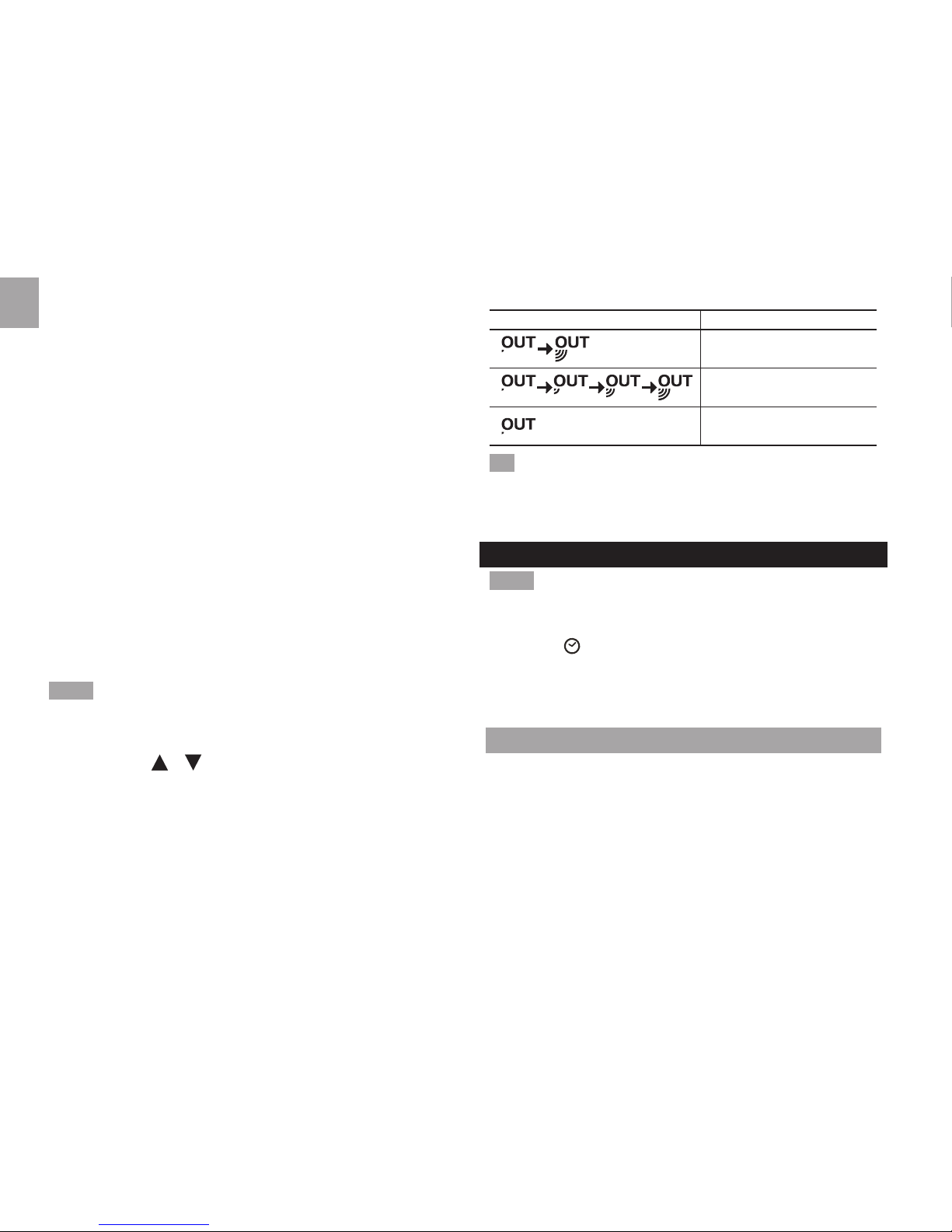

The remote sensor reception icon will show the following

status:

ICON DESCRIPTION

Main unit is searching

for sensor(s).

A channel has been

found.

The sensor cannot be

found.

TIP The transmission range may vary depending on many

factors. You may need to experiment with various locations

to get the best results.

CLOCK AND CALENDAR

NOTE If optional sensors are installed:

• clock and calendar display will be replaced by

temperature/humidity readings.

• press to toggle between clock and temperature/

humidity display, or calendar and temperature/humidity

display.

CLOCK RECEPTION

This product is designed to synchronize its clock

automatically with a clock signal.

RMR500ES:

EU: DCF-77 signal: within 1 500 km (932 miles) of Frankfurt,

Germany.

RMR500ESU:

UK: MSF-60 signal: within 1 500 km (932 miles) of Anthorn,

England.

RMR500ESA:

WWVB-60 signal: within 3200 km (2000 miles) of Fort

Collins, Colorado.

To enable / disable clock signal reception:

Press and hold to enable or to disable clock signal

reception.

NOTE Reception takes 2-10 minutes. If the signal is weak,

it can take up to 24 hours to get a valid signal. If signal

reception is unsuccessful, place your unit next to a window,

press and hold to force another signal search.

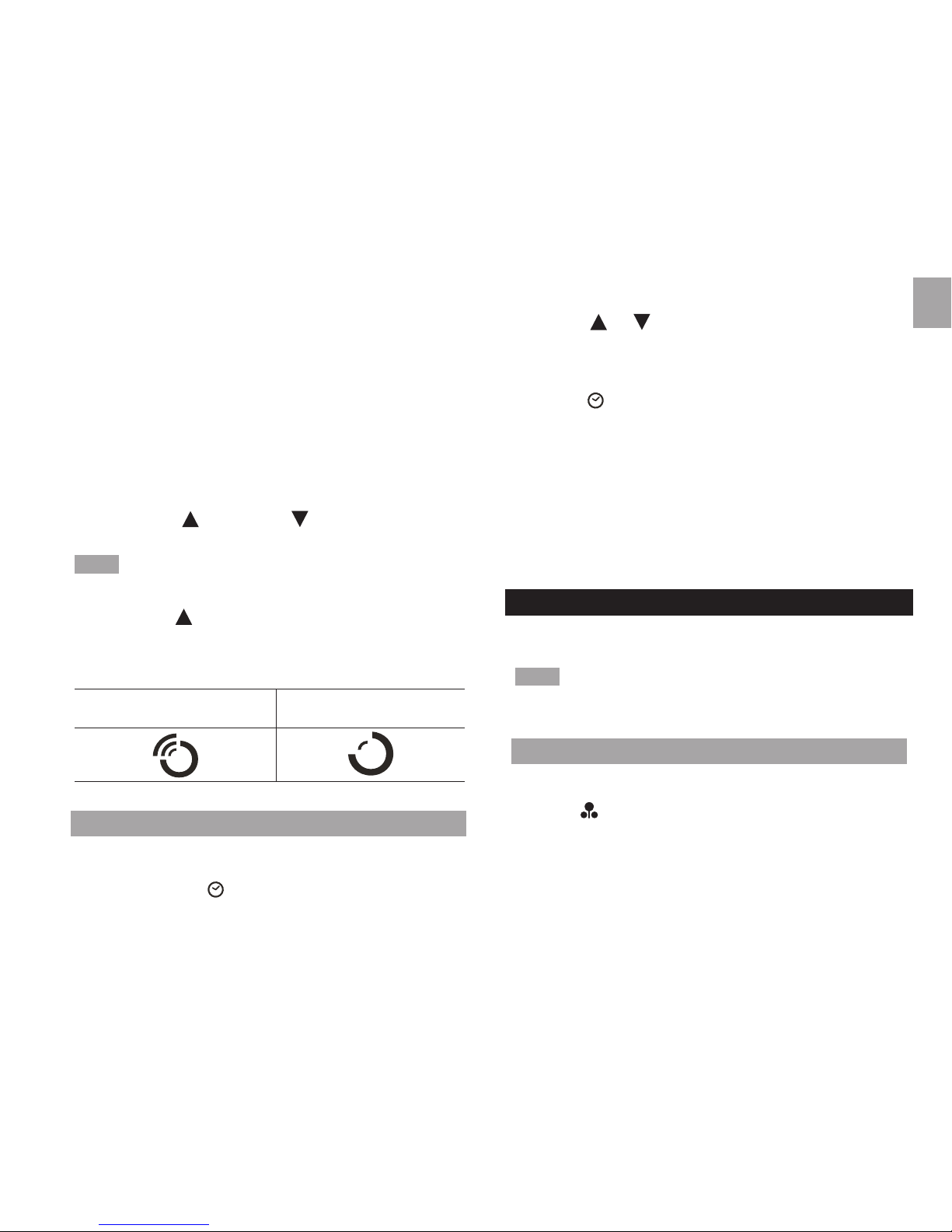

Clock signal reception indicator:

STRONG SIGNAL WEAK / NO SIGNAL

MANUALLY SET CLOCK

To set the clock manually, disable the clock signal reception

rst.

1. Press and hold .

2. Press or to change the settings. The settings

order is: time zone, 12/24 hr format, hour, minute, year,

calendar mode (month – day / day – month), month and

day.

3. Press to conrm.

RMR500ES / RMR500ESU: Time zone sets the clock +/-

23 hours from the received clock signal time. If you have

deactivated the clock signal reception, do not set a value

for time zone.

RMR500ESA: Select the time zone: (0) Pacic, (+1)

Mountain, (+2) Central or (+3) Eastern.

TEMPERATURE AND HUMIDITY

To toggle temperature unit:

Press °C / °F.

NOTE “HH.H” or “LL.L” will be displayed when the received

temperature is out of the specied temperature range.

MOLD ALERT

This product features moisture alert function for the

prevention of mold. If the humidity is over 60%, the mold

alert icon will ash, and will stop ashing if the humidity

is less than 60%.

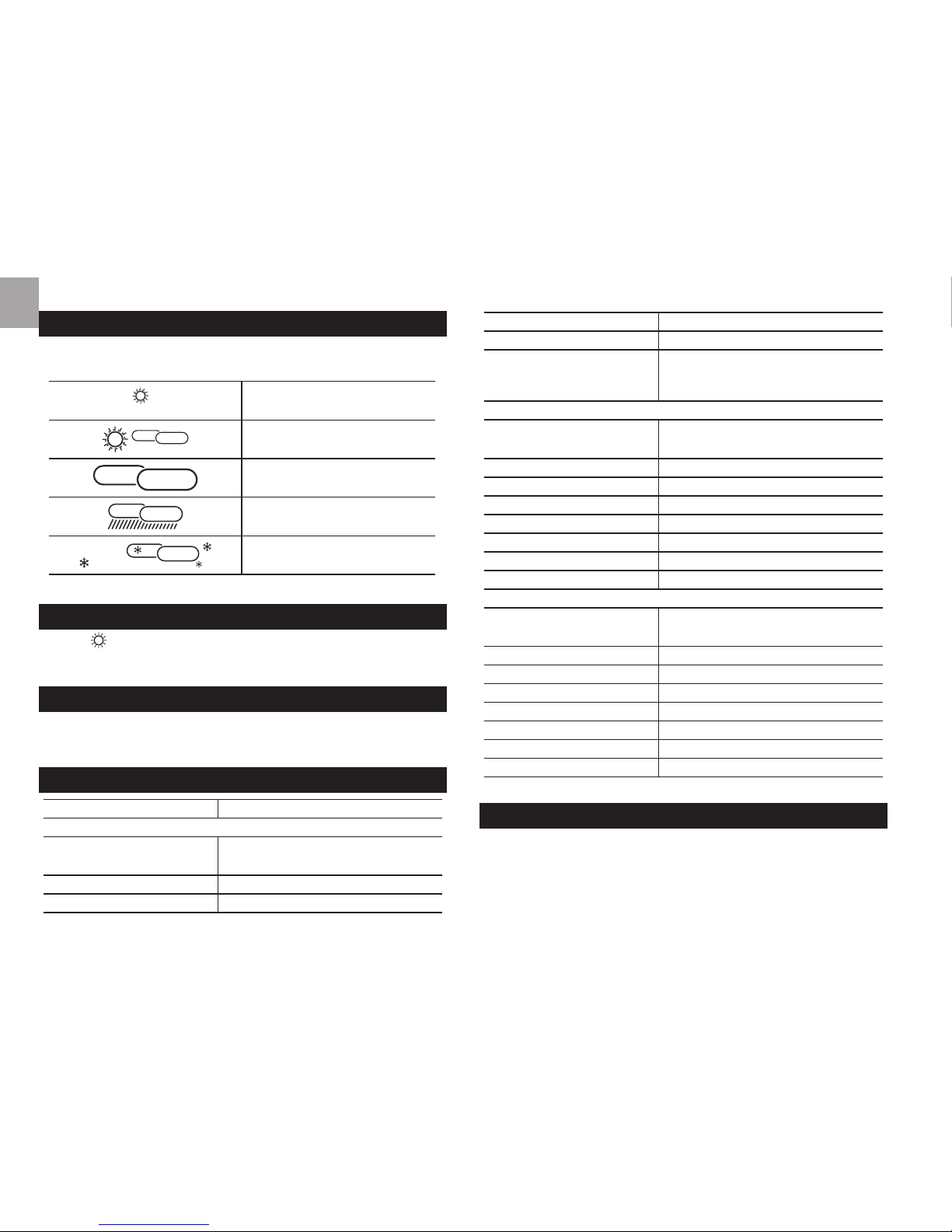

WEATHER FORECAST

This product forecasts the next 12 to 24 hours of weather

within a 30-50 km (19-31 mile) radius with 75% accuracy.

Sunny

Partially Cloudy

Cloudy

Rainy

Snowy

BACKLIGHT

Press to activate LED backlight for 5 seconds.to activate LED backlight for 5 seconds.

RESET

Press RESET to return to the default settings.

SPECIFICATIONS

TYPE DESCRIPTION

MAIN UNIT

L x W x H 130 x 80 x 130 mm

(5.1 x 3.15 x 5.1 in)

Weight 400 g (14.11 oz) without battery

Signal frequency 433 MHz

Temperature range -5°C to 50°C (23°F to 122°F)

Humidity range 25% - 95%

Power

600mAH rechargeable battery;

6V AC/DC adaptor (not included);

2 x CR2032 batteries (for backup)

REMOTE UNIT (THGN500)

L x W x H 50 x 22 x 96 mmmmmm

(1.9 x 0.9 x 3.8 in)

Weight 63 g (2.22 oz) without batteryg (2.22 oz) without battery(2.22 oz) without battery

Signal frequency 433 MHz

Number of channel 1

Transmission range 30 m (100 ft) unobstructed

Temperature range -20°C to 60°C (-4°F to 140°F)

Humidity range 25% - 95%

Power 1 x UM-3 (AA) 1.5  batteryA) 1.5 V battery) 1.5 V battery

REMOTE UNIT (THGR122N)

L x W x H 92 x 60 x 20 mmmmmm

(3.6 x 2.4 x 0.79 in)

Weight 63 g (2.22 oz) without batteryg (2.22 oz) without battery(2.22 oz) without battery

Signal frequency 433 MHz

Number of channel 3

Transmission range 30 m (100 ft) unobstructed

Temperature range -20°C to 60°C (-4°F to 140°F)

Humidity range 25% - 95%

Power 2 x UM-4 (AAA) 1.5  batteryA) 1.5 V battery) 1.5 V battery

PRECAUTIONS

• Do not subject the unit to excessive force, shock, dust,

temperature or humidity.

• Do not cover the ventilation holes with any items such

as newspapers, curtains etc.

• Do not immerse the unit in water. If you spill liquid over

it, dry it immediately with a soft, lint-free cloth.

• Do not clean the unit with abrasive or corrosive

materials.

• Do not tamper with the unit’s internal components. This

invalidates the warranty.

• Only use fresh batteries. Do not mix new and old

batteries.

• Images shown in this manual may differ from the actual

display.

• When disposing of this product, ensure it is collected

separately for special treatment and not as normal

household waste.

• Placement of this product on certain types of wood

may result in damage to its nish for which Oregon

Scientic will not be responsible. Consult the furniture

manufacturer's care instructions for information.

• The contents of this manual may not be reproduced

without the permission of the manufacturer.

• Do not dispose old batteries as unsorted municipal

waste. Collection of such waste separately for special

treatment is necessary.

• Please note that some units are equipped with a

battery safety strip. Remove the strip from the battery

compartment before rst use.

NOTE The technical specications for this product and the

contents of the user manual are subject to change without

notice.

NOTE Features and accessories will not be available in all

countries.For more information, please contact your local

retailer.

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientic.com) to learn more

about Oregon Scientic products.

If you’re in the US and would like to contact our Customer

Care department directly, please visit:

www2.oregonscientic.com/service/support.asp

For international inquiries, please visit:

www2.oregonscientic.com/about/international.asp

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientic, declares that this +ECO Clima

Control (model: RMR500ES / RMR500ESU / RMR500ESA)

is in compliance with the essential requirements and other

relevant provisions of Directive 1999/5/EC. A copy of the

signed and dated Declaration of Conformity is available on

request via our Oregon Scientic Customer Service.

COUNTRIES RTTE APPROVED COMPLIED

All EU countries, Switzerland CH

and Norway N

FCC STATEMENT

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) This

device must accept any interference received, including

interference that may cause undesired operation.

WARNING Changes or modications not expressly

approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

NOTE This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation.

This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee

that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio / T technician for

help.

DECLARATION OF CONFORMITY

The following information is not to be used as contact for

support or sales. Please visit our website at

www2.oregonscientic.com/service for all enquiries.

Name: Oregon Scientic, Inc.

Address: 19861 SW 95th Ave.,Tualatin,

Oregon 97062 USA

Telephone No.: 1-800-853-8883

declare that the product

Product No.: RMR500ES / RMR500ESU /

RMR500ESA

Product Name: +ECO Clima Control

Manufacturer: IDT Technology Limited

Address: Block C, 9/F, Kaiser Estate,

Phase 1,41 Man Yue St., Hung

Hom, Kowloon,

Hong Kong

is in conformity with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: 1) This device may

not cause harmful interference. 2) This device must accept

any interference received, including interference that may

cause undesired operation.

Otros manuales para RMR500ES

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reloj de Oregon Scientific

Oregon Scientific

Oregon Scientific RM868P Manual de usuario

Oregon Scientific

Oregon Scientific TW369 Manual de usuario

Oregon Scientific

Oregon Scientific RM928 Manual de usuario

Oregon Scientific

Oregon Scientific DP100 Manual de usuario

Oregon Scientific

Oregon Scientific RM888PA Manual de usuario

Oregon Scientific

Oregon Scientific RA313P Manual de usuario

Oregon Scientific

Oregon Scientific BAR223P Manual de usuario

Oregon Scientific

Oregon Scientific RRM902 Manual de usuario

Oregon Scientific

Oregon Scientific JW108 Manual de usuario

Oregon Scientific

Oregon Scientific FAT101 Indianapolis Manual de usuario

Oregon Scientific

Oregon Scientific BC100U Manual de usuario

Oregon Scientific

Oregon Scientific RM116E Manual de usuario

Oregon Scientific

Oregon Scientific RM968A Manual de usuario

Oregon Scientific

Oregon Scientific 983U Manual de usuario

Oregon Scientific

Oregon Scientific RMR612HGA Manual de usuario

Oregon Scientific

Oregon Scientific WS902 Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA B Manual de usuario

Oregon Scientific

Oregon Scientific RMR802 Manual de usuario

Oregon Scientific

Oregon Scientific SENSES Aroma Clock with Brainwave Music... Manual de usuario

Oregon Scientific

Oregon Scientific RM368P Manual de usuario

Oregon Scientific

Oregon Scientific NR868A-01 Manual de usuario

Oregon Scientific

Oregon Scientific RA383P Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA B Manual de usuario

Oregon Scientific

Oregon Scientific BAR368P Manual de usuario

Manuales populares de Reloj de otras marcas

Silicon Laboratories

Silicon Laboratories SI5324 Manual de usuario

Heathkit

Heathkit GC-1005 Manual de usuario

Andrew O'Malley

Andrew O'Malley DOTKLOK Manual de usuario

ALGE-Timing

ALGE-Timing ASC3 Manual de usuario

Bodet

Bodet Profil 960 Manual de usuario

Nixie Clock

Nixie Clock Divergence Meter Manual de usuario

La Crosse Technology

La Crosse Technology WS-8256-AL Manual de usuario

Mini Gadgets

Mini Gadgets MCPro Manual de usuario

Casio

Casio TMR-200 Manual de usuario

Progetti

Progetti ILTEMPOSTRINGE Manual

BVItech

BVItech BV-101 Manual de usuario

Progetti

Progetti KALIMERO Manual

La Crosse Technology

La Crosse Technology WT-3141b Manual

La Crosse Technology

La Crosse Technology W86531 Manual de usuario

Sharp

Sharp SPC900 Manual de usuario

La Crosse Technology

La Crosse Technology 404-50447 Manual de usuario

Datexx

Datexx DF0063 Manual de usuario

LG LEC-005 Manual de usuario
