Oregon Scientific BAR332ES Manual de usuario

+ECO Solar Weather Clock

Model: BAR332ES / BAR332ESA /

BAR332ESU

USER MANUAL

CONTENTS

Earth Friendly................................................................... 2

Overview........................................................................... 2

Front View ...................................................................... 2

Top View ........................................................................ 3

Bottom View ................................................................... 3

Solar Panel..................................................................... 4

Remote Sensor .............................................................. 4

Getting Started................................................................. 4

Solar Panel..................................................................... 4

Backup Power ................................................................ 6

Remote Sensor................................................................. 6

Clock and Calendar ......................................................... 7

Clock Reception ............................................................. 7

Manually Set Clock......................................................... 7

Alarm................................................................................. 8

Temperature ..................................................................... 8

Weather forecast.............................................................. 8

Backlight........................................................................... 9

Reset ................................................................................. 9

Specications................................................................... 9

Precautions ...................................................................... 9

About Oregon Scientific................................................ 10

EU-Declaration of Conformity....................................... 10

FCC Statement ............................................................... 10

EARTH FRIENDLY

The +ECO line embodies our commitment to environmental

concerns. Aware of threats facing the world we live in,

Oregon Scientic™ has combined technological know-how,

practicality and style to create this line of environmentally

friendly products. These products provide practical solutions

while enabling you and us to fulll our environmental

responsibility.

Simply detach the solar panel and face it directly towards

the sun for a few hours to receive the amount of energy

necessary to power the device.

Together we can improve the world we live in.

OVERVIEW

FRONT VIEW

1. : Remote sensor reception indicator and outdoor

channel selected

2. Outdoor temperature

3. Indoor temperature

4. Weather forecast

5. : Clock signal reception indicator

6. : Alarm time is displayed

7. : Daily alarm is On

8. AM / PM

9. Rechargeable battery status LED indicator

10. : Outdoor remote sensor battery low

11. : Main unit back-up batteries low / no battery

12. : AC adaptor connected

13. : Rechargeable battery is low / solar panel detached

14. : Rechargeable battery level indicator

15. : Time zone offset

16. Calendar / Clock with weekday / seconds

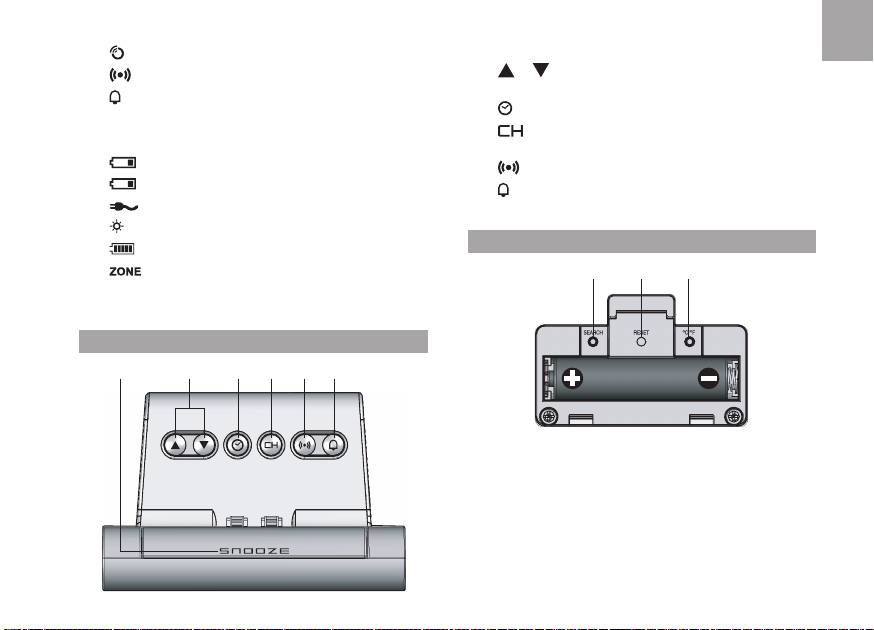

TOP VIEW

1 2 3 4 5 6

1. SNOOZE: Activate snooze alarm / backlight

2. / : Increase / decrease value of the setting;

activate / deactivate clock reception signal

3. : Change display; set clock

4. : Toggle between outdoor temperature channels

(1-3); initiate auto-toggle

5. : View alarm status; set alarm

6. : Activate / deactivate alarm function

BOTTOM VIEW

1 2 3

1. SEARCH: Initiate sensor search

2. RESET: Reset unit to default settings

3. °C / °F: Select temperature unit

SOLAR PANEL

1 2 3

1. CHARGING: charging in process

2. FULL: batteries fully charged (when TEST is pressed)

3. Solar panel

4. TEST establish if battery is full

5. Battery compartment

REMOTE SENSOR

1. LED status indicator

2. Wall mount hole

3. Battery compartment

4. RESET: Reset unit to default settings

5. CHANNEL switch

GETTING STARTED

SOLAR PANEL

This product uses two AAA rechargeable batteries which

should be charged via the solar panel. For the batteries’

rst charge, it is strongly advised to charge it for at least

12 hours.

To charge the battery:

1. Detach solar panel by exerting downward pressure and

pulling at a 45° angle (approx.) away from main unit.

2. Insert 2 AAA rechargeable batteries in battery

compartment located at the back of the solar panel.

IMPORTANT Place ONLY NiMH type rechargeable

batteries in the solar panel battery compartment. Do not

charge non-rechargeable batteries.

3. Expose the solar panel directly to sunlight for

approximately 5-6 hours to charge the battery. The

(red) CHARGING LED on solar panel will light up

indicating there is sunlight and unit is charging.

TIP Press and hold TEST located at the back of the solar

panel. (Green) FULL LED indicates batteries have been fully

charged.

4. Align holes with protruding plastic. Push solar panel

towards main unit and snap into place.

5-6 hours of battery charging will normally provide power to

operate unit for 2 months.

When the rechargeable battery is nearly at or when solar

panel has been detached, the (green) LED indicator on the

main unit and will ash.

TIPS

• For best results when charging the battery, place the

solar panel directly with view to sunlight.

• Direct solar panel as follows:

Solar panel facing: if you reside in the:

North Southern Hemisphere

South Northern Hemisphere

• Do not scratch the solar panel’s surface or wipe it with

strong detergent.

• Do not expose the solar panel to rain, snow or

moisture.

• The duration of the rechargeable battery’s charging or

operating time is determined by either the intensity of

sunlight or the position of the solar panel towards the

sun.

• Do not overcharge the batteries.

BACKUP POWER

1 piece AAA battery

In the case when the rechargeable battery is at or nearly

at or when the solar panel has been detached, the AAA

battery can act as backup power supply for the main unit.

1. Remove the battery compartment located at the base

of the unit.

2. Insert the battery, matching the polarity.

3. Press RESET after each battery change.

NOTE When the rechargeable battery power is exhausted

or when the solar panel has been detached, the backlight

function will be disabled and the performance of the radio

controlled clock may be affected.

Power adaptor (not included)

The adaptor powers the unit and can also be used for

charging the rechargeable battery. When connected to the

main unit, will be displayed.

NOTE The main unit and adaptor should not be exposed to

wet conditions. No objects lled with liquid, such as vases,

should be placed on the main unit and adaptor.

REMOTE SENSOR

This product can work with up to 3 sensors at any one time

to capture temperature readings in various locations.

To set up the remote sensor:

1. Slide open the battery compartment.

2. Slide channel switch to select a channel (1, 2, 3).

Ensure you use a different channel for each sensor.

3. Insert the battery, matching the polarities.

4. Press RESET after each battery change.

5. Close the battery compartment.

6. Press and hold SEARCH for 2 seconds to initiate a

sensor search.

NOTE Use alkaline batteries for longer usage and

consumer grade lithium batteries in temperatures below

freezing.

The remote sensor reception icon will show the following

status:

ICONS MEANING

Main unit is searching

for sensor(s)

A sensor channel has

been found

No sensor found

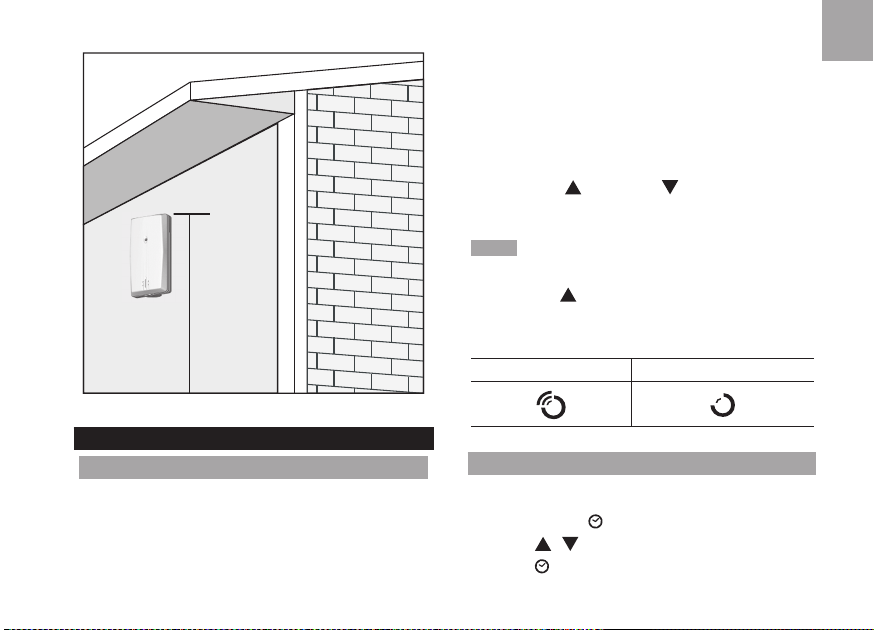

TIP Ideal placements for the sensor would be in any

location on the exterior of the home at a height of not more

than 1.5 m (5 ft) and which can shield it from direct sunlight

or wet conditions for an accurate reading.

1.5 m (5 ft)

CLOCK AND CALENDAR

CLOCK RECEPTION

This product is designed to synchronize its clock

automatically with a clock signal.

BAR332ES: EU: DCF-77 signal: within 1500 km (932 miles)

of Frankfurt, Germany.

BAR332ESU: UK: MSF-60 signal: within 1500 km (932

miles) of Anthorn, England.

BAR332ESA: WWVB-60 signal: within 3200km (2000

miles) of Fort Collins Colorado.

To enable / disable clock signal reception:

Press and hold to enable or to disable clock signal

reception.

NOTE Reception takes 2-10 minutes. If the signal is weak,

it can take up to 24 hours to get a valid signal. If signal

reception is unsuccessful, place your unit next to a window,

press and hold to force another signal search.

Clock signal reception indicator:

STRONG SIGNAL WEAK / NO SIGNAL

MANUALLY SET CLOCK

To set the clock manually, disable the clock signal reception

rst.

1. Press and hold .

2. Press / to change the settings.

3. Press to conrm.

The settings order is: time zone, 12/24 hr format, hour,

minute, year, calendar mode (month – day / day – month),

month, day and language.

BAR332ES / BAR332ESU: Time zone offset sets the clock

+/- 23 hours from the received clock signal time. If you have

deactivated the clock signal reception, do not set a value

for time zone.

NOTE If you enter +1 in the time offset setting, this will

give you your local time plus one hour. If you are in the US

(BAR332ESA) set the clock to:

PA for Pacic time MO for Mountain time

CE for Central time EA for Eastern time

NOTE The language options are English (E), German (D),

French (F), Italian (I), Spanish (S) and Russian (R).

To select clock display:

Press to toggle between clock with seconds, clock with

weekday and calendar.

ALARM

To set the alarm:

1. Press and hold to enter alarm setting.

2. Press / to set hour / minute.

3. Press to conrm.

indicates alarm is ON.

To activate / deactivate alarm:

Press .

To silence the alarm:

• Press SNOOZE to silence it for 8 minutes

• Press any key to turn the alarm off and activate it again

after 24 hours.

To display alarm:

Press .

TEMPERATURE

To toggle temperature unit:

Press °C / °F.

To toggle between each outdoor sensor’s readings:

• Press repeatedly

• Press and hold for 2 seconds to initiate auto toggle

of outdoor channels.

WEATHER FORECAST

This product forecasts the next 12 to 24 hours of weather

forecast within a 30-50 km (19-31 mile) radius.

Sunny

Partially cloudy

Cloudy

Rainy

Snowy

BACKLIGHT

Press SNOOZE to activate backlight for 3 seconds.

RESET

Press RESET to return to the default settings.

SPECIFICATIONS

MAIN UNIT

TYPE DESCRIPTION

L x W x H 158 x 87 x 55mm (6.2 x 3.4 x 2.2 in)

Weight 280 g (9.88 oz) without battery

Signal frequency 433 MHz

Power

2 x UM-4 (AAA) rechargeable

batteries;

6V AC adaptor (not included)

1 x UM-4 (AAA) battery (for backup)

REMOTE SENSOR (THN132N)

L x W x H 96 x 50 x 22mm

(3.78 x 1.97 x 0.87 in)

Weight 62 g (2.22 ounces) without battery

Transmission range 30 m (98ft) unobstructed

Temperature range -20°C to 60°C (-4°F to 140°F)

Power 1 x UM-3 (AA) 1.5 V battery

PRECAUTIONS

• Do not subject the unit to excessive force, shock, dust,

temperature or humidity

• Do not cover the ventilation holes with any items such

as newspapers, curtains etc.

• Do not immerse the unit in water. If you spill liquid over

it, dry it immediately with a soft, lint-free cloth.

• Do not clean the unit with abrasive or corrosive

materials.

• Do not tamper with the unit’s internal components. This

invalidates the warranty.

• Only use fresh batteries. Do not mix new and old

batteries.

• Images shown in this manual may differ from the actual

display.

• When disposing of this product, ensure it is collected

separately for special treatment.

• Placement of this product on certain types of wood

may result in damage to its nish for which Oregon

Scientic will not be responsible. Consult the furniture

manufacturer's care instructions for information.

• The contents of this manual may not be reproduced

without the permission of the manufacturer.

• Do not dispose old batteries as unsorted municipal

waste. Collection of such waste separately for special

treatment is necessary.

• Please note that some units are equipped with a

battery safety strip. Remove the strip from the battery

compartment before rst use.

NOTE The technical specications for this product and the

contents of the user manual are subject to change without

notice.

NOTE Features and accessories will not be available in all

countries. For more information, please contact your local

retailer.

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientic.com) to learn more

about Oregon Scientic products. If you’re in the US and

would like to contact our Customer Care department directly,

please visit:

www2.oregonscientic.com/service/support.asp

For international inquiries, please visit:

www2.oregonscientic.com/about/international.asp

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientic, declares that this +ECO

Solar Weather Clock (model: BAR332ES / BAR332ESU/

BAR332ESA) is in compliance with the essential

requirements and other relevant provisions of Directive

1999/5/EC. A copy of the signed and dated Declaration of

Conformity is available on request via our Oregon Scientic

Customer Service.

COUNTRIES RTTE APPROVED COMPLIED

All EU countries, Switzerland CH

and Norway N

FCC STATEMENT

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) This

device must accept any interference received, including

interference that may cause undesired operation.

Otros manuales para BAR332ES

Tabla de contenidos

Otros manuales de Reloj de Oregon Scientific

Oregon Scientific

Oregon Scientific RM313PNFA Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA R Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA G RRM222P Instrucciones de instalación

Oregon Scientific

Oregon Scientific SENSES Aroma Clock with Brainwave Music... Manual de usuario

Oregon Scientific

Oregon Scientific RRM320P Manual de usuario

Oregon Scientific

Oregon Scientific RM868PA Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manual de usuario

Oregon Scientific

Oregon Scientific RRM902 Manual de usuario

Oregon Scientific

Oregon Scientific RM622P Manual de usuario

Oregon Scientific

Oregon Scientific RM329P Manual de usuario

Oregon Scientific

Oregon Scientific JM889NR Manual de usuario

Oregon Scientific

Oregon Scientific RM338SP Manual de usuario

Oregon Scientific

Oregon Scientific BAR623P Manual de usuario

Oregon Scientific

Oregon Scientific RM309P Manual de usuario

Oregon Scientific

Oregon Scientific RM888P Manual de usuario

Oregon Scientific

Oregon Scientific POLERMO RMR939PA Manual de usuario

Oregon Scientific

Oregon Scientific DP200 Manual de usuario

Oregon Scientific

Oregon Scientific RM822 Manual de usuario

Oregon Scientific

Oregon Scientific RM116E Manual de usuario

Oregon Scientific

Oregon Scientific CIR100 Manual de usuario

Oregon Scientific

Oregon Scientific BAR368P Manual de usuario

Oregon Scientific

Oregon Scientific RM313PA Manual de usuario

Oregon Scientific

Oregon Scientific JMR868A Manual de usuario

Oregon Scientific

Oregon Scientific RM813 Manual de usuario

Manuales populares de Reloj de otras marcas

Silicon Laboratories

Silicon Laboratories SI5324 Manual de usuario

Heathkit

Heathkit GC-1005 Manual de usuario

Andrew O'Malley

Andrew O'Malley DOTKLOK Manual de usuario

ALGE-Timing

ALGE-Timing ASC3 Manual de usuario

Bodet

Bodet Profil 960 Manual de usuario

Nixie Clock

Nixie Clock Divergence Meter Manual de usuario

La Crosse Technology

La Crosse Technology WS-8256-AL Manual de usuario

Mini Gadgets

Mini Gadgets MCPro Manual de usuario

Casio

Casio TMR-200 Manual de usuario

Progetti

Progetti ILTEMPOSTRINGE Manual

BVItech

BVItech BV-101 Manual de usuario

Progetti

Progetti KALIMERO Manual

La Crosse Technology

La Crosse Technology WT-3141b Manual

La Crosse Technology

La Crosse Technology W86531 Manual de usuario

Sharp

Sharp SPC900 Manual de usuario

La Crosse Technology

La Crosse Technology 404-50447 Manual de usuario

Datexx

Datexx DF0063 Manual de usuario

LG LEC-005 Manual de usuario
