ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn

more about other Oregon Scientific products such as

digital cameras, hand-held organizers, health and fitness

gear, and projection clocks. The website also includes

contact information for our customer service department,

in case you need to reach us.

INTRODUCTION

Thank you for selecting the Oregon ScientificTM Wireless

Thermo lock (RAR186). This device bundles precise time

keeping, alarm, and temperature monitoring features into a

single tool you can use from the convenience of your home.

In this box, you will find:

• Main unit

• Remote sensor (THN122)

Keep this manual handy as you use your new product.

It contains practical step-by-step instructions, as well

as technical specifications and warnings you should

know.

TEMP

CHANNEL

MEM

MODE

PRODUCT OVERVIEW

FRONT VIEW

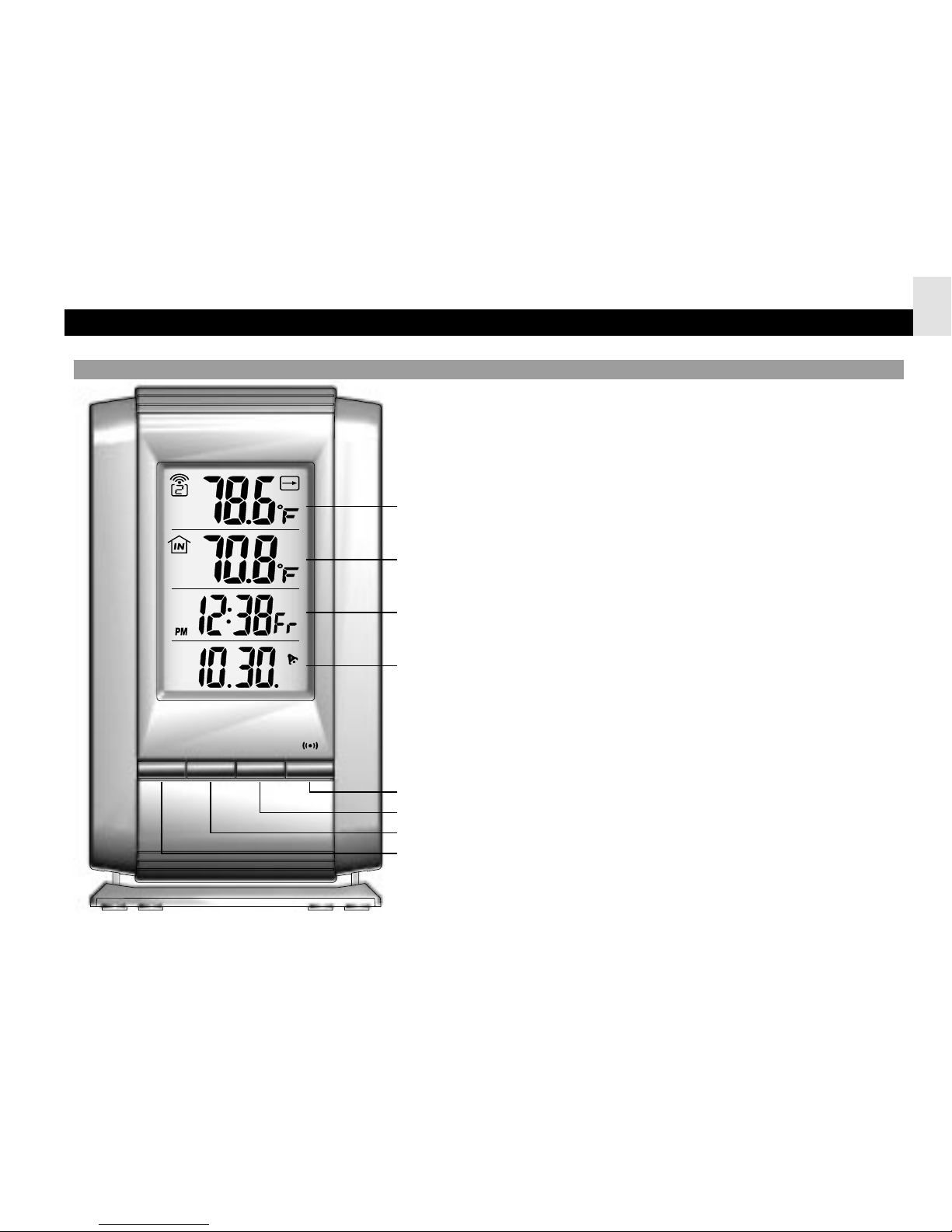

1. Sensor Temperature Area: Readings, trend line,

sensor reception status and channel number

2. Indoor Temperature Area: Readings, and indoor

symbol

3. lock Area: Time display with seconds or days of

the week

4. alendar / Alarm Area: Date display and dual alarm

display

5. ((.)): Press to view dual alarm settings

6. HANNEL: Press to switch remote sensor

7. MEM: Press to view current or saved max / min

temperature

8. MODE: Press to change display / settings

BACK VIEW

1. Wall mount

2. ° / °F Switch

3. Alarm (On / Off)

4. Press (up button) to increase or (down button) to

decrease settings

5. Battery compartment

6. atch to open battery compartment

7. Table stand

REMOTE SENSOR (THN122)

GETTING STARTED

1. LED Status indicator

1. Wall mount hole

2. RESET

3. hannel number (1 - 3)

4. Battery compartment

(Battery compartment cover not shown)

on a wall with a nail.

REMOTE SENSOR (THN122)

This product is shipped with a THN122 Thermo Sensor

BATTERIES

Batteries are not supplied with this product. You will need

to purchase 2 x UM-3 (AA) 1.5V alkaline batteries for

the main unit, and 2 x UM-4 (AAA) 1.5V alkaline batteries

for the remote sensor.

Insert batteries before first use, matching the polarity as

shown in the battery compartment. For best results,

install batteries in the remote sensor before the main

unit. Press RESET after each battery change.

Do not use rechargeable batteries.

shows on L D display when batteries are low.

CHANGE SETTINGS

NOTE

1. Press and hold MODE for 2 seconds to enter setting

mode.

2. Press UP or DOWN to change settings.

3. Press MODE to confirm.

TABLE STAND OR WALL MOUNT

Product can stand on detachable base or be mounted

that collects Temperature data. Data can be collected

from up to 3 sensors. Additional sensors sold separately.

SETUP SENSOR

Open the remote sensor battery compartment with a

the main unit will blink for approximately 3 minutes

while it is searching for the sensor. (Refer to the

Sensor Data Transmission section for more

information.)

4. lose the remote sensor battery compartment.

5. Secure the sensor in the desired location using the

wall mount or table stand.

For best results:

• Insert the batteries and select the channel and

small Phillips screwdriver.

1. Insert the batteries, matching the polarity as shown

in the battery compartment.

2. Set the channel. The switch is located in the battery

compartment.

3. Place the sensor near the main unit. Press RESET

on the sensor to initiate signal sending between the

sensor and the main unit. The reception icon on

temperature unit before you mount the sensor.

• Place the sensor out of direct sunlight and

moisture.

• Do not place the sensor more than 30 meters

(98 feet) from the main (indoor) unit.

• Position the sensor so that it faces the main

(indoor) unit, minimizing obstructions such as

doors, walls, and furniture.

• Place the sensor in a location with a clear view

to the sky, away from metallic or electronic

objects.

• Position the sensor close to the main unit

during cold winter months as below-freezing

temperatures may affect battery performance and

signal transmission.

You may need to experiment with various locations to

get the best results.

DATA TRANSMISSION

Data is sent from the sensor(s) every 30 seconds.

SWIT H OPTION

hannel hannel 1 - 3. If you are using

more than one sensor, select a

different channel for each sensor.

CHANNEL for 2 seconds.

If the sensor is still not found, check the

batteries, obstructions, and remote unit location.

Signals from household devices such as

doorbells, electronic garage doors, and home security

systems may cause temporary reception failure. This is

normal and does not affect general product performance.

The reception will resume once the interference ends.

CLOCK

This product shows the current time, time zone, and day

--- shows in Temp

Areas

I ON DES RIPTION

Main unit is searching for

sensors.

At least 1 channel has

been found.

hannel 1 is selected (number

will change depending on the

sensor you select)

The selected sensor cannot

be found. Search for the

sensor or check batteries.

of week in English, German, Italian, or French.

Manually set the clock following the "Set lock"

instructions (below).

SET CLOCK

1. Press and hold MODE for 2 seconds. The lock

Area will blink.

2. Select the hour, minute, date, month, language, day

and time zone offset (-12 to +12). Press UP or

DOWN to change the setting. Press MODE to

confirm.

The Language settings are (E) English, (D)

German, (F) French, and (I) Italian

SWITCH CLOCK & CALENDAR DISPLAY

Press MODE to toggle between lock with Seconds,

lock with Weekday, lock with Weekday and Zone

Time, and Zone Time with Weekday and Zone alendar.

ALARM

This product is equipped with a 2-minute crescendo alarm.

NOTE

The reception icon shown in the Temperature Area

shows the status.

SEARCH FOR SENSOR

To search for a sensor, press and hold MEM and

1. Press ((.)).

2. Press and hold ((.)) again for 2 seconds. The Alarm

settings will blink.

3. Select the hour and minute. Press UP or DOWN to

change settings. Press ((.)) to confirm.

To set second alarm perform step 1 twice,

then perform steps 2 and 3.

ACTIVATE ALARM

Press ALARM ON / OFF to activate, deactivate and toggle

between alarm settings. (Alarm symbol with #1 or #2)

shows in alendar / Alarm Area when alarm(s) are

activated.

TEMPERATURE

This product can display the following temperature

information:

• urrent, minimum and maximum readings

• Trend line for remote sensor

Data is collected by the remote sensors and displayed

every 30 seconds.

SELECT TEMPERATURE UNIT

Slide the ° / °F switch into the desired location. The

switch is located on the back of the product.

SELECT SENSOR CHANNEL

Press CHANNEL to switch between sensors 1 - 3.

The icon shows the selected sensor.

MINIMUM / MAXIMUM RECORDS

Press MEM to toggle between current, maximum (MAX)

and minimum (MIN) records for the indoor reading and

VIEW ALARM SETTINGS

The Alarm Time and On / Off status will show in the

alendar / Alarm Area.

Press ((.)) again for the second alarm time and status.

SET DUAL ALARM

NOTE

Designated

Display Remote

Display

hannel 1

Kineticwave

Icon

Remote

Display

hannel 2

Remote

Display

hannel 3

the selected sensor. To clear both the indoor

thermometer and selected sensor records, press and

hold MEM for 2 seconds.

A beep will sound to confirm that the memory has been

cleared.

TEMPERATURE TREND

The trend line is shown next to the Temperature reading.

RESET SYSTEM

The RESET buttons are located in the battery

compartments for the main unit and sensors. Press

RESET when you change the batteries and whenever

performance is not behaving as expected (for example,

unable to establish radio frequency link with remote

sensor.

When you press RESET, all settings will return

to default value, and you will lose all stored information.

SAFETY AND CARE

lean the product with a slightly damp cloth and alcohol-

free mild detergent. Avoid dropping the product or placing

it in a high-traffic location.

WARNINGS

This product is designed to give you years of service if

handled properly. Observe the following guidelines:

•Never immerse the product in water. This can

cause electrical shock and damage the product.

•Do not subject the main unit to extreme force,

shock, or fluctuations in temperature or humidity.

•Do not tamper with the internal components.

•Do not mix new and old batteries or batteries of

different types.

•Do not use rechargeable batteries with this

product.

•Remove the batteries if storing this product for a

long period of time.

•Do not scratch the L D display.

Do not make any changes or modifications to this

product. Unauthorized changes may void your right to

use the product. The technical specification of this

NOTE

product and contents of this user guide are subject to

change without notice. Images not drawn to scale.

TROUBLESHOOTING

Rising SteadyTrend Falling

I ON

Otros manuales para RAR186

Tabla de contenidos

Otros manuales de Reloj de Oregon Scientific

Oregon Scientific

Oregon Scientific Jumbo JMR828A Manual de usuario

Oregon Scientific

Oregon Scientific RM912B Manual de usuario

Oregon Scientific

Oregon Scientific TW221 Manual de usuario

Oregon Scientific

Oregon Scientific JM828CD Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA G RRM222PA Manual de usuario

Oregon Scientific

Oregon Scientific BAR332ES Manual de usuario

Oregon Scientific

Oregon Scientific RM912TCN Manual de usuario

Oregon Scientific

Oregon Scientific JMR868 Manual de usuario

Oregon Scientific

Oregon Scientific RMR331ES Manual de usuario

Oregon Scientific

Oregon Scientific RA200 Manual de usuario

Oregon Scientific

Oregon Scientific RA313P Manual de usuario

Oregon Scientific

Oregon Scientific BAR332ES Manual de usuario

Oregon Scientific

Oregon Scientific RMR613HGA Manual de usuario

Oregon Scientific

Oregon Scientific BAR332ES Manual de usuario

Oregon Scientific

Oregon Scientific WS902 Manual de usuario

Oregon Scientific

Oregon Scientific RM368P Manual de usuario

Oregon Scientific

Oregon Scientific Silverstone FAP-101 Manual de usuario

Oregon Scientific

Oregon Scientific rm318p Manual de usuario

Oregon Scientific

Oregon Scientific RM822 Manual de usuario

Oregon Scientific

Oregon Scientific MSR939 Manual de usuario

Oregon Scientific

Oregon Scientific RM912E Manual de usuario

Oregon Scientific

Oregon Scientific TW331 Manual de usuario

Oregon Scientific

Oregon Scientific DP100 Manual de usuario

Oregon Scientific

Oregon Scientific NAW888T Manual de usuario

Manuales populares de Reloj de otras marcas

Silicon Laboratories

Silicon Laboratories SI5324 Manual de usuario

Heathkit

Heathkit GC-1005 Manual de usuario

Andrew O'Malley

Andrew O'Malley DOTKLOK Manual de usuario

ALGE-Timing

ALGE-Timing ASC3 Manual de usuario

Bodet

Bodet Profil 960 Manual de usuario

Nixie Clock

Nixie Clock Divergence Meter Manual de usuario

La Crosse Technology

La Crosse Technology WS-8256-AL Manual de usuario

Mini Gadgets

Mini Gadgets MCPro Manual de usuario

Casio

Casio TMR-200 Manual de usuario

Progetti

Progetti ILTEMPOSTRINGE Manual

BVItech

BVItech BV-101 Manual de usuario

Progetti

Progetti KALIMERO Manual

La Crosse Technology

La Crosse Technology WT-3141b Manual

La Crosse Technology

La Crosse Technology W86531 Manual de usuario

Sharp

Sharp SPC900 Manual de usuario

La Crosse Technology

La Crosse Technology 404-50447 Manual de usuario

Datexx

Datexx DF0063 Manual de usuario

LG LEC-005 Manual de usuario
