Optika OPTISTAR OS-A1 Series Manual de usuario

Model

OS-A1

OS-A2

OS-A3

OS-B2

OS-B3

OS-C3

OPTISTAR By OPTIKA Series

INSTRUCTION MANUAL

Ver. 1.0 2021

Page 2

1. Warning 3

2. Safety Information 3

3. Unpacking 3

4. Intended use 3

5. Symbols and conventions 3

6. Instrument description 4

6.1 OS-A1 4

6.2 OS-A2 5

6.3 OS-A3 6

6.4 OS-B2 7

6.5 OS-B3 8

6.6 OS-C3 9

7. Assembling 10

7.1 All models 10

7.1.1 OS-A / OS-C Series 10

7.1.2 OS-B Series 10

7.2 OS-B3 10

7.3 OS-C3 10

8.1 Switching on the microscope 11

8.1.1 OS-A1 11

8.1.2 OS-A2 / OS-A3 11

8.1.3 OS-B2 / OS-B3 11

8.1.4 OS-C3 11

8.2 Light intensity adjustment 12

8.2.1 OS-A1 12

8.2.2 OS-A2 / OS-A3 12

8.2.3 OS-B2 / OS-B3 / OS-C3 12

8.3 Coarse focus tension adjustment 12

8.3.1 OS-B2 / OS-B3 12

8.3.2 OS-C3 13

8.4 Stage 13

8.4.1 OS-A1 13

8.4.2 All other models 13

8.5 Adjust the interpupillary distance 13

8.5.1 OS-A3 13

8.5.2 OS-B / OS-C 14

8.6 Diopter adjustment 14

8.6.1 OS-B Series 14

8.6.2 OS-C Series 14

8.7 Use of oil immersion objective 15

8.8 Condenser centering (OS-B Series only) 15

8.9 Aperture diaphragm 15

8.9 Useofcolorlter(OS-BSeriesonly) 16

9. Microphotography 17

10. Maintenance 18

11. Troubleshooting 19

Equipment disposal 20

Table of contents

Page 3

1. Warning

This microscope is a scientic precision instrument designed to last for many years with a minimum of maintenance. It

is built to high optical and mechanical standards and to withstand daily use. We remind you that this manual contains

important information on safety and maintenance, and that it must therefore be made accessible to the instrument users.

We decline any responsibility deriving from incorrect instrument use uses that does not comply with this manual.

2. Safety Information

Avoiding Electrical Shock

Before plugging in the power supply, make sure that the supplying voltage of your region matches with the operation voltage

of the equipment and that the lamp switch is in o󰀨 position. Users should observe all safety regulations of the region. The

equipment has acquired the CE safety label. However, users have full responsibility to use this equipment safely. Please

follow the guidelines below, and read this manual in its entirety to ensure safe operation of the unit.

3. Unpacking

The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the container and lift the

top half of the container. Take some care to avoid that the optical items (objectives and eyepieces) fall out and get dam-

aged. Using both hands (one around the arm and one around the base), lift the microscope from the container and put it

on a stable desk.

Do not touch with bare hands optical surfaces such as lenses, lters or glasses. Traces of grease or other

residuals may deteriorate the nal image quality and corrode the optics surface in a short time.

4. Intended use

Standard models

For research and teaching use only. Not intended for any animal or human therapeutic or diagnostic use.

5. Symbols and conventions

The following chart is an illustrated glossary of the symbols that are used in this manual.

CAUTION

This symbol indicates a potential risk and alerts you to proceed with caution.

ELECTRICAL SHOCK

This symbol indicates a risk of electrical shock.

Page 4

FOCUS

KNOB

UPPER STOP SCREW

STAGE

OBJECTIVES

STAGE CLIPS

OBSERVATION HEAD

EYEPIECE

6. Instrument description

6.1 OS-A1

ON-OFF / INTENSITY

ADJUSTMENT DIAL

Page 5

6.2 OS-A2

EYEPIECE

INCIDENT LIGHT

ON-OFF / INTENSITY

ADJUSTMENT DIAL

STAGE

OBJECTIVES

OBSERVATION HEAD

INCIDENT LIGHT

ILLUMINATOR

SLIDE HOLDER

FINE FOCUS

KNOB

COARSE FOCUS

KNOB

UPPER STOP SCREW

TRANSMITTED LIGHT

ON-OFF / INTENSITY

ADJUSTMENT DIAL

(LEFT SIDE)

FILTER HOLDER

Page 6

EYEPIECES

6.3 OS-A3

INCIDENT LIGHT

ON-OFF / INTENSITY

ADJUSTMENT DIAL

STAGE

OBJECTIVES

OBSERVATION HEAD

INCIDENT LIGHT

ILLUMINATOR

SLIDE HOLDER

FINE FOCUS

KNOB

COARSE FOCUS

KNOB

INTERPUPILLARY

ADJUSTMENT KNOB

UPPER STOP SCREW

FILTER HOLDER

TRANSMITTED LIGHT

ON-OFF / INTENSITY

ADJUSTMENT DIAL

(LEFT SIDE)

Page 7

6.4 OS-B2

FINE FOCUS

KNOB

ON-OFF / INTENSITY

ADJUSTMENT DIAL

(LEFT SIDE)

STAGE

OBJECTIVES

COARSE FOCUS

KNOB

CONDENSER

OBSERVATION HEAD

EYEPIECE

SLIDE HOLDER

X/Y MOVEMENT

KNOBS

TENSION

ADJUSTMENT

RING

DIOPTER

CORRECTION

RING

CONDENSER HEIGHT

ADJUSTMENT KNOB

Page 8

6.5 OS-B3

FINE FOCUS

KNOB

INTENSITY

ADJUSTMENT DIAL

(LEFT SIDE)

STAGE

OBJECTIVES

COARSE FOCUS

KNOB

CONDENSER

OBSERVATION HEAD

EYEPIECE

SLIDE HOLDER

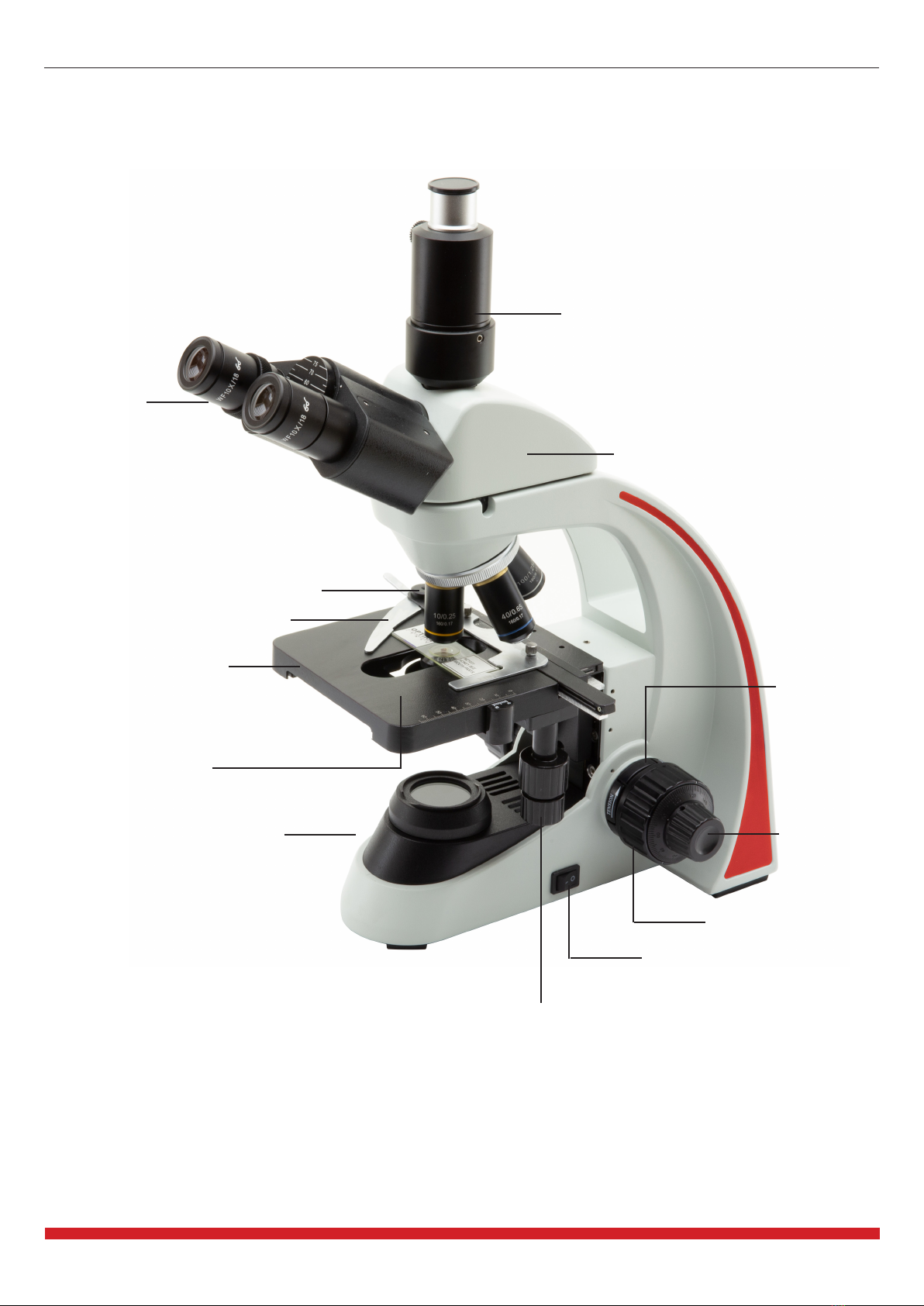

PHOTO TUBE

X/Y MOVEMENT

KNOBS

DIOPTER

CORRECTION

RING

LIGHT PATH

SELECTION LEVER

TENSION

ADJUSTMENT

RING

CONDENSER HEIGHT

ADJUSTMENT KNOB

Page 9

6.6 OS-C3

STAGE

OBSERVATION HEAD

FINE FOCUS

KNOB

MAIN SWITCH

COARSE FOCUS

KNOB

CONDENSER

EYEPIECE

SLIDE HOLDER

X/Y MOVEMENT

KNOBS

TENSION

ADJUSTMENT

RING

PHOTO TUBE

INTENSITY

ADJUSTMENT DIAL

(LEFT SIDE)

OBJECTIVES

Page 10

7. Assembling

7.1 All models

1. Remove the dust protection cap from the eyepiece sleeve

and insert the eyepiece into the empty eyepiece sleeve. (Fig.

FFig. 1ig. 1

FFig. 2ig. 2

FFig. 3ig. 3

7.1.1 OS-A / OS-C Series

Insert the power supply jack in the socket ①placed at the rear

side of the microscope. (Fig. 2)

7.1.2 OS-B Series

Insert the power cord in the socket placed at the rear side of the

microscope.

7.2 OS-B3

1. Remove the dust protection cap of the photo tube.

2. Insert the “Eyepiece Linker” ②. (Fig. 3)

3. Insert the projection lens in the empty hole of the Eyepiece

Linker.

• The camera will not be in focus if the Eyepiece Linker is

not used.

①

②

FFig. 4ig. 4

7.3 OS-C3

1. Unscrew the locking screw ③on the right side of the photo

port and remove the dust protection cap. (Fig. 4)

2. Insert the photo tube ④ in the empty hole and lock the screw.

3. Insert the projection lens in the empty hole of the photo tube.

③

④
