INSTRUCTIONS
SZ2-ILLC
This instruction manual is for the Olympus SZ2-ILLC Coaxial Illuminator. To ensure the safety, obtain
optimum performance and to familiarize yourself fully with the use of this equipment, we recommend
that you study this manual thoroughly before operating the system.
Retain this instruction manual in an easily accessible place near the work desk for future reference.
A X 6 6 1 7
COAXIAL ILLUMINATOR
SZ2-ILLC
CONTENTS
IMPORTANT — Be sure to read this chapter for safe use of the equipment. — 1-5
1 NOMENCLATURE 6
2 CONTROLS 7-8
4 COAXIAL REFLECTED LIGHT OBSERVATION 11
3 ASSEMBLY 9-10
5 TROUBLESHOOTING GUIDE 12
1
The coaxial illuminator enables coaxial reflected light observation when it is mounted at the bottom of
an SZ2 series microscope.
IMPORTANT
SAFETY PRECAUTIONS
This unit can be used in combination with only the SZ2-LGB or LG-PS2 light guide illuminator.
For safety, use only one of the lamp bulbs designated in the following table.
For details, refer to the “ SAFETY PRECAUTIONS” in the instruction manual for the illuminator to be used.
illuminator Lamp Bulb Specifications
SZ2-LGB 12V22WHAL
(JCR12V22WA/3)
Halogen bulb (with mirror), mfd. by PHILIPS, average life
100 hours
LG-PS2 JCR12V-100WB Halogen bulb (with mirror), mfd. by USHIO, average life
1000 hours
SZ2-ILLC
2
Safety Symbols
Symbol Explanation
Indicates that the surface becomes hot, and should not be touched with bare hands.
Before use, carefully read the instruction manual. Improper use could result in personal injury to
the user and/or damage to the equipment.
Indicates that the main switch is OFF.
Protective grounding, which can be used only by the Olympus service personnel for incorporating
grounding in machines. Do not use this grounding for other purpose than the above. (LG-PS2 only)
The following symbols are found on the unit. Study the meaning of the symbols and always use the equipment in the
safest possible manner.
Warnings
Warning engravings are placed at parts where special precaution is required when handling and using the unit. Always heed the warnings.
Warning engraving position
of the SZ2-LGB
Lamp housing
(Left side panel) [High temperature warning]
Warning engraving position
of the LG-PS2
Light source
(Top and front panels) [High temperature warning]
3
1. The coaxial illuminator is a precision instrument. Handle it with care and avoid subjecting it to sudden or severe impact.
2. Do not use the coaxial illuminator where it is subjected to direct sunlight, high temperature and humidity, dust or vibrations.
3. Applicable microscope bodies:
· SZ2 series (SZ51, SZ51-60, SZ61, SZ61-60, SZ61TR)
4. Applicable stands and arms used with microscopes for equipment mounting
· Standard stands: SZ2-ST (for SZ2 microscope bodies)
· System-mounting focusing arms: SZ2-STS, SZ2-STB1
5. Applicable light guides
· Light guides: SZ2-LGDF, LG-DF
6. Effective illumination area
Zoom magnification of 2X or more when the 10X eyepieces are used
(provided that no auxiliary objective is used).
7. Due to the mounting method of the coaxial illuminator, the WD (Working Distance) is reduced by 50 mm and the
resolution tends to be degraded under high zoom magnifications.
1
Getting Ready
SZ2-ILLC
4
1. To clean the lenses and other glass components, simply blow dirty away using a commercially available blower and wipe
gently using a piece of cleaning paper (or clean gauze).
If a lens is stained with fingerprints or oil smudges, wipe it gauze slightly moistened with commercially available absolute
alcohol.
Since the absolute alcohol is highly flammable, it must be handled carefully.
Be sure to keep it away from open flames or potential sources of electrical sparks –– for example, electrical
equipment that is being switched on or off.
Also remember to always use it only in a well-ventilated room.
#To clean the half mirror inside the coaxial illuminator, simply remove dust and dirt with a blower, etc. If the half
mirror is still dirty after blowing, please contact Olympus.
2. Do not attempt to use organic solvents to clean the parts other than the glass components. To clean them, use a lint-free,
soft cloth slightly moistened with a diluted neutral detergent.
3. Do not disassemble any part of the equipment as this could result in malfunction or reduced performance.
2Maintenance and Storage
5
3
Caution
If the coaxial illuminator is used in a manner not specified by this manual, the safety of the user may be imperiled. In
addition, the equipment may also be damaged. Always use the equipment as outlined in this instruction manual.
The following symbols are used to set off text in this instruction manual.
: Indicates that failure to follow the instructions in the warning could result in bodily harm to the
user and/or damage to equipment (including objects in the vicinity of the equipment).
#: Indicates that failure to follow the instructions could result in damage to equipment.
?: Indicates commentary (for ease of operation and maintenance).
SZ2-ILLC
6
NOMENCLATURE
SZ2 series microscope
body
Coaxial Illuminator
SZ2-ILLC
Dual Flexible Light Guide
SZ2-LGDF or LG-DF
Lightguide Illuminator
SZ2-LGB or LG-PS2
Standard stand or Arms Used
with Microscopes for Equipment
Mounting
· SZ2-ST
· SZ2-STS
· SZ2-STB1
7
CONTROLS
Coaxial Illuminator
SZ2-ILLC
Mounting adapter
Light guide mount port
Clamping screw
Mount
Allen wrench
Dual Flexible Light Guide
SZ2-LGDF or LG-DF
Light guide output end
Light guide input end
Clamping screw
Otros manuales para SZ2-ILLC
1
Tabla de contenidos
Otros manuales de Equipo de laboratorio de Olympus
Olympus
Olympus SZX-DO Manual de usuario
Olympus
Olympus U-APT Manual de usuario
Olympus
Olympus CX-DO Manual de usuario
Olympus
Olympus ENDO-AID Manual de usuario
Olympus
Olympus RollerFORM Manual de usuario
Olympus
Olympus DP2-SAL Manual de usuario
Olympus
Olympus U-HGLGPS Manual de usuario
Olympus
Olympus SZ2-STS Manual de usuario
Olympus
Olympus AL120-12 Series Manual de usuario
Olympus
Olympus OER-Pro Manual de usuario
Olympus
Olympus SZX2-EEPA Manual de usuario
Olympus
Olympus U-PCD2 Manual de usuario
Olympus
Olympus U-RFLT50 Manual de usuario
Olympus
Olympus BioLever mini Manual de usuario
Olympus
Olympus U-UCD8 Manual de usuario
Olympus
Olympus U-DO3 Manual de usuario
Olympus

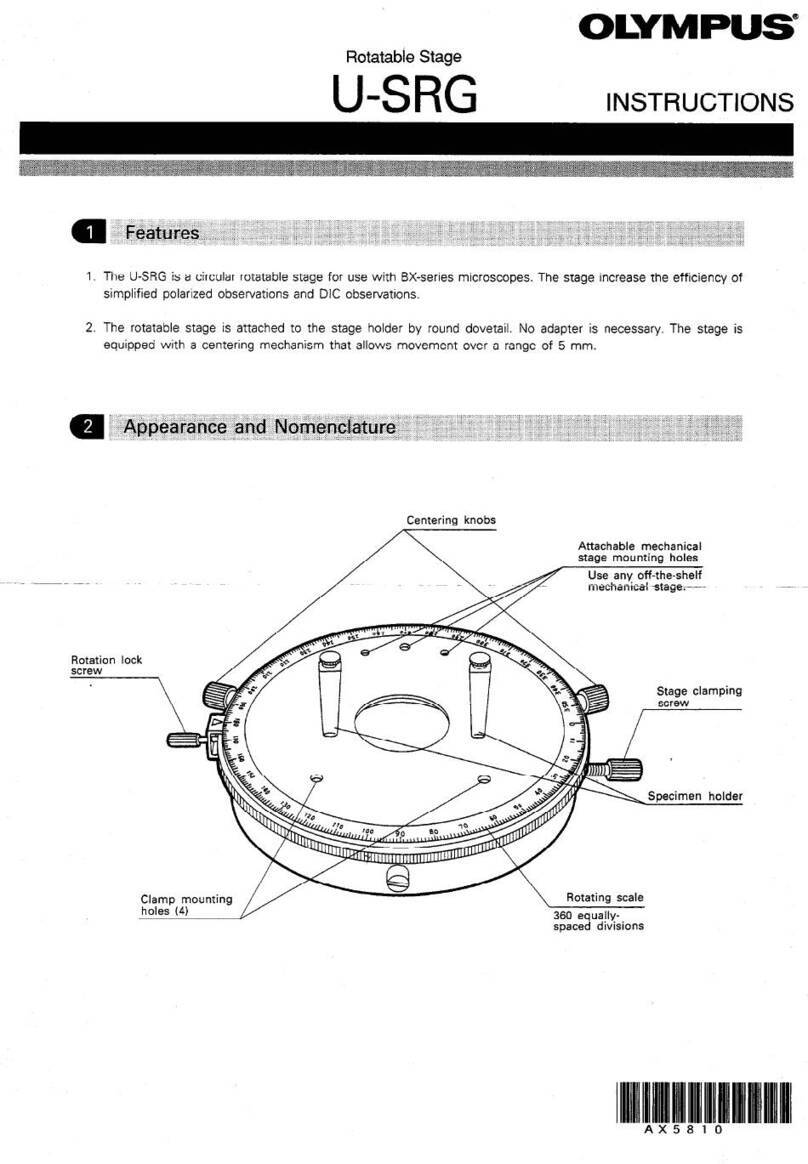

Olympus U-SRG Manual de usuario
