Olympia electronics GR-290/WP/M Manual de usuario

Page 1 from 6 923293004_09_004

GENERAL

This device is used indoors (ta 40 C) in

places where emergency luminaires are

needed. Each device must be permanently

connected to mains power supply. The

l u m i n a i r e s G R - 2 9 0 / W P / M a n d G R -

292/WP/M are suitable for corridors lighting

and the GR-291/WP/M and GR-293/WP/M

for open area lighting. In normal operation

the battery is charging. In case of a mains

power supply failure, the device enters

emergency mode and the illumination LED

turns on. When the mains power supply is

restored t h e dev i c e tur n s t o no r m a l

operation.

INSTALLATION

To install the luminaire follow the installation

instructions οn page 3.

Battery Charging

The battery charging is completely

controlled. In this case, is achieved the

perfect battery maintenance , as well as the

elongation of its duration. When the battery

has completely charged, it charges with a

maintenance current.

Battery Cut-off

The device in this operation when the mains

power supply fails and battery has lost its

energy. During this operation the device

enters the idle state and battery consumption

is negligible, in order to be protected from

deep discharge.

Automatic Operational Test

It is conducted automatically every 15 days. In

order to be performed, the mains power

supply and the battery should be connected.

Automatic Autonomous Test

The Automatic Autonomous Test is conducted

and measures the device’s back up operation

and emergency duration. The BATTERY

FAULT LED blinks during the measurement,

indicating this process to the user. This test is

conducted automatically every six months. In

order to be performed, the mains power

supply and the battery should be connected

and fully charged. If the battery is not fully

charged, the test is postponed until the

battery is completely charged. If during this

test, the autonomy is less than the nominal

then the battery fault led turned on

continuously and the battery must be

WATERPROOF SELF TESTING NON-MAINTAINED EMERGENCY CEILING MOUNTED LUMINAIRES

OPERATION VOLTAGE

MAXIMUM POWER CONSUMPTION

BATTERY (NiMh)

220-240V AC / 50-60Hz

4.8V/1.2Ah

4.3W / 4.7 VA

TECHNICAL CHARACTERISTICS (for LED MODULE specifications see page 5)

Thank you for your trust in our products

Olympia Electronics - European manufacturer

OPERATION TEMPERATURE RANGE

RELATIVE HUMIDITY

CONSTRUCTION MATERIAL

EXTERNAL DIMENSION

WEIGHT

GUARANTEE

CHARGE TIME

INDICATIONS - CONTROLS

BATTERY PROTECTION

MINIMUM DURATION

DEGREES OF COVER PROTECTION

PRODUCED IN ACCORDANCE WITH

EMERGENCY ILLUMINATION

LIGHT SOURCE

1.5 hour

24 hours

Deep discharge and overcharge protection

IP65

300lm

1 white power LED

5 to 40 C

Up to 95%

ABS/PC

3 years (1 year for the battery)

442gr.

Ø125 x 65 mm

EN 60598-1, EN 60598-2-22, ΕΝ 55015, ΕΝ 61547, ΕΝ 61000-3-2, ΕΝ 61000-3-3

Charge, lamp fault, battery fault

3 hours

150lm

GR-290/WP/M GR-291/WP/M GR-292/WP/M GR-293/WP/M

INSULATION BETWEEN SUPPLY & CONTROL TERMINALS

Basic insulation

replaced.

Back Up Operation

The autonomous duration of battery during

emergency mode is at least the one that is

stated in the list of the technical

characteristics. During emergency mode, a

light source test is also performed.

ΑΤΤΕΝΤΙΟΝ!!!

1. Operations for installation, maintainance or

testing must be done by authorized personnel

only.

2. The device must be connected to the

m a i n s p o w e r s u p p l y t h r o u g h a f u s e

dependent by the total amount of the line’s

power load.

3. The replacement of the battery and the light

source must be done using parts of the same

type, by the manufacturer or by a competent

person.

4. In case of inactive use for a period greater

than 2 months, disconnect the battery by

pulling out the battery’s connector.

5. I s n ot al low ed to dis ca rd t i

batteries into common trash bins,

they must be discarded only in

battery recycling points. Do not

incinerate.

Connection to module (After request)

This luminaire can be connected to any of the

following modules: Remote module, address

module, wireless module and fault relay

module. If you connect it to a module that

supports inhibit or rest mode, you should

know that these commands can be cancelled

only during normal mode (ie. not in

emergency). For installation refer to step 3 of

the istallation procedure in page 3.

Also refer to the user’s manual of each

module for additional information.

NOTE: LED= Light Emitting Diode

LABELING EXPLANATION:

X: Self contained

0: Non maintained (*)

A: Including test device

B: Including remote test mode

C: Including inhibiting mode

F: Automatic test gear complying with IEC

61347-2-7 denoted EL-T

90: 1.5 hour duration

180: 3 hour duration

Maintained operation: The luminaire lights its

illumination source, when it is powered by the

mains power supply or not.

(*) Non Maintained operation: The luminaire

turns on illumination source, only in case of

Page 2 from 6

Status of LEDs

LEDs Description of indication

CHARGE : Battery charging, : battery charged, : disconnected or unfunctional battery

LAMP FAULT : Operation check, : lamp fault, : normal operation

BATT. FAULT : Autonomy test, : battery fault, : normal operation

Note : Blinking, : constantly on, : off

Note!! If a module will be used (except the fault

relay module), then the installer should fill in, on

the specification label, the letters B and C.

X09 0A F

923293004_09_004

Page 3 from 6

INSTALLATION INSTRUCTIONS

1 Untighten the screw but do not remove it and pull up the reflector.

2 Always use in any case round mains cable, with a diameter of 5-10mm (H05RN-F type 2x1mm²

or any other type, at least equal to it’s mechanical and electrical properties). ATTENTION!!

The cable must not be deformed in any way (This requirement is important to ensure the ΙΡ

rating). Install the included gaskets in to the cable entry holes (verify that are not deformed). Make a

hole in the center by using a small screwdriver. Pass the round cable through the gasket. Detach the

power terminal, connect the wires as shown in the picture and attach the power terminal (10A max). If

you use a module pass the 2 signal cables on the A, B terminals Minding the correct polarity.

Depending on the module that will be used, the cables that will be used, have different names. In A,

signal +L, C are also connected, while signals -L, NC/NO in the terminal B.

3 Place the battery’s connector to the corresponding connector on the P.C.B.

4 Refit the reflector (mind the correct orientation), tighten the screw securely and the luminaire is

ready for mounting.

NOTE!! After finishing the installation you must power the luminaire for at least 24 hours in

order to completely charge the battery. The rated autonomy duration can be achieved after that

time.

Battery replacement.

It can be done only by a competent person and after the mains interruption.

1. Remove the luminaire from the suspended ceiling (figure 3).

2. Follow the step 1 of the installation instructions.

3. Disconnect the connector and remove the old battery.

4. Connect the new battery with the same type (step 2 of the installation instructions) and place it in

the position of the old one.

5. Replace the removed parts (step 1 and 4) and power the device.

Important notice for the installed luminaires in one area !!!

The installer must connect the battery’s connector first and then should power the luminaire.

The time between batteries connection must be, at least 1.5 minute.

With this variation, it is ensured that the non synchronized Automatic Autonomous Test for two or more

luminaires installed in one area, is not conducted in the same day.

Cable

entry

hole

923293004_09_004

MOUNTING THE LAMP IN SUSPENDED CEILING

Set up the lamp to the suspended ceiling as it is shown bellow (Required opening 110mm):

Step 1

Bend the springs, to get into the hole of the suspended ceiling, as you can see to the next figure.

Step 2

Push up the luminaire, as shown in figure 2.

Step 3

Continue to push upwards until the lamp locks.

If you want to pull off the device, put a flat blade

screwdriver, between the device and the ceiling.

Figure 2

Figure 3

Figure 1

Ø110mm

Page 4 from 6

SURFACE MOUNTING

Step 1. Follow the step 1 of the installation instructions.

Step 2. Unfasten the retaining screw (Figure 4) and detach the part for suspended ceiling installation.

Step 3. Drill 2 holes on the base using a 4mm drill bit in order to permit the retaining screws to pass. Mark

these two drilled points on the required mounting location, drill the holes and install the supplied

plastic plugs. ATTENTION!! Especially for the GR-290/WP/M and GR-292/WP/M luminaire

installation on the ceiling you must align the base with the indications on the luminaire’s base

(Figure 5).

Step 4. WARNING!! To preserve the ΙΡ 65 rating, fit the screws with the metallic washer and plastic

ring which are included. Next use the screw to fasten the unit to the surface .(Figure 6)

Step 5. Install the decorative rim (package included). Next, use the 2 fasteners to install the unit to the

require location.

Step 6. Follow the step3 of the installation instructions.

Figure 6Figure 4 Figure 5

Drill here

Indications

Retaining fastener

923293004_09_004

Page 5 from 6

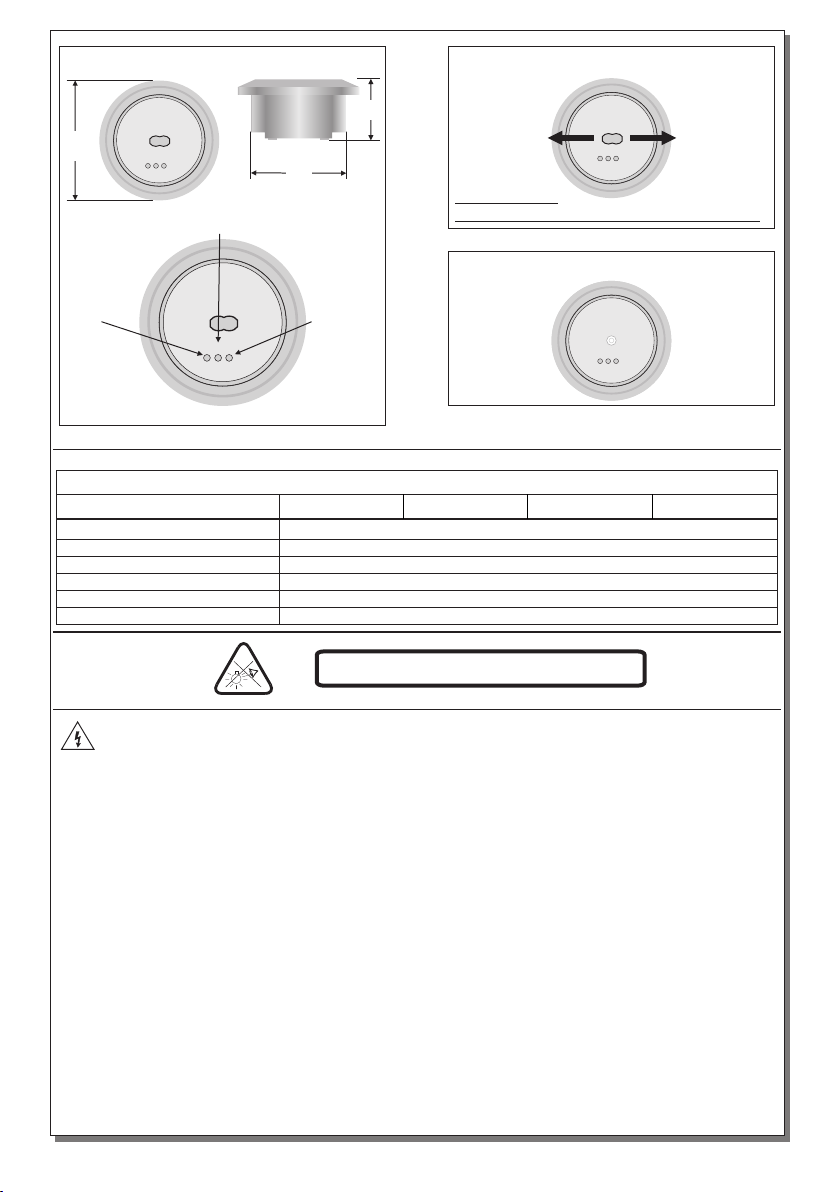

LED MODULE CHARACTERISTICS

Olympia Electronics S.A.

6 °0 C max. across the board

3-3,2V DC

1,3W

0405185

fixed connection between main pcb and led module

Manufacturer

Model Number

Voltage Range

Connections

Nominal Power

Temperature (tc)

Lamp fault

indication LED

ATTENTION!!!

During installation follow this light direction.

Corridor

lighting

Open

area

lighting

FAULT

LAMP

CHARGE

BATT.

FAULT

LAMP

CHARGE

BATT.

125

FAULT

LAMP

CHARGE

BATT.

Battery

fault

indication

LED

Battery

charge

indication

LED

Figure 4

The light source contained in this luminaire shall only be replaced by the manufacturer, or his

agent, or a similar qualified person.

NOTE! The light source is non-user replaceable.

CAUTION : Do not view directly with bare eyes.

FAULT

LAMP

CHARGE

BATT.

GR-290/WP/M

GR-291/WP/M

GR-292/WP/M

GR-293/WP/M

GR-290/WP/M, GR-292/WP/M

GR-291/WP/M, GR-293/WP/M

923293004_09_004

Page 6 from 6

WARRANTY

Olympia Electronics guarantees the quality, condition and operation of the goods. The period of warranty

is specified in the official catalogue of Olympia Electronics and also in the technical leaflet, which

accompanies each product. This warranty ceases to exist if the buyer does not follow the technical

instructions included in official documents given by Olympia Electronics or if the buyer modifies the goods

provided or has any repairs or re-setting done by a third party, unless Olympia Electronics has fully

agreed to them in writing. Products that have been damaged can be returned to the premises of our

company for repair or replacement, as long as the warranty period is valid.

Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge the

buyer depending on the reason of defection. Olympia Electronics reserves the right to charge or not the

buyer the transportation cost.

HEAD OFFICE

72nd km. O.N.R. Thessaloniki-Katerini

P.C. 60300 P.O. Box 06 Εginio Pierias Greece

www.olympia-electronics.gr

[email protected]

923293004_09_004

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Linterna de olympia electronics

olympia electronics

olympia electronics GRL-38/90/M Manual de usuario

olympia electronics

olympia electronics GR-8/leds Manual de usuario

olympia electronics

olympia electronics POWER LIGHT Series Manual de usuario

olympia electronics

olympia electronics GR-796/ST/DUO/ADR Manual de usuario

olympia electronics

olympia electronics KLIN-20/ST Manual de usuario

olympia electronics

olympia electronics WATERPROOF POWER LIGHT Series Manual de usuario

olympia electronics

olympia electronics BAU LIGHT Series Manual de usuario

olympia electronics

olympia electronics GR-220/DUO/M Manual de usuario

olympia electronics

olympia electronics GRL-37/90/ADR Manual de usuario

olympia electronics

olympia electronics BAU LIGHT Series Manual de usuario

olympia electronics

olympia electronics GR-290 Manual de usuario

olympia electronics

olympia electronics EASY LIGHT Series Manual de usuario

olympia electronics

olympia electronics GR-938/15L Manual de usuario

olympia electronics

olympia electronics GR-900/30L/SC Manual de usuario

olympia electronics

olympia electronics SLD-28/DZ Manual de usuario

olympia electronics

olympia electronics GR-939/30L/LT Manual de usuario

olympia electronics

olympia electronics Slim Light Series Manual de usuario

olympia electronics

olympia electronics GR-2100/ST Manual de usuario

olympia electronics

olympia electronics GR-427/12L/MAR Manual de usuario

olympia electronics

olympia electronics BAU LIGHT Series Manual de usuario

olympia electronics

olympia electronics GR-292/M/HL Manual de usuario

olympia electronics

olympia electronics GR-8/leds Manual de usuario

olympia electronics

olympia electronics Classic Light Series Manual de usuario

olympia electronics

olympia electronics GR-490/WP Manual de usuario

Manuales populares de Linterna de otras marcas

KYOWA

KYOWA KW-9114 Manual de usuario

Stahl

Stahl ECOLUX 6610 Series Manual de usuario

SNOWJOE

SNOWJOE SUNJOE 24V-LGT500-CT Manual de usuario

PRG

PRG VARI LITE VL5 Manual de usuario

Raytec

Raytec VARIO2 series Manual de usuario

ENSA

ENSA LEDBT18WS2 Manual de usuario

LUG

LUG OFFICE LB LED N/T Manual de usuario

GE Wallighter 250 Manual de usuario

Draper

Draper RLEDL19/B Manual de usuario

Green Lighting

Green Lighting TRI-SENSOR GL4612LU Manual de usuario

Panasonic

Panasonic EY3741B57 Manual de usuario

Clas Ohlson

Clas Ohlson LCC8T Manual de usuario

Coolon

Coolon WDN-140 Manual de usuario

Holiday Travel

Holiday Travel 834873 Manual de usuario

BEGA

BEGA 84 036 Manual de usuario

BEGA

BEGA 33 596 Manual de usuario

Dale Tiffany

Dale Tiffany GT701162 Manual de usuario

Wagan

Wagan Brite Nite Pop-Up USB Lantern Manual de usuario

olympia electronics GR-290/WP/M Manual de usuario

Manuales populares de Linterna de otras marcas
