Hard Disk Drive (HDD)

Installation Instructions

HDD PART NUMBER

70043501

Every effort has been made to ensure that the

information in this document is complete, accurate,

and up-to-date. Oki Data assumes no responsibility

for the results of errors beyond its control. Oki Data

also cannot guarantee that changes in software and

equipment made by other manufacturers and

referred to in this guide will not affect the

applicability of the information in it. Mention of

software products manufactured by other

companies does not necessarily constitute

endorsement by Oki Data.

© 2004 by Oki Data Americas, Inc. All rights

reserved.

Written and produced by the Oki Data Training &

Publications Department. Please address any

comments on this publication:

Training & Publications Dept.

Oki Data Americas, Inc.

2000 Bishops Gate Blvd.

Mt. Laurel, NJ 08054-4620

For the latest product information, printer drivers,

manuals, special offers, etc., go to

http://my.okidata.com.

OKI is a registered trademark/marque déposée/marca

registrada Oki Electric Industry Company, Ltd.

Macintosh is a trademark of Apple Computer, Inc.,

registered in the U.S. and other countries. Windows

and Windows NT are either registered trademarks or

trademarks of Microsoft Corporation in the United

States and other countries.

1

Prepare the Printer

1. First:

• Turn off the printer (1).

• Unplug the power cord (2).

• Detach the interface cable—USB, parallel, or

Ethernet—from the back of the printer (3).

2

2. Open the top cover.

3. Loosen the thumbscrew holding the printer

side cover in place.

3

4. Open the front cover.

5. Lift up on the ends and remove the side panel

from the printer.

4

Install the Hard Disk Drive

(HDD)

1. Locate the drive connector (1) on the control

board:

2. Remove the HDD from its shipping package.

5

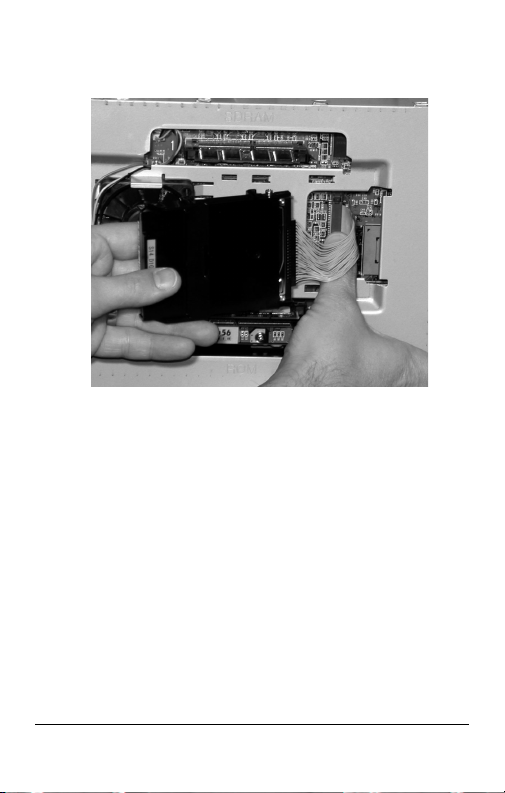

3. Insert the HDD cable firmly into the

connector.

6

4. Mount the HDD: place the HDD in the slots

on the bracket, then push the handle against

the HDD to lock it in place.

7

Complete the Installation

1. Replace the side panel on the printer and

secure it in place with the thumbscrew.

2. Close the front cover and the top cover.

3. Reattach the interface cable.

4. Plug in the power cord and turn on the printer.

8

Check for Proper

Installation

Generate a MenuMap printout:

1. Press +one or more times until

INFORMATION MENU appears on the display.

2. Press ENTER twice.

The MenuMap prints.

3. Check the top section of the MenuMap

printout to verify that it shows “HDD:

installed.”

4. If “HDD: uninstalled” still appears, remove

the printer’s side panel and make sure the

connection between the HDD and the printer

is secure, then replace the side panel and print

and check the MenuMap again.

BACK ENTER

OLN INE

CANCEL

MENU
