This MPC5566 Reference Manual set consists of the following files:

• MPC5566 Reference Manual Addendum, Rev 2

• MPC5566 Microcontroller Reference Manual, Rev 2

MPC5566 Microcontroller

Reference Manual

Freescale Semiconductor

Reference Manual Addendum

MPC5566RMAD

Rev. 2, 05/2012

Table of Contents

This errata document describes corrections to the

MPC5566 Microcontroller Reference Manual, order

number MPC5566RM. For convenience, the addenda

items are grouped by revision. Please check our website

at http://www.freescale.com/powerarchitecture for the

latest updates.

The current version available of the MPC5566

Microcontroller Reference Manual is Revision 2.0.

MPC5566 Reference Manual

Addendum

1 Addendum for Revision 2.0. . . . . . . . . . . . . . . . . . 2

2 Revision history. . . . . . . . . . . . . . . . . . . . . . . . . . . 9

MPC5566 Reference Manual Addendum, Rev. 2

Addendum for Revision 2.0

Freescale Semiconductor2

1 Addendum for Revision 2.0

Table 1. MPC5566RM Rev 2.0 addendum

Location Description

Section 12.4.2.7/Page 12-50 Change sentence “The bytes indicated as ‘—’ are not driven during that write cycle” to read “The

bytes indicated as ‘—’ are indeterminate and may be driven during that write cycle.”

Table 12-21, “Data Bus

Contents for Write

Cycles”/Page 12-50

Replace table with the one below to correct information about data bus contents for write cycles.

Note that only two columns have changed: under “32-Bit Port Size,” columns “D0:D7” and

“D8:D15.”

Table 9-23, “DMA Request

Summary for eDMA”/Page

9-43

Change two rows in the table to correct information about eSCI COMBTX DMA request.

Only the Transmit Data Register Empty and LIN Transmit Data Ready flags drive the DMA

request. The Transmit Complete flag is not used.

Transfer

Size

TSIZ

[0:1]

Address 32-Bit Port Size 16-Bit Port Size1

NOTES:

1Also applies when DBM=1 for 16-bit data bus mode.

A30 A31 D0:D7 D8:D15 D16:D23 D24:D31 D0:D7 D8:D15

Byte 01 0 0 OP0 — — — OP0 —

01 0 1 — OP1 — — — OP1

01 1 0 — — OP2 — OP2 —

01 1 1 — — — OP3 — OP3

16-bit 10 0 0 OP0 OP1 — — OP0 OP1

10 1 0 — — OP2 OP3 OP2 OP3

32-bit 00 0 0 OP0 OP1 OP2 OP3 OP0/

OP22

2This case consists of two 16-bit external transactions, the first writing OP0 and OP1,

the second writing OP2 and OP3.

OP1/OP3

DMA Request Channel Source Description

eSCIA_COMBTX 18 ESCIA.SR[TDRE] ||

ESCIA.SR[TC] ||

ESCIA.SR[TXRDY]

eSCIA combined DMA

request of the Transmit

Data Register Empty

and LIN Transmit Data

Ready DMA requests

eSCIB_COMBTX 34 ESCIB.SR[TDRE] ||

ESCIB.SR[TC] ||

ESCIB.SR[TXRDY]

eSCIB combined DMA

request of the Transmit

Data Register Empty

and LIN Transmit Data

Ready DMA requests

Addendum for Revision 2.0

MPC5566 Reference Manual Addendum, Rev. 2

Freescale Semiconductor 3

Figure 5-2, “Master Privilege

Control Registers”/Page 5-5

Change read status for bits 20–31 from zero to reserved.

Table A-1, “Module Base

Addresses”/Page A-1

Correct names of peripheral bridge modules by adding underscore (PBRIDGEA becomes

PBRIDGE_A, PBRIDGEB becomes PBRIDGE_B). Only two rows of the table are changed.

Table A-2, “MPC5566 Detailed

Correct names of peripheral bridge A control registers by adding underscore (PBRIDGEA_x

becomes PBRIDGE_A_x).

Table 1. MPC5566RM Rev 2.0 addendum

Location Description

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

RMB

MPL

Reset0 11 1 01110111011 1

Access Field 4

Access Field 5

Access Field 6

Access Field 7

Module Base Address Page

Peripheral Bridge A (PBRIDGE_A) 0xC3F0_0000 Page A-2

Peripheral Bridge B (PBRIDGE_B) 0xFFF0_0000 Page A-35

Size Address

Peripheral bridge A master privilege

control register

PBRIDGE_A_MPCR 32-bit Base + 0x0000

Reserved — — Base +

(0x0004-0x001F)

Peripheral bridge A peripheral access

control register 0

PBRIDGE_A_PACR0 32-bit Base + 0x0020

Reserved — — Base +

(0x0024-0x003F)

Peripheral bridge A off-platform

peripheral access control register 0

PBRIDGE_A_OPACR0 32-bit Base + 0x0040

Peripheral bridge A off-platform

peripheral access control register 1

PBRIDGE_A_OPACR1 32-bit Base + 0x0044

Peripheral bridge A off-platform

peripheral access control register 2

PBRIDGE_A_OPACR2 32-bit Base + 0x0048

Reserved — — Base + (0x004C-

0xC3F7_FFFF)

MPC5566 Reference Manual Addendum, Rev. 2

Addendum for Revision 2.0

Freescale Semiconductor4

Table A-2, “MPC5566 Detailed

A-36–A-37

Correct names of peripheral bridge B control registers by adding underscore (PBRIDGEB_x

becomes PBRIDGE_B_x).

Table 1. MPC5566RM Rev 2.0 addendum

Location Description

Size Address

Peripheral bridge B master privilege

control register

PBRIDGE_B_MPCR 32-bit Base + 0x0000

Reserved — — Base +

(0x0004-0x001F)

Peripheral bridge B peripheral access

control register 0

PBRIDGE_B_PACR0 32-bit Base + 0x0020

Reserved — — Base +

(0x0024-0x0027)

Peripheral bridge B peripheral access

control register 2

PBRIDGE_B_PACR2 32-bit Base + 0x0028

Reserved — — Base +

(0x002C-0x003F)

Peripheral bridge B off-platform

peripheral access control register 0

PBRIDGE_B_OPACR0 32-bit Base + 0x0040

Peripheral bridge B off-platform

peripheral access control register 1

PBRIDGE_B_OPACR1 32-bit Base + 0x0044

Peripheral bridge B off-platform

peripheral access control register 2

PBRIDGE_B_OPACR2 32-bit Base + 0x0048

Peripheral bridge B off-platform

peripheral access control register 3

PBRIDGE_B_OPACR3 32-bit Base + 0x004C

Reserved — — (Base + 0x0050)-

0xFFF0_3FFF)

Addendum for Revision 2.0

MPC5566 Reference Manual Addendum, Rev. 2

Freescale Semiconductor 5

Figure 17-13, “Unified

Channel Block Diagram”/Page

17-26

Reverse the arrow between the "Programmable Filter" and "Edge Detect".

Section 9.3.1 eDMA

Microarchitecture/ Page 9-33

In the Memory controller sub-bullet, delete the line "The hooks to a BIST controller for the local

TCD memory are included in this module".

Section 9.2.2.13, “eDMA

Interrupt Request Registers

(EDMA_IRQRH,

EDMA_IRQRL)”/ Page 9-19

In the third paragraph, remove the last line "without the need to perform a read-modify-write

sequence to the EDMA_IRQRH and EDMA_IRQRL".

Section 8.3: Initialization and

Application Information/Page

8-15

Change the sentence, “There are eight ECC check bits for each 64-bit data doubleword” to the

following:

• SRAM—Eight ECC check bits for each 64-bit SRAM data doubleword.

• Flash—Eight ECC check bits for each 64-bit flash data doubleword.

Table 6-152, “SIU_DISR Field

Descriptions”/ Page 6-113

• Bit 14-15–TRIGSELB: Correct the input select description as follows:

00: Replace the term “Invalid value” with “No Trigger”

• Bit 22-23–TRIGSELC: Correct the input select description as follows:

00: Replace the term “Invalid value” with “No Trigger”

• Bit 30-31–TRIGSELD: Correct the input select description as follows:

00: Replace the term “Invalid value” with “No Trigger”

Table 1. MPC5566RM Rev 2.0 addendum

Location Description

MPC5566 Reference Manual Addendum, Rev. 2

Addendum for Revision 2.0

Freescale Semiconductor6

Figure 11-9, “Synthesizer

Status Register

(FMPLL_SYNSR)”/Page

11-16

Correct the figure to reflect bits 23:28 and bits 30:31 as read-only.

Section 10.3.1.3, “INTC

Interrupt Acknowledge

(INTC_IACKR)”/Page 10-12

Remove the first paragraph from the “Note”:

“The INTC_IACKR must not be read speculatively while in software vector mode. Therefore, for

future compatibility, the TLB entry covering the INTC_IACKR must be configured to be guarded.”

Table 10-3. INTC Memory

Map/Page 10-9

Add the following note at the end of this table:

Note:

To ensure compatibility with all PowerPC processors, the TLB entry covering the INTC memory

map must be configured as guarded, both in software and hardware vector modes.

• In software vector mode, the INTC_IACKR must not be read speculatively.

• In hardware vector mode, guarded writes to the INTC_CPR or INTC_EOIR complete before

the interrupt acknowledge signal from the processor asserts.

Table 10-9. MPC5566

Interrupt Request Sources/

Page 10-28

Update the note at the end of this table as follows:

Note:

The INTC has no spurious vector support. Therefore, if an asserted peripheral or software

settable interrupt request (whose PRI value in INTC_PSRn is higher than the PRI value in

INTC_CPR) negates before the interrupt request to the processor for that peripheral or software

settable interrupt request is acknowledged, the interrupt request to the processor still can assert

or remain asserted for that peripheral or software settable interrupt request. If the interrupt

request to the processor does assert or does remain asserted:

• The interrupt vector will correspond to that peripheral or software settable interrupt request.

• The PRI value in the INTC_CPR will be updated with the corresponding PRI value in

INTC_PSRn.

Furthermore, clearing the peripheral interrupt request's enable bit in the peripheral or,

alternatively, setting its mask bit has the same consequences as clearing its flag bit.Setting its

enable bit or clearing its mask bit while its flag bit is asserted has the same effect on the INTC

as an interrupt event setting the flag bit.

Table 1. MPC5566RM Rev 2.0 addendum

Location Description

Address: Base + 0x0004 Access: User R/W

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

R 0 0 0 0 0 00 0 000 0 0000

Reset0000000 0 000 0 0000

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

000000LOLFLOC

PLL

SEL

PLL

REF

LOC

CAL

PAS

Ww1c w1c

Reset000000 0 0 —

1—1—1—1—2000

1Reset state determined during reset configuration.

2Reset state determined during reset.

Note: “w1c” signifies that this bit is cleared by writing a 1 to it.

Synthesizer Status Register (FMPLL_SYNSR)

Addendum for Revision 2.0

MPC5566 Reference Manual Addendum, Rev. 2

Freescale Semiconductor 7

Section 10.4.2.1.4, “Priority

Comparator Submodule”/

Page 10-30

Add the following paragraph to this section:

One consequence of the priority comparator design is that once a higher priority interrupt is

captured, it must be acknowledged by the CPU before a subsequent interrupt request of even

higher priority can be captured. For example, if the CPU is executing a priority level 1 interrupt,

and a priority level 2 interrupt request is captured by the INTC, followed shortly by a priority level

3 interrupt request to the INTC, the level 2 interrupt must be acknowledged by the CPU before a

new level 3 interrupt will be generated.

Section 10.5.5.2, “Ensuring

Coherency”/ Page 10-37

Move the content of this section under a new heading Section 10.5.5.2.1, “Interrupt with Blocked

Priority”.

Add the following paragraph to this section:

Section 10.5.5.2.2: Raised Priority Preserved

Before the instruction after the GetResource system service executes, all pending transactions

have completed. These pending transactions can include an ISR for a peripheral or software

settable interrupt request whose priority was equal to or lower than the raised priority. Also,

during the epilog of the interrupt exception handler for this preempting ISR, the raised priority

has been restored from the LIFO to PRI in INTC_CPR. The shared coherent data block now can

be accessed coherently. Following figure shows the timing diagram for this scenario, and the

table explains the events. The example is for software vector mode, but except for the method of

retrieving the vector and acknowledging the interrupt request to the processor, hardware vector

mode is identical.

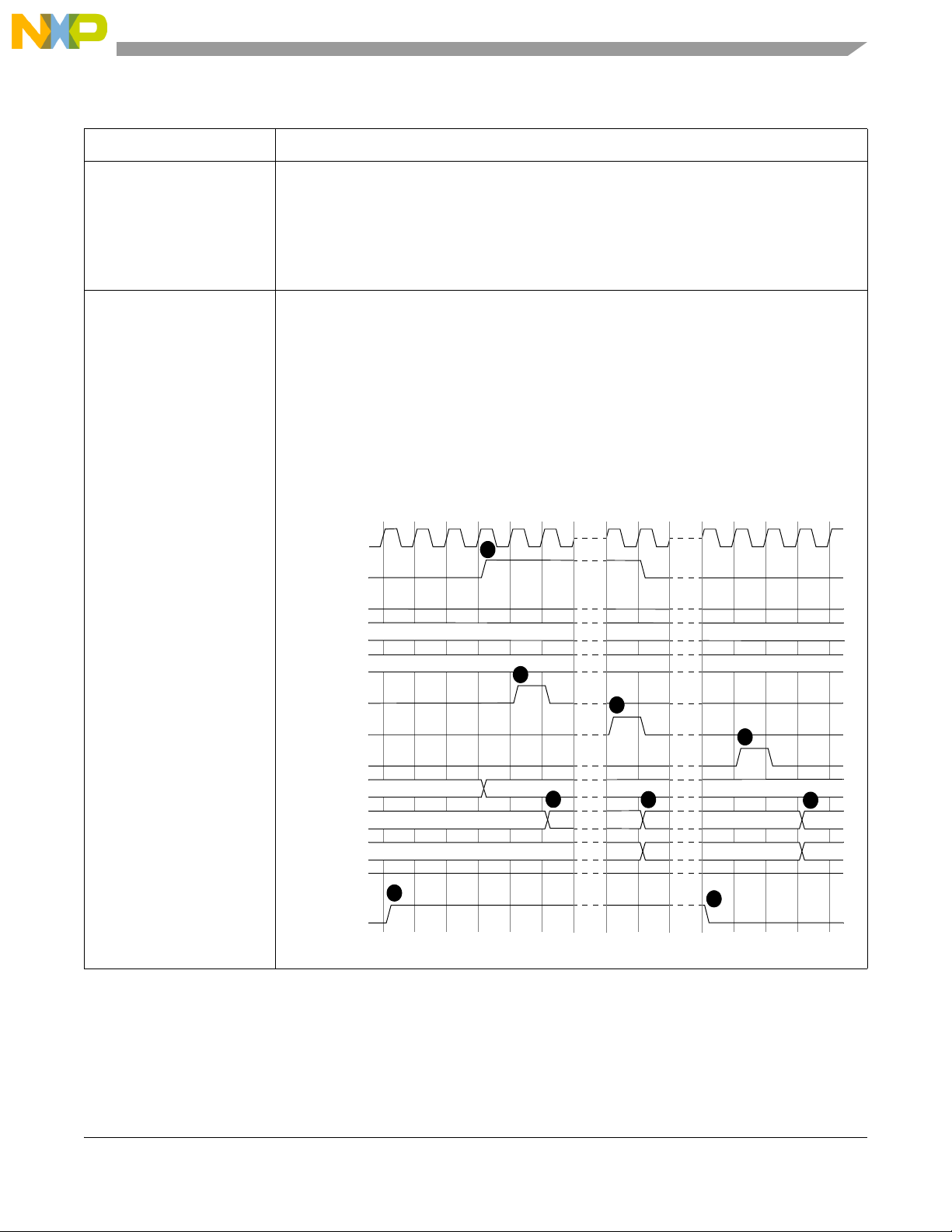

Raised Priority Preserved Timing Diagram

Table 1. MPC5566RM Rev 2.0 addendum

Location Description

Last In / First Out

Entry in LIFO

Write

INTC_CPR

Clock

Interrupt Request

to Processor

Hardware Vector

Enable

Interrupt

Acknowledge

Interrupt Vector

Read

INTC_IACKR

Write

INTC_EOIR

INTVEC in

INTC_IACKR

PRI in

INTC_CPR

Peripheral Interrupt

Request 100

108

208

Peripheral Interrupt

Request 200

030

MPC5566 Reference Manual Addendum, Rev. 2

Revision history

Freescale Semiconductor8

2 Revision history

Table 2 provides a revision history for this document.

Section 6.3.1.125 “Pad

Configuration Register 218

(SIU_PCR218)”

• Changed PA field from two bits to one bit

• Figure 6-126: Change note 2 to “... set the PA field to 0b0”.

• Table 6-122. PCR218 “PA Field Definition” change as shown below:

0b0 FCK

0b1 AN[15]

Section 19.4.5.4.1

“Calibration Overview”

Remove the braces from the equation “CAL_RES = GCC x (RAW_RES + OCC + 2)”.

Section 11.3.1.1

“Synthesizer Control Register

(FMPLL_SYNCR)”

Deleted the last note in PREDIV field description that states:

“To use the 8–20 MHz OSC, the PLL predivider must be configured for divide-by-two operation

by tying PLLCFG[2] low (set PREDIV to 0b000).”

Table 1. MPC5566RM Rev 2.0 addendum

Location Description

Raised Priority Preserved Events

Event Description

A Peripheral interrupt request 200 asserts during execution of ISR108 running at

priority 1.

B Interrupt request to processor asserts. INTVEC in INTC_IACKR updates with vector

for that peripheral interrupt request.

C ISR108 writes to INTC_CPR to raise priority to 3 before accessing shared coherent

data block.

D PRI in INTC_CPR now at 3, reflecting the write. This write, just before accessing

data block, is the last instruction the processor executes before being interrupted.

E Interrupt exception handler prolog acknowledges interrupt by reading INTC_IACKR.

F PRI of 3 pushed onto LIFO. PRI in INTC_CPR updates to 2, the priority of ISR208.

G ISR208 clears its flag bit, deasserting its peripheral interrupt request.

H Interrupt exception handler epilog writes to INTC_EOIR.

I LIFO pops 3, restoring the raised priority onto PRI in INTC_CPR. Next value to pop

from LIFO is the priority from before peripheral interrupt request 100 interrupted.

ISR108 now can access data block coherently after interrupt exception handler

executes rfi instruction.

Revision history

MPC5566 Reference Manual Addendum, Rev. 2

Freescale Semiconductor 9

Table 2. Revision history

Revision Substantive changes Date of release

1.0 • Initial release. Corrected errors in chapter 12, “External Bus Interface (EBI).” 10/2009

2.0 • Corrected errors in chapter 9, “Enhanced Direct Memory Access (eDMA).”

• Corrected errors in chapter 5, “Peripheral Bridge (PBRIDGE A and PBRIDGE

B).”

• Corrected peripheral bridge name errors in appendix A, “MPC5566 Register

Map.”

• Corrected unified channel block diagram in chapter 16, “Enhanced Modular

Input/Output Subsystem (eMIOS).

• Clarified the description in Section 9.4.1, “eDMA Microarchitecture”.

• Clarified the description in Section 9.3.1.13, “eDMA Interrupt Request

Registers (EDMA_IRQRL).

• Clarified note in the INTC Interrupt Acknowledge Register

• Added a note in the INTC Memory Map table

• Clarified note at the end of the MPC5566 Interrupt Request Sources table

• Added a paragraph to the Section 10.4.2.1.4, “Priority Comparator

Submodule”

• Updated Section 10.5.5.2, “Ensuring Coherency”

• Corrected table “PCR218 PA Field Definition” and figure “AN[15]_FCK Pad

Configuration Register (SIU_PCR218)” and note 2 under figure.

• Deleted the last note in PREDIV field description of Synthesizer Control

05/2012

Tabla de contenidos

Otros manuales de Microcontrolador de NXP Semiconductors

NXP Semiconductors

NXP Semiconductors Freescale Semiconductor MPC8569E-MDS-PB Manual de usuario

NXP Semiconductors

NXP Semiconductors SE050 Manual de usuario

NXP Semiconductors

NXP Semiconductors UM11579 Manual de usuario

NXP Semiconductors

NXP Semiconductors LPC824M201JHI33 Manual de usuario

NXP Semiconductors

NXP Semiconductors S32K1 Series Manual de instrucciones

NXP Semiconductors

NXP Semiconductors KL25 Series Manual de usuario

NXP Semiconductors

NXP Semiconductors S12ZVM-EWP Manual de usuario

NXP Semiconductors

NXP Semiconductors MKL04Z8VFK4 Manual de usuario

NXP Semiconductors

NXP Semiconductors OM5578 PN7150 Manual de usuario

NXP Semiconductors

NXP Semiconductors M53015EVB Manual de usuario

NXP Semiconductors

NXP Semiconductors USB-KW38 Manual de usuario

NXP Semiconductors

NXP Semiconductors MPC5606BK Manual de usuario

NXP Semiconductors

NXP Semiconductors MRF300AN Manual de usuario

NXP Semiconductors

NXP Semiconductors Freescale Semiconductor MPC8308 Manual de usuario

NXP Semiconductors

NXP Semiconductors MC9S08SU16 Manual de usuario

NXP Semiconductors

NXP Semiconductors UM10741 Manual de usuario

NXP Semiconductors

NXP Semiconductors MPC5777C Manual de usuario

NXP Semiconductors

NXP Semiconductors TWR-KL25Z Manual de usuario

NXP Semiconductors

NXP Semiconductors MC9S08QL8 MCU Series Manual de usuario

NXP Semiconductors

NXP Semiconductors HCS12 Manual de usuario

NXP Semiconductors

NXP Semiconductors UM108 Series Manual de usuario

NXP Semiconductors

NXP Semiconductors LPC43 Series Manual de usuario

NXP Semiconductors

NXP Semiconductors MC9S12XS256 Manual de usuario

NXP Semiconductors

NXP Semiconductors OM2NTA5KIT Manual de usuario

Manuales populares de Microcontrolador de otras marcas

AMS

AMS AS7261 Demo Kit Manual de usuario

Novatek

Novatek NT6861 Manual de usuario

Espressif Systems

Espressif Systems ESP8266 SDK Guía de configuración

Nuvoton

Nuvoton ISD61S00 ChipCorder Guía

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manual de usuario

Texas Instruments

Texas Instruments Chipcon CC2420DK Manual de usuario

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manual de usuario

NEC

NEC 78GK0S/K 1+ Series Instrucciones de instalación y funcionamiento

Mikroe

Mikroe SEMITECH N-PLC Click Instrucciones de instalación y funcionamiento

Intel

Intel Agilex Manual de usuario

Cypress

Cypress CY4607 HX2VL Manual de usuario

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manual de usuario

Texas Instruments

Texas Instruments TMS320F2837 D Series Manual de usuario

CYPRES

CYPRES CY14NVSRAMKIT-001 Manual de usuario

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Manual de usuario

Espressif Systems

Espressif Systems ESP8266EX Instrucciones de funcionamiento

Abov

Abov AC33M8128L Manual de usuario

Laird

Laird BL654PA Manual de usuario
