NXP Semiconductors FRDM665SPIEVB Manual de usuario

UM11734

Hardware user manual for FRDM665SPIEVB

Rev. 1 — 25 July 2022 User manual

Document information

Information Content

Keywords MC33665A, SPI, BMS gateway IC

Abstract User manual for starting work with MC33665A SPI EVB.

Downloaded from Arrow.com.

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

Rev Date Description

1 20220725 initial version

Revision history

User manual Rev. 1 — 25 July 2022

2 / 16

Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

IMPORTANT NOTICE

For engineering development or evaluation purposes only

NXP provides the product under the following conditions:

This evaluation kit is for use of ENGINEERING DEVELOPMENT OR

EVALUATION PURPOSES ONLY. It is provided as a sample IC pre-soldere

d to a printed-circuit board to make it easier to access inputs, outputs

and supply terminals. This evaluation board may be used with any

development system or other source of I/O signals by connecting it to the

host MCU computer board via off-the-shelf cables. This evaluation board

is not a Reference Design and is not intended to represent a final design

recommendation for any particular application. Final device in an application

heavily depends on proper printed-circuit board layout and heat sinking

design as well as attention to supply filtering, transient suppression, and I/O

signal quality.

The product provided may not be complete in terms of required design,

marketing, and or manufacturing related protective considerations, including

product safety measures typically found in the end device incorporating the

product. Due to the open construction of the product, it is the responsibility of

the user to take all appropriate precautions for electric discharge. In order to

minimize risks associated with the customers’ applications, adequate design

and operating safeguards must be provided by the customer to minimize

inherent or procedural hazards. For any safety concerns, contact NXP sales

and technical support services.

User manual Rev. 1 — 25 July 2022

3 / 16

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

1 Introduction

The NXP analog product development boards provide an easy-to-use platform for

evaluating NXP products. The boards support a range of analog, mixed-signal, and

power solutions. They incorporate monolithic integrated circuits and system-in-package

devices that use proven, high-volume technology. NXP products offer longer battery life,

a smaller form factor, reduced component counts, lower cost, and improved performance

in powering state-of-the-art systems.

This page guides the user through the process of setting up and using the MC33665A

serial peripheral interface (SPI) evaluation board (EVB).

2 Finding kit resources and information on the NXP web site

NXP Semiconductors provides online resources for this evaluation board and its

supported device(s) on http://www.nxp.com.

The information page for the FRDM665SPIEVB evaluation board is at http://

www.nxp.com/FRDM665SPIEVB. The information page provides overview information,

documentation, software and tools, parametrics, ordering information and a Getting

Started tab. The Getting Started tab provides quick-reference information applicable

to using the FRDM665SPIEVB evaluation board, including the downloadable assets

referenced in this document.

3 Getting ready

Working with the FRDM665SPIEVB requires the kit contents, additional hardware, and a

Windows PC workstation with installed software.

3.1 Kit contents

The FRDM665SPIEVB kit includes:

•MC33665A SPI EVB, SPI to four transformer physical layer (TPL) interface EVB

•One TPL daisy chain cable; two-wire twisted-pair daisy chain interface cable

•One power cable, 4-pin socket

•Quick Start Guide

3.2 Additional hardware

In addition to the kit contents, the following hardware is necessary or beneficial:

•External dual power supply 8 V to 16 V/2 A (optional)

•EVBs of battery cell controller (BCC) devices from NXP

•S32K344EVB-Q172 evaluation and development board for S32K344 from NXP

•14-cell battery pack or a battery emulator, such as BATT-14CEMULATOR

User manual Rev. 1 — 25 July 2022

4 / 16

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

4 Getting to know the hardware

4.1 Kit overview

The FRDM665SPIEVB serves as a hardware evaluation tool in support of the MC33665A

device of NXP. The MC33665A is a gateway router that can route TPL messages from

a microcontroller to four different TPL ports. It is designed for use in both automotive

and industrial applications. The device can route both TPL2 and TPL3 messages.

FRDM665SPIEVB is an ideal board for rapid prototyping of MC33665A for SPI interface

to MCU.

FRDM665SPIEVB supports an SPI for both requests (REQ) and responses (RSP).

Differential communication to daisy chain devices can be established with four different

ports.

4.2 Board features

The main features of FRDM665SPIEVB are:

•Request SPI

•Response SPI

•Onboard transformer isolation for TPL communication to BCC devices

•Configurable VIO voltage

•Configurable VDD5V from internal and external supply

•DIP switch for configuring the SPI of MC33665A to operate with or without crystals

•Reset switch for the device and board

•LED display for the status of power

•Connectors to interface directly with S32K344EVB launchpad

•Connectors for external interface to general-purpose input/output (GPIO) and I2C-bus

User manual Rev. 1 — 25 July 2022

5 / 16

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

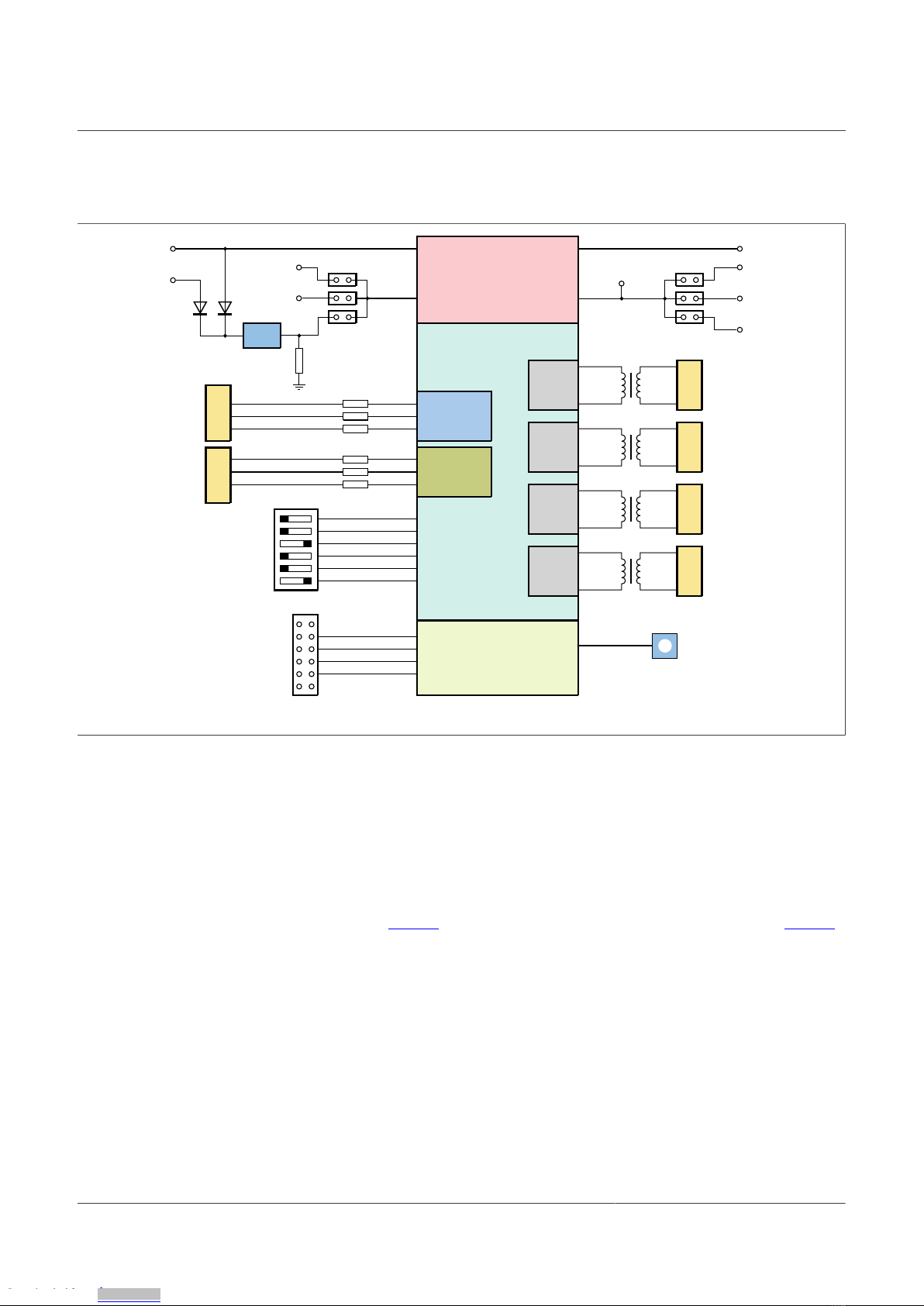

4.3 Block diagram

aaa-044811

REQUEST

SPI

VDDIO

CFG0, CFG1

ID0_STB_OD, ID1, ID2, ID3

DIP switch

3V3LDO

J13 J8

SW1

RESPONSE

SPI

TPL

PORT 0

LDO

MC33665A

POWER MANAGEMENT

GPIO, CONFIG AND

STATUS PINS

ORT 0

Q S

RES SPI

TPL

PORT 1

TPL

PORT 2

TPL

PORT 3

reset

switch

PORT 3

VBAT

KL30/

12 V/T30

VDD5V

VREG

VDDC/VDDD

VDD5V

VREG

EXT5V

5V_S32K

VIO_S32K

external interface

for GPIO and

status signals

Figure 1. FRDM665SPIEVB block diagram

4.4 Board description

The FRDM665SPIEVB allows the user to prototype and test all functions of the

MC33665A gateway router.

It can be stacked directly on the S32K344EVB. Different modes of SPI communication

can be established with MC33665A from K1 to K6 connectors. The FRDM665SPIEVB

can be supplied with 12 V at J6 connector or it can be powered directly from

S32K344EVB or EXT5V at J11. VDDC and VDDD can be selected by bridging one of the

positons in jumper J8 (Table 7) to select the 5 V. Bridging options jumper at J13 (Table 8)

makes it possible to select the VIO voltage of 3.3 V or 5 V or VIO of S32K344EVB.

S32K344EVB can be supplied with USB connection when connected to a PC.

SPI interface to external controller boards can be done with J7 for REQ SPI and J16 for

RSP SPI. Ensure the VIO of external controller board is the same as the VIO selected

with jumper J13. Single SPI or dual SPI modes can be selected by using jumpers at J14.

Populating all jumpers at J14 enables single SPI mode and depopulates jumpers at J14

for dual SPI mode. SW2 DIP switch can be used to select the CFG and ID configuration

for MC33665A. BCC devices can be connected to daisy chain ports 0 to 3 via connectors

J5, J12, J17, and J18.

Connector J1 gives the option to access the GPIO and I2C-bus pins of MC33665A.

Contact the NXP engineering team for using TPL autowake function in

FRDM665SPIEVB.

User manual Rev. 1 — 25 July 2022

6 / 16

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

Figure 2. SPI EVB description

Power configuration of the board can be reflected by LEDs populated on board. LEDs

glow on board reflects the right power interface connected to FRDM665SPIEVB.

LED VBAT 12 V External 5 V S32K344EVB

D13 - red X - -

D14 - green X X X

D15 - green X X X

D16 - red X - -

Table 1. Power status LEDs

4.5 Connectors

FRDM665SPIEVB has multiple connectors for interfacing to MCU, internal GPIO, and

external BCC devices.

User manual Rev. 1 — 25 July 2022

7 / 16

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

Figure 3. FRDM665SPIEVB connectors

Pin configuration of connectors is shown in Table 2 to Table 15.

Pin number Connection Description

1 VBAT connection to 12 V

2 - not connected

3 - not connected

4 GND ground connection for MC33665A and interface boards

Table 2. Power connector - J6

Pin number Connection Description

1 GPIO0 interface to GPIO0 or INT0 for MC33665A

2 GPIO1 interface to GPIO1 or INT1 for MC33665A

3 GPIO2 interface to GPIO2 or INT2 for MC33665A

4 GPIO3 interface to GPIO3 or INT3 for MC33665A

5 GPIO4 interface to GPIO4 or I2C-bus in MC33665A

6 GPIO5 interface to GPIO5 or I2C-bus in MC33665A

7 GPIO6 interface to GPIO6 or SYNC in MC33665A

8 GPIO7 interface to GPIO7 or HOLD in MC33665A

9 VSS/GND ground

10 VDD5V 5 V supply line

11 VSS/GND ground

12 VIO VIO interface for MC33665A

13 - not connected

14 - not connected

Table 3. GPIO and interface - J1

User manual Rev. 1 — 25 July 2022

8 / 16

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

Pin number Connection Description

15 NC-SDAT_RSP_TXD connect R6 to interface SDAT_RSP_TXD of MC33665A

16 NC-SDAT_REQ_RXD connect R7 to interface SDAT_REQ_RXD of MC33665A

17 STB_N_OUT inverted standby signal from MC33665A

18 STB_OUT standby signal from MC33665A

19 RESET reset signal for MC33665A

20 VDD5V 5 V supply line

Table 3. GPIO and interface - J1...continued

Pin number Connection Description

1 SPI_RESP_CS chip select for response SPI

2 GND ground

3 SPI_RESP_CLK clock interface for response SPI

4 GND ground

5 SPI_RESP_SIN response TXD of MC33665A

6 GND ground

7 - not connected

8 GND ground

Table 4. Response SPI - J16

Pin number Connection Description

1 SPI_REQ_CS chip select for request SPI

2 GND ground

3 SPI_REQ_SCK clock interface for request SPI

4 GND ground

5 SPI_REQ_SIN response TXD of MC33665A; interfaced to MC33665A by shorting jumper pin 1

and pin 2 in J14

6 GND ground

7 SPI_REQ_SOUT request RXD of MC33665A

8 GND ground

Table 5. Request SPI - J7

Pin number Connection Description

1 EXT5V external 5 V supply

2 VSS/GND ground

Table 6. External 5 V - J11

User manual Rev. 1 — 25 July 2022

9 / 16

NXP Semiconductors UM11734

Hardware user manual for FRDM665SPIEVB

Pin number Connection Description

1-2 5V-S32K344EVB connection of 5 V from S32K344EVB to MC33665A SPI EVB; functional only

when FRDM665SPIEVB is used with S32K344 stackable EVB. Note: Default

connection.

3-4 VREG 5 V generated by VREG is connected to VDD5V. Note: It needs an external

12 V connection to VBAT with J6.

5-6 EXT5V external 5 V supply connected to J11 is selected for EXT5V

Table 7. VDD5V jumper - J8

Pin number Connection Description

1-2 VREG connects constant 5 V generated by VREG to VDDIO/VIO of MC33665A

3-4 VIO-S32K connects VIO preselected in S32K344EVB to MC33665A. Note: Default

connection.

5-6 3V3LDO connects constant 3.3 V generated by low dropout (LDO) to VDDIO/VIO of

MC33665A

Table 8. VIO jumper - J13

Pin number Connection Description

1-2 SDAT_RSP_TXD bridge SDAT_RSP_TXD for single SPI mode

3-4 SCLK_RSP bridge SCLK_RSP with SCLK_REQ for single SPI mode

5-6 CSN_RSP bridge CSN_RSP with CSN_REQ for single SPI mode

Table 9. Single SPI jumper - J14

Pin number Connection Description

1 HOLD interface to MC33665A GPIO7

3 SYNC interface to MC33665A GPIO6

5 GPIO5 interface to MC33665A GPIO5

7 GPIO4 interface to MC33665A GPIO4

9 GPIO3 interface to MC33665A GPIO3

11 GPIO2 interface to MC33665A GPIO2

13 GPIO1 interface to MC33665A GPIO1

15 GPIO0 interface to MC33665A GPIO0

Other - not connected

Table 10. S32K344EVB connector - K1

Pin number Connection Description

1 STB_OUT interface to MC33665A standby signal STB_OUT

Table 11. S32K344EVB connector - K2

User manual Rev. 1 — 25 July 2022

10 / 16

Otros manuales para FRDM665SPIEVB

Tabla de contenidos

Otros manuales de Microcontrolador de NXP Semiconductors

NXP Semiconductors

NXP Semiconductors KE1xF Series Manual de usuario

NXP Semiconductors

NXP Semiconductors SLN-LOCAL2-IOT Manual de usuario

NXP Semiconductors

NXP Semiconductors FRDM-K32L2B3 Manual de usuario

NXP Semiconductors

NXP Semiconductors LPC18xx series Manual de usuario

NXP Semiconductors

NXP Semiconductors Freescale DEMOEM MCF51EM Instrucciones de operación

NXP Semiconductors

NXP Semiconductors S32K1 Series Manual de instrucciones

NXP Semiconductors

NXP Semiconductors NTAG I2C plus Manual de uso y cuidado

NXP Semiconductors

NXP Semiconductors Freescale Kinetis TWR-KV58F220M Manual de usuario

NXP Semiconductors

NXP Semiconductors MC9S12G Manual de usuario

NXP Semiconductors

NXP Semiconductors ASUG Manual de usuario

NXP Semiconductors

NXP Semiconductors S32R372141EVB Manual de usuario

NXP Semiconductors

NXP Semiconductors MPC5566 Manual de usuario

NXP Semiconductors

NXP Semiconductors MCIMX6UL-EVK Manual de usuario

NXP Semiconductors

NXP Semiconductors UM11527 Manual de usuario

NXP Semiconductors

NXP Semiconductors A1006 Manual de usuario

NXP Semiconductors

NXP Semiconductors WPR1500-BUCK Manual de usuario

NXP Semiconductors

NXP Semiconductors TWR-K70F120M Instrucciones de funcionamiento y mantenimiento

NXP Semiconductors

NXP Semiconductors AN11844 Manual de usuario

NXP Semiconductors

NXP Semiconductors Freescale TWR-POS-K81 Manual de usuario

NXP Semiconductors

NXP Semiconductors MKW36Z512xxx4 Series Manual de usuario

NXP Semiconductors

NXP Semiconductors MC9S08SU16 Manual de usuario

NXP Semiconductors

NXP Semiconductors i.MX 8M PLUS EVK Manual de usuario

NXP Semiconductors

NXP Semiconductors MPC5777C Manual de usuario

NXP Semiconductors

NXP Semiconductors MPC5606S Manual de usuario

Manuales populares de Microcontrolador de otras marcas

AMS

AMS AS7261 Demo Kit Manual de usuario

Novatek

Novatek NT6861 Manual de usuario

Espressif Systems

Espressif Systems ESP8266 SDK Guía de configuración

Nuvoton

Nuvoton ISD61S00 ChipCorder Guía

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manual de usuario

Texas Instruments

Texas Instruments Chipcon CC2420DK Manual de usuario

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manual de usuario

NEC

NEC 78GK0S/K 1+ Series Instrucciones de instalación y funcionamiento

Mikroe

Mikroe SEMITECH N-PLC Click Instrucciones de instalación y funcionamiento

Intel

Intel Agilex Manual de usuario

Cypress

Cypress CY4607 HX2VL Manual de usuario

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manual de usuario

Texas Instruments

Texas Instruments TMS320F2837 D Series Manual de usuario

CYPRES

CYPRES CY14NVSRAMKIT-001 Manual de usuario

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Manual de usuario

Espressif Systems

Espressif Systems ESP8266EX Instrucciones de funcionamiento

Abov

Abov AC33M8128L Manual de usuario

Laird

Laird BL654PA Manual de usuario
