NXP Semiconductors PN7150 Manual de usuario

AN11758

PN7150 Raspberry Pi SBC Kit Quick Start Guide

Rev. 1.3 — 25 July 2018

347813

Application note

COMPANY PUBLIC

Document information

Info

Content

Keywords

OM5578, PN7150, Raspberry Pi, NFC, P2P, Card Emulation, Linux,

Windows IoT

Abstract

This document gives a description on how to get started with the OM5578

PN7150 NFC Controller SBC Kit on Raspberry Pi platform.

NXP Semiconductors

AN11758

PN7150 Raspberry Pi SBC Kit Quick Start Guide

AN11758

All information provided in this document is subject to legal disclaimers.

Application note

COMPANY PUBLIC

Rev. 1.3 — 25 July 2018

347813

2 of 14

Contact

information

For more information, please visit:

http://www.nxp.com

Revision history

Rev

Date

Description

1.3

20180725

Updated weblinks

1.2

20170222

Updated demo images weblinks

1.1

20160512

•Dedicating document to Raspberry Pi platform quick start guidelines

•Security status changed into COMPANY PUBLIC

1.0

20151210

First official release version

NXP Semiconductors

AN11758

PN7150 Raspberry Pi SBC Kit Quick Start Guide

AN11758

All information provided in this document is subject to legal disclaimers.

Application note

COMPANY PUBLIC

Rev. 1.3 — 25 July 2018

347813

3 of 14

1. Introduction

This document gives a description on how to get started with the OM5578 PN7150 NFC-

Controller SBC Kit on Raspberry Pi platform. This document provides a step by step

guide to the installation procedure of the hardware and the software. Finally, it shows

PN7150 NFC Controller functionalities through demonstration application.

1.1 OM5578/PN7150RPI demo kit

OM5578/PN7150RPI kit is a high performance fully NFC compliant expansion board for

Raspberry Pi (refer to [1] for more details). It meets compliance with Reader mode, P2P

mode and Card emulation mode standards. The board features an integrated high

performance RF antenna to insure high interoperability level with NFC devices.

The kit is comprised of an OM5578/PN7150S NFC Controller Board, an OM29110RPI

Raspberry Pi Interface Board, and an NFC Sample Card.

OM5578/PN7150S

PN7150 NFC Controller Board

OM29110RPI

Raspberry Pi Interface Board

NTAG216

NFC Sample Card

Fig 1. OM5578/PN7150RPI demo kit overview

The demo kit is fully described in UM10935 document [6].

1.2 Linux driver support

PN7150 NFC Controller is supported under GNU/Linux system using the NXP Linux

libnfc-nci software stack delivered through public GitHub repository

https://github.com/NXPNFCLinux/linux_libnfc-nci (for more details, refer to AN11697 [2]).

1.3 Windows IoT driver support

PN7150 NFC Controller is natively supported as Proximity platform device by Win10 IoT

OS through the universal NFC device driver model. More details can be found in relative

NXP Semiconductors

AN11758

PN7150 Raspberry Pi SBC Kit Quick Start Guide

AN11758

All information provided in this document is subject to legal disclaimers.

Application note

COMPANY PUBLIC

Rev. 1.3 — 25 July 2018

347813

4 of 14

pages on Microsoft website (refer to [5]). For instructions on how to install this driver refer

to AN11767 [3].

The Win10 IoT Raspberry Pi demo image is based on this concept.

NXP Semiconductors

AN11758

PN7150 Raspberry Pi SBC Kit Quick Start Guide

AN11758

All information provided in this document is subject to legal disclaimers.

Application note

COMPANY PUBLIC

Rev. 1.3 — 25 July 2018

347813

5 of 14

2. Quick Startup on Raspberry Pi

2.1 Required items

• Raspberry Pi [1] (only model 2 works with WinIoT demo image)

• Compatible SD or MicroSD card (depending of the Raspberry Pi model) of at least 8Gb

memory size

• Micro USB power supply (5V / 1A)

• USB Keyboard

• USB Mouse

• HDMI cable to connect to a Monitor / TV

• Computer (running Windows, Linux or Mac OS X) only for SD/MicroSD card installation

• Raspberry Pi demo image file (see [4])

2.2 Hardware setup

First of all assemble the PN7150 NFC Controller Board with the Raspberry Pi Interface

Board.

Fig 2. OM5578/PN7150RPI demo kit assembly

NXP Semiconductors

AN11758

PN7150 Raspberry Pi SBC Kit Quick Start Guide

AN11758

All information provided in this document is subject to legal disclaimers.

Application note

COMPANY PUBLIC

Rev. 1.3 — 25 July 2018

347813

6 of 14

Then stacked the boards together with the Raspberry Pi according to below guidelines.

The Raspberry Pi platforms (new versions) have a 40-pin connector allowing to connect

an expansion board. The Raspberry Pi Interface Board only make use of the first 26 ones

for compatibility reason with the previous Raspberry Pi models. Assemble the boards as

shown in figure below:

Fig 3. OM5578/PN7150RPI demo kit and Raspberry Pi stacked together

Note: On the old models (A/B series) first remove the 4 white plastic spacers before

assembly.

2.3 Software setup

Prepare a SD or MicroSD card, with the downloaded Raspberry Pi demo image (see [4]),

following the installation guidelines:

- On Windows: https://www.raspberrypi.org/documentation/installation/installing-

images/windows.md

- On Linux: https://www.raspberrypi.org/documentation/installation/installing-

images/linux.md

- On MAC OS X: https://learn.adafruit.com/beaglebone-black-installing-operating-

systems/mac-os-x

NXP Semiconductors

AN11758

PN7150 Raspberry Pi SBC Kit Quick Start Guide

AN11758

All information provided in this document is subject to legal disclaimers.

Application note

COMPANY PUBLIC

Rev. 1.3 — 25 July 2018

347813

7 of 14

2.4 Linux NFC demo application

2.4.1 Application details

The demo application is part of the Linux libnfc-nci stack available on public GitHub

repository https://github.com/NXPNFCLinux/linux_libnfc-nci. The related source code can

then be found there (more details in document AN11697 [2]).

2.4.2 Starting the application

Insert the SD or MicroSD card in the Raspberry Pi. Connect HDMI Display, mouse and

keyboard. Then power-up the Raspberry Pi by plugging the USB power cable.

The Raspberry Pi boots and displays the Raspbian GUI:

Fig 4. Raspbian GUI

Open a terminal and browse to the Linux libnfc-nci stack directory (refer to chapter 1.2 for

more details about the Linux NFC software stack).

$ cd ~/linux_libnfc-nci

The application requires parameters to run:

$ ./nfcDemoApp <OPTIONS>

NXP Semiconductors

AN11758

PN7150 Raspberry Pi SBC Kit Quick Start Guide

AN11758

All information provided in this document is subject to legal disclaimers.

Application note

COMPANY PUBLIC

Rev. 1.3 — 25 July 2018

347813

8 of 14

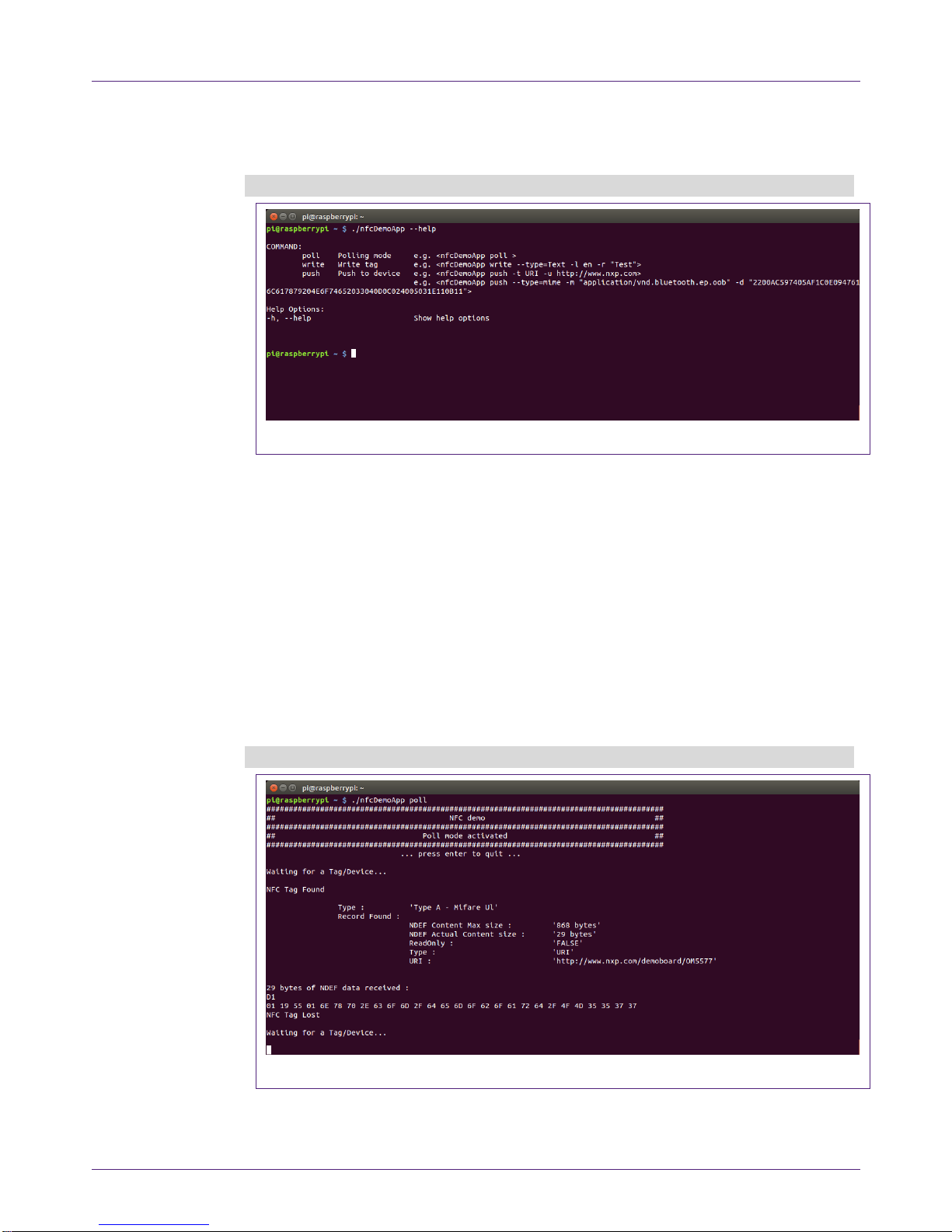

You can get the parameters details by launching the application help menu:

$ ./nfcDemoApp –-help

Fig 5. Linux demo application parameters

The demo application offers 3 modes of operation:

•Polling: continuously waiting for a remote NFC device (tag or peer device) and

displays related information

•Tag writing: allows writing NDEF content to a NFC tag

•Device push: allows pushing NDEF content to a remote NFC peer device

2.4.2.1 Polling mode

When in this mode, the application will display information of any discovered NFC tags or

remote NFC device.

It is reached starting the application with “poll” parameter:

$ ./nfcDemoApp poll

Fig 6. Linux demo application polling mode

NXP Semiconductors

AN11758

PN7150 Raspberry Pi SBC Kit Quick Start Guide

AN11758

All information provided in this document is subject to legal disclaimers.

Application note

COMPANY PUBLIC

Rev. 1.3 — 25 July 2018

347813

9 of 14

2.4.2.2 Device push mode

This mode allows pushing data to a remote NFC device (e.g. an NFC phone). It is

reached using “push” parameter:

$ ./nfcDemoApp push <OPTIONS>

Fig 7. Linux demo application device push mode

You can get more information about the message format using “-h” or “--help” parameter:

$ ./nfcDemoApp push –-help

2.4.2.3 Tag writing mode

This mode allows writing data to an NFC tag. It is reached using “write” parameter:

$ ./nfcDemoApp write <OPTIONS>

Fig 8. Linux demo application tag writing mode

NXP Semiconductors

AN11758

PN7150 Raspberry Pi SBC Kit Quick Start Guide

AN11758

All information provided in this document is subject to legal disclaimers.

Application note

COMPANY PUBLIC

Rev. 1.3 — 25 July 2018

347813

10 of 14

You can get more information about the message format using “-h” or “--help” parameter:

$ ./nfcDemoApp write –-help

2.5 WinIoT NFC demo

Insert the SD or MicroSD card in the Raspberry Pi 2, connect HDMI Display, and then

power-up the Raspberry Pi by plugging the USB power cable.

The Raspberry Pi boots and displays the “Proximity_BasicTest” application for

demonstration of NFC functionality.

The application consists of a simple graphical interface, displayed on the HDMI output of

the Raspberry Pi. It will react when NFC devices or tags are made proximate to the

PN7120 antenna by displaying short messages:

Fig 9. Proximity_BasicTest application

For more details about the demo application or instruction for driver installation on other

platform (e.g. Raspberry Pi 3), you can refer to AN11767 [3].
