NXP Semiconductors Freescale MED-GLU Manual de usuario

Quick Start Guide

MED-GLU

Glucose Metering

Plug-in Board

TOWER SYSTEM

MED-GLU

Freescale Tower System

The MED-GLU plug-in board is compatible with the Freescale

Tower System, a modular development platform that enables rapid

prototyping and tool re-use through reconfigurable hardware. Elevate

your design to the next level with this industrial powerhouse by

building your Tower System today.

Quick Start Guide

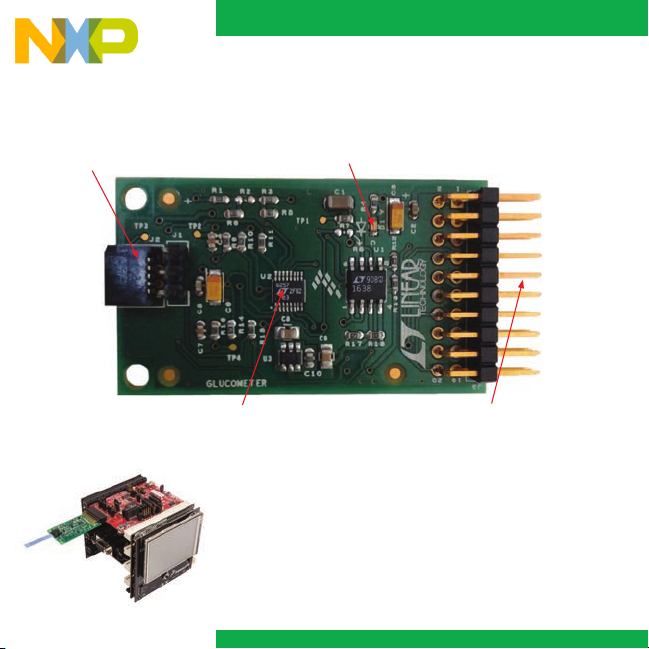

Get to Know the MED-GLU Board

Linear® Optional

External Opamps

Medical

Connector

Power on LED

Glucose Strip

Connector

MED-GLU is a single-board glucometer solution. It is

reduced in size and eases the design of applications

based on glucose metering. This board can be used

together with the Tower System, offering a complete

suite of tools including serial communication interfaces

and graphic LCD screens.

Features

• Ready-to-develop glucometer solution

• Required components for glucometry embedded on board

(excluding test strip)

• Tower System compatible

MED-GLU Features

Quick Start Guide

Verify the Jumper

Configuration

Verify the jumper configuration on

each board according to the Jumper

Configurations table found later in this

guide.

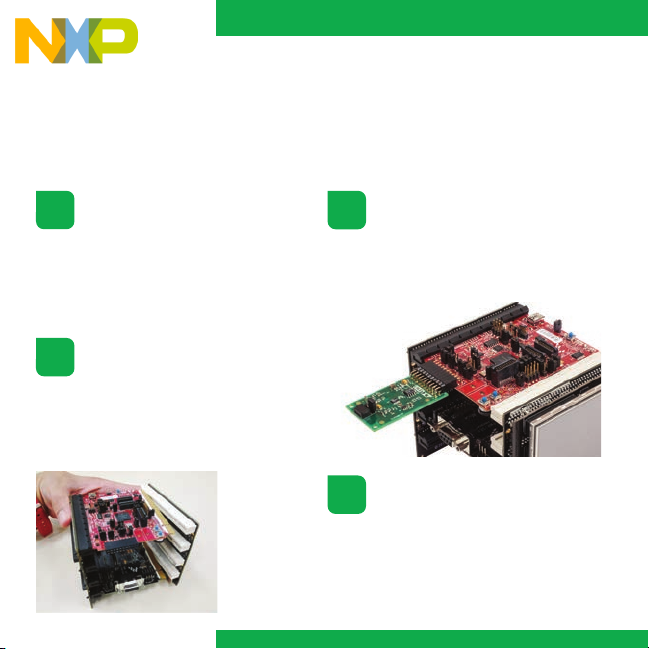

Assemble the

Tower System

Assemble the Tower System by matching

primary and secondary sides on the

serial and MCU boards to corresponding

elevators.

Step-by-Step Installation Instructions

In this quick start guide, you will learn how to set up the MED-GLU and Tower System

and run the included demonstrated software. For more detailed infomation, review the

user manual at freescale.com/healthcare.

Connect the

MED-GLU AFE

Connect the MED-GLU AFE to the

medical connector on TWR-K53N512

board as shown below.

Download and

Install Software

Download and install IAR Embedded

Workbench 6 for ARM

. A 30-day

trial version can be downloaded from

iar.com.

TOWER SYSTEM

Install the

Drivers

Install P&E Micro drivers. The installer

is located in IAR installation folder\arm\

drivers\pemicro.

Connect a

USB Cable

Connect a USB cable from the computer

to the USB port on the TWR-K53N512

board. Wait for drivers to install.

Download the

Application Note

Go to freescale.com and conduct a

parametric search for AN4364. Download

AN4364SW.zip.

Open the

File

Open the file MED-GLU K53.eww

using IAR from \Software\MED-GLU

MK53N512\app\cdc\iar_ew\kinetis.

Load the

Firmware

Click the Debug button to load the

firmware to the MCU.

Quick Start Guide

Step-by-Step Installation Instructions

Continued

Install the

Software

Install the Medical GUI software. It can

be downloaded from freescale.com.

Note: Make sure you have already installed Java®

JDK on your computer. Look for JDK folder in:

C:\Program Files\Java

Change the

Connection

Disconnect the USB cable from the

TWR-K53N512 and connect it to the

TWR-SER board.

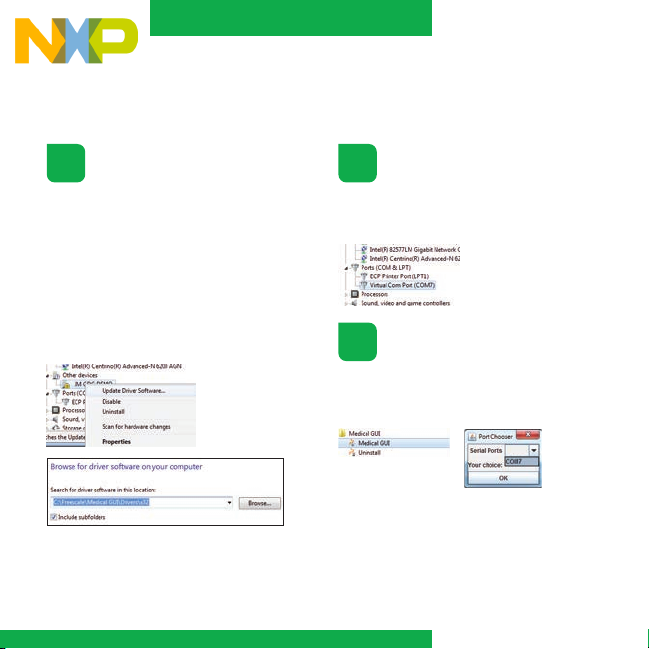

Look for the

COM Number

In the device manager, look for the COM

number assigned to “Virtual Com Port.”

Open the

Medical GUI

Open the Medical GUI and select the

Virtual Com Port from previous step.

Install Drivers for

JM CDC Demo

If the driver is not installed automatically,

open Device Manager and install drivers

for JM CDC Demo. Drivers can be

found here:

• 32-bit version:

C:\Freescale\Medical GUI\Drivers\x32

• 64-bit version:

C:\Freescale\Medical GUI\Drivers\x64

Note: Open the Device Manager by opening

the start menu, right-clicking on Computer and

selecting Manage. Device manager is on the

left options tree.

TOWER SYSTEM

Quick Start Guide

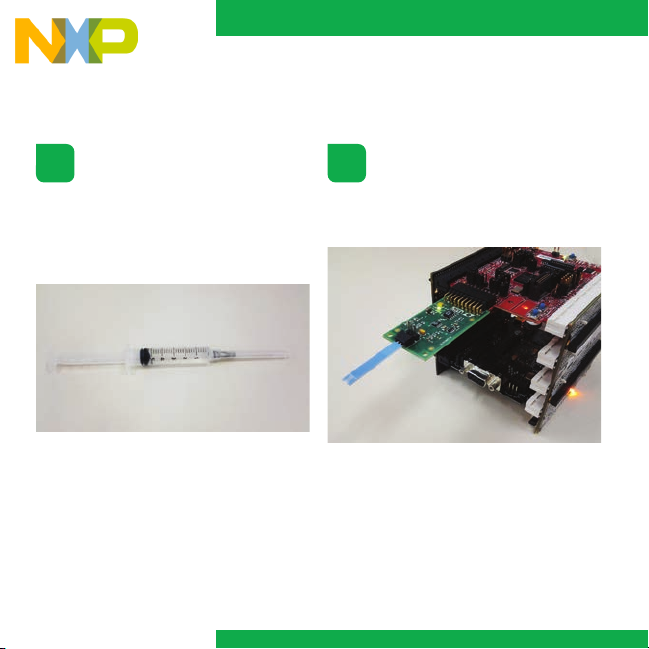

Place

Test Strip

Place the test strip on the MED-GLU

board’s strip connector as shown below.

Prepare

Solution

Prepare a solution mixing 55 ml of

distilled water and 1 ml of glucose

solution with 5% concentration (0.05g/

ml). Draw the solution into a syringe.

Step-by-Step Installation Instructions

Continued

TOWER SYSTEM

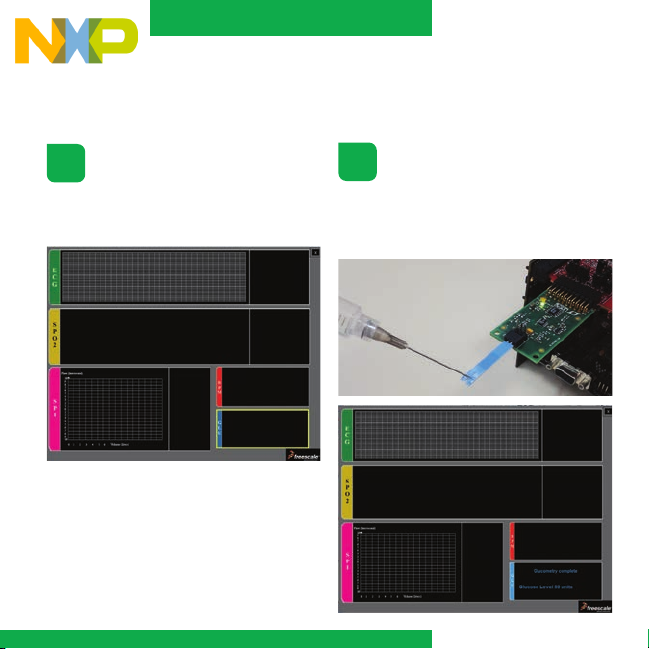

Start

Measurements

In the main screen, click the GLU section

(blue) to start measurements.

Place Solution

on Test Strip

Place a drop of glucose solution on the

test strip. Wait five seconds for results to

appear on screen.

Quick Start Guide

TWR-K53N512 Jumper Configurations

Jumper Position Function

J1 Open R71 to ADC1_DM1

J3 Open FlexBus Latch OE

J4 2-3 Medical Connector Pin 4 Function

J11 1-2 External Oscillator Selection

J15 Connected Core VDD

J17 Connected Oscillator Power Enable

J18 Connected USB0_VBUS Voltage In

J24 1-2 SYS_PWR Select

J28 Open Disable JM60 Bootloader

J34 Open Oscillator OE Control

MED-GLU Jumper Options

The following is a list of jumper options. The default installed jumper settings are

shown in white text within the green boxes.
