NXP Semiconductors FRDM-K32L2A4S Manual de usuario

Quick Start Guide

FRDM-K32L2A4S

FREEDOM DEVELOPMENT PLATFORM

Quick Start Guide

K32L2A

USB

J2 Header

Touch

Electrode2

Ambient Light

Sensor

Accelerometer/

magnetometer

J1 Header

SPI2 Header

NMI Button

Open SDA

USB

Reset

Push Button

RGB LED

J3 Header

K32L2A41VLL1A

J4 Header

Digital Angular Rate

Gyroscope

LLWU Button

MK20DX128VFM5

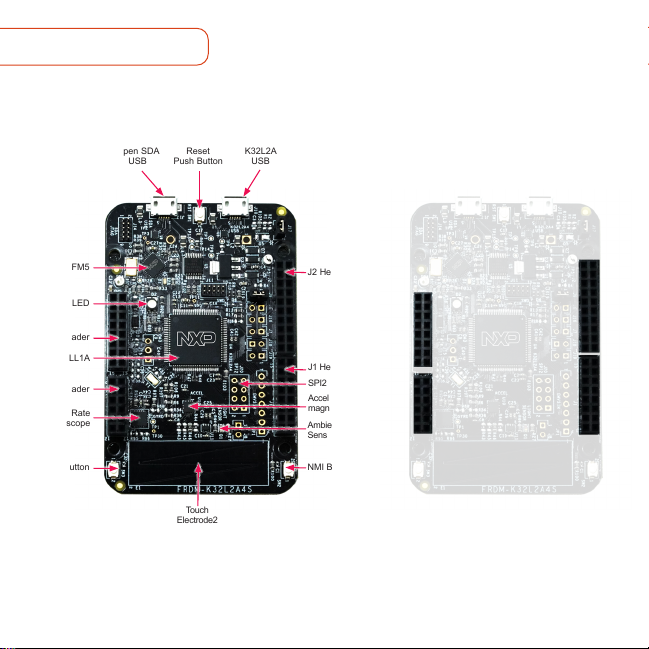

Figure 1: FRDM-K32L2A4S Callouts Figure 2: FRDM-K32L2A4S Pin-Outs

GET TO KNOW THE FRDM-K32L2A4S

SDA_PTD5-2

P3V3-4

RST-6

P3V3-8

P5V_USB-10

GND-12

GND-14

P5-9V_VIN-16

PTB0-2

PTB1-4

PTC3-6

PTB3-8

PTC2-10

PTC1-12

NC-19

PTE19-17

PTE18-15

PTE17-13

PTE16-11

PTE6-9

PTE3-7

PTE2-5

NC-3

NC-1

PTCH-15

PTCH-13

PTC7-11

PTC9-9

PTC8-7

PTC0-5

PTB19-3

PTB18-1

20-PTA12

18-PTA13

16-AREF

14-GND

12-PTD1

10-PTD2

8-PTD2

6-PTD0

4-PTD7

2-PTD6

16-PTB13

14-PTB12

12-PTB11

10-PTB10

8-PTB9

6-PTB2

4-PTB17

2-PTB16

1-PTA5

3-PTA6

5-PTA7

7-PTA14

9-PTA15

11-PTA16

13-PTA17

15-PTB8

1-PTE20

3-PTE21

5-PTE22

7-PTE23

9-PTC5

11-PTE30

www.nxp.com

HOW TO GET STARTED

20-PTA12

18-PTA13

16-AREF

14-GND

12-PTD1

10-PTD2

8-PTD2

6-PTD0

4-PTD7

2-PTD6

16-PTB13

14-PTB12

12-PTB11

10-PTB10

8-PTB9

6-PTB2

4-PTB17

2-PTB16

1. Connect the FRDM-K32L2A4S

board to a PC using the

included mini-USB cable to

USB connector “SDA USB.” A

green power LED will blink when

connect to PC to indicate USB

connection established.

2. Your FRDM- K32L2A4S board

comes loaded with a “bubble

level” demo that leverages the

on-board accelerometer. When

the board is flat, the RGB LED is

turned off, and when the board

is tilted, the green and red LEDs

gradually illuminate based on

the degree of tilt on the X- and

Y-axis.

3. Explore more out-of-box demos

and download software and

tools at www.nxp.com/FRDM-

K32L2A4S.

4. Enjoy your design freedom with

the FRDM-K32L2A4S.

www.nxp.com

NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of

Document Number: FRDMK32L2A4SQSG REV 0

Agile Number: 926-46406 REV A

SUPPORT

Visit www.nxp.com/support for a list of

phone numbers within your region.

WARRANTY

Visit www.nxp.com/warranty for

complete warranty information.

Get Started

Download installation

software and documentation

under “Jump Start Your Design”

at nxp.com/FRDM-K32L2A4S.
