1. General description

The TFA9812 is a high-efﬁciency Bridge Tied Load (BTL) stereo Class-D audio ampliﬁer

with a digital I2S audio input. It is available in a HVQFN48 package with exposed die

paddle. The exposed die paddle technology enhances the thermal and electrical

performances of the device.

The TFA9812 features digital sound processing and audio power ampliﬁcation. It supports

I2C control mode and Legacy mode. In Legacy mode I2C involvement is not needed

because the key features are controlled by hardware pin connections.

A continuous time output power of 2 ×12W(R

L=8Ω,V

DDP = 15 V) is supported without

an external heat sink. Due to the implementation of a programmable thermal foldback

even for high supply voltages, higher ambient temperatures, and/or lower load

impedances, the device operates without sound interrupting behavior.

TFA9812 is designed in such a way that it starts up easily (no special power-up sequence

required). It features various soft and hard impact protection mechanisms to ensure an

application that is both user friendly and robust.

A modulation technique is applied for the TFA9812, which supports common mode choke

approach (1 common mode choke only per BTL ampliﬁer stage). This minimizes the

number of external components.

2. Features

2.1 General features

n3.3 V and 8 V to 20 V external power supply

nHigh efﬁciency and low power dissipation

nSpeaker outputs fully short circuit proof across load, to supply lines and ground

nPop noise free at power-up/power-down and sample rate switching

nLow power Sleep mode

nOvervoltage and undervoltage protection on the 8 V to 20 V power supply

nUndervoltage protection on the 3.3 V power supply

nOvercurrent protection (no audible interruptions)

nOverdissipation protection

nThermally protected and programmable thermal foldback

nClock error protection

nI2C mode control or Legacy mode (i.e. no I2C) control

nFour different I2C addresses supported

nInternal Phase-Locked Loop (PLL) without using external components

TFA9812

BTL stereo Class-D audio ampliﬁer with I2S input

Rev. 02 — 22 January 2009 Preliminary data sheet

Preliminary data sheet Rev. 02 — 22 January 2009 2 of 66

NXP Semiconductors TFA9812

BTL stereo Class-D audio ampliﬁer with I2S input

nNo high system clock required (PLL is able to lock on BCK)

nNo external heat sink required

n5 V tolerant digital inputs

nSupports dual coil inductor application

nEasy application and limited external components required

2.2 DSP features

nDigital parametric 10-band equalizer

nDigital volume control per channel

nSelectable +24 dB gain boost

nAnalog interface to digital volume control in Legacy mode

nDigital clip level control

nSoft and hard mute

nThermal foldback threshold temperature control

nDe-emphasis

nOutput power limiting control

nPolarity switch

nFour Pulse Width Modulation (PWM) switching frequency settings

2.3 Audio data input interface format support

nMaster or slave Master Clock (MCLK), Bit Clock (BCK) and Word Select (WS) signals

nPhilips I2S, standard I2S

nJapanese I2S, Most Signiﬁcant Bit (MSB) justiﬁed

nSony I2S, Least Signiﬁcant Bit (LSB) justiﬁed

nSample rates from 8 kHz to 192 kHz

3. Applications

nDigital-in Class-D audio ampliﬁer applications

nCRT and ﬂat-panel television sets

nFlat-panel monitors

nMultimedia systems

nWireless speakers

nDocking stations for MP3 players

Preliminary data sheet Rev. 02 — 22 January 2009 3 of 66

NXP Semiconductors TFA9812

BTL stereo Class-D audio ampliﬁer with I2S input

4. Quick reference data

[1] IPis the current through the analog supply voltage (VDDA) pin added to the current through the power supply

voltage (VDDP) pin.

Table 1. Quick reference table

Unless speciﬁed otherwise, V

DDA

DDP

=12V,V

SSP1

SSP2

=0V,V

DDA(3V3)

DDD(3V3)

= 3.3 V,

SS1

SS2

= REFD = REFA = 0 V, T

amb

=25

C, R

Ω

= 1 kHz, f

= 44.1 kHz, f

= 400 kHz,

24-bit I

S input data, MCLK clock mode, typical application diagram (Figure 13).

Symbol Parameter Conditions Min Typ Max Unit

General

VDDA analog supply

voltage 81220V

VDDP power supply

voltage 81220V

VDDA(3V3) analog supply

voltage (3.3 V) 3.0 3.3 3.6 V

VDDD(3V3) digital supply

voltage (3.3 V) 3.0 3.3 3.6 V

IPsupply current soft mute mode, with load,

ﬁlter and snubbers

connected

[1] -3845mA

sleep mode [1] - 160 270 µA

IDDA(3V3) analog supply

current (3.3 V) operating mode

I2S slave mode - 2 4 mA

I2S master mode - 4 6 mA

sleep mode

VDDA =V

DDP = 12 V - 120 - µA

VDDA =V

DDP = 1 V - 40 70 µA

IDDD(3V3) digital supply

current (3.3 V) operating mode

I2S slave mode - 15 25 mA

I2S master mode - 25 40 mA

sleep mode;

DATA = WS = BCK =

MCLK = 0 V

-430µA

Po(RMS) RMS output power Continuous time output power per channel; THD = 10 %;

RL=8Ω

VDDA = VDDP = 12 V - 8.3 - W

VDDA = VDDP = 13.5 V - 10 - W

VDDA = VDDP = 15 V - 12 - W

Short time (≤10 s) output power per channel; THD = 10 %;

RL=8Ω

VDDA = VDDP = 17 V - 15 - W

ηpo output power

efﬁciency RL=8Ω; Po(RMS) = 8.3 W - 88 - %

Preliminary data sheet Rev. 02 — 22 January 2009 4 of 66

NXP Semiconductors TFA9812

BTL stereo Class-D audio ampliﬁer with I2S input

5. Ordering information

Table 2. Ordering information

Type number Package

Name Description Version

TFA9812HN HVQFN48 plastic thermal enhanced very thin quad ﬂat package; no leads;

48 terminals; body 7 ×7×0.85 mm SOT619-8

xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxx x x x xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxx xx xx

xxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxx xxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxx x x

xxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxx

xxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxx xxx

Preliminary data sheet Rev. 02 — 22 January 2009 5 of 66

NXP Semiconductors TFA9812

BTL stereo Class-D audio ampliﬁer with I2S input

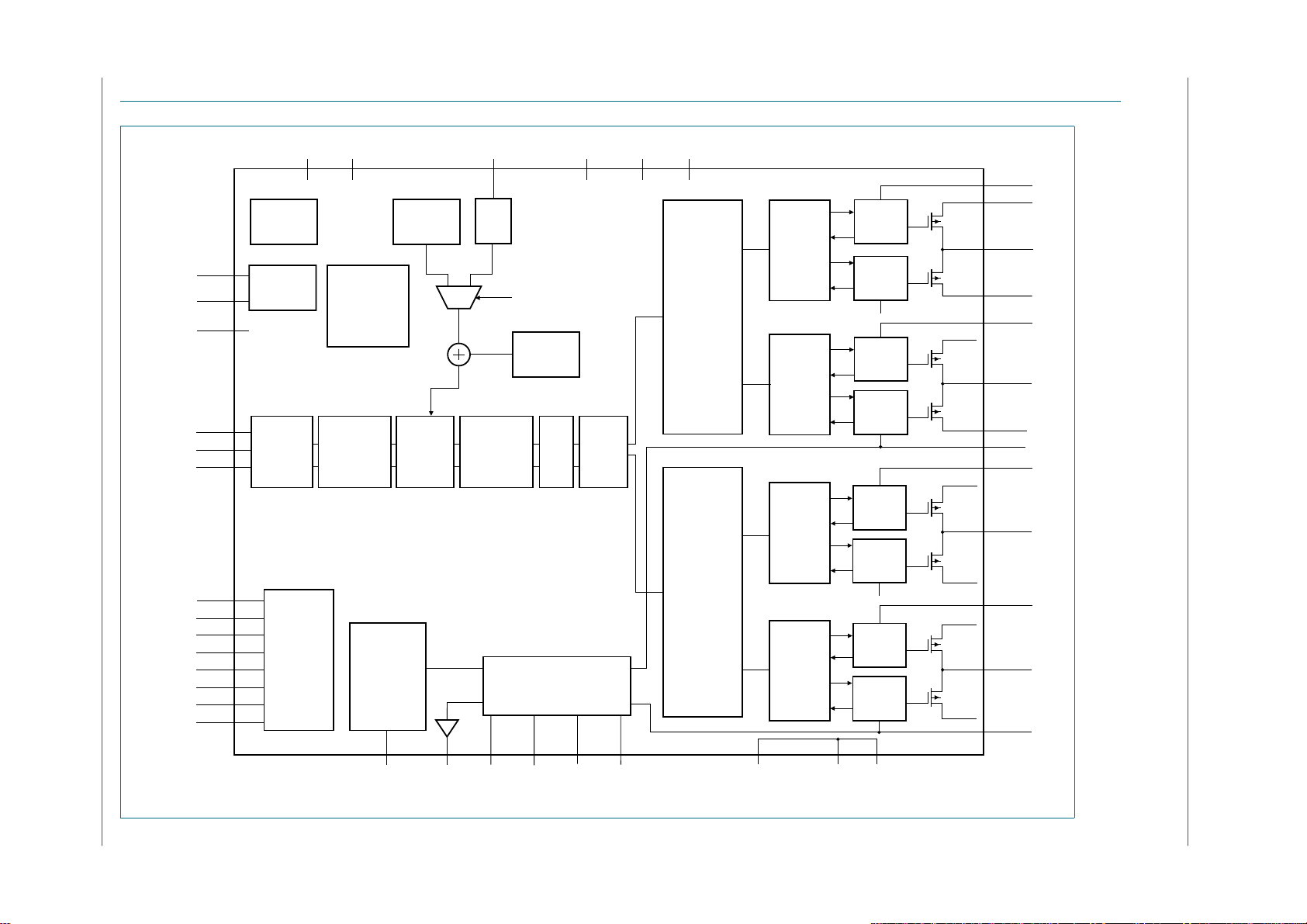

6. Block diagram

Fig 1. TFA9812 block diagram

16, 17

18, 19

10, 11

23, 24

26, 27

VDDP

VSSP1

BOOT1P

VDDP

OUT1P

VSSP2

BOOT1N

OUT1N

STAB1

BOOT2P

STAB1

CONTROL

LOGIC 20, 21

DRIVER

HIGH

13, 14

VDDP

VSSP2

VDDP

OUT2P

VSSP2

BOOT2N

OUT2N

STAB2

XTALIN

XTALOUT

MCLK

REFERENCES

PROTECTION

OVP

UVP

OCP

OTP

ODP

CDELAYDIAG

41 42 45

TFA9812

010aaa217

CONTROL

LOGIC

DRIVER

HIGH

DRIVER

LOW

DRIVER

LOW

CONTROL

LOGIC

CONTROL

LOGIC

DRIVER

HIGH

DRIVER

LOW

DRIVER

HIGH

DRIVER

LOW

PWM

CONTROLLER

PWM

CONTROLLER

CONTROL

INTERFACE

ADDRESS

HEX 01

PHASED

LOCKED

LOOP

THERMAL

FOLDBACK

OSCILLATOR

ADC

POWERUP

SDA/MS

GAIN

33ENABLE

CSEL

ADSEL2/PLIM2

ADSEL1/PLIM1

SCL/SFOR

STABD REFD STABA REFA

29 488

EXPOSED DIE PADDLE VSS1 VSS2

BCK

DATA

CSEL

TEST1 TEST2 AVOL VDDD(3V3) VDDA(3V3) VDDA

743 32 40 36

CLOCK

PROTECTION

UFP

OFP

IBP

SERIAL

AUDIO

INTERFACE

10-BAND

PARAMETRIC

EQUALIZER

VOLUME

CONTROL

AND SOFT

MUTE

INTER-

POLATION

FILTER AND

DE-EMPHASIS

POWER

LIMITER

GAIN

Preliminary data sheet Rev. 02 — 22 January 2009 6 of 66

NXP Semiconductors TFA9812

BTL stereo Class-D audio ampliﬁer with I2S input

Figure 1 shows the block diagram of the TFA9812. For a detailed description of the audio

signal path see Section 8.1.

7. Pinning information

7.1 Pinning

Fig 2. Pin conﬁguration, transparent top view

Table 3. Pinning description TFA9812

Pin Symbol Type Description

1 XTALIN I Crystal oscillator input

2 XTALOUT O Crystal oscillator output

DDA(3V3) P Analog supply voltage (3.3 V)

4 STABA O 1.8 V analog stabilizer output

5 REFA P Analog reference voltage

DDA P Analog supply voltage (8 V to 20 V)

7 TEST1 I Test signal input 1. For test purposes only (connect to VSS)

SS1 P PCB ground reference

9 STAB2 O Decoupling of internal 11 V regulator for channel 2 drivers

10 VSSP2 P Negative power supply voltage for channel 1 and channel 2

11 VSSP2 P Negative power supply voltage for channel 1 and channel 2

12 BOOT2N O Bootstrap high-side driver negative PWM output channel 2

13 OUT2N O Negative PWM output channel 2

010aaa218

TFA9812HN

BOOT1N

VSSP2

BOOT2N

VSSP1

VSSP2 VSSP1

STAB2 STAB1

VSS1 DIAG

TEST1 CDELAY

VDDA POWERUP

REFA AVOL

STABA ENABLE

VDDA(3V3) GAIN

XTALOUT CSEL

XTALIN ADSEL2/PLIM2

OUT2N

BOOT1P

OUT2P

OUT1P

VDDP

OUT1P

BOOT1P

OUT1N

VSS2

MCLK

BCK

DATA

TEST2

REFD

STABD

VDDD(3V3)

SDA/MS

SCL/SFOR

ADSEL1/PLIM1

12 25

11 26

10 27

9 28

8 29

7 30

6 31

5 32

4 33

3 34

2 35

1 36

terminal 1

index area

Transparent top view

Preliminary data sheet Rev. 02 — 22 January 2009 7 of 66

NXP Semiconductors TFA9812

BTL stereo Class-D audio ampliﬁer with I2S input

14 OUT2N O Negative PWM output channel 2

15 BOOT1P O Bootstrap high-side driver positive PWM output channel 1

16 OUT1P O Positive PWM output channel 1

17 OUT1P O Positive PWM output channel 1

18 VDDP P Positive power supply voltage (8 V to 20 V)

19 VDDP P Positive power supply voltage (8 V to 20 V)

20 OUT2P O Positive PWM output channel 2

21 OUT2P O Positive PWM output channel 2

22 BOOT2P O Bootstrap high-side driver positive PWM output channel 2

23 OUT1N O Negative PWM output channel 1

24 OUT1N O Negative PWM output channel 1

25 BOOT1N O Bootstrap high-side driver negative PWM output channel 1

26 VSSP1 P Negative power supply voltage for channel 1 and channel 2

27 VSSP1 P Negative power supply voltage for channel 1 and channel 2

28 STAB1 O Decoupling of internal 11 V regulator for channel 1 drivers

29 DIAG O Fault mode indication output (open-drain pin)

30 CDELAY I Timing reference

31 POWERUP I Power-up pin to switch between Sleep and other operational

modes

32 AVOL I Analog volume control (Legacy mode)

33 ENABLE I Enable input to switch between 3-state and other

operational modes

34 GAIN I Gain selection input to select between 0 dB and +24 dB

gain (Legacy mode)

35 CSEL I Control selection input to select between Legacy mode

(no I2C bus control) and I2C bus control

36 ADSEL2/PLIM2 I Address selection in I2C mode input 2, power limiter

selection input 2 in Legacy mode

37 ADSEL1/PLIM1 I Address selection in I2C mode input 1, power limiter

selection input 1 in Legacy mode

38 SCL/SFOR I I2C bus clock input in I2C mode, I2S serial data format

selection input in Legacy mode

39 SDA/MS I/O I2C bus data input and output in I2C mode, master/slave

selection input in Legacy mode

40 VDDD(3V3) P Digital supply voltage (3.3 V)

41 STABD O 1.8 V digital stabilizer output

42 REFD P Digital reference voltage

43 TEST2 I Test signal input 2; for test purposes only (connect to VSS)

44 DATA I I2S bus data input

45 WS I/O I2S bus word select input (I2S slave mode) or output (I2S

master mode)

46 BCK I/O I2S bus bit clock input (I2S slave mode) or output (I2S

master mode)

Table 3. Pinning description TFA9812

…continued

Pin Symbol Type Description

Preliminary data sheet Rev. 02 — 22 January 2009 8 of 66

NXP Semiconductors TFA9812

BTL stereo Class-D audio ampliﬁer with I2S input

8. Functional description

8.1 General

The TFA9812 is a high-efﬁciency stereo BTL Class-D ampliﬁer with a digital I2S audio

input. It supports all commonly used I2S formats.

Figure 1 shows the functional block diagram, which includes the key function blocks of the

TFA9812. In the digital domain the audio signal is processed and converted to a pulse

width modulated signal using BD modulation. A BTL conﬁgured power comparator carries

out power ampliﬁcation.

The audio signal processing path is as follows:

1. The Digital Audio Input (DAI) block translates the I2S (-like) input signal into a

standard internal stereo audio stream.

2. The 10-band parametric equalizer can optionally equalize the stereo audio stream.

Both channels have separate equalization streams. It can be used for speaker transfer

curve compensation to optimize the audio performance of applied speakers.

3. Volume control in the TFA9812 is done by attenuation. The attenuation depends on

the volume control settings and the thermal foldback value. Soft mute is also arranged

at this part. In Legacy mode the volume control is done by an on-board

Analog-to-Digital Converter (ADC) which measures the analog voltage on pin 32.

4. The interpolation ﬁlter interpolates from 1 fs to the PWM controller sample rate

(2048 fs at 44.1 kHz) by cascading FIR ﬁlters.

5. The gain block can boost the signal with 0 dB or +24 dB. Four speciﬁc gain settings

are also provided in this block. These speciﬁc gain settings are related to maximum

clip levels of < 0.5 %, 10 %, 20 % or 30 % THD at the TFA9812 output. These

maximum clip levels are only valid with the gain boost set to 0 dB and a 0 dBFS input

signal.

6. The power limiter limits the maximum output signal of the TFA9812. The power limiter

settings are 0 dB, −1.5 dB, −3 dB, and −4.5 dB. This function can be used to reduce

the maximum output power delivered to the speakers at a ﬁxed supply voltage and

speaker impedance.

7. The PWM controller block transforms the audio signal into a BD-modulated PWM

signal. The BD-modulation provides a high signal-to-noise performance and

eliminates clock jitter noise.

8. Via four differential comparators the PWM signals are ampliﬁed by two BTL power

output stages. By default the left audio signal is connected to channel 1 and the right

audio signal to channel 2.

47 MCLK I/O Master clock input (I2S slave mode) or output (I2S master

mode)

48 VSS2 P PCB ground reference

Exposed

die-paddle - P PCB ground reference

Table 3. Pinning description TFA9812

…continued

Pin Symbol Type Description

Preliminary data sheet Rev. 02 — 22 January 2009 9 of 66

NXP Semiconductors TFA9812

BTL stereo Class-D audio ampliﬁer with I2S input

The block control deﬁnes the operational control settings of the TFA9812 in line with the

actual I2C settings and the pin-controlled settings.

The PLL block creates the system clock and can take the I2S BCK, the MCLK or an

external crystal as reference source.

The following protections are built into the TFA9812:

•Thermal Foldback (TF)

•OverTemperature Protection (OTP)

•OverCurrent Protection (OCP)

•OverVoltage Protection (OVP)

•UnderVoltage Protection (UVP)

•Window Protection (WP)

•Lock Protection (LP)

•UnderFrequency Protection (UFP)

•OverFrequency Protection (OFP)

•Invalid BCK Protection (IBP)

•DC-blocking

•ElectroStatic Discharge (ESD)

8.2 Functional modes

8.2.1 Control modes

The two control modes of the TFA9812 are I2C and legacy.

•In I2C mode the I2C format control is enabled.

•In Legacy mode a pin-based subset of the control options is available. The control

settings for features which are not available in Legacy mode are set to the default I2C

The control mode is selected via pin CSEL as shown in Table 4.

In the functional descriptions below the control for the various functions will be described

for each control mode. Section 9.6 summarizes the support given by each control mode

for the various TFA9812 functions.

8.2.2 Key operating modes

There are six key operating modes:

•In Sleep mode the voltage supplies are present, but power consumption for the whole

device is reduced to the minimum level. The output stages in Sleep mode are 3-state

and I2C communication is disabled.

Table 4. Control mode selection

CSEL Pin value Control mode

0 Legacy (no I2C)

Preliminary data sheet Rev. 02 — 22 January 2009 10 of 66

NXP Semiconductors TFA9812

BTL stereo Class-D audio ampliﬁer with I2S input

•In Soft mute mode the I2S input signal is overruled with a soft mute.

–In Legacy control mode the analog input pin AVOL controls Soft mute mode.

–In I2C control mode I2C control can be used to enable an automatic soft mute

function. See also Section 8.5.3.

•In Hard mute mode the PWM controller is overruled with a 50 % duty cycle square

pulse. The Hard mute mode is only available in I2C control mode.

•In Operating mode the TFA9812 ampliﬁes the I2S audio input signal in line with the

actual control setting.

•In 3-state mode the output stages are switched off.

•Fault mode is entered when a fault condition is detected by one or more of the

protection mechanisms implemented in the TFA9812. In Fault mode the actual device

conﬁguration depends on the fault detected: see Section 8.7 for more information.

Fault mode is for a subset of the faults ﬂagged on the DIAG output pin. When the

DIAG pin is ﬂagged the output stages will be forced to enter 3-state mode. In Sleep

mode the DIAG pin will not ﬂag fault modes.

[1] Clocking faults do not trigger DIAG output.

[2] Under these conditions soft mute still has to be enabled by the appropriate I2C setting.

8.2.3 I2S master/slave modes and MCLK/BCK clock modes

The I2S interface can be set in master or in slave.

•In I2S master mode the PLL locks to the output signal of the internal crystal oscillator

circuit which uses an external crystal. The BCK, WS and MCLK signals are generated

by the TFA9812. On the MCLK pin the TFA9812 delivers a master clock running at the

crystal frequency.

•In I2S slave mode the PLL can lock to:

–The external MCLK signal on the MCLK pin called MCLK clock mode.

–The I2S input BCK signal on the BCK pin called BCK clock mode.

The I2S master or slave mode can be selected:

•In I2C control mode by selecting the right I2C setting.

•In legacy control mode by selecting the right setting on the SDA/MS pin.

Table 5. Operational mode selection

Pin: DIAG Output Operational mode

selected:

POWERUP ENABLE CSEL AVOL

0 - - - ﬂoating Sleep mode

1 - - - 0 / ﬂoating Fault mode (enabled by

system)[1]

1 1 1 - ﬂoating Soft mute mode (in I2C

control mode)[2]

1 1 0 < 0.8 V ﬂoating Soft mute (in Legacy control

mode)

1 0 - - ﬂoating 3-state mode

1 1 - - ﬂoating Operational mode

Tabla de contenidos

Otros manuales de Amplificador de NXP Semiconductors

NXP Semiconductors

NXP Semiconductors A3M39SL039 Manual de usuario

NXP Semiconductors

NXP Semiconductors BGU7003 Manual de usuario

NXP Semiconductors

NXP Semiconductors TDA8944J Manual de usuario

NXP Semiconductors

NXP Semiconductors BGD502 Manual de usuario

NXP Semiconductors

NXP Semiconductors BGA2748 Manual de usuario

NXP Semiconductors

NXP Semiconductors UM10340-5 Manual de usuario

NXP Semiconductors

NXP Semiconductors BGA2714 Manual de usuario

NXP Semiconductors

NXP Semiconductors BGA2711 Manual de usuario

NXP Semiconductors

NXP Semiconductors CGD942C Manual operacional

NXP Semiconductors

NXP Semiconductors BGY883 Manual de usuario

NXP Semiconductors

NXP Semiconductors TDA1519C Manual de usuario

NXP Semiconductors

NXP Semiconductors BGA6489 Manual operacional

NXP Semiconductors

NXP Semiconductors TDA8948J Manual operacional

NXP Semiconductors

NXP Semiconductors TDA7056AT Manual de usuario

NXP Semiconductors

NXP Semiconductors TDA8932B Manual operacional

NXP Semiconductors

NXP Semiconductors SA58670A Manual operacional

NXP Semiconductors

NXP Semiconductors BGD814 Manual de usuario

NXP Semiconductors

NXP Semiconductors BGD885 Manual de usuario

NXP Semiconductors

NXP Semiconductors TDA8543 Manual de usuario

NXP Semiconductors

NXP Semiconductors CGD944C Manual operacional

NXP Semiconductors

NXP Semiconductors BGY587B Manual de usuario

NXP Semiconductors

NXP Semiconductors BGA2003 Manual de usuario

NXP Semiconductors

NXP Semiconductors BGD712 Manual de usuario

NXP Semiconductors

NXP Semiconductors BGU7008 Manual de usuario

Manuales populares de Amplificador de otras marcas

ASTRO

ASTRO HVO V40 P Manual de usuario

Marantz

Marantz SUPERSCOPE BLA-545 Instrucciones de montaje

NAD

NAD CI980 Manual de usuario

Technics

Technics SE-CH770 Manual de usuario

Harman Kardon

Harman Kardon HK6300 Manual de usuario

NAD

NAD T975 Manual de usuario

McIntosh

McIntosh MA6850 Manual de usuario

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manual de usuario

Viatron

Viatron Autrix Manual de usuario

GME

GME GA9800 Manual de usuario

Atlas

Atlas CP700 Manual de usuario

Roland

Roland KC-1000 Manual de usuario

Pyle

Pyle PFMRA350BW Manual de usuario

Advantage

Advantage S-250 Manual de usuario

IRT Electronics

IRT Electronics DVA-3007 Manual de usuario

Dimavery

Dimavery BA-100 Series Manual de usuario

Sony

Sony XM-S400D Manual de usuario

Schertler

Schertler ROY X Manual de usuario
