Nuvico EasyView WDR Series Manual de usuario
Flush Housing w/ Surface Mount Plate
INSTALLATION MANUAL
™
Indoor Wall Mount Pedestal Mount Junction BoxOutdoor Wall Mount
Before installing and using the camera, please read this manual carefully. Be sure to
keep it handy for later use. This installation manual covers the following models listed
below. Any difference in features for these models are indicated where necessary.
Note: Installation of this product should be made by a qualified technician and should
conform to all local codes.
Step-1
As shown below, hold the Gimbal base firmly in place with one hand.
Step-2
Gently press Points A & B with other hand and pull the Gimbal cover off.
Step-3
Step-4
Replace the Gimbal cover by gently pressing back onto the Gimbal base.
Gimbal Base
Point-A
Point-B
Gimbal Cover
EasyView Dome Cameras have vari-focal lens integrated inside the Gimbal. If you
require to make focal/focus adjustments, the Gimbal cover needs to be removed
temporarily.
The Gimbal mechanism yields maximum rotation and placement as shown below.
Pan
Tilt
Horizontal Rotation 355º
85º
355º
1
2
3
• Torx Wrench - For Vandalproof Domes
Model #: T20
Length: 21/2"
Thickness: 1/8"
• Assembly Screws - For Vandalproof Domes
These screws are used to affix dome cover to flush housing.
Model #: Philips M4x10
Qty: 3
Length: 10mm
Thickness: 4mm
• Assembly Screws - For Indoor Domes
These screws are used to affix dome cover to flush housing.
Model #: Philips ST4x12
Qty: 3
Length: 12mm
Thickness: 4mm
• Mounting Screws - For Vandalproof & Indoor Domes
These Screws are used to mount both surface mount plate or flush housing
to a sturdy surface. If necessary, use the anchors included in the package.
Model #: Philips ST4x30
Qty: 4
Length: 30mm
Thickness: 4mm
• Anchors - For Vandalproof & Indoor Domes
Qty: 4
Length: 30mm
Thickness: 6mm
.
.
.
14499
Fl
us
h M
ou
n
t
Surface M
o
un
t
T
op Vie
w
147
108
33
46
89 121
83.1
70
46
83.1
109
25
50
70
143
112
25 109
23
98
50
Dimensions (UNIT: mm)
REMINDER
Do not aim the camera directly into the sun.
1. Lens
2. Power Input Connector
12VDC/24VAC Dual Voltage
3. Video Output Connector - BNC
4. Service Monitor Output Connector
Use Cable CA-SMC30.
5. Camera Control Board
6. Safety Wire
7. Bubble
8. Dome Cover Ring
9. Flush Mount Base
10. Surface Mount Plate
11. Assembly Screws
Philips M4x9(Indoor), Torx M4x9(Vandalproof)
12. Assembly Screws
Philips ST4x12(Indoor), Philips M4x10(Vandalproof)
13. Mounting Screws
Philips ST4x30(Indoor & Vandalproof)
9
4
5
8
6
1
7
12
11
10
13
32
26.2
ø5.0
ø15
ø50
112
70
109
ST4x30
ST4x12 or M4x10
Surface Mount
Surface Mount TemplateFlush Mount Template
Plastic DowelsPlastic Anchors
Flush Mount
ST4x30
A
A'
1
2
3
Philips M4x9 or
Torx M4x9
1. Remove dome cover by loosening 3 screws. For indoor domes, use standard Philips
screw driver. For vandalproof domes, use Torx wrench provided with the package.
2. Surface Mount:
Using four ST4x30 screws, mount surface plate to a sturdy surface Using three
ST4x12(Indoor) screws or M4x10(Vandalproof) screws, affix flush mount base to
surface plate.(For flush mount application, disregard this section)
3. Flush Mount:
Using four ST4x30 screws, affix flush mount base to a sturdy surface
Screws UNC 8-32 x 0.75
3/4" Pipe
Note: Screws required for electrical junction boxes are not supplied with the package.
These screws are readily available at local electrical supply stores.

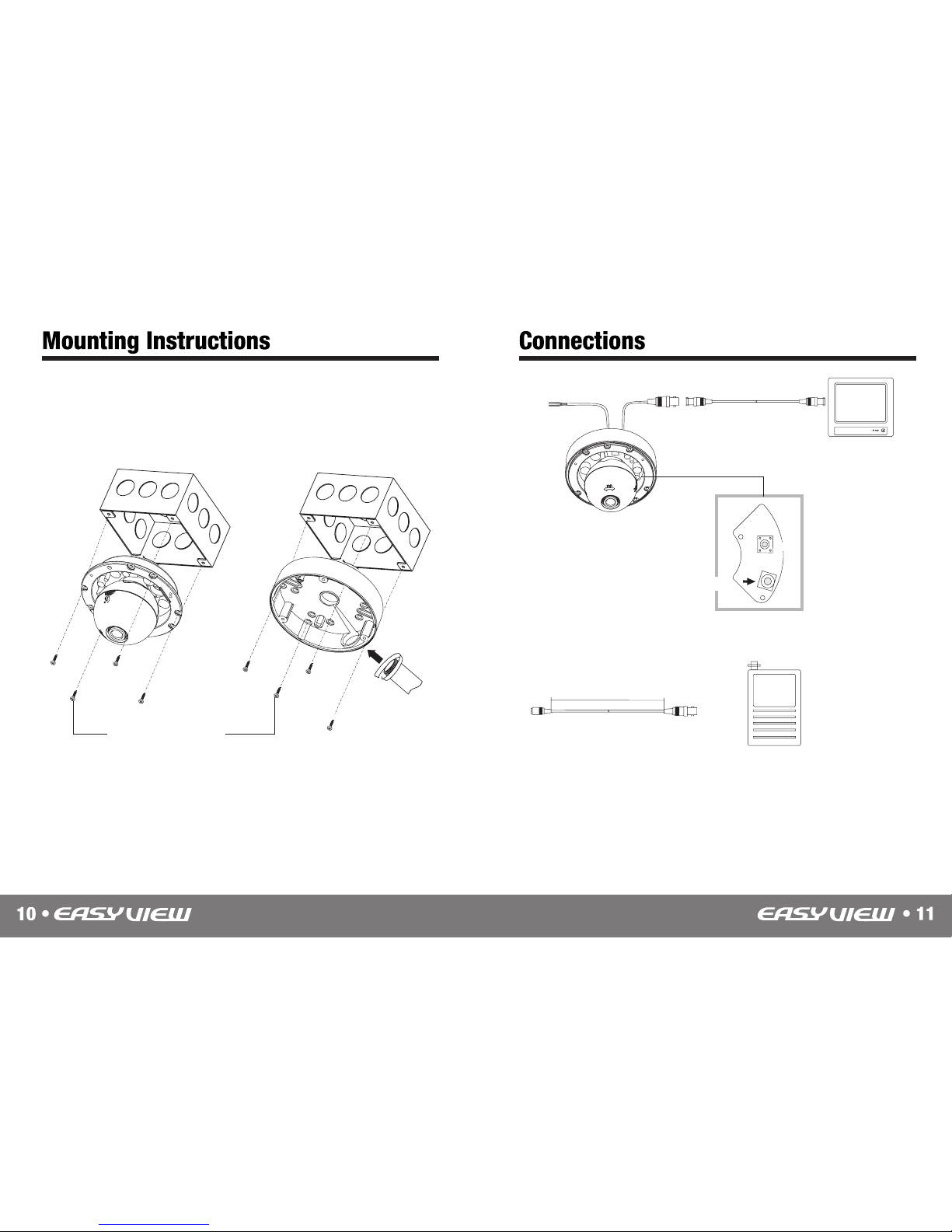

Either flush mount or surface mount application, pre-drilled mounting holes on EasyView
Domes accommodate various electrical junction boxes, making installation easy and less
time consuming.
12VDC/24VAC
CCTV Monitor
• Power connection - Requires 12VDC or 24VAC input depending on camera model.
• All camera model are supplied with second video output on the camera module. To use
this feature along with a service monitor, second monitor cable/connector
(Part# CA-SMC30) is required. Contact your distributor or NUVICO Sales Department
for further information.
Service Monitor
CA-SMC30
30cm
Left
Right
Up Right
Down
Service Monitor Output
N
TW
Adjust Focus
Adjust Angle for Field of View
Remove the Gimbal cover from the Gimbal base
1
Loosen Zoom & Focus screws and make necessary adjustments as shown.
Field of View: Telephoto( T ) to Wide( W )
Focus: Near( N ) to Far( F )
2
.
4
Replace the Gimbal cover back to the Gimbal base.
3
Focus
Zoom
Gimbal Cover
1
2
2
4
Left
Right
Up Right
Down
F

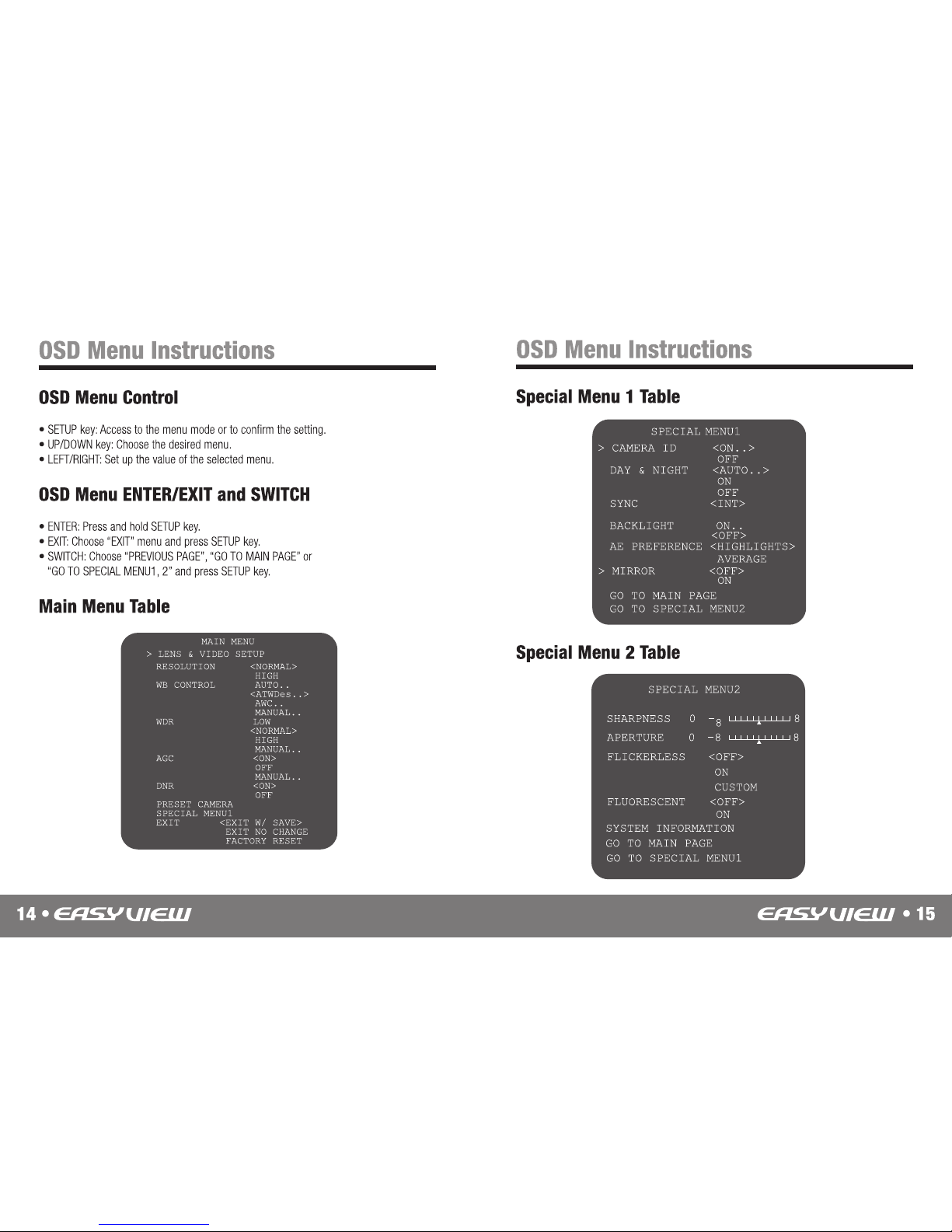

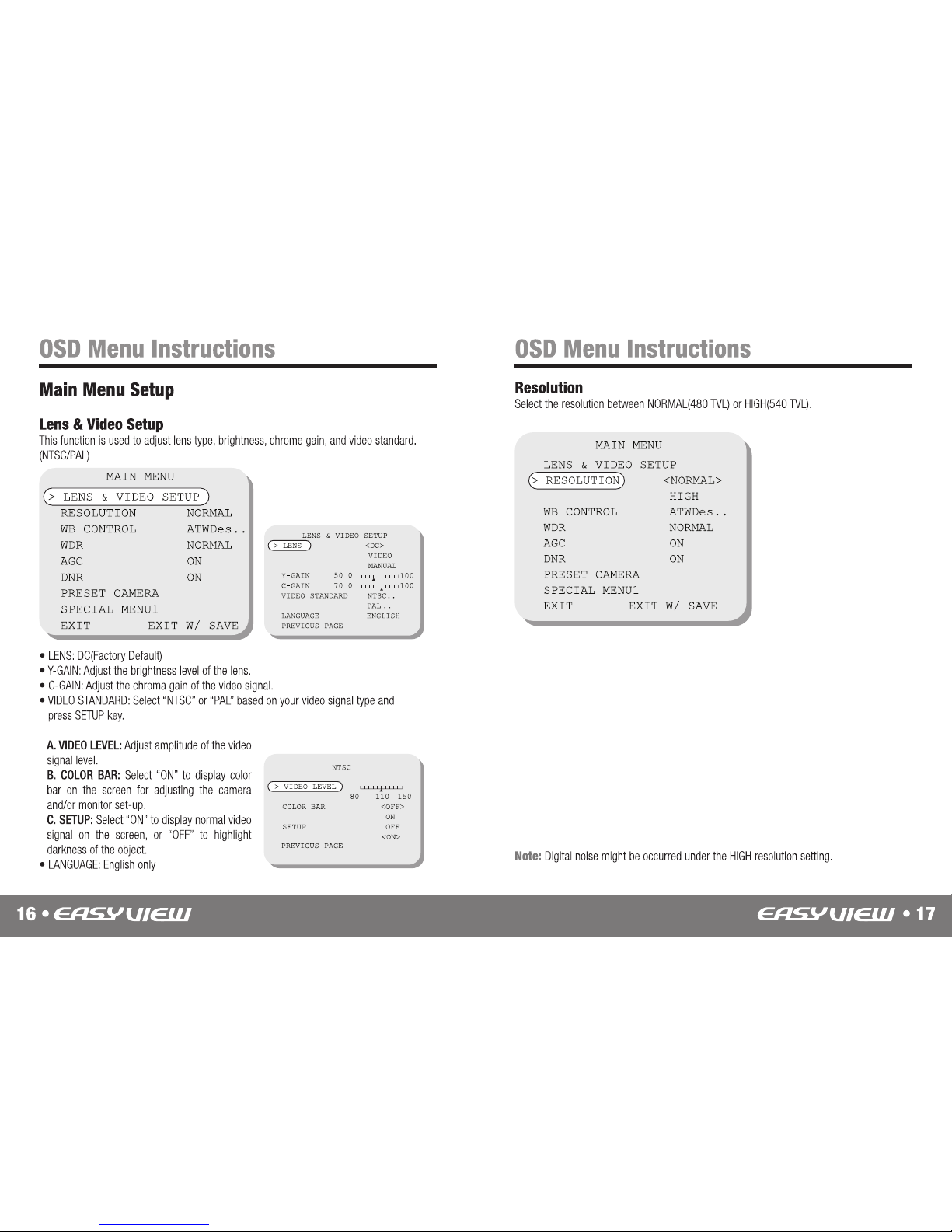

Use the five key on switch board of the camera.
RIGHT key
LEFT key
UP key
DOWN key
CENTER key
Service Monitor Output
