Nuvico CT-2M-MP20FH Manual de usuario

CT-2M-MP20FH

20x Full-HD Mini-PTZ

HD-TVI CAMERA

Please read this guide thoroughly before use and keep it handy for future reference.

“Nuvico surveillance equipment is designed to be installed and served only by a

trained, state-licensed professional installer”.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO

NOT INSERT ANY METALLIC OBJECTS THROUGH THE

VENTILATION GRILLS OR OTHER OPENINGS ON THE

EQUIPMENT.

CAUTION

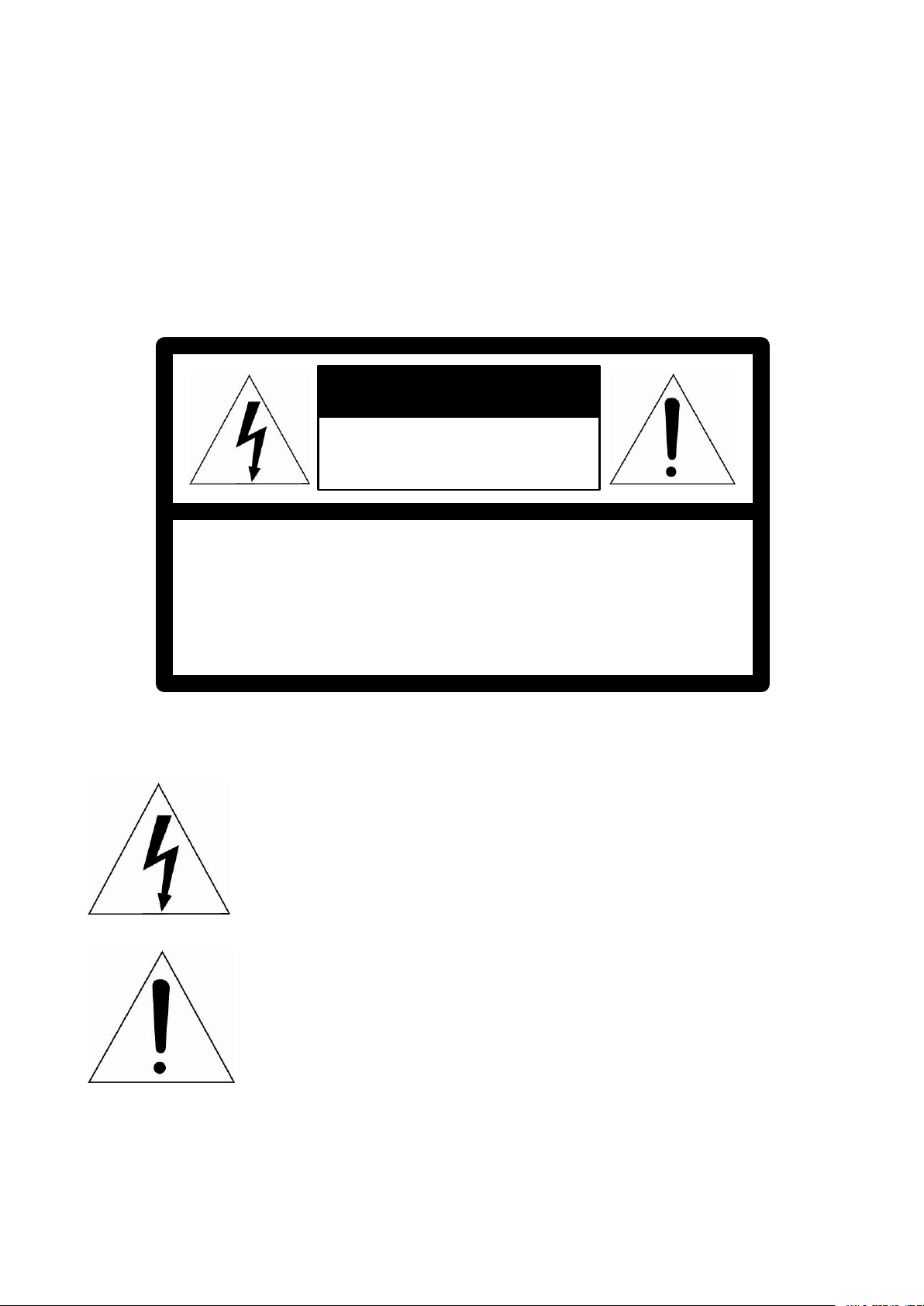

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within

the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of

important operating and maintenance (servicing)

instructions in the literature accompanying the

appliance.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLEPARTSINSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

FCC COMPLIANCE STATEMENT

CE COMPLIANCE STATEMENT

WARNING

This is a Class A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequatemeasures.

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme

NMB-003 du Canada.

CAUTION: Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

FCC INFORMATION: This equipment has been tested and found to

comply with the limits for a Class A digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely

to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves,

or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding

type plug has two blades and a third grounding prong. The wide blade or the

third prong is provided for your safety. If the provided plug does not fit into

your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the

cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when

unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

15. CAUTION –THESE SERVICING INSTRUCTIONS ARE FOR USE BY

QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF

ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN

THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU

ARE QUALIFIED TO DO SO.

16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed

Class 2 power source only.

Table of Contents

Chapter 1 —Introduction ................................................................................................. 6

1.1 Features...............................................................................................................................6

Chapter 2 —Installation and Configuration.....................................................................7

2.1

Package Contents................................................................................................................7

2.2

Installation............................................................................................................................8

2.3

Basic Configuration of Dome Camera System................................................................11

2.4

Setting Dome Camera Address (ID).................................................................................. 12

2.5

Setting Dome Camera Video Type & Coaxitron Protocol................................................12

2.6

Connections....................................................................................................................... 13

2.7

Getting Started........................................................................................................................14

Chapter 3 —Program and Operation.............................................................................15

3.1

Dome Camera Selection....................................................................................................15

3.2

Accessing the On-Screen Menu Utility ............................................................................15

3.3

How to control the On-Screen Menu Utility..................................................................... 15

3.4

Auto Scan (Shortcut: SCAN) ............................................................................................16

3.5

Preset (Shortcut: PRST)....................................................................................................18

3.6

Shortcut of Preset Program.............................................................................................. 20

3.7

Tour (Shortcut: TOUR) ......................................................................................................20

3.8

Pattern (Shortcut: PTRN)..................................................................................................22

3.9

Privacy Zone...................................................................................................................... 23

3.10

Camera Menu................................................................................................................... 24

3.11

Dome Communication.....................................................................................................27

3.12

Alarm................................................................................................................................28

3.13

Dome Setup .....................................................................................................................29

Appendix A —Specifications.........................................................................................36

Appendix B —Troubleshooting.....................................................................................38

Chapter 1 —Introduction

1.1 Features

The ptzdome camera and the keyboard controller make up the building blocks for any

surveillance/security system. Using multiple keyboard controllers and multiple dome cameras, no

place is too large for monitoring. Extensible and flexible architecture facilitates remote control

functions for a variety of external switching devices such as multiplexers and DVRs.



Built-in optical power zoom camera with True Night Shot function



240 Preset positions with the individual camera AE setup



8 Tours consist of Presets, Patterns, Auto Scans and other Tours can be programmed with over

300 functions and preset locations. While moving, each Preset scan can be watched in smooth

Vector Scan mode.



16 Auto Scans with the normal, the vector, and the random mode and the endless Auto-Pan with

13 speed steps



8 Patterns (up to 500 seconds) and 24 Privacy Zones



4 Alarm inputs, 2 Alarm outputs (5VTTL)



Variable speed from 0.1/sec. to 380/sec.

Three Variable speed (SLOW, NORMAL, TURBO)

Turbo speed is 380/sec. with Ctrl key pressed.



Pan/Tilt speed is inversely proportional to the zoom ratio with the option.



Maximum speed is 380/sec. when Preset command.



Auto Calibration from 0.1to 6(Tilt range is -10to 190)



Programmable user preferences (alarm, preset, title, etc.)



180Digital Flip



Up to 3999 selectable camera addresses



Function Run menu using DVR without function key (Pattern, Scan …)



Built-in RS-485 receiver driver



12VDC or 24VAC for Dome



Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only.

Chapter 2 —Installation and Configuration

2.1

PackageContents

The PTZdome camera is designed with compact, small size, hard dome camera housing.

The housing is constructed of aluminum, steel and plastic. The housing is designed to be mounted

on a wall or a ceiling. The housing meets the Protection Classification IP66 standards for dust and

moistureresistance.

* Dome Camera

* Instruction Manual (This Document)

* Template Sheet

* Mounting Bracket

* Safety Lanyard

* Accessory Kit

1) Mounting screws (PH6 x 35.0)

(4)

2) Plastic anchors

(4)

3) O-Rings

(4)

4) Torx wrench

(1)

* Accessory Connector

1) 2-Pin Terminal Block

(1)

2) 3-Pin Terminal Block

(1)

3) 4-Pin Terminal Block

(1)

4) 5-Pin Terminal Block

(1)

2.2

Installation

The PTZ dome camera is for use in surface or pendent mounting applications, and the mounting

member must be capable of supporting loads of up to 10 lb (4.5 kg). (Pendent mounting must use

pendent mount accessory.)

The dome camera’s mounting bracket should be attached to a structural object, such as hard wood,

wall stud or ceiling rafter that supports the weight of the dome camera.

CAUTION: A silicone rubber sealant must be applied to seal the housing to secure

waterproofing.

2.2.1

Locking Dome Camera

Make screw holes on the ceiling using the supplied mounting Template Sheet (Figure A).

Fix the Mounting Bracket to the ceiling using supplied Anchors (4x) and Mounting Screws (4x)

(Figure B).

Hook up the Safety Lanyard to the Safety Lanyard Hook of the Mounting Bracket (Figure C).

Align the locking tab on the bracket and the locking slot on the base of the dome (Figure D).

Turn the dome to the counterclockwise about 10 degree to the locked position (Figure E).

CAUTION: Before installing mounting bracket to surface pre-adjust the four mounting

screws "A" on the base of the dome camera to best match the mounting bracket

locked position. Unscrew the locking screw on the side of the dome's base and fit

the tab of the mounting bracket into the locking slot. Screws "A" should not be

too tight or too loose when the dome is in the locked position. After setting the

proper positions of screws "A" remove the mounting bracket and install it to the

proper surface. If it is too difficult to lock the dome in position after the mounting

bracket has been installed readjust the screws "A" by unscrewing them a small

amount and try to install dome camera again.

2.2.2

Heater Kit Installation (Optional)

Assemble the Heater board to two bossed with screws.

Take a reference "B" in the bottom case as below.

Place the Heater in the slot "A".

Heater cable should be placed away from the Main Board.

Plug the power connector to the socket "C" (J1) of the Heater Board.

24VAC is recommended to use for the camera power for stable operation with heater kit.

•

HEATER (IF APPLICABLE)

Power Supply

24VAC

PowerConsumption

10W

Heater ON

at 59°F (15°C)

Heater OFF

at 77°F (25°C)

•

POWER

Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2

power source only.

CAUTION: Please reset the camera after 30 minutes when installing it in situations colder

than -10°C.

Tabla de contenidos

Otros manuales de Cámara de seguridad de Nuvico

Nuvico

Nuvico CF-ST1N Manual de usuario

Nuvico

Nuvico NC-5M-D21 Manual de usuario

Nuvico

Nuvico EasyView 2 CD Series Manual de usuario

Nuvico

Nuvico EasyView 2 CD Series Manual de usuario

Nuvico

Nuvico Zoom Matic Manual de usuario

Nuvico

Nuvico Easy View 2 CD Series Manual de usuario

Nuvico

Nuvico Xcel NCT-5MLC Manual de usuario

Nuvico

Nuvico Xcel NCT-6M-FE Manual de usuario

Nuvico

Nuvico NCT-5MLC-B2 Manual de usuario

Nuvico

Nuvico CT-2M-P30FHIR Manual de usuario

Nuvico

Nuvico ZoomMatic CI-Z22N-L Manual de usuario

Nuvico

Nuvico Xcel NCT-4M-B31AF Manual de usuario

Nuvico

Nuvico Xcel NTCT-3M-IRPTZ20 Manual de usuario

Nuvico

Nuvico Xcel NCT-8ML-B21AF Manual de usuario

Nuvico

Nuvico Xcel NCT-4M-B2 Manual de usuario

Nuvico

Nuvico EasyView Lite CD-H21N Manual de usuario

Nuvico

Nuvico Hybrid HD Manual de usuario

Nuvico

Nuvico EasyView Lite CD-H2N-I Manual de usuario

Nuvico

Nuvico Xcel NCT-5ML-OV21AF Manual de usuario

Nuvico

Nuvico SD-Z18N-PHW Manual de usuario

Nuvico

Nuvico CF-S1N/P Manual de usuario

Nuvico

Nuvico Easy Trak SC-S36 Manual de usuario

Nuvico

Nuvico Xcel NCT-5ML Series Manual de usuario

Nuvico

Nuvico CB-HDE21N-L Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
