©McDonald’s Corporation · Planned Maintenance Manual · Revised December 2012

Hazards

These icons alert you to a possible risk of personal injury.

Equipment alerts

Look for this icon to find information about how to avoid damaging the

equipment while doing a procedure.

Tips

Look for this icon to find helpful tips about how to do a procedure.

EQUIPMENT CATEGORY

BE XX

Nuova Simonelli

MYTHOS Plus

Cross reference (optional)

50.000 cycles maintenance tasks

BE XX S01 Minor preventive

maintenance

100.000 cycles maintenance tasks

BE XX A01 Major preventive

maintenance

Model MYTHOS

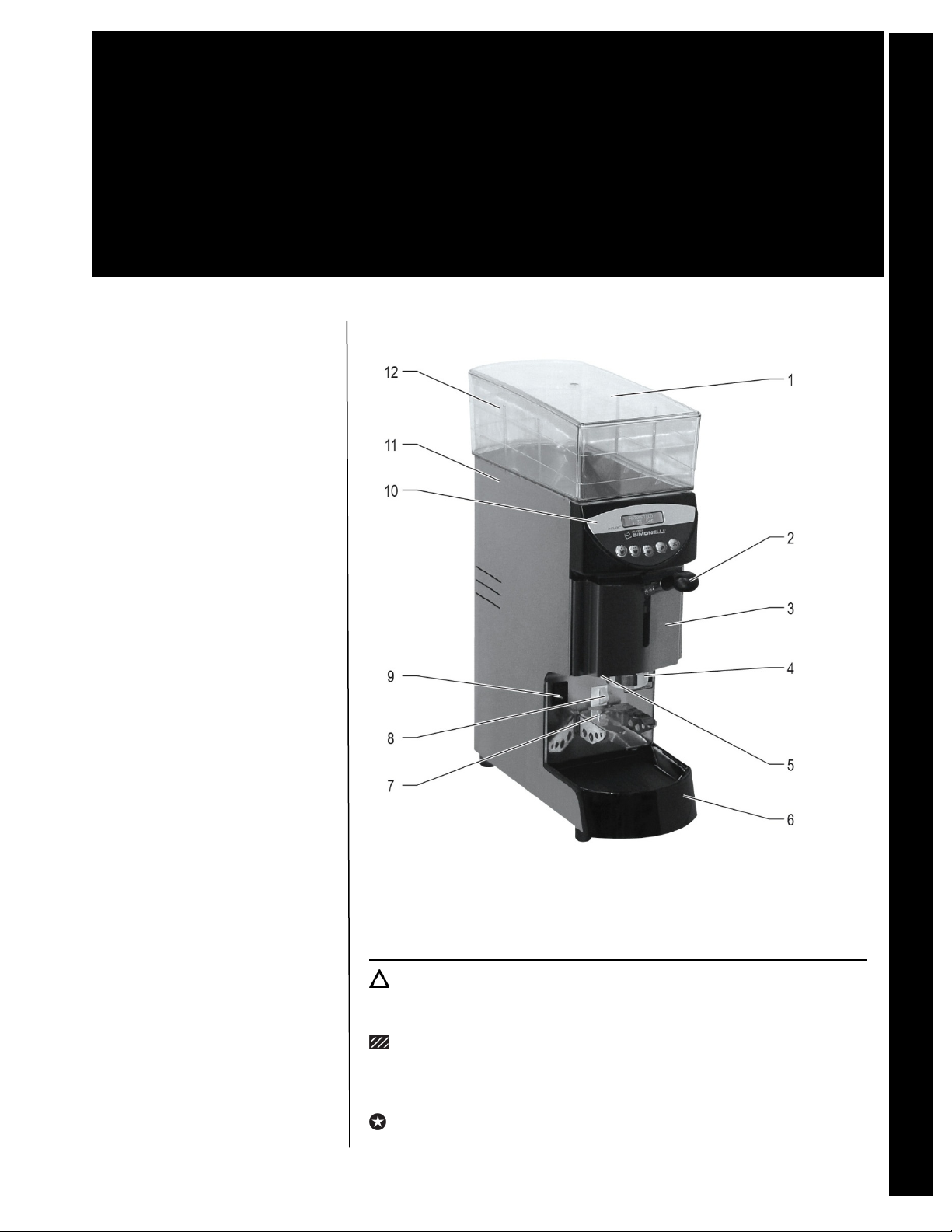

1 Holder lid, 2 Dynamometric presser lever, 3 Frontal door, 4 Dynamometric presser, 5 Pouring lip, 6

Drawer, 7 Fork, 8 Start-up micro-switch, 9 Switch, 10 Control panel, 11 Body machines, 12 Coffee

bean hopper

Nuova Simonelli MYTHOS Plus BE XX

Technicians Service 50.000 Cycles BE XX S1-T

©McDonald’s Corporation · Planned Maintenance Manual · Revised December 2012 Page 1 of 4

Nuova Simonelli MYTHOS Plus QUALIFIED TECHNICIANS ONLY 50.000 Cycles BE XX S1-T

Why

To ensure the machine is producing gold standard quality coffee.

Time required

10 minutes to prepare 1,25 hours to complete

Time of day

Time of day. For 24-hour restaurants: XXX

Hazard icons

Tools and supplies

Tools supplied by

technician

Procedure

QUALIFIED TECHNICIANS ONLY

Check for any damaged wires

or caballing.

Check for noisy motor.

Check for cracks on beans

hopper.

Check all moving parts on

grinder lever.

Replace grinder lever spring.

Technicians Service (continued)

©McDonald’s Corporation · Planned Maintenance Manual · Revised December 2012 Page 2 of 4

Nuova Simonelli MYTHOS Plus QUALIFIED TECHNICIANS ONLY 50.000 Cycles BE XX S1-T

Replace white discharge

coffee flap.

Check for wear on product

button selection.

Check on/off switch.

Check LCD display.

Technicians Service 100.000 Cycles BE XX A1-T

©McDonald’s Corporation · Planned Maintenance Manual · Revised December 2012 Page 3 of 4

Nuova Simonelli MYTHOS Plus QUALIFIED TECHNICIANS ONLY 100.000 Cycles BE XX A1-T

Why

To ensure the machine is producing gold standard quality coffee.

Time required

10 minutes to prepare 1,75 hours to complete

Time of day

Time of day. For 24-hour restaurants: XXX

Hazard icons

Tools and supplies

Tools supplied by

technician

Procedure

QUALIFIED TECHNICIANS ONLY

Check for any damaged wires

or caballing.

Check for noisy motor.

Check for cracks on beans

hopper.

Replace grinder blades.

Technicians Service (continued)

©McDonald’s Corporation · Planned Maintenance Manual · Revised December 2012 Page 4 of 4

Nuova Simonelli MYTHOS Plus QUALIFIED TECHNICIANS ONLY 100.000 Cycles BE XX A1-T

Replace white discharge

coffee flap.

Replace grinder lever

mechanism.

Check for wear on product

button selection.

Check on/off switch.

Check LCD display.
