Norac UC5 Topcon X30 Manual de usuario

Rogator 700 Series

Aftermarket

Installation Manual

RG13

Printed in Canada

Reorder P/N: UC5-BC-RG13-INST Rev D (Rogator 700 Series Aftermarket)

NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and

without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information

contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.

Contents

1Introduction................................................................................................................ 2

2Technical Specifications ............................................................................................ 3

3General UC5 System Layout.................................................................................... 4

4Kit Parts ...................................................................................................................... 5

5Pre-Install Checklist................................................................................................... 9

6Ultrasonic Sensor Installation ................................................................................ 10

7Roll Sensor Installation............................................................................................ 16

8Module Installation .................................................................................................. 19

9Hydraulic Installation .............................................................................................. 22

10Connecting the Sensors to the CANbus ............................................................... 26

11Software Setup......................................................................................................... 27

12Cable Drawings ........................................................................................................ 28

13Start Up and System Check ................................................................................... 31

1Introduction

Congratulations on your purchase of the NORAC UC5 Spray Height Control System. This

system is manufactured with top quality components and is engineered using the latest

technology to provide operating reliability unmatched for years to come.

When properly used the system can provide protection from sprayer boom damage, improve

sprayer efficiency, and ensure chemicals are applied correctly.

Please take the time to read this manual completely before attempting to install the system. A

thorough understanding of this manual will ensure that you receive the maximum benefit from

the system.

Your input can help make us better! If you find issues or have suggestions regarding the parts

list or the installation procedure, please don’t hesitate to contact us.

Every effort has been made to ensure the accuracy of the information contained in

this manual. All parts supplied are selected to specially fit the sprayer to facilitate

a complete installation. However, NORAC cannot guarantee all parts fit as

intended due to the variations of the sprayer by the manufacturer.

Please read this manual in its entirety before attempting installation.

2Technical Specifications

CAN ICES-3(A)/NMB-3(A)

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct the interference at their

own expense.

This Class A digital apparatus complies with Canadian ICES-003.

Pursuant to EMC Directive – Article 9, this product is not intended for residential use.

Table 1: System Specifications

Supply Voltage (rated)

12VDC

Supply Current (rated)

Hydraulic Pressure (maximum)

3300 psi

Baud Rate 250 kbps

Clock Frequency (maximum)

96 MHz

Solenoid Valve PWM Frequency

300 Hz

Ultrasonic Sensor Transmit Frequency

50 kHz

Operating Temperature Range

0°C to 80°C

3General UC5 System Layout

Figure 1 illustrates the general layout of the UC5 system components:

Figure 1: General UC5 System Layout

Do not use high speed power tools/drills when installing hardware.

The use of dielectric grease is not recommended on any NORAC electrical

connections.

To ensure all stainless steel hardware does not gall or seize apply a light coating of

the supplied Permatex Anti-seize grease to all threaded parts upon installation.

Permatex Anti-seize lubricant is preferred, but other similar anti-seize products

may be used.

4Kit Parts

4.1 Kit Overview

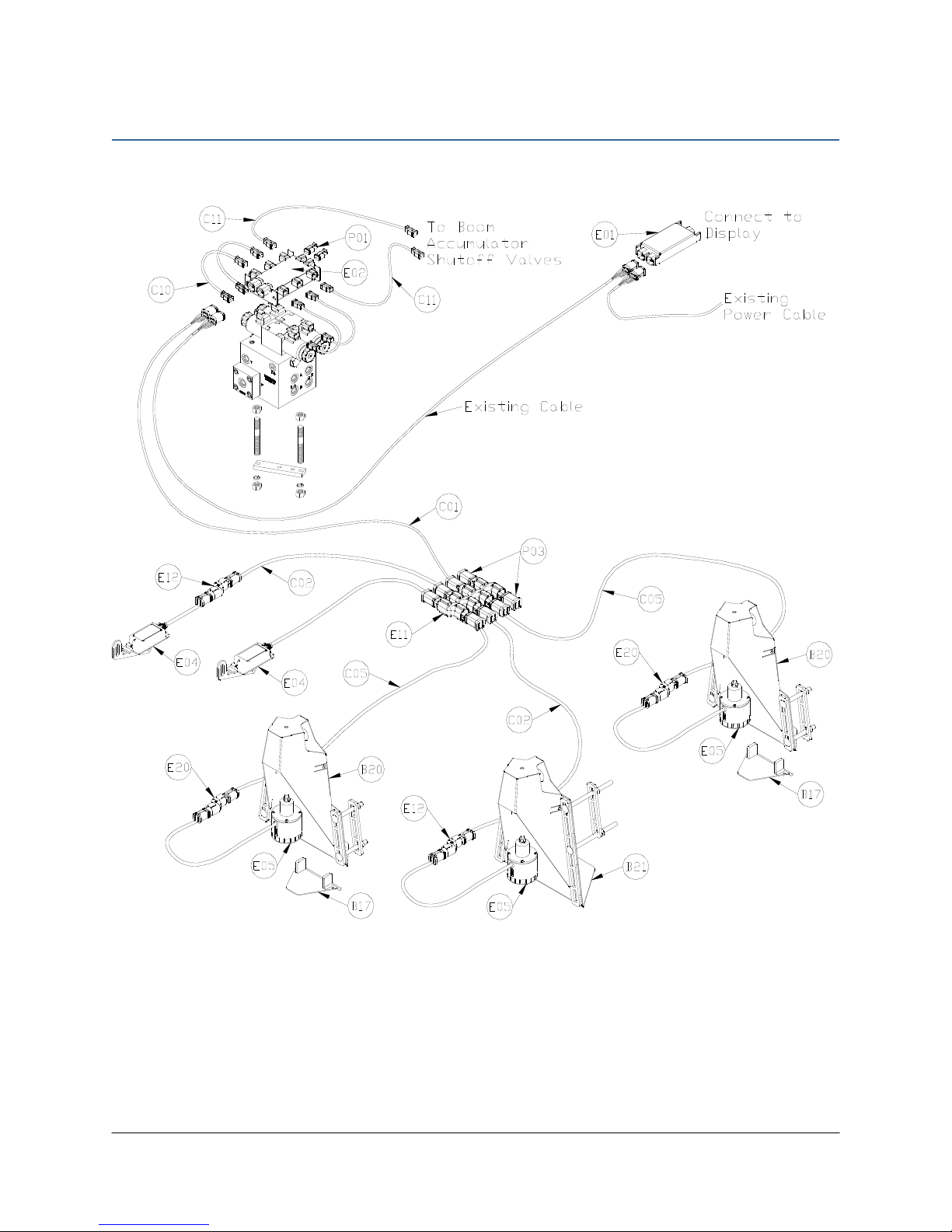

Figure 2: RG13 System Parts

4.2 Hydraulic Plumbing

Figure 3: RG13 Hydraulic Plumbing

4.3 List of Parts

Item Part Number Name Quantity

B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1

B17 44972 SENSOR MOUNTING BRACKET LOW PROFILE RAINFLAP 16GA 2

B20 44971 SENSOR MOUNTING BRACKET LOW PROFILE 16GA 2

B21 44973-02 SENSOR

MOUNTING

BRACKET

LOW

PROFILE

LARGE

FLANGE

TALL

CLAMP 1

C01 43220-01 CABLE UC5 NETWORK 14 AWG 1M 1

C02 43220-03 CABLE UC5 NETWORK 14 AWG 3M 2

C05 43210-15 CABLE UC5 NETWORK 18 AWG 15M 2

C10 43230-04 CABLE UC5 VALVE 2PIN DT TO 2PIN DT 4

C11 43230-07 CABLE UC5 VALVE 2PIN DT TO 2PIN DT (L = 84") 2

E01 43710 UC5 CONTROLLER MODULE 1

E02 43720 UC5 VALVE MODULE 1

E04 43741 UC5 ROLL SENSOR VER. 2 2

E05 43750 UC5 ULTRASONIC SENSOR 3

E11 43765 UC5 NETWORK COUPLER 8-WAY 1

E12 43764 UC5 NETWORK COUPLER 2-WAY 2

E20 43764T UC5 NETWORK COUPLER 2-WAY WITH TERMINATOR 2

H01 44863-61 HOSE ASSEMBLY 122R2-06 32IN L 6FORX 6FORX45 1

H02 44864-06 HOSE ASSEMBLY 122R2-08 18 IN L 8FORX 8FORX45 1

H03 44863-62 HOSE ASSEMBLY 122R2-06 12 IN L 6FORX 6FORX90 2

H10 44865-69 HYDRAULICS FITTING KIT - RG13 1

H20 106685 ACCUMULATOR LOCKING COIL 2

H21 106686 ACCUMULATOR LOCKING SOLENOID VALVE 2

M01

UC5-BC-MANUAL-AGCO-

RMC

MANUAL UC5 OPERATORS - AGCO RMC 1

M02 UC5-BC-RG13-INST MANUAL INSTALLATION UC5 ROGATOR 700 SERIES AFTERMARKET 1

P01 106034 UC5 NETWORK 2 PIN PLUG 2

P03 105882 UC5 NETWORK 6 PIN PLUG 2

V01 44963D VALVE BLOCK ASSEMBLY 2 STATION CC/LS PROP DT 4 BOLT 1

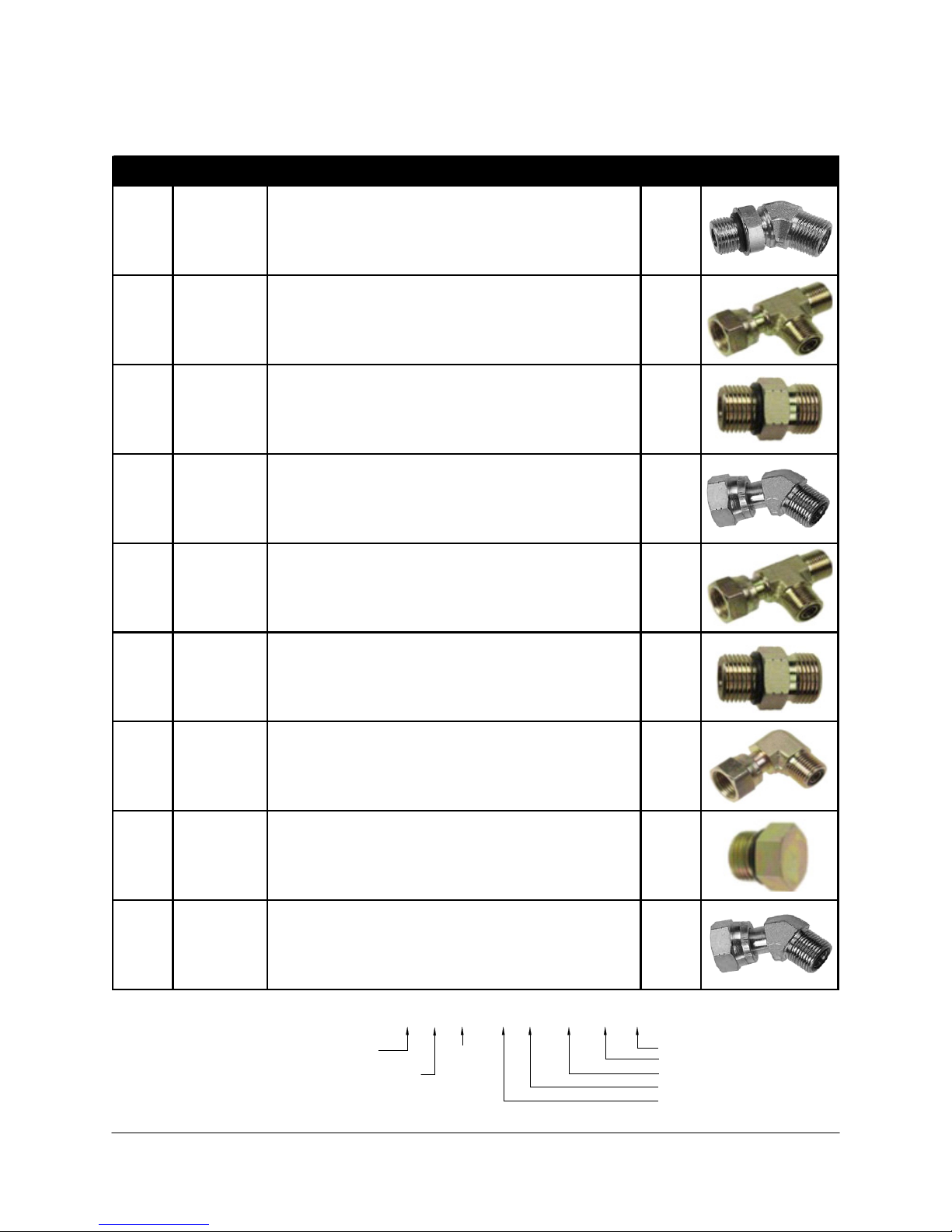

4.4 Hydraulic Fitting Kit Details (P/N: 44865-69)

Item Part Number Name Quantity


F01 106617 MALE ADAPTER - 6MB 6MOR45 1

F02 104586 TEE ADAPTER - 6FORXR 6MORT 3

F03 105151 MALE TO MALE ADAPTER - 6MB 8MOR 1

F04 106618 MALE TO FEMALE ADAPTER - 8FORX 8MOR45 1

F05 104885 TEE ADAPTER - 8FORXR 8MORT 1

F06 44917 MALE ADAPTER - 6MB 6MOR 2

F07 104590 ELBOW ADAPTER - 6MOR 6FORX90 1

F08 104369 PLUG - 6MBP 2

F09 106619 MALE TO FEMALE ADAPTER - 6MOR 6FORX45 1

6 M B - 6 M OR X 90

SIZE IN

1/16TH'S

GENDER: MALE

OR FEMALE

90° ANGLE

SWIVEL

TYPE

GENDER

SIZE

TYPE:

B - ORB

J - JIC

OR - FLAT

FACE

P - PIPE

Fitting Name

Example:
