Spray Height Controlle
r
Hardi
Installation Manual
HD03
Printed in Canada
Copyright ©2009 by NORAC Systems International Inc.
Reorder P/N: UC5-BC-HD03-INST Rev B (Hardi)
NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without
the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information contained in this
manual. The technical information in this manual was reviewed at the time of approval for publication.
Contents
1Introduction.............................................................................................................. 1
2General UC5 System Layout .................................................................................. 2
3Kit Parts.................................................................................................................... 3
4Pre-Install Checklist................................................................................................ 9
5Ultrasonic Sensor Installation............................................................................... 10
6Roll Sensor Installation......................................................................................... 15
7Module Installation................................................................................................ 19
8Connecting the Sensors to the CAN-Bus ............................................................. 23
9Hydraulic Installation............................................................................................ 24
10 Software Setup ....................................................................................................... 29
11 Cable Drawings...................................................................................................... 30
1
1 Introduction
Congratulations on your purchase of the NORAC UC5 Spray Height Controller. This system is
manufactured with top quality components and is engineered using the latest technology to
provide operating reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage, improve
sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the system. A
thorough understanding of this manual will ensure that you receive the maximum benefit from
the system.
Your input can help make us better! If you find issues or have suggestions regarding the parts
list or the installation procedure, please don’t hesitate to contact us.
Phone: 1 800 667 3921 Canada (Toll Free)
1 866 306 6722 United States (Toll Free)
0 800 404 8389 United Kingdom (Toll Free)
(+1) 306 664 6711 All other regions
Web: www.norac.ca
Every effort has been made to ensure the accuracy of the information contacted in this
manual. All parts supplied are selected to specially fit the sprayer to facilitate a complete
installation. However, NORAC cannot guarantee all parts fit as intended due to the
variations of the sprayer by the manufacturer.
Please read this manual in its entirety before attempting installation.
2
2 General UC5 System Layout

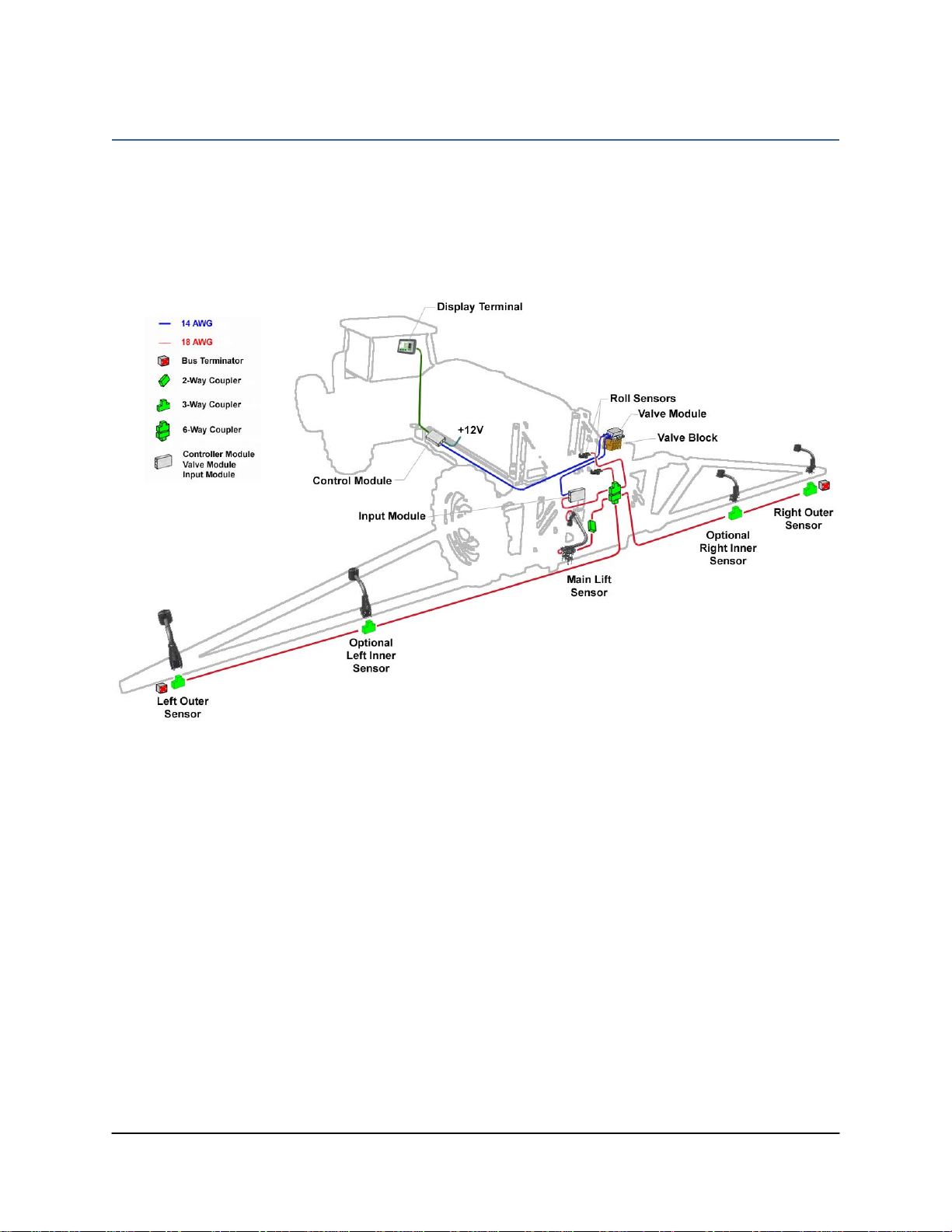

Figure 1 illustrates the general layout of the UC5 system components:
Figure 1: General UC5 System Layout
3
3 Kit Parts
3.1 Kit Overview
Figure 2: HD03 System Parts
4
3.2 Hydraulic Plumbing
Figure 3: HD03 Hydraulic Plumbing: Single Acting (Force Boom)
Figure 4: HD03 Hydraulic Plumbing: Double Acting (Eagle Boom)
5
3.3 List of Parts
Item Part Number Name Quantity
B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1
B10 44728 MOUNTING BRACKET COMPLETE UC4 BREAKAWAY EXTENDED 2
C01 43220-10 CABLE UC5 NETWORK 14 AWG 10M 1
C02 43220-01 CABLE UC5 NETWORK 14 AWG 1M 1
C03 43210-03 CABLE UC5 NETWORK 18 AWG 3M 1
C04 43210-01 CABLE UC5 NETWORK 18 AWG 1M 1
C05 43210-20 CABLE UC5 NETWORK 18 AWG 20M 2
C10 43230-04 CABLE UC5 VALVE 2PIN DT TO 2PIN DT 4
C20 43240-08 CABLE UC5 INTERFACE TILT AMP (SUPERSEAL) 1
C21 43240-09 CABLE UC5 INTERFACE MAIN AMP (SUPERSEAL 240" W/ BYPASS) 1
E01 43710 UC5 CONTROLLER MODULE 1
E02 43720 UC5 VALVE MODULE 1
E03 43732 UC5 INPUT MODULE PASS THRU 1
E04 43740 UC5 ROLL SENSOR 2
E05 43750 UC5 ULTRASONIC SENSOR 3
E10 43760 UC5 NETWORK COUPLER 3-WAY 2
E11 43762 UC5 NETWORK COUPLER 6-WAY 1
E12 43764 UC5 NETWORK COUPLER 2-WAY 1
E20 43780 UC5 NETWORK TERMINATOR PLUG 2
H10 44865-12 HYDRAULICS FITTING KIT - HD3 1
M02 UC5-BC-HD03-INST MANUAL INSTALLATION UC5 HARDI 1
M03 UC5-BC-HD03-INST-E MANUAL INSTALLATION UC5 HARDI END-USER 1
P01 106034 UC5 NETWORK 2 PIN PLUG 4
P02 106035 UC5 NETWORK 12 PIN PLUG (A-KEY) 1
V01 44933D VALVE BLOCK ASSEM UC4-BC 2-STATION CC/LS VARIABLE RATE 1
6
3.4 Hydraulic Fitting Kit Details (P/N: 44865-12)
Item Part Number Name Quantity Picture
F01 44928 ORIFICE INSERT .047 IN ONE WAY 4
F02 501301 MALE ADAPTER - 6MB 6MBSPP 4
F03 104369 PLUG - 6MBP 2
6 M B - 6 M OR X 90
SIZE IN
1/16TH'S
GENDER: MALE
OR FEMALE
90° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
The 6MBP plugs (F03) are only used for the single acting plumbing installation.
3.5 Optional Pressure and Tank Hose Kit (P/N: 44865-49)
If you require a separate pressure and tank line from your tractor to your NORAC valve block,
you can order the hoses and fittings as a kit (P/N: 44865-49).
Part Number Name Quantity
44863-11 HOSE ASSEMBLY 122R2-06 402 IN L 6FJX 8MB WITH QUICK COUPLER 2
103312 MALE ADAPTER - 6MB 6MJ 2
7
3.6 Hardi Supplied Kit
Some of the parts supplied in this kit are supplied by Hardi. There are three possible kits
supplied, depending on the type of Hardi sprayer you have. Only one of the following kits will
be supplied with your NORAC system so you must make sure you are referencing the correct list
of parts. If you are unsure of the Hardi kit supplied with your system, contact the dealership that
you purchased the kit through.
Table 1 - Hardi Kit 84210003 – SPB
Item Part Number Name Quantity
HD01 23000003 HYDRAULIC FITTING - 3/8 INCH O-RING X 1/4 BSPP 6
HD02 232109 HYDRAULIC TEE - 1/4 INCH BSP UNION 6
HD03 78601103 HYDRAULIC FITTING - 1/4 INCH X 1/4 INCH - 1.8 RESTRICTOR 2
HD04 146835 HEX NIPPLE 1/4 INCH X 3/8 INCH BSP 2
HD05 784018 HYDRAULIC HOSE 1/4 INCH X 29.5 INCH (STR + ELB) 2
HD06 784023 HYDRAULIC HOSE 1/4 INCH X 43.25 INCH (STR + ELB) 2
HD07 784033 HYDRAULIC HOSE 1/4 INCH X 61 INCH (STR + ELB) 2
HD08 420744 BOLT HEX 8.8 DEL M8X40 2
HD09 460817 NUT HEX M8 STAINLESS DIN 934 2
HD10 410605 BOLT HEX 8.8 DEL M6X80 1
HD11 460261 NUT HEX M6X1 LOCK 1
HD12 480804 RIVIT 4.8 DIAM X 14.5 LENGTH 2
HD13 160181 CLAMP NOZZLE TUBE 60X60 1
