Netvox R718DA Manual de usuario

Model：R718DA

Wireless Vibration Sensor, Rolling Ball Type

R718DA

User Manual

This document contains proprietary technical information which is the property of NETVOX Technology. It shall

be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written

permission of NETVOX Technology. The specifications are subject to change without prior notice.

Table of Content

1. Introduction......................................................................................................................................2

2. Appearance.......................................................................................................................................3

3. Main Features...................................................................................................................................3

4. Set up Instruction..............................................................................................................................4

5. Data Report ......................................................................................................................................5

6. Installation........................................................................................................................................9

7. Important Maintenance Instruction.................................................................................................10

1. Introduction

R718DA is identified as a LoRaWAN ClassA device with a ball-type vibration sensor and compatible with LoRaWAN

protocol. The main body of R718DA can be attached to iron surface of the detected target with built-in magnet. When the

target vibrates and the ball shakes in sensor, R718DAsends the alarm message immediately.

LoRa Wireless Technology:

LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other

communication methods, LoRa spread spectrum modulation method greatly increases to expand the communication distance.

Widely used in long-distance, low-data wireless communications. For example, automatic meter reading, building automation

equipment, wireless security systems, industrial monitoring. Main features include small size, low power consumption,

transmission distance, anti-interference ability and so on.

LoRaWAN:

LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and

gateways from different manufacturers.

2. Appearance

3. Main Features

Adopt SX1276 wireless communication module

2 x 3.6V ER14505 AA lithium batteries

Trigger the vibration sensor, the device will send trigger information

The base is equipped with a magnet that can be attached to the magnetic substance

IP Ratings: Main part- IP65/IP67 (Optional), Sensor-/IP67

Compatible with LoRaWAN TM Class A

Frequency hopping spread spectrum technology

Configuration parameters can be configured through third-party software platforms

Data can be read and alerts can be set via SMS text and email (Optional)

Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne

Low power consumption and long battery life

Note:

Battery life is determined by the sensor reporting frequency and other variables . Please refer to

http://www.netvox.com.tw/electric/electric_calc.html

On this website, users can find various types of battery life time in different configurations.

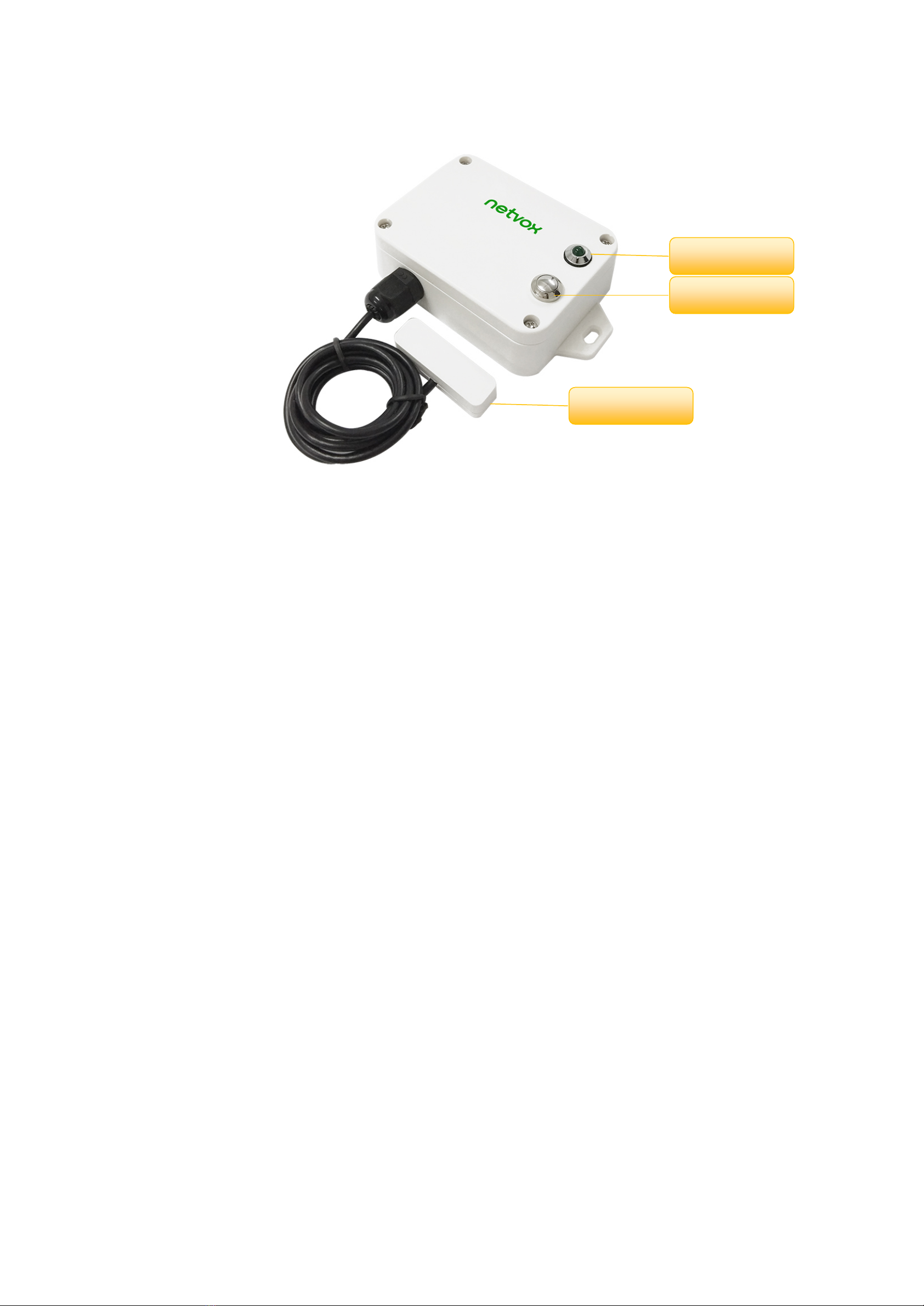

Indicator

Function Key

Vibration Sensor

4. Set up Instruction

On/Off

Power on Insert batteries (Users may need a screwdriver to open)

Turn on Press and hold the function key for 3 seconds and the green indicator flash once.

Turn off (Restore to factory setting) Press and hold the function key for 5 seconds and the green indicator flashes 20 times.

Power off Remove Batteries.

Note:

1. Remove and insert the battery; the device is at off state by default.

2. On/off interval is suggested to be about 10 seconds to avoid the interference of capacitor

inductance and other energy storage components.

3. For the first 5 second after powering on, the device will be in engineering test mode.

Network Joining

Never joined the network

Turn on the device to search the network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Had joined the network

Turn on the device to search the previous network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Fail to join the network

(when the device is on)

Suggest to check the device verification information on the gateway or consult your platform

server provider.

Function Key

Press and hold for 5 seconds

Restore to factory setting / Turn off

The green indicator flashes 20 times: success

The green indicator remains off: fail

Press once The device is in the network: the green indicator flashes once and sends a report

The device is not in the network: the green indicator remains off

Sleeping Mode

The device is on and in the network

Sleeping period: Min Interval.

When the reportchange exceeds setting value or the state changes: send a data report according

to Min Interval.

Low Voltage Warning

Low Voltage

3.2

5. Data Report

Data report configuration and sending period are as following:

Min Interval

(Unit:second)

Max Interval

(Unit:second) Reportable Change Current Change≥

Reportable Change

Current Change＜

Reportable Change

Any number between

1~65535

Any number between

1~65535 Can not be 0 Report

per Min Interval

Report

per Max Interval

The device will immediately send a version packet report and the vibration report data

The device sends data in the default configuration before any configuration is done.

Default setting:

MaxTime: Max Interval = 60 min = 3600s

MinTime: Min Interval = 60 min = 3600s

BatteryVoltageChange: 0x01 (0.1V)

R718DATrigger:

When the device senses vibration and the ball is shaken, an alarm message will be reported.

The shaking alarm bit is “1”.

The static and non-shaking alarm bit is “0”.

Restore Function:

There are two ways for the ball to trigger an alarm.

One is not to report the recovery status after sending the alarm. (default)

The other is to report the recovery status after the device stops vibrating for 5 seconds after sending the alarm.

The two ways can be executed before shipment or by LoRaWAN command configuration

Note:

The device report interval will be programmed based on the default firmware which may vary.

The interval between two reports must be the minimum time.

Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver

http://loraresolver.netvoxcloud.com:8888/page/index to resolve uplink data.

Example of ConfigureCmd

FPort：0x07

Bytes 1 1 Var (Fix =9 Bytes)

CmdID DeviceType NetvoxPayLoadData

CmdID– 1 byte

DeviceType– 1 byte – Device Type of Device

NetvoxPayLoadData– var bytes (Max=9bytes)

(1)Configure device parameters

MinTime = 1 min, MaxTime = 1 min, BatteryChange = 0.1v

Downlink: 011A003C003C0100000000 003C(Hex) = 60(Dec)

Response:

811A000000000000000000 (Configuration success)

811A010000000000000000 (Configuration failure)

(2)Read device configuration parameters

Downlink: 021A000000000000000000

Response:

821A003C003C0100000000 (Current configuration)

Description Device CmdID

Device

Type NetvoxPayLoadData

Config

ReportReq

R718DA

0x01

0x1A

MinTime

(2bytes Unit: s)

MaxTime

(2bytes Unit: s)

BatteryChange

(1byte Unit: 0.1v)

Reserved

(4Bytes, Fixed 0x00)

Config

ReportRsp 0x81 Status

(0x00_success)

Reserved

(8Bytes, Fixed 0x00)

ReadConfig

ReportReq 0x02 Reserved

(9Bytes, Fixed 0x00)

ReadConfig

ReportRsp 0x82 MinTime

(2bytes Unit: s)

MaxTime

(2bytes Unit: s)

BatteryChange

(1byte Unit: 0.1v)

Reserved

(4Bytes, Fixed 0x00)

Restore configuration:

Description Device CmdID

DeviceType NetvoxPayLoadData

SetRestore

ReportReq

R718DA

0x03

0x1A

RestoreReportSet (1byte)

0x00_DO NOT report when sensor restore

0x01_DO report when sensor restore

Reserved

(8Bytes,Fixed 0x00)

SetRestore

ReportRsp 0x83 Status

(0x00_success)

Reserved

(8Bytes, Fixed 0x00)

GetRestore

ReportReq 0x04 Reserved

(9Bytes, Fixed 0x00)

GetRestore

ReportRsp 0x84

RestoreReportSet (1byte)

0x00_DO NOT report when sensor restore

0x01_DO report when sensor restore

Reserved

(8Bytes,Fixed 0x00)

(3) Do report after sensor stops vibrating

Downlink：031A010000000000000000 (0x01_DO report when sensor restore)

Response：

831A000000000000000000 (Configuration success)

831A010000000000000000 (Configuration failure)

(2) Read restore function:

Downlink：041A000000000000000000

Response：841A010000000000000000 (Current configuration) (report when sensor restore)

Example for MinTime/MaxTime logic:

Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V

MaxTime MaxTime

Sleeping(MinTime) Sleeping(MinTime)

Note: MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration regardless BatteryVoltageChange

value.

Wake up and collects data

REPORTS 3.6V

Wakes up and collects data

REPORTS 3.6V

Wakes up and collects data

REPORTS 3.6V

Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.

MaxTime

Sleeping(MinTime) sleeping sleeping sleeping

0H 15th M 30th M 45th M 1H 2H

Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.

MaxTime

sleeping sleeping ...

0H 15th M 30th M 45th M 1H 1H 10th M 1H 25th M 1H 40th M 1H 55th M 2H 10th M

Notes :

1) The device only wakes up and performs data sampling according to MinTime Interval. When it is sleeping, it does not

collect data.

2) The data collected is compared with the last data reported. If the data variation is greater than the ReportableChange value,

the device reports according to MinTime interval. If the data variation is not greater than the last data reported, the device

reports according to MaxTime interval.

3) We do not recommend to set the MinTime Interval value too low. If the MinTime Interval is too low, the device wakes up

frequently and the battery will be drained soon.

4) Whenever the device sends a report, no matter resulting from data variation, button pushed or MaxTime interval, another

cycle of MinTime/MaxTime calculation is started.

Wakes up and

collects data

3.6V

Does not report

Wakes up and

collects data

3.6V

Does not report

Wakes up and

collects data

3.6V

Does not report

Wakes up and

collects data

REPORTS 3.6V

Wakes up and

collects data

REPORT 3.6V

Wakes up and

collects data

REPORTS 3.6V

Wakes up and collects data

3.5V |3.5-3.6|=0.1

REPORTS 3.5V

Wakes up and

collects data

3.5V

Does not report

Wakes up and

collects data

3.5V

Does not report

Wakes up and

collects data

3.5V

Does not report

Wakes up and

collects data 3.5V

Does not report

Wakes up and

collects data

3.5V

Does not report

Wakes up and

collects data

REPORTS 3.5V

Wakes up and

collects data

3.6V

Does not report

Users push the button,

REPORTS 3.5V.

Recalculate MaxTime.

6. Installation

1. The device has a built-in magnet.

When installed, it can be attached to the surface of an

object with iron which is convenient and quick.

To make the installation more secure, use screws

(purchased) to secure the unit to a wall or other surface

Note:

Do not install the device in a metal shielded box or in an

environment with other electrical equipment around it to

avoid affecting the wireless transmission of the device.

2. Fix the vibration sensor of the vibration sensor on the

object that needs to be detected whether it is vibrating

(here, take the mousetrap as a picture, as shown below).

3.The figure shows the vibration sensor (R718DA)

applied to the scene of the mousetrap in the restaurant.

It can also be applied to the following scenarios:

●Restaurant (rat)

●Shopping mall supermarket (rat)

●Engine room (rat)

When it is necessary to detect whether the object is

vibrating or moved.

4. When the vibration sensor detects a vibration, it

immediately sends an "alarm" message.

When the device reports data periodically, it restores

the "normal" status and sends "normal" status

information. Moreover, enable the Restore function

and the “normal” status will be sent after the device

stops for 5 seconds.

Note:

The shaking alarm bit is “1”.

The static and non-shaking alarm bit is “0”.

Tabla de contenidos

Otros manuales de Accesorios de netvox

netvox

netvox RA0701 Manual de usuario

netvox

netvox R718LB Manual de usuario

netvox

netvox R718G Manual de usuario

netvox

netvox R718PA9 Manual de usuario

netvox

netvox R311A Manual de usuario

netvox

netvox R718VA Manual de usuario

netvox

netvox R718PB13 Manual de usuario

netvox

netvox R311D Manual de usuario

netvox

netvox R718G Manual de usuario

netvox

netvox R718VA Manual de usuario

netvox

netvox R809A Manual de usuario

netvox

netvox R718CK2 Manual de usuario

netvox

netvox R315 Series Manual de usuario

netvox

netvox Contact Sensor Series Manual de usuario

netvox

netvox RA0716A Manual de usuario

netvox

netvox RA0716 Manual de usuario

netvox

netvox R311FD Manual de usuario

netvox

netvox R718UBD Series Manual de usuario

netvox

netvox R313M Manual de usuario

netvox

netvox R72632A01 Manual de usuario

netvox

netvox RA0723 Manual de usuario

netvox

netvox R718IJK Manual de usuario

netvox

netvox R313K Manual de usuario

netvox

netvox R313B Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario

netvox R718DA Manual de usuario

Manuales populares de Accesorios de otras marcas
