R718G

Wireless Light Sensor

R718G

User Manual

This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in

strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX

Technology. The specifications are subject to change without prior notice

Table of Content

1. Introduction ..............................................................................................................................................................2

2. Appearance...............................................................................................................................................................2

3. Main Features...........................................................................................................................................................3

4. Set up Instruction .....................................................................................................................................................4

5. Data Report ..............................................................................................................................................................5

6. Installation................................................................................................................................................................9

7. Information about Battery Passivation ..................................................................................................................10

7.1 To determine whether a battery requires activation .......................................................................................10

7.2 How to activate the battery.............................................................................................................................10

8. Important Maintenance Instruction........................................................................................................................11

1. Introduction

The R718G is a Wireless Light Sensor for Netvox ClassA type devices based on the LoRaWAN open protocol and is compatible

with the LoRaWAN protocol. It can detect illuminance anywhere, ex. sunlight, outdoor area.

LoRa Wireless Technology:

LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other

communication methods, LoRa spread spectrum modulation method greatly increases to expand the communication distance.

Widely used in long-distance, low-data wireless communications. For example, automatic meter reading, building automation

equipment, wireless security systems, industrial monitoring. Main features include small size, low power consumption,

transmission distance, anti-interference ability and so on.

LoRaWAN:

LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and

gateways from different manufacturers.

2. Appearance

Indicator

Function Key

Light Sensor

3. Main Features

⚫Compatible with LoRaWAN protocol.

⚫Powered by 2 x ER14505 3.6V Lithium AA battery

⚫Illuminance detection (Range: 3~65000 Lux / 3~130000Lux / 3-220000Lux)

⚫IP rating IP65 / IP67 (optional)

⚫Compatible with LoRaWANTM Class A

⚫Frequency hopping spread spectrum

⚫Configuration parameters can be configured via a third-party software platform, data can be read and alerts can be set via SMS

text and email (optional)

⚫Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne

⚫Improved power management for longer battery life

Battery Life:

⁻Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html

⁻At this website, users can find battery life time for variety models at different configurations.

1. Actual range may vary depending on environment.

2. Battery life is determined by sensor reporting frequency and other variables.

4. Set up Instruction

On/Off

Power on

Insert batteries. (users may need a screwdriver to open)

Turn on

Press and hold the function key for 3 seconds till the green indicator flashes once.

Turn off

(Restore to factory setting)

Press and hold the function key for 5 seconds till green indicator flashes for 20 times.

Power off

Remove Batteries.

Note

1.Remove and insert the battery; the device is at off state by default.

2.On/off interval is suggested to be about 10 seconds to avoid the

interference of

capacitor inductance and other energy storage components.

3. At 1st -5th second after power on, the device will be in engineering test mode.

Network Joining

Never joined the network

Turn on the device to search the network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Had joined the network

(not at factory setting)

Turn on the device to search the previous network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Function Key

Press and hold for 5 seconds

Restore to factory setting / Turn off

The green indicator flashes for 20 times: success

The green indicator remains off: fail

Press once

The device is in the network: green indicator flashes once and sends a report

The device is not in the network: green indicator remains off

Sleeping Mode

The device is on and in the

network

Sleeping period: Min Interval.

When the reportchange exceeds setting value or the state changes: send a data report according to

Min Interval.

Low Voltage Warning

Low Voltage

3.2V

5. Data Report

Data report configuration and sending period are as following:

Min Interval

(Unit:second)

Max Interval

(Unit:second)

Reportable

Change

Current Change≥

Reportable Change

Current Change＜

Reportable Change

Any number between

1~65535

Any number between

1~65535

Can not be 0.

Report

per Min Interval

Report

per Max Interval

The device will immediately send a version packet report along with an uplink packet including illuminance and battery

voltage.

The device sends data in the default configuration before any configuration is done.

Default setting:

MaxTime : Max Interval = 15 min = 900s

MinTime : Min Interval = 15 min = 900s

BatteryChange: 0x01 (0.1V)

IlluminanceChange:0x0032 (50 Lux)

Illuminance detection range:

0x00 3~65000 Lux (default)

0x01 3~130000 Lux

0x02 3-220000 Lux

Note:

The device report interval will be programmed based on the default firmware which may vary.

The interval between two reports must be the minimum time.

Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver

http://www.netvox.com.cn:8888/page/index to resolve uplink data.

Example of Report configuration

FPort：0x07

Bytes

Var(Fix =9 Bytes)

CmdID

DeviceType

NetvoxPayLoadData

CmdID–1 bytes

DeviceType–1 byte –Device Type of Device

NetvoxPayLoadData–var bytes (Max=9bytes)

Description

Device

CmdID

DeviceType

NetvoxPayLoadData

ConfigReportReq

R718G

0x01

0x1E

MinTime

(2bytes Unit:s)

MaxTime

(2bytes

Unit:s)

Battery

Change

(1byte

Unit:0.1v)

Illuminancechange

(4bytes Unit：

1Lux)

ConfigReportRsp

0x81

Status

(0x00_success)

Reserved

(8Bytes,Fixed 0x00)

ReadConfig

ReportReq

0x02

Reserved

(9Bytes,Fixed 0x00)

ReadConfig

ReportRsp

0x82

MinTime

(2bytes Unit:s)

MaxTime

(2bytes

Unit:s)

Battery

Change

(1byte

Unit:0.1v)

Illuminancechange

(4bytes Unit：

1Lux)

SetSunlight

SampleRangeReq

0x03

RangeSetting (1byte)

0x00:3~65000 Lux

0x01:3~130000 Lux

0x02:3-220000 Lux

Reserved

(8Bytes,Fixed 0x00)

SetSunlight

SampleRangeRsp

0x83

Status

(0x00_success)

Reserved

(8Bytes,Fixed 0x00)

GetSunlight

SampleRangeReq

0x04

Reserved

(9Bytes,Fixed 0x00)

GetSunlight

SampleRangeRsp

0x84

RangeSetting (1byte)

0x00:3~65000 Lux

0x01:3~130000 Lux

0x02:3-220000 Lux

Reserved

(8Bytes,Fixed 0x00)

(1) Command Configuration:

MinTime = 1min、MaxTime = 1min、BatteryChange = 0.1v、IlluminanceChange = 100 Lux

Downlink：011E003C003C0100000064 003C(Hex) =60 (Dec) , 64(Hex) =100 (Dec)

Response：

811E000000000000000000 （Configuration success）

811E010000000000000000（Configuration failure）

(2) Read Configuration:

Downlink：021E000000000000000000

Response：

821E003C003C0100000064 （Current configuration）

(3) Setting light sensor illuminance range:

For example, SunlightSampleRange = 0x02 (3-220000 Lux)

Downlink：031E020000000000000000

Response：

831E000000000000000000 （Configuration success）

831E010000000000000000（Configuration failure）

(4) Read light sensor illuminance range:

Downlink：041E000000000000000000

Response：

841E020000000000000000 （Current configuration）

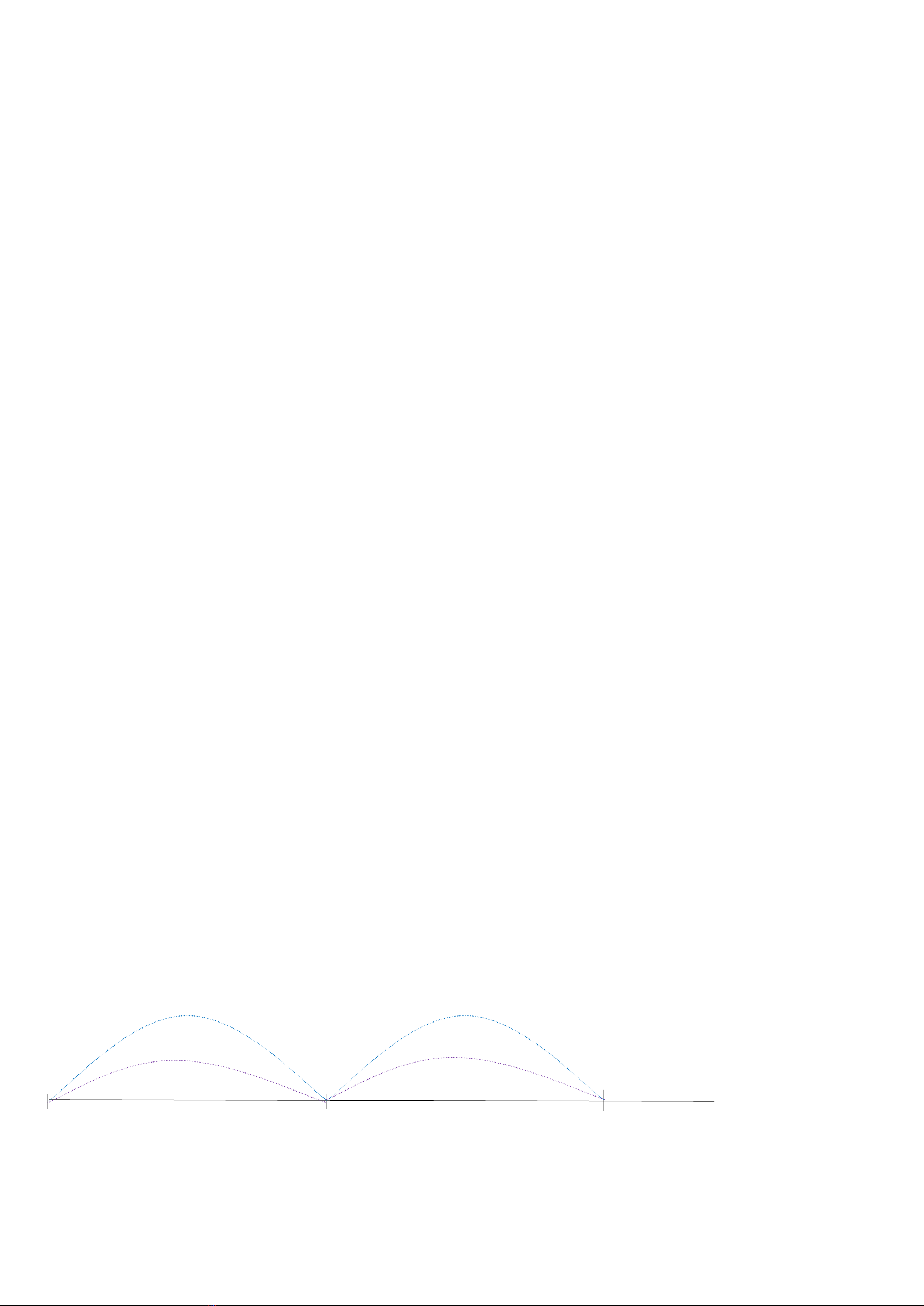

Example for MinTime/MaxTime logic:

Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V

MaxTime MaxTime

Sleeping(MinTime) Sleeping(MinTime)

Note: MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration regardless BatteryVoltageChange

value.

Wake up and collects data

REPORTS 3.6V

Wakes up and collects data

REPORTS 3.6V

Wakes up and collects data

REPORTS 3.6V

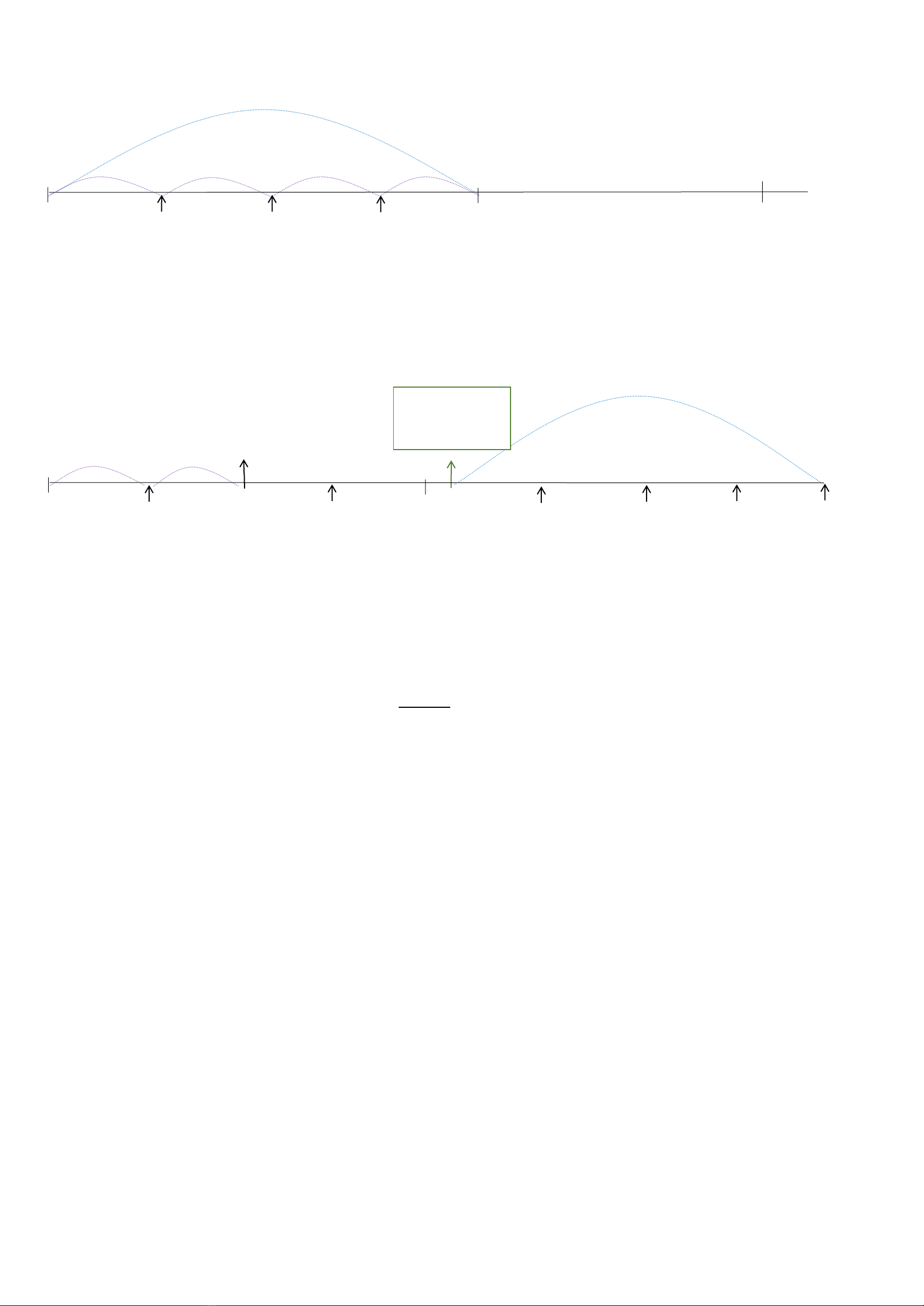

Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.

MaxTime

Sleeping(MinTime) sleeping sleeping sleeping

0H 15th M 30th M 45th M 1H 2H

Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.

MaxTime

sleeping sleeping ...

0H 15th M 30th M 45th M 1H 1H 10th M 1H 25th M 1H 40th M 1H 55th M 2H 10th M

Note:

1) The device only wakes up and performs data sampling according to MinTime Interval. When it is sleeping, it does not

collect data.

2) The data collected is compared with the last data reported. If the data variation is greater than the ReportableChange value,

the device reports according to MinTime interval. If the data variation is not greater than the last data reported, the device

reports according to MaxTime interval.

3) We do not recommend to set the MinTime Interval value too low. If the MinTime Interval is too low, the device wakes up

frequently and the battery will be drained soon.

4) Whenever the device sends a report, no matter resulting from data variation, button pushed or MaxTime interval, another

cycle of MinTime/MaxTime calculation is started.

Wakes up and

collects data

3.6V

Does not report

Wakes up and

collects data

3.6V

Does not report

Wakes up and

collects data

3.6V

Does not report

Wakes up and

collects data

REPORTS 3.6V

Wakes up and

collects data

REPORT 3.6V

Wakes up and

collects data

REPORTS 3.6V

Wakes up and collects data

3.5V |3.5-3.6|=0.1

REPORTS 3.5V

Wakes up and

collects data

3.5V

Does not report

Wakes up and

collects data

3.5V

Does not report

Wakes up and

collects data

3.5V

Does not report

Wakes up and

collects data 3.5V

Does not report

Wakes up and

collects data

3.5V

Does not report

Wakes up and

collects data

REPORTS 3.5V

Wakes up and

collects data

3.6V

Does not report

Users push the button,

REPORTS 3.5V.

Recalculate MaxTime.

6. Installation

This product comes with waterproof function. When using it, the back of it can be adsorbed on the iron surface, or the two ends

can be fixed to the wall with screws.

Note:

Please do not disassemble the device unless it is required to replace the batteries.

Do not touch the waterproof gasket, LED indicator light, function keys when replacing the batteries. Please use suitable

screwdriver to tighten the screws (if using an electric screwdriver, it is recommended to set the torque as 4kgf) to ensure the

device is impermeable.

Light Sensor (R718G) is suitable for the following

scenarios:

⚫Family

⚫School

⚫Storage room

⚫Hospital

⚫Bar

⚫Stairs

⚫Agricultural greenhouse

To detect the illumination value.

1. Light Sensor（R718G）has a built-in magnet (see

Figure 1 below),When installed, the back of it can be

adsorbed on the iron surface, or the two ends can be

fixed to the wall with screws (should be purchased) to

secure the unit to a wall or other surface (see Figure 2

below).

Note

Do not install the device in a metal shielded box or in

an environment with other electrical equipment around

it to avoid affecting the wireless transmission of the

device.

2. Compare the illumination value detected by the

illumination sensor with the set illumination value. The

detected value exceeds the set value (default 50 Lux), the

currently detected illumination value is sent.

Otros manuales para R718G

Tabla de contenidos

Otros manuales de Accesorios de netvox

netvox

netvox R718N3 Manual de usuario

netvox

netvox R718F2 Manual de usuario

netvox

netvox R315 Series Manual de usuario

netvox

netvox R718N1 Manual de usuario

netvox

netvox ZigBee Z801WLS Manual de usuario

netvox

netvox R720FLD Manual de usuario

netvox

netvox R313M Manual de usuario

netvox

netvox R718VA Manual de usuario

netvox

netvox R712 Manual de usuario

netvox

netvox R311LA Manual de usuario

netvox

netvox R718VA Manual de usuario

netvox

netvox RA0701 Manual de usuario

netvox

netvox R718PG-AS923 Manual de usuario

netvox

netvox R718N1 Manual de usuario

netvox

netvox ZigBee Z311G Manual de usuario

netvox

netvox R718VB Manual de usuario

netvox

netvox RA0708 Manual de usuario

netvox

netvox R311FA Manual de usuario

netvox

netvox R718N3 Manual de usuario

netvox

netvox R311CA Manual de usuario

netvox

netvox R311CA Manual de usuario

netvox

netvox Z713 Manual de usuario

netvox

netvox R718E Manual de usuario

netvox

netvox RB11E Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario

netvox R718G Manual de usuario

Manuales populares de Accesorios de otras marcas
