NETGEAR ProSAFE Plus Series Manual de usuario

ProSAFE®Plus Switch

Reviewer’s Guide

Page 2

NETGEAR® CONTACT INFO ........................................................................................................................................... 3

BEFORE YOU START......................................................................................................................................................... 3

PRODUCT CATEGORY..................................................................................................................................................... 3

PRODUCT DESCRIPTION ............................................................................................................................................... 3

WHAT’S NEW..................................................................................................................................................................... 4

PRODUCT HIGHLIGHTS.................................................................................................................................................. 4

MODELS ............................................................................................................................................................................. 5

XS708E SUPPORTED DIRECT ATTACH CABLES...................................................................................................... 6

SUPPORT AND MAINTENANCE OPTIONS................................................................................................................. 6

TESTING & DEPLOYMENT ............................................................................................................................................ 6

WHERE TO INSTALL THE PLUS SWITCH............................................................................................................ 7

QUICK START INSTRUCTIONS.............................................................................................................................. 8

TESTING SCENARIOS ............................................................................................................................................. 9

Table of Contents

Page 3

NETGEAR®CONTACT INFO

If you have any questions or technical issues, please contact your assigned NETGEAR contacts for this review listed below.

Peter Chen

Senior Technical Marketing Engineer

(408) 890-3182

(408) 921-1689

Peter.Chen@netgear.com

Maggie Wu

Senior Product Line Manager

(408) 890-3173

Maggie.Wu@netgear.com

BEFORE YOU START

Prior to any testing, please make sure the Plus Switch is running the latest ﬁrmware and that you have the latest version of the

ProSAFE® Plus Utility installed by going to http://support.netgear.com and searching for the model number of the switch.

PRODUCT CATEGORY

Switches Wireless Storage Security

PRODUCT DESCRIPTION

Thank you for taking the time to evaluate the NETGEAR ProSAFE line of Plus switches. The new ProSAFE Plus Switch family empow-

ers growing businesses with the capabilities to monitor and conﬁgure their network beyond simple connectivity at a very aordable

cost, making them ideal upgrades from Unmanaged switches.

Page 4

WHAT’S NEW

We are always working on adding new useful features to our products. Below is a list of recently added features to the Plus switch

line. Be sure to take these features into consideration during the review.

•XS708E – The XS708E is the industry’s ﬁrst aordable 10Gigabit switch for the SMB. It features eight 10GBase-T RJ45 ports

and one 10Gigabit SFP+ ﬁber port. All for a ground breaking street price of $999 – making 10 Gigabit a reality for small to me-

dium businesses. The XS708E also supports standard Plus switch features such as VLAN, QoS, IGMP Snooping, port monitoring

and in addition to that, also supports Link Aggregation and is ideal for connecting 10 Gigabit capable servers and storage.

PRODUCT HIGHLIGHTS

Key Features Beneﬁts

Conﬁgurable via simple PC-based Utility tool More control of your network without more cost

Review port-based trac status See who's using the network and how much data they send/

receive.

Troubleshoot connection problems via built-in cable test tool Find failure points quickly and easily to help on repair.

Green Ethernet Reduce energy cost with power savings

Port-based or 802.1p-based Quality of Service (QoS) Prioritize network trac based on user, or trac type (voice,

video and etc.)

Port-based or 802.1Q-based Virtual LAN (VLAN) Divide a ﬂat network into network groups for better perfor-

mance, resource allocation, and security

Link Aggregation (XS708E only) Adds redundancy and improves network performance

Broadcast Storm Control Avoid loss of connectivity and improve the stability of network

performance

Port-based Bandwidth control Avoid network congestion and better allocate network

resources

Port Mirroring Assists with troubleshooting complex network issues

Page 5

•Expanded Networking Feature Set – VLAN, QoS, IGMP Snooping, Port Mirroring, Port Monitoring, Link Aggregation

(XS708E only) gives network administrators greater ﬂexibility over unmanaged switches at a small price premium.

•ProSAFE Plus Conﬁguration Utility – A simple to use management soware that provides the capability to easily make

changes on the Plus switch.

MODELS

FS116E JFS524E GS105E GS108E GS108PE GS116E JGS524E XS708E

Form Factor Desktop Rackmount Desktop Desktop Desktop Desktop Rackmount Rackmount

Number of

Ports

16 24 5 8 8 16 24 9

Link Speed Fast Ethernet Fast Ethernet Gigabit Gigabit Gigabit Gigabit Gigabit 10 Gigabit

VLAN

QoS ••••••••

IGMP

Snooping •••••••

Link

Aggregation

Power over

Ethernet

•

Street Price $90 $109 $70 $76 $150 $186 $240 $999

Warranty Lifetime Lifetime Lifetime Lifetime Lifetime Lifetime Lifetime Lifetime

Page 6

XS708E SUPPORTED DIRECT ATTACH CABLES

Below is a list of support direct-attach cables (DAC) from NETGEAR which are compatible with the XS708E:

•AXC761

•AXC763

•AXM763

•AXM762

•AXM761

•AGM734

•AGM732F

•AGM731F

SUPPORT AND MAINTENANCE OPTIONS

Technical Support

•Lifetime 24x7 live telephone and email support

•Lifetime Warranty

•Paid options for next business day replacement and onsite support available

TESTING & DEPLOYMENT

Note:

Please make sure the Plus switch has the latest ﬁrmware and ProSAFE Plus Conﬁguration Utility installed on your PC before testing.

The ProSAFE Plus Conﬁguration Utility is soware installed on a PC used to conﬁgure Plus switches.

Make sure the management PC is on the same subnet as the Plus switch.

The latest ProSAFE Plus Conﬁguration Utility can be found here:

http://support.netgear.com/product/XS708E

The default password for the Plus switch is password.

Page 7

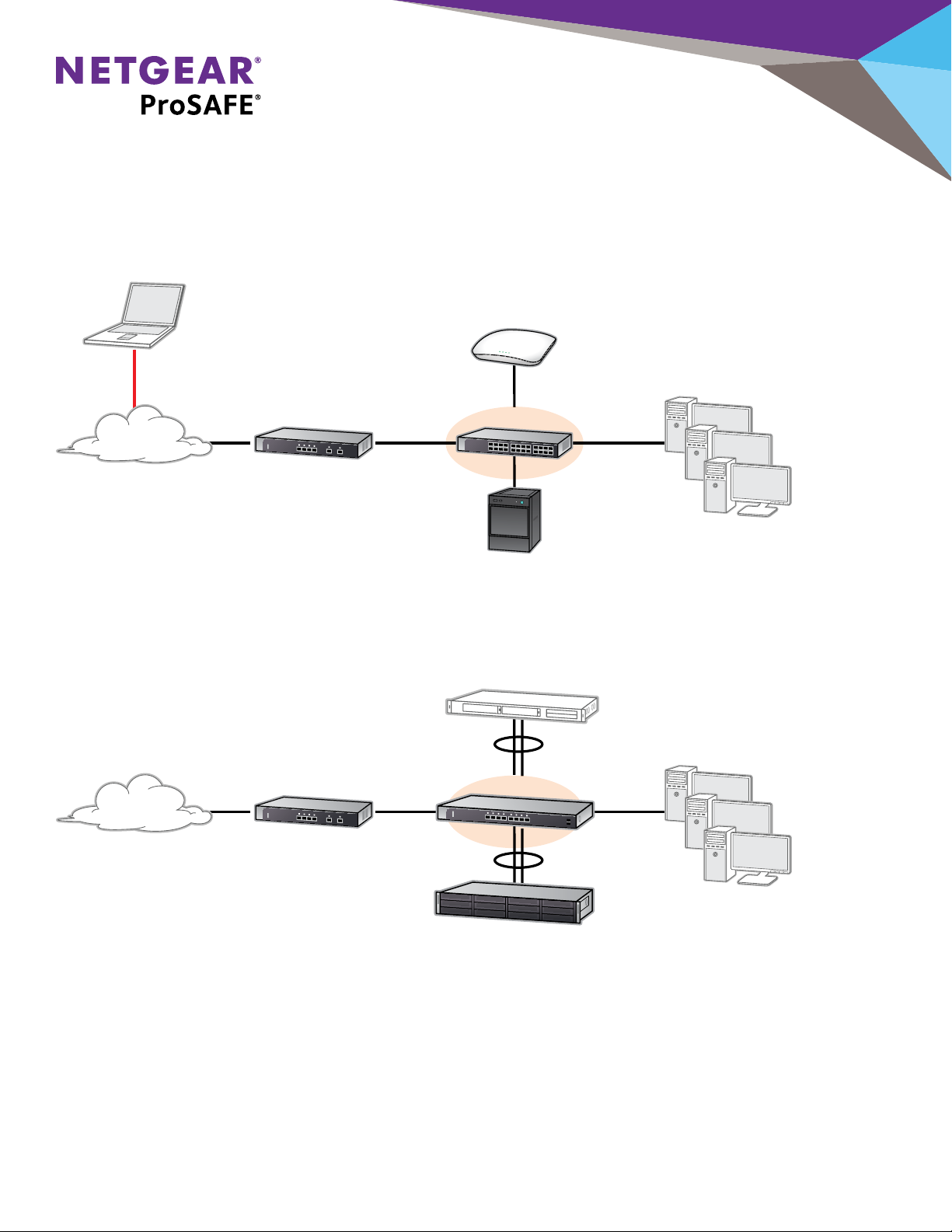

Where to Install the Plus Switch

The Plus switch can be installed anywhere in the network where a switch is required. It can be used to replace existing unmanaged

switches.

Remote PC

Internet

UTM

ReadyNAS Storage

Plus Switch

VPN Tunnel Local PCs

Wireless AP

Typical Plus Switch Deployment Example

Internet

Firewall

XS708E Plus Switch

Local PCs

10GE Capable Servers

10GE Capable Storage

XS708E Deployment Example

For detailed instructions on the installation steps, please reference the ProSAFE Plus Switch Installation Guide included in the box.

Page 8

Quick Start Instructions

•Download and install the ProSAFE Plus Conﬁguration Utility onto your PC

•Connect your PC to the switch via Ethernet cable

•Power the switch on. The utility tool will discover the switch.

•Select the switch you want to conﬁgure and click on the Apply button. You will be able to conﬁgure VLAN and QoS. Go to each

tab and you can easily conﬁgure the switch to your needs.

Page 9

Testing Scenarios

Below are a few optional testing scenarios you can use to verify certain features of the switch.

Suggested Equipment for Test:

1. 2 ProSAFE Plus Switches – referring to as Switch A and B

(one switch will be able to test basic features and functionalities as well)

2. Trac generator (TG) – IXIA or SmartBits.

3. A PC/NB with ProSAFE Plus Utility.

Port Based VLAN

Test Network Topology

Same as Port Mirroring test

•Connect TG port 1 to Switch A port 1.

•Connect TG port 2 to Switch A port 2.

•Connect TG port 3 to Switch A port 3.

•Enable Basic Port based VLAN.

•Set port 1 to be a member of all VLANs. Set port 2’s VLAN Group to 2. Set port 3’s VLAN Group 3.

EXPECTED RESULT: Port 1 can communicate with port2 and port3; and port 2 can’t communicate with port 3.

802.1Q VLAN

Test Network Topology

Switch B

Switch A

Trace Generator -- IXIA or Smartbits NB/PC with ProSAFE Plus Utility

1. TG sends untagged packets to switch and receive untagged packets from switch.

•Connect TG port 1 to Switch A port 1.

•Connect TG port 2 to Switch A port 2.

•Connect TG port 3 to Switch B port 1.

•Connect TG port 4 to Switch B port 2.

•Connect Switch A port 3 to Switch B port 3.

•Enable Advanced 802.1Q VLAN on both switches.

•Create 2 VLANs: VLAN 10 and 20 on both switches.

•Set port 1 to be a member of VLAN 10 with PVID equals to10 for both switches.

•Set port 2 to be a member of VLAN 20 with PVID equals to 20 for both switches.

Page 10

•Set port 3 to be a member of VLAN 10 and VLAN 20; and don’t change default PVID (=1) for both switches.

•Leave port 1 and port 2 are untagged (untag) ports for both switches.

•Set port 3 to be a tagged (tag) port for both switches.

•Generate untagged packets from TG port 1 and port 2.

EXPECTED RESULT: Tracs are segregated between VLAN 10 & VLAN 20. TG port 3 only receives untagged packets from TG

port 1; and TG port 4 only receives untagged packets from TG port 2.

802.1Q VLAN

Test Network Topology

2. TG sends tagged packets to switch and receive untagged packets from switch.Connect TG port 1 to Switch A port 1.

•Use the same test environment as #1.

•From TG port 1, generate tagged packets with VLAN ID = 10.

•From TG port 2, generated tagged packets with VLAN ID = 20

EXPECTED RESULT: Tracs are segregated between VLAN 10 & VLAN 20. TG port 3 only receives untagged packets from TG

port 1; and TG port 4 only receives untagged packets from TG port 2.

3. TG sends untagged packets to switch and receive tagged packets from switch.

•Use the same test environment as 1, except Switch B’s port 1 and port 2 conﬁgurations.

•Change Switch B port 1 and port 2 to “tag” port.

•From TG port 1 and port 2, send untagged packets to Switch A.

EXPECTED RESULT: Tracs are segregated between VLAN 10 & VLAN 20. TG port 3 only receives tagged packets (with VLAN

ID 10) from TG port 1; and TG port 4 only receives tagged packets (with VLAN ID 20) from TG port 2.

4. TG sends tagged packets to switch and receive tagged packets from switch.

•Use the same test environment as 3.

•From TG port 1, send tagged packets with VLAN ID 10 to Switch A.

•From TG port 2, sends tagged packets with VLAN ID 20 to Switch A.

EXPECTED RESULT: Tracs are segregated between VLAN 10 & VLAN 20. TG port 3 only receives tagged packets (with VLAN

ID 10) from TG port 1; and TG port 4 only receives tagged packets (with VLAN ID 20) from TG port 2.

QoS

ProSAFE Plus Gigabit Switches support 4 priority level queues. The queue service rate is based on the Weighted Round Robin (WRR)

algorithm. The weight ratio of high-priority and low-priority queue is 4:1 for Fast Ethernet models, 24:8:2:1 for gigabit models ,

and 8:4;2:1 for 10G model.
