NETGEAR GS110TP - ProSafe Gigabit Smart Switch Manual
202-10596-01
March 2010
v1.0
NETGEAR, Inc.
350 East Plumeria Drive
San Jose, California 95134 USA
GS110TP Hardware
Installation Guide
ii
v1.0, March 2010
© 2010 by NETGEAR, Inc. All rights reserved.
Trademarks
NETGEAR, the NETGEAR logo, and Auto Uplink are trademarks or registered trademarks of NETGEAR, Inc.
Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product
names are registered trademarks or trademarks of their respective holders. Portions of this document are copyright
Intoto, Inc.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.
Certificate of the Manufacturer/Importer
It is hereby certified that the GS110TP Smart PoE Switch has been suppressed in accordance with the conditions set out
in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters)
in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the
operating instructions.
The Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market
and has been granted the right to test the series for compliance with the regulations.
Product and Publication Details
Model Number: GS110TP
Publication Date: March 2010
Product Family: Gigabit Advanced Smart Switch
Product Name: GS110TP Smart PoE Switch
Home or Business Product: Business
Language: English
Publication Part Number: 202-10596-01
Publication Version Number: 1.0
Contents iii
v1.0, March 2010
Contents
GS110TP Hardware Installation Guide
About This Manual
Conventions, Formats, and Scope ....................................................................................v
How to Print this Manual ................................................................................................... vi
Revision History ................................................................................................................ vi
Chapter 1
Introduction
Overview .........................................................................................................................1-1
Features .........................................................................................................................1-2
PoE Features ...........................................................................................................1-3
Green Features ........................................................................................................1-3
Package Contents ..........................................................................................................1-4
Chapter 2
Physical Description
GS110TP Front and Back Panel Configuration ..............................................................2-1
LED Designations ...........................................................................................................2-2
Port LEDs .................................................................................................................2-2
System LEDs ...........................................................................................................2-3
Device Hardware Interfaces ...........................................................................................2-3
RJ-45 Ports ..............................................................................................................2-3
Reset Button ............................................................................................................2-4
Factory Defaults Button ............................................................................................2-4
Chapter 3
Applications
Desktop Switching ..........................................................................................................3-1
iv Contents
v1.0, March 2010
Chapter 4
Installation
Step 1: Preparing the Site ..............................................................................................4-1
Step 2: Installing the Switch ...........................................................................................4-2
Installing the Switch on a Flat Surface .....................................................................4-2
Wall Mounting the Switch .........................................................................................4-2
Step 3: Checking the Installation ....................................................................................4-3
Step 4: Connecting Devices to the Switch ......................................................................4-3
Step 5: Applying AC Power ............................................................................................4-4
Step 6: Managing the Switch using a Web Browser or the PC Utility .............................4-4
Appendix A
Troubleshooting
Troubleshooting Chart ................................................................................................... A-1
Additional Troubleshooting Suggestions ....................................................................... A-2
Network Adapter Cards ........................................................................................... A-2
Configuration ........................................................................................................... A-2
Switch Integrity ........................................................................................................ A-2
Auto-Negotiation ..................................................................................................... A-3
Appendix B
Technical Specifications
Index
v
v1.0, March 2010
About This Manual
The NETGEAR®ProSafeTM GS110TP Hardware Installation Guide describes how to install and
power on the GS110TP Smart PoE Switch. The information in this manual is intended for readers
with intermediate computer and Internet skills.
Conventions, Formats, and Scope
The conventions, formats, and scope of this manual are described in the following paragraphs:
•Typographical Conventions. This manual uses the following typographical conventions:
Italic Emphasis, books, CDs, file and server names, extensions
Bold User input, IP addresses, GUI screen text
Fixed Command prompt, CLI text, code
italic URL links
•Formats. This manual uses the following formats to highlight special messages:
Tip: This format is used to highlight a procedure that will save time or resources.
Warning: Ignoring this type of note may result in a malfunction or damage to the
equipment.
Note: This format is used to highlight information of importance or special interest.
Danger: This is a safety warning. Failure to take heed of this notice may result in
personal injury or death.
GS110TP Hardware Installation Guide
vi About This Manual
v1.0, March 2010
•Scope. This manual is written for the GS110TP Smart PoE Switch according to these
specifications:
Product Version GS110TP Smart PoE Switch
Manual Publication Date March 2010
Note: Product updates are available on the NETGEAR, Inc. website at
http://kbserver.netgear.com/products/GS110TP.asp.
How to Print this Manual
To print this manual, use the Complete PDF Manual link at the top left of any page.
– Click the Complete PDF Manual link at the top left of any page in the manual. The PDF
version of the complete manual opens in a browser window.
– Click the print icon in the upper left of the window.
Tip: If your printer supports printing two pages on a single sheet of paper, you can
save paper and printer ink by selecting this feature.
Revision History
Part Number Version
Number Date Description
202-10596-01 1.0 March 2010 Initial release
1-1
v1.0, March 2010
Chapter 1
Introduction
Congratulations on the purchase of your NETGEAR GS110TP Smart PoE Switch. The GS110TP
Smart PoE Switch is a supplement to the Gigabit Advanced Smart Switch family. Available as a
desktop or wall-mountable switch, the GS110TP Smart PoE Switch is not intended to be rack-
mountable. The GS110TP is a PoE-supportable, low-port switch with two fiber uplinks included.
This chapter serves as an introduction to the GS110TP Smart PoE Switch and provides the
following information:
•Overview
•Features
•Package Contents
Overview
This Installation Guide is for the NETGEAR GS110TP Smart PoE Switch. This product offers
support for eight 10/100/1000 Mbps autosensing and two 1000M SFP Gigabit Ethernet switching
ports.
Using Gigabit ports, high-speed connections can be made to a server or network backbone. For
example:
• Linking to high-speed servers
• Providing 10/100/1000 Mbps copper connectivity
The GS110TP Smart PoE Switch also provides the benefit of administrative management with a
complete package of features for the observation, configuration, and control of the network. With a
Web-based Graphical User Interface (GUI), the switch’s many capabilities can be viewed and used
in a simple and intuitive manner. The switch’s management features include configuration for port
and switch information, VLAN for traffic control, port trunking for increased bandwidth, and
Class of Service (CoS) for traffic prioritization. These features provide better understanding and
control of the network. Initial discovery of the switch on the network requires the Netgear Smart
Control Center program, a utility that runs on a PC.
GS110TP Hardware Installation Guide
1-2 Introduction
v1.0, March 2010
The GS110TP Smart PoE Switch is a free-standing switch. It is IEEE-compliant and offers low
latency for high-speed networking. All ports can automatically negotiate to the highest speed. This
capability makes the switch ideal for environments that have a mix of Ethernet, Fast Ethernet, or
Gigabit Ethernet devices. In addition, all RJ-45 ports operate in half-duplex or full-duplex mode.
The maximum segment length is 328 feet (100 meters) over Category 5 Unshielded Twisted-Pair
(UTP) cable.
Features
The following list identifies the key features of the GS110TP Smart PoE Switch:
• Eight RJ-45 10/100/1000 Mbps autosensing Gigabit Ethernet switching ports.
• Two 1000M SFP Gigabit Ethernet switching ports.
• Full NETGEAR Smart Switch functionality.
• Full compatibility with IEEE standards:
• IEEE 802.3 CSMA/CD
• IEEE 802.3i (10BASE-T)
• IEEE 802.3u (100BASE-TX)
• IEEE 802.3x (Full-duplex flow control)
• IEEE 802.3ab (1000BASE-T)
• IEEE 802.3z (1000BASE-x)
• IEEE 802.3af (DTE power via MDI)
• Autosensing and auto-negotiating capabilities for all ports.
• Auto Uplink™ on all ports to make the right connection.
• Automatic address learning function to build the packet-forwarding information table. The
table contains up to 4K Media Access Control (MAC) addresses.
• Store-and-Forward transmission to remove bad packets from the network.
• Full-duplex IEEE 802.3x pause frame flow control.
• Active flow control to minimize packet loss and frame drops.
• Half-duplex backpressure control.
• Per port LEDs, power LED.
GS110TP Hardware Installation Guide
Introduction 1-3
v1.0, March 2010
• Standard NETGEAR 1xx series chassis.
• NETGEAR Green product features.
• External 48V/1.25A PA.
PoE Features
The GS110TP Smart PoE Switch supports IEEE 802.3af PSE features:
• Ports 1 through 8 support IEEE 802.3af, Alternative A (MDI-X).
• PoE is enabled by default.
Green Features
The GS110TP Smart PoE Switch supports the following power-saving features:
• The power consumption automatically adjusts based on the RJ-45 cable length.
• Each port is configured to power down automatically when the port link is down.
GS110TP Hardware Installation Guide
1-4 Introduction
v1.0, March 2010
Package Contents

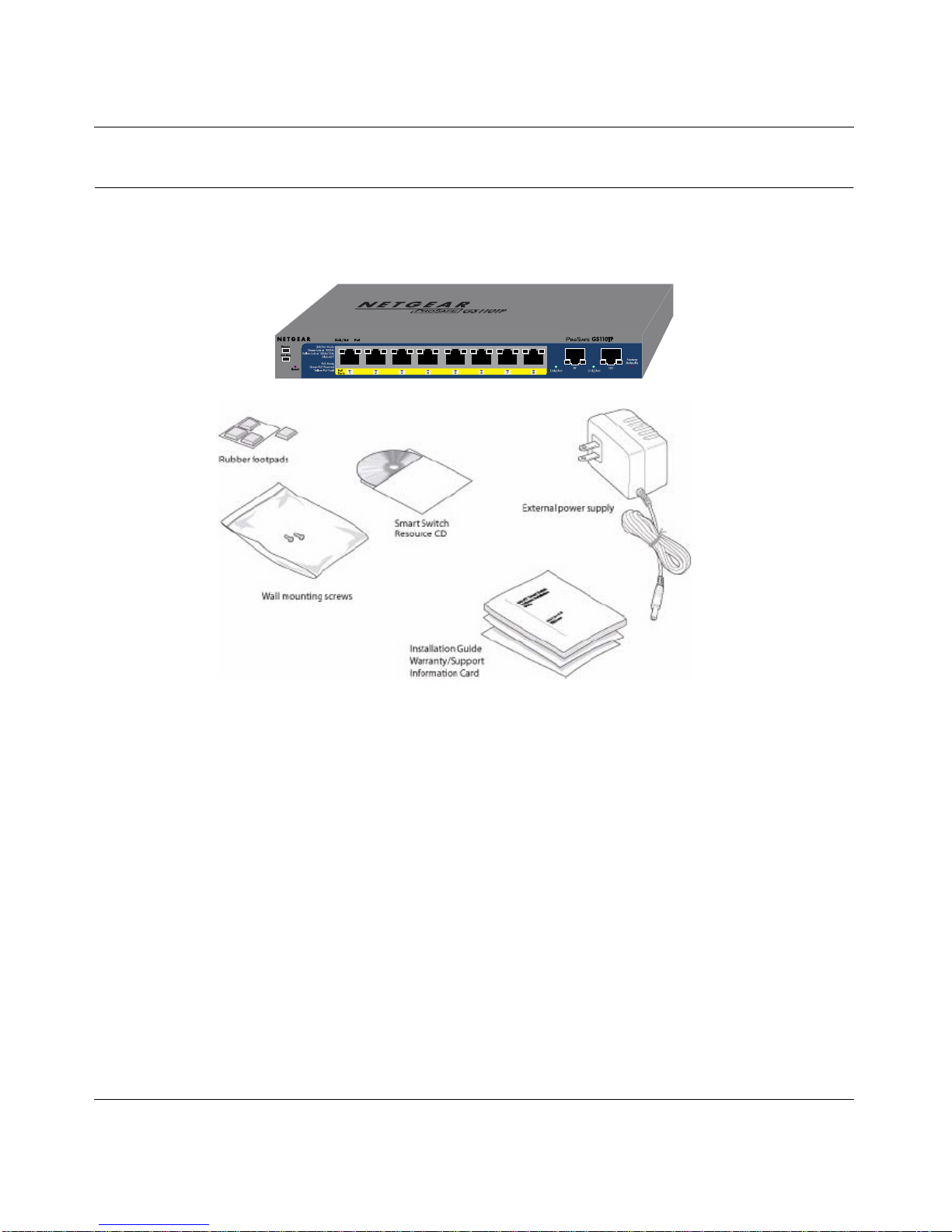

Figure 1-1 shows the package contents of the NETGEAR GS110TP Smart PoE Switch.
Figure 1-1
Verify that the package contains the following:
• NETGEAR GS110TP Smart PoE Switch
• Rubber footpads for tabletop installation
• Wall mounting screws (2)
• External power adapter
• Installation guide
• Smart Switch Resource CD with Netgear Smart Control Center and User’s manual
If any item is missing or damaged, contact the place of purchase immediately.
