Model GS504 4-Port Gigabit Switch Installation Guide

The NETGEAR

™

Model GS504 4-Port Gigabit Switch provides you with a low-

cost, high-performance network solution and is designed to anchor and

interconnect 10/100 megabits per second (Mbps) workgroups using gigabit ﬁber

links.

The Model GS504 switch has the following key features:

• Four full-duplex gigabit ﬁber ports with standard SC connectors

The ports support multimode optical ﬁber (SX) up to 525 meters (m) with

m. With 62.5

m ﬁber cable, the maximum distance is 260 m.

• Automatic address learning function to build the packet-

forwarding information table

The table contains up to 8,000 MAC addresses (that is, the switch can

support networks with as many as 8,000 devices).

• Full-duplex mode to double throughput of point-to-point connections by

letting individual ports transmit and receive concurrently when the other end

also supports full-duplex mode

The default is full-duplex mode if the connected device does not support N-

way negotiation. Most gigabit ﬁber links run in full-duplex mode.

• Wire-speed ﬁltering and forwarding of the trafﬁc with no delay

• Store-and-forward intelligent processing to minimize erroneous packets on

the network

• Easy plug-and-play installation with no software to conﬁgure, which saves

time and minimizes the potential for conﬁguration errors

Start Here

Features

Model GS504 4-Port Gigabit Switch Installation Guide

Protocol independence and compatibility with all major protocols such as TCP/IP, NetWare, DECnet, and Microsoft Networks

Verify that your package contains the following:

• Model GS504 switch

• Rubber footpads for tabletop installation

• This installation guide

• Rack mount kit for 19-inch rack installation

• Warranty & Owner Registration Card

• Support Information Card

• Power cord

Package Contents

9328FA

Installation guide,

Warranty & Owner

Registration Card,

Support Information Card

Model GS504 Switch

power

cord

Rubber

footpads

Rack mount

kit

Power

Green=FDX, Yellow=Col

Activity Tx Rx

123 4

Link

1234

GS504SX

MODEL

Gigabit Fiber Switch

4PORT

10/100Mbps

Ethernet

Tx Rx Link Tx Rx Link Tx Rx Link

Model GS504 4-Port Gigabit Switch Installation Guide

Front Panel

The front panel of the Model GS504 switch contains the following LEDs that

correspond to each network port: Activity (Rx/Tx) and FDX (full-duplex)/

Collision. Each ﬁber network port has its own Link LED (located to the right of

each 1000 Mbps port).

LEDs

The table below describes the activity of the LEDs.

Label Color Activity Description

Power Green On

Off Power is supplied to the switch.

Power is disconnected.

FDX/Col Green

Yellow

Off

Blinking

The port is operating in full-duplex mode.

The port is operating in half-duplex mode.

Data collisions are occurring on the port. In a full-

duplex environment, there is no collision.In a half-

duplex environment, some collisions are normal.

Activity Green Blinking Packet transmission or reception is occurring on

the port.

Link Green On

Off A valid 1000 Mbps link is established on the port.

A link is not established on the port.

Product Illustration

Power

Green=FDX, Yellow=Col

Activity Tx Rx

123 4

Link

1234

GS504SX

MODEL

Gigabit Fiber Switch

4PORT

10/100Mbps

Ethernet

Tx Rx Link Tx Rx Link Tx Rx Link

Front Panel of the Model GS504 Switch

Power LED

Fiber network

ports

Activity

LEDs

FDX/Collision LED

9318FA

Link

LED

Model GS504 4-Port Gigabit Switch Installation Guide

Rear Panel

The rear panel of the Model GS504 switch has fans for cooling and a standard

AC power receptacle for the supplied power cord.

Desktop Switching

The Model GS504 switch is used as a desktop switch to build a powerful

network that enables users to have 1000 Mbps access to a ﬁle server. If a full-

duplex adapter card is installed in the server or PC, a 2000 Mbps connection will

be provided to each server and PC.

9320FA

100-240 VAC 50-60 Hz

AC power

outlet

Rear Panel of the Model GS504 Switch

Fans

Applications

Model GS504 Switch

Key

1000 Mbps

PCs PC

Server

9326FA

GS504SX

MODEL

GigabitFiber Switch

4PORT

10/100Mbps

Ethernet

igabit

Model GS504 4-Port Gigabit Switch Installation Guide

Segment Switching and Bridging from 10/100 Mbps to

1000 Mbps

The Model GS504, as illustrated below, connects multiple power workgroups

and servers using high-speed gigabit ﬁber links. Each power workgroup is

anchored by a NETGEAR FS509 switch. Because each ﬁber link can be up to

525 m long, these workgroups can be located on separate ﬂoors or in different

buildings.

Before you begin installing your switch, prepare the installation site. Make sure

your operating environment meets the operating environment requirements of

the equipment.

Characteristic Requirement

Temperature Ambient temperature between 0

and 40

C (32

and 104

F).

No nearby heat sources such as direct sunlight, warm air

exhausts, or heaters.

Operating humidity Maximum relative humidity of 90%, noncondensing.

Ventilation Minimum 2 inches (5.08 cm) on all sides for cooling.

Adequate airﬂow in room or wiring closet.

Operating conditions At least 6 feet (1.83 m) to nearest source of electromagnetic

noise (such as photocopy machine or arc welder).

Power Adequate power source within 6 feet (1.83 m).

FS509

MODEL

Fast Ethernet Switch

9PORT

10/100Mbps

Ethernet

GS504SX

MODEL

GigabitFiber Switch

4PORT

10/100Mbps

Ethernet

igabit

FS509

MODEL

Fast Ethernet Switch

9PORT

10/100Mbps

Ethernet

Model GS504

Switch

Model RT328

Router

Model FS509

Switches

Key

2000 Mbps

100 Mbps

10 Mbps

PCs PCs

Server 1 Server 2

9327FA

Prepare the Site

Model GS504 4-Port Gigabit Switch Installation Guide

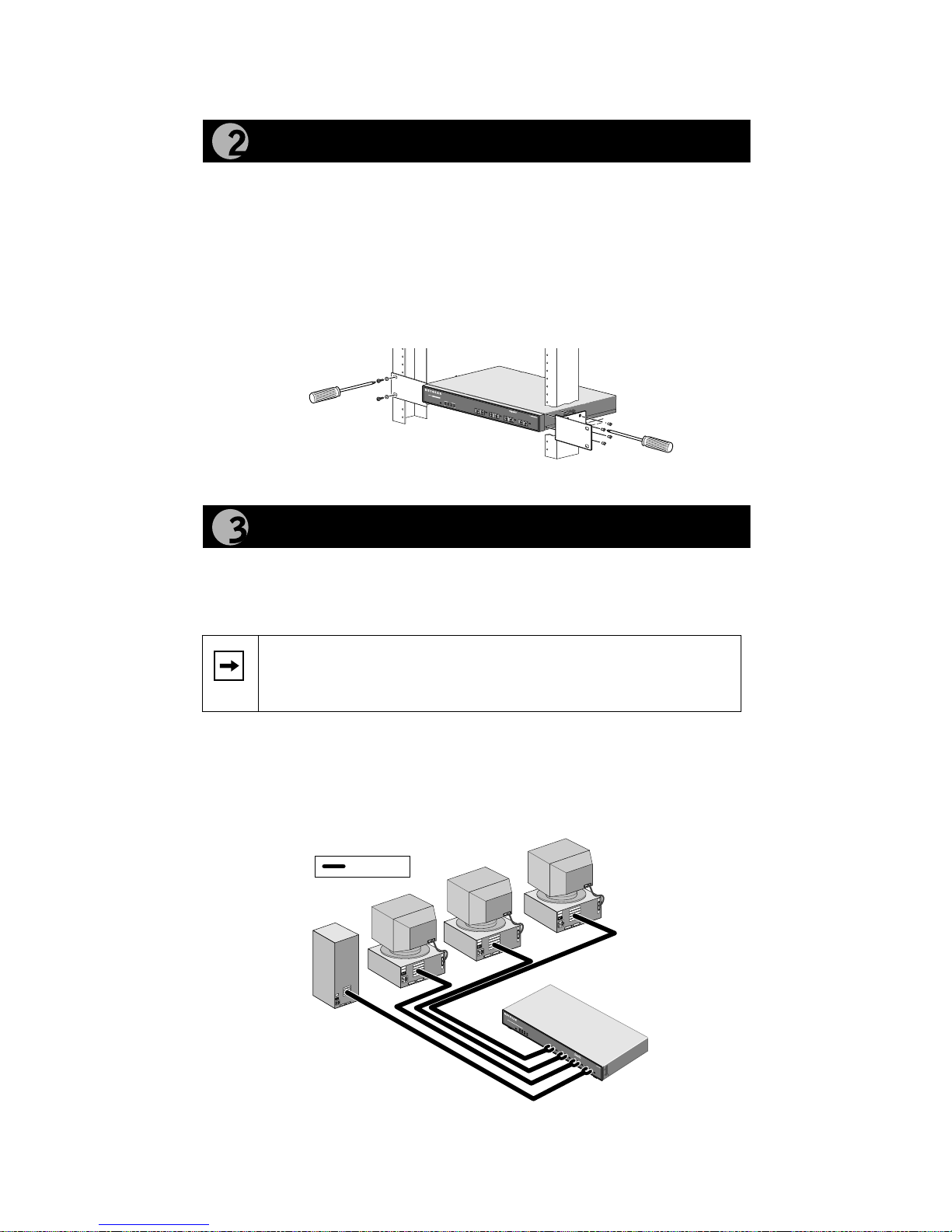

Installation on a Flat Surface

To install the switch on a ﬂat surface, be sure to attach the rubber footpads to the

bottom of the switch.

Installation in a Rack

Refer to the following illustration when installing the switch in a rack.

To connect the switch:

1. Connect the devices to the network ports on the switch, using 50

m or

62.5

m multimode ﬁber cables with SC plugs.

2. Connect one end of the DC power adapter cable to the power outlet on

the rear panel of the switch and the other end of the power adapter

cable to the wall outlet.

Refer to the following illustration when connecting the switch.

Note:

Ethernet speciﬁcations limit the cable length between your PC

or server and the switch to 525 m for 50

m and 260 m for 62.5

ﬁber.

Installation

9378FA

(Model GS504 Switch shown)

Power

Green=FDX,Yellow=Col

ActivityTxRx

1234

Link

1234

GS504SX

MODEL

GigabitFiberSwitch

PORT

10/100Mbps

Ethernet

TxR

xLinkTxRxLinkTxRxLink

Connecting Devices to the Switch

1000MLink

GS518

MODEL

Fast Ethernet Switch

PORT

10/100Mbps

678

Power

TxRx

Ethernet

9330FA

1000 Mbps

Key

1000MLink

TxRx

1000MLink

TxRx

1000MLink

TxRx

Model GS504 4-Port Gigabit Switch Installation Guide

Using the SC Connector

The duplex SC connector connects stations, hubs, and switches that support the

1000BASE-SX ﬁber interface. Each ﬁber link needs a clearly deﬁned, external

crossover. In other words, the transmit port of one interface must be wired to the

receive port of the opposite interface and vice versa. Fiber cables must be

connected in this manner to transmit and receive data.

When power has been applied to the switch, verify that:

•The green Pwr LED on the front panel is on.

•The green Link LED on each connected port is on.

When the switch is connected and operating, refer to the table in “LEDs”for

information about the LEDs and their activity.

8895FA

Tx Rx

Verify Installation

Model GS504 4-Port Gigabit Switch Installation Guide

Symptom Cause Solution

Power LED is off. No poweris received

at the hub. Check the power cord connections for the

switch and the connected device.

Make sure all cables used are correct and

comply with Ethernet speciﬁcations.

Link LED is off or

intermittent. Port connection is

not functioning. Check the crimp on the ﬁber connectors and

make sure that the plug is properly inserted

and locked into the port at both the switch

and the connecting device.

Make sure all cables used are correct and

comply with Ethernet speciﬁcations.

Check for a defective adapter card, cable, or

port by testing them in an alternate

environment where all products are

functioning.

File transfer is

slow or

performance

degradation is a

problem.

Half- or full-duplex

setting on the

NETGEAR switch

and the connected

device are not the

same.

Make sure the remote link partner is set to

autonegotiate or forced to full-duplex

operation.

A segment or

device is not

recognized as

part of the

network.

One or more devices

are not properly

connected, or

cabling does not

meet Ethernet

guidelines.

Verify that the cabling is correct. Be sure all

cable connectors are securely positioned in

the required ports. Equipment may have

been accidentally disconnected.

FDX/Col LED is

blinking yellow

excessively.

Collisions are

occurring on the

connected segment.

Some collisions are normal when the

connection is operating in half-duplex mode.

Duplex modes are

mismatched. Recheck the link partner settings.

Troubleshooting Information

Model GS504 4-Port Gigabit Switch Installation Guide

General Speciﬁcations

Model GS504 Switch

Network Protocol and Standards

Compatibility

IEEE 8023z 1000BASE-SX

Data Rate

1000 Mbps with 8B/10B encoding

Interface

Duplex SC connector for 1000BASE-SX Gigabit

Ethernet

Power Consumption

25 W

InputVoltage (Power Adapter)

100–240 V AC

Physical Speciﬁcations

Dimensions: 13.0 x 1.7 x 8.0 in.

33.0 x 4.3 x 20.7 cm

Weight: 5.3 lb; 2.3 kg

Environmental Speciﬁcations

Operating temperature: 0

to 40

C (32

to 104

Operating humidity: 90% maximum relative humidity, noncondensing

Electromagnetic Compliance

CE mark, commercial

FCC Part 15 Class A

VCCI Class A

EN 55022 (CISPR 22) Class A, EN50082-1

C-Tick

Safety Agency Approvals

UL Listed (UL 1950), cUL

TUV Licensed (EN 60 950), IEC 95

Performance Speciﬁcations

Frame ﬁlter rate: 1,480,000 frames/second maximum

Frame forward rate: 1,480,000 frames/second maximum

Network latency (using 64-byte

packets): 30 microseconds maximum

Address database size: 8,000 media access control (MAC) addresses

Addressing: 48-bit MAC address

Queue buffer: 2 MB memory per port

Technical Specifications

Otros manuales para ProSafe GS504

Tabla de contenidos

Otros manuales de Cambiar de NETGEAR

NETGEAR

NETGEAR XS728T ProSAFE Manual

NETGEAR

NETGEAR GSM7312 - ProSafe Layer 3 Managed Gigabit... Manual de usuario

NETGEAR

NETGEAR FSM7328S - ProSafe Switch Manual de usuario

NETGEAR

NETGEAR DS508 - Hub - Stackable Manual de usuario

NETGEAR

NETGEAR GS108Tv1 - Gigabit Smart Switch Manual

NETGEAR

NETGEAR EN104 - Hub - EN Manual de usuario

NETGEAR

NETGEAR ProSafe GSM5212P Manual de usuario

NETGEAR

NETGEAR ProSafe GS108v3 Manual de usuario

NETGEAR

NETGEAR GS605 - Gigabit Desktop Switch Manual de usuario

NETGEAR

NETGEAR ProSAFE M4300 series Manual de usuario

NETGEAR

NETGEAR GS110TP - ProSafe Gigabit Smart Switch Manual de usuario

NETGEAR

NETGEAR GS205 Manual de usuario

NETGEAR

NETGEAR ProSafe FS116 Manual de usuario

NETGEAR

NETGEAR ProSafe GSM5212P Manual de usuario

NETGEAR

NETGEAR FS566 - Switch Manual de usuario

NETGEAR

NETGEAR GS724TPS - ProSafe - Gigabit Stackable PoE Smart... Manual de usuario

NETGEAR

NETGEAR FSM7328S - ProSafe Switch Manual de instrucciones

NETGEAR

NETGEAR GS605 - Gigabit Desktop Switch Manual de usuario

NETGEAR

NETGEAR FS728TS - ProSafe Smart Switch Manual

NETGEAR

NETGEAR Smart Switch GS752TXS Manual de usuario

NETGEAR

NETGEAR DS309 - Hub Manual de usuario

NETGEAR

NETGEAR GSM7248R - ProSafe Switch Manual del propietario

NETGEAR

NETGEAR ProSafe GS116 Manual de usuario

NETGEAR

NETGEAR GSM7224v2 - Layer 2 Managed Gigabit Switch Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
