Evaluation Board User’s Guide for

ADC12V170: 12-Bit, 170 MSPS Analog to Digital Converter

with LVDS Outputs

ADC12V170 Evaluation Board User’s Guide

N- 2 - www.national.com

Rev 0.0

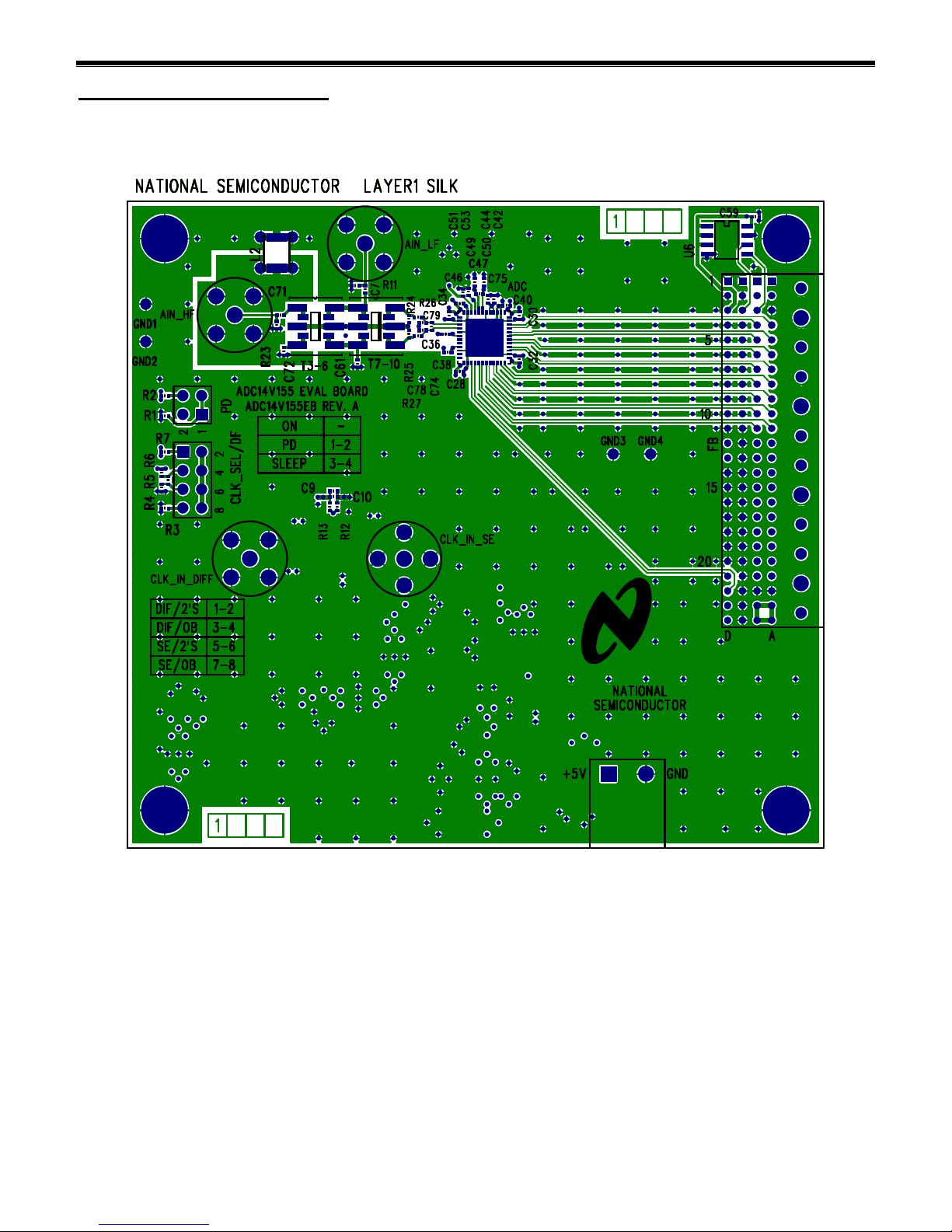

Figure 1. ADC12V170 Evaluation Board Connector and Jumper Locations

Analog Input

< 1

0 MHz

Single-

Ended

Clock

Input

5.0V Power

Connector

ADC

CLK_SEL/DF

Jumper

Clock

Buffer

(Reverse

Side)

Analog Input

Network

Analog Input

> 1

0 MHz

FutureBus

Connector

ADC12V170 Evaluation Board User’s Guide

N- 3 - www.national.com

Rev 0.0

1.0 Introduction

The ADC12V170 Evaluation Board is designed to

support the ADC12V170 12-bit 170 Mega Sample Per

Second (MSPS) Analog to Digital Converter with LVDS

Outputs.

The ADC12V170 Evaluation Board comes in two

versions:

1. ADC12V170HFEB (high frequency version)

for input frequencies greater than 150 MHz.

2. ADC12V170LFEB (low frequency version) for

input frequencies less than 150 MHz.

The digital data from the ADC12V170 evaluation board

can be captured with a suitable instrument, such as a

logic analyzer, or with National Semiconductor’s

WaveVision signal path data acquisition hardware and

software platform. The ADC12V170 evaluation board

can be connected to the data acquisition hardware

through the FutureBus connector (schematic reference

designator FB).

The ADC12V170 is compatible with National

Semiconductor’s WaveVision 5.1 and higher Signal

Path Digital Interface Board and associated

WaveVision software. Please note that the

ADC12V170 board is not compatible with previous

versions of the WaveVision hardware (WaveVision 4.x

Digital Interface Boards).

The WaveVision hardware and software package

allows fast and easy data acquisition and analysis. The

WaveVision hardware connects to a host PC via a USB

cable and is fully configured and controlled by the latest

WaveVision software. The latest version of the

WaveVision software is included in this evaluation kit

on a CD-ROM. The WaveVision 5.1 Signal Path Digital

Interface hardware is available through the National

Semiconductor website (part number: WAVEVSN 5.1).

2.0 Board Assembly

Each evaluation board from the factory is configured for

single-ended clock operation and is populated with an

analog input network which has been optimized for one

of two analog input frequencies ranges:

1. ADC12V170HFEB (high frequency version)

for input frequencies greater than 150 MHz.

2. ADC12V170LFEB (low frequency version) for

input frequencies less than 150 MHz.

Please refer to the input circuit configurations

described in the Analog Input Section (4.2) of this

guide.

The location and description of the components on the

ADC12V170 evaluation board can be found in Figure 1

as well as Section 5.0 (Schematic) and Section 7.0 (Bill

of Materials) of this user’s guide.

3.0 Quick Start

The ADC12V170 evaluation board enables easy set up

for evaluating the performance of the ADC12V170.

If the WaveVision data acquisition and data analysis

system is to be used for capturing data, please follow

the Quick Start Guide in the WaveVision User’s Guide

to install the required software and to connect the

WaveVision Digital Interface Board to the PC and to

the ADC12V170 evaluation board. Please note that the

ADC12V170 evaluation board is only compatible with

National Semiconductor’s WaveVision 5.1 and higher

Signal Path Digital Interface boards.

3.1 Evaluation Board Jumper Positions

The ADC12V170 evaluation board jumpers should be

configured as follows. Please refer to Figure 1 for the

exact jumper locations.

1. J1 on the reverse of the board should be shorted.

2. The PD jumper places the ADC12V170 into either

powerdown or sleep mode. Table 1 below shows

how to select between the power modes.

PD Jumper

Setting

Mode

Open Normal Operation

1-2 Power-down

3-4 Sleep

Table 1. CLK_SEL/DF Selection Table

3. CLK_SEL/DF pin jumpers select the output data

format (2’s complement or offset binary) and clock

mode (single-ended or differential). Table 2 below

shows how to select between the clock modes and

output data formats. Please note that the

ADC12V170 evaluation board is delivered with the

ADC12V170 clock input configured for single-

ended operation and Offset Binary output data

format (Jumper 7-8).

CLK_SEL/DF

Jumper

Setting

Clock Mode Output Data

Format

1-2 Differential 2’s Complement

3-4 Differential Offset Binary

5-6 Single-Ended 2’s Complement

7-8* Single-Ended Offset Binary

* As assembled from factory.

Table 2. CLK_SEL/DF Selection Table

ADC12V170 Evaluation Board User’s Guide

N- 4 - www.national.com

Rev 0.0

3.2 Connecting Power and Signal Sources

1. To power the ADC12V170 evaluation board,

connect a 5.0V power supply capable of supplying

up to 500mA to the green power connector labeled

“+5V” which is located along the bottom edge of

the ADC12V170 evaluation board.

2. Use the FutureBus connector (FB) to connect the

ADC12V170 evaluation board to the instrument

being used to capture the data from the evaluation

board. If the WaveVision Digital Interface Board is

being used for data capture, please consult the

WaveVision User’s Guide for details on installing

and operating the WaveVision hardware and

software system.

3. Connect the clock and signal inputs to the

CLK_IN_SE and AIN_XX (where XX = HF or LF)

SMA connectors.

4.0 Functional Description

4.1 Clock Input

The clock used to sample the analog input should be

applied to the CLK_IN_SE SMA connector (if using the

single-ended clock mode).

To achieve the best noise performance (best SNR), a

low jitter clock source with total additive jitter less than

150 fs should be used. A low jitter crystal oscillator is

recommended, but a sinusoidal signal generator with

low phase noise, such as the SMA100A from Rohde &

Schwarz or the HP8644B (discontinued) from Agilent /

Hewlett Packard, can also be used with a slight

degradation in the noise performance. When using a

low phase noise clock source, the SNR is primarily

degraded by the broadband noise of the signal

generator. The clock signal generator amplitude is

typically set to +19.9 dBm to produce the highest

possible slew rate, but the SNR performance will be

impacted minimally by lowering the signal generator

amplitude slightly. Placing a bandpass filter between

the clock source and the CLK_IN_SE SMA connector

will further improve the noise performance of the ADC

by filtering out the broadband noise of the clock source.

All results in the ADC12V170 datasheet are obtained

with a tunable bandpass filter made by Trilithic, Inc. in

the clock signal path.

The noise performance of the ADC12V170 can be

improved further by making the edge transitions of the

clock signal entering the ADC clock input (pin 11,

CLK+) very sharp. The ADC12V170 evaluation board

is assembled with a high speed buffer gate

(NC7WV125K8X, schematic reference designator U2)

in the clock input path to provide a sharp clock edge to

the clock inputs and improve the noise performance of

the ADC. The amplitude of the clock signal from the

NC7WV125K8X high speed buffer is 3.3V.

4.2 Analog Input

To obtain the best distortion results (best SFDR), the

analog input network on the evaluation board must be

optimized for the signal frequency being applied.

For analog input frequencies up to 150 MHz, the circuit

in Figure 2 is recommended. This is the configuration

of the assembled ADC12V170LFEB as it is delivered

from the factory. For input frequencies above 150

MHz, the circuit in Figure 3 is recommended. This is

the configuration of the assembled ADC12V170HFEB

as it is delivered from the factory.

A low noise signal generator such as the HP8644B is

recommended to drive the signal input of the

ADC12V170 evaluation board. The output of the signal

generator must be filtered to suppress the harmonic

distortion produced by the signal generator and to allow

accurate measurement of the ADC12V170 distortion

performance. A low pass or a bandpass filter is

recommended to filter the analog input signal. In some

cases, a second low pass filter may be necessary. The

bandpass filter on the analog input will further improve

the noise performance of the ADC by filtering the

broadband noise of the signal generator. Data shown

in the ADC12V170 datasheet was taken with a tunable

bandpass filter made by Trilithic in the analog signal

path.

ADC12V170 Evaluation Board User’s Guide

N- 5 - www.national.com

Rev 0.0

Figure 2. Analog Input Network of ADC12V170LFEB: FIN < 150 MHz

Figure 3. Analog Input Network of ADC12V170HFEB: FIN > 150 MHz

4.3 ADC Reference and Input Common Mode

The internal 1.0V reference on the ADC12V170 is used

to acquire all of the results in the ADC12V170

datasheet. It is recommended to use the internal

reference on the ADC12V170. However, if an external

reference is required, the ADC12V170 is capable of

accepting an external reference voltage between 0.9V

and 1.1V (1.0V recommended). The input impedance

of the ADC12V170 VREF pin (pin 46) is 9 kΩ.

Therefore, to overdrive this pin, the output impedance

of the exernal reference source should be << 9 kΩ.

It is recommended to use the voltage at the VRM pin

(pin 45) of the ADC12V170 to provide the 1.5V

common mode voltage required for the differential

analog inputs VIN+ and VIN-. The ADC12V170

evaluation board is factory-assembled with VRM

connected to the transformer center-tap through a

49.9Ωresistor to provide the necessary common mode

voltage to the differential analog input.

4.4 Board Outputs

The digitized 12-bit output word from the ADC12V170

evaluation board is presented in interleaved double

data rate (DDR) format. The digital output lines from

the ADC12V170 evaluation board consist of 16 lines

which are arranged into 8 LVDS pairs. These 8 pairs

of lines carry the 12-bit output data (6 pairs), the DRDY

signal which should be used to capture the output data

(1 pair) and the over-range bit (OVR) which indicates

that the digital output has exceeded the maximum

digitizable signal (1 pair).

Since the data is presented in interleaved double data

rate (DDR) format, the 12-bit word is output on 6 data

pair lines with half of the data (odd bits: D1+/-, D3+/-,

ADC12V170 Evaluation Board User’s Guide

N- 6 - www.national.com

Rev 0.0

…, D11+/-) being emitted with one clock edge during

the first half of the clock period and the other half of the

data (even bits: D0+/-, D2+/-, …, D10+/-) being emitted

with the opposite clock edge during the second half of

the clock period. The odd data bits should be captured

with the falling edge of DRDY and the rising edge of

DRDY should be used to capture the even bits of the

data.

The data is available on the evaluation board at pins

A5/B5 (MSB +/-) through A10/B10 (LSB +/-) of the

FutureBus connector (schematic reference designator

FB). Please keep in mind that because the data is in

DDR format, pins A5/B5 will carry data bit D11+/-

during the first half of the clock period and these lines

will carry bit D10+/- during the second half of the clock

period. Similarly, pins A10/B10 will carry D1+/- during

the first half of the clock period and these pins will carry

D0+/- during the second half of the clock period. The

DRDY signal which is used to capture the data is also

in LVDS format and it is available at pins A4/D4

(DRDY+/-) on the FutureBus connector. The over-

range bit (OVR) LVDS signal is available on pins

D22/D21 (OVR+/-) on the FutureBus connector.

Please see the Evaluation Board schematic in Section

5.0 and the ADC12V170 datasheet for further details.

4.5 Power requirements.

Power to the ADC12V170 evaluation board is supplied

through the green power connector labeled “+5V”

which is located along the bottom edge of the board.

Voltage and current requirements are:

•+5V capable of providing up to 500mA (ADC12V170

evaluation board only)

ADC12V170 Evaluation Board User’s Guide

N- 7 - www.national.com

Rev 0.0

5.0 Evaluation Board Schematic

Figure 4. Signals

ADC12V170 Evaluation Board User’s Guide

N- 8 - www.national.com

Rev 0.0

5.0 Schematic (cont.)

Figure 5. Power Distribution

ADC12V170 Evaluation Board User’s Guide

N- 9 - www.national.com

Rev 0.0

6.0 Evaluation Board Layout

Figure 6. Layer 1 - Signal

ADC12V170 Evaluation Board User’s Guide

N- 10 - www.national.com

Rev 0.0

6.0 Evaluation Board Layout (cont.)

Figure 7. Layer 2 - Ground

Tabla de contenidos

Otros manuales de Placa madre de National Semiconductor

National Semiconductor

National Semiconductor LMX2531LQ1515E Manual de usuario

National Semiconductor

National Semiconductor LM26LV Manual de usuario

National Semiconductor

National Semiconductor SD394EVK Manual de usuario

National Semiconductor

National Semiconductor POEPHYTEREV-E Manual de usuario

National Semiconductor

National Semiconductor ADC081500DEV Manual de usuario

National Semiconductor

National Semiconductor DS10CP152 Manual de usuario

National Semiconductor

National Semiconductor LM64 Manual de usuario

National Semiconductor

National Semiconductor INA260 Manual de usuario

National Semiconductor

National Semiconductor LMX2531LQ1415E Manual de usuario

National Semiconductor

National Semiconductor LP3972 Manual de usuario

National Semiconductor

National Semiconductor CLINK3V28BT-85 Manual de usuario

National Semiconductor

National Semiconductor ADC10DV200 Manual de usuario

National Semiconductor

National Semiconductor LMX2531LQ1700E Manual de usuario

National Semiconductor

National Semiconductor DRV2605EVM-BT Manual de usuario

National Semiconductor

National Semiconductor ADC16DV160HFEB Manual de usuario

National Semiconductor

National Semiconductor LMX2531LQ3010E Manual de usuario

National Semiconductor

National Semiconductor LMX2531LQ1226E Manual de usuario

National Semiconductor

National Semiconductor ADS54J69EVM Manual de usuario

National Semiconductor

National Semiconductor LM4985 Manual de usuario

National Semiconductor

National Semiconductor TAS2557 Manual de usuario

National Semiconductor

National Semiconductor LM48821 Manual de usuario

National Semiconductor

National Semiconductor ADC14DC105 Manual de usuario

National Semiconductor

National Semiconductor TSW3070EVM Manual de usuario

National Semiconductor

National Semiconductor DS25CP104 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
