User's Guide

SNVA235A–May 2007–Revised April 2013

AN-1621 LP3972 USB Evaluation Board Rev B

1 General Description

The LP3972 Flex PMU is a complete power management IC designed for advanced processors. It

contains 5 low noise low dropout regulators, 3 DC/DC buck converters, a backup battery charger, real

time clock supply regulator [RTC], 2 GPO’s and high speed I2C serial interface to program individual

regulator output voltages as well as offer on/off control. This USB evaluation board features independent

USB powering, virtual voltmeter bank all in a compact demonstration platform.

2 Key Features

• 2.7V to 5.5V input voltage range

• Programmable VOUT 0.8 to 3.3 volts

• Up to 95% efficiency

• ±3% output voltage accuracy

• 1.5A output current [bucks]

3 Applications

• Personal Media Players

• Smart Phones

• PDA Phones

• Digital Cameras

4 Evaluation Board/Kit Overview

The LP3972 Evaluation Board supports complete functional evaluation of the power management IC. The

functions of the chip are controlled by the I2C interface. The I2C interface on the rev B and later USB

boards are driven via a COP8 microprocessor which supports a connection via the USB port and offers

chip powering and virtual software voltage measurement of all regulators. In addition, the LP3972 can be

powered directly through the USB port for full function. If high current Buck testing is desired, an external

LI ION cell or PS capable of supplying 2 amps or more will need to be connected to the appropriate

connector.

The evaluation board/kit consists of:

• LP3972 Flex_PMU device soldered down in RSB-40 pin 5X5 WQFN package

• Full USB interface

• LED LDO monitoring with current limit resistors [selectable]

• External power LDO, Buck output and main battery/supply connectors offered in heavy duty turret pins

and solder pads

• Socket for back-up battery

• Users guide

• Codeloader Software version 1.2.0.2 or greater [may be sent via email]

All trademarks are the property of their respective owners.

SNVA235A–May 2007–Revised April 2013 AN-1621 LP3972 USB Evaluation Board Rev B

USB B connector

COP8CBDE9

8 Bit CMOS microcontroller with

8K memory, 10 Bit AD converter LP3972

FlexPMU

USB 9604

Full speed node controller

Enhanced DMA support

SDA/SCL

communications

Analog to Digital conversion

voltmeter lines

LDO outputs and LED

monitoring

Buck switcher ouputs

and LED monitoring

Power selection

USB/External

External VCC Pads

/Turret pins

Evaluation Board/Kit Overview

www.ti.com

Figure 1. LP3972 Evaluation Board Version B

Figure 2. LP3972 Flex_PMU USB Evaluation Board Block Operational Diagram

2AN-1621 LP3972 USB Evaluation Board Rev B SNVA235A–May 2007–Revised April 2013

Submit Documentation Feedback

www.ti.com

Pin Description 5 × 5 Package

5 Pin Description 5 × 5 Package

Pin # Name I/O (1) Type (1) Description

1 PKEY I D CPU Wakeup Input

2 nTJ I D CPU Wakeup Input

3 SP I D CPU Wakeup Input

4 EXT_WAKEUP O D CPU Wakeup Input

5 FB1, Feedback Buck1 I A Buck 1 Feedback

6 VIN1 = VBATT I P Battery Input for Powering Internal

Circuits and LDO1-3

7 LDO_VOUT_1 O P LDO1 Output

8 LDO_VOUT_2 O P LDO2 Output

9 nRST In I D Chip Reset Input

10 LDO GND 1 G G Ground

11 LDO VREF Bypass O A Bypass Capacitor for Reference

12 LDO_VOUT_3 O P LDO3 Output

13 LDO_VOUT_4 O P LDO4 Output

14 VIN LDO_4 I P Input Power for LDO4

15 Back-Up Battery VIN I P Back Up Battery Input

16 LDO_VOUT_0 (RTC) O P LDO_RTC Output

17 nBatt_FLT O D Main Battery Fault Output

18 PGND Buck2 G G Ground

19 VOUT Buck2 O P Buck Switcher2 Output

20 VIN Buck2 I P Buck Switcher 2 Battery Input

21 SDA I/O D I2C Data Line

22 SCL I D I2C Clock Input

23 FB2, Feedback Buck2 I A Buck Switcher 2 Feedback

24 nRST Out O D Reset Output

25 LDO_VOUT_5 O P LDO5 Output

26 VIN2 (LDO 5 Only) I P Battery Input Power for LDO5

27 VDDA I P Analog Power Input

28 FB3, Feedback Buck3 I A Buck Switcher 3 Feedback

29 GPIO1/nCHG_EN I/O D General Purpose I/O #1/BUBATT

Charger EN

30 GPIO2 I/O D General Purpose I/O #2

31 VIN Buck3 I P Buck Switcher 3 Battery Input

32 VOUT Buck3 I P Buck Switcher 2 Output

33 PGND Buck3 G G Buck3 NMOS Power Ground

34 Buck 1 2 & 3 AVSS/NCHBLK G G Buck1, 2, 3 Analog Ground

35 SYNC (Buck Clock input) I D Buck Switcher External Clock Input

36 Sys_En I D Power Domain Enable

37 Pwr_En I D Power Domain Enable

38 PGND Buck1 G G Buck1 NMOS Power Ground

39 VOUT Buck1 O P Buck Switcher 1 Output

40 VIN Buck1 I P Buck Switcher 1 Battery Input

(1) A: Analog Pin; D: Digital Pin; G: Ground Pin; I: Input Pin; I/O: Input/Output; O: Output Pin; P: Power Pin

SNVA235A–May 2007–Revised April 2013 AN-1621 LP3972 USB Evaluation Board Rev B

Operating Instructions

www.ti.com

6 Operating Instructions

The following instructions give general instructions for use of LP3972 with the evaluation board. Practice

standard ESD protection (ground cable) to prevent any unwanted damaging ESD events.

1. Check that the jumpers are in default settings (jumpers are introduced later in this document).

2. Load version .202 or later of the codeloader program into PC.

3. Connect the USB cable [standard USB AB cable] from the USB connector to PC port.

4. Open the codeloader program up, verify that “USB” port has been selected.

5. Verify that successful communications link has been established by toggling “READ ALL”.

6. If there is no communication, key the USB RST [SW1] switch once on the board for reboot.

7. If the voltmeter monitoring function is desired, select “POLL STATUS”.

8. LDO/buck outputs may be monitored directly off the appropriate header output pins.

9. Note that for full load testing, an external PS must be connected to TP1/TP2 and jumper J1 must be

removed. This is because the USB port source spec is limited to 500 mA and removing the jumper will

disconnect the USB supply.

10. PWR EN/SYS En is selectable via codeloader software assignment.

11. Hardware reset can be accomplished by pressing the nREST_In momentary switch.

12. Battery backup is possible by inserting appropriate rechargeable cell into supplied holder.

13. Switches PKEY, nTJ, and SP, are provided for use in normal evaluation mode.

7 List of Components

Item Qty Reference Value Pkg. Manuf. Part Number

1 5 C1,C21,CC,CD,CF1 10 µF 0805 Panasonic ECJ2FF1A106Z

2 2 C2,C3 100 µF 3528-21 Kemet T520B107M006ASE040

3 8 C4,C7,C13,C15,C16,C31,CA 1 µF 0805 Kemet C0805C105K4RACTU

,CB

4 6 C5,C6,C8,C9,C25,C29 10 µf 1206 Taiyo-Yuden JMK316BJ106M

5 6 C14,C19,C20,C23,C24,C26 0.47 µF 0805 TDK C2012X7R1E474K

6 2 C17,C18 47 pF 0805 Murata GRM2195C2A470JZ01D

7 4 C22,C30,C32,C33 0.1 µF 0805 Murata GRM21BR71E104KA01L

8 2 C27,C28 15 pF 0805 Yageo 0805CG150J9B200

9 1 BT2 Battery Holder SMT Seiko BH0414

10 1 NOT INSTALLED Backup Battery Micro4 Seiko MS412F

11 4 D6,D7,D10,D11 Schottky PM 457 On Semi MBRM120LT3

12 2 D8 (PWR EN), D9 (SYS EN) Green LED 1206 Lumex SML-LX1206GC-TR

13 9 LDO1(D13), LDO2(D14), Red LED 1206 Lumex SML-LX1206IC-TR

LDO3(D18), LDO4(D17),

LDO5(D19), LDORTC(D16)

D2,D3,D12

14 2 L1,L2 1 µH Inductor 0805 TDK MLF2012A1R0K

15 3 L3,L4,L5 2.2 µH Inductor SMT Toko FDSE0312

16 1 Q1 XTAL 24 MHz 18 PF SMD Citizen HCM49-24.000MABJT

17 7 R1,R2,R23,R31,R32,R33,R3 330Ω0805 SEI 807065R330

18 1 R8 100Ω0805 NIC NRC10J101TR

19 1 R9 49.9Ω0805 Rohm MCR10EZHF49R9

20 11 R10,R11,R12,R17,R18,R22, 10K 0805 Yageo 9C08052A1002FKHFT

R24,R26,R27,R36,R37

21 1 R12 0Ω0805 Yaego 9C08052A0R00JLHFT

4AN-1621 LP3972 USB Evaluation Board Rev B SNVA235A–May 2007–Revised April 2013

Submit Documentation Feedback

www.ti.com

List of Components

Item Qty Reference Value Pkg. Manuf. Part Number

22 4 R15,R16,R28,R29 133Ω0805 Rohm MCR10EZHF1330

23 2 R19,R20 22.1Ω0805 Vishay-Dale CRCW080522R1ERT1

24 1 R21 1M 0805 Yageo 9C08052A1004JLHFT

25 1 R25 1.5K 0805 Yageo 9C08052A1501FKHFT

26 1 D1 45.3Ω0805 Vishay-Dale CRCW080545R3F100

27 5 S1,S2,S3,S4,SW1 Touch Switch SMD Panasonic EVQ-PJU04K

28 1 U1 3.3V Regulator SOT-23 5 Texas LP29815-3.3

Instruments

29 1 U2 PMU RSB0040 Texas LP3972

Instruments

30 1 U3 USB Controller SOIC 28 Texas USBN9604-28M

Instruments

31 1 U4 Microcontroller TSSOP 48 Texas COP8CBE9

Instruments

32 1 U5 2V Regulator SOT-23 5L Texas LP3984-2.0

Instruments

33 1 U6 Voltage Converter SOT-23-6 Texas LM2664M6

Instruments

34 1 J1 100 mil Header 2 pos Amp 1 × 2 (4-103239-0-02)

35 1 J2 USB Receptacle 4 pos FCI 61729-0010B

36 1 J3 100 mil Header 4 pos Molex 1 × 4 (22-10-2041)

37 3 J4,J7,J8 100 mil Header 4 pos Amp 2 × 2 (4-103240-0-02)

38 1 J5 100 mil Header 12 pos Amp 2 × 6 (4-103240-0-06)

39 1 J6 GPO/LDO Headers 8 pos Amp 2 × 4 (4-103186-0-04)

40 9 TP9,TP10,TP11,TP16, Test Points 1 pos Amp 1 × 1 (4-103185-0-01)

TP17,TP18,TP23,TP24,TP25

41 8 TP2,TP4,TP6,TP8,TP13, Turret Terminal 0.109"L Keystone 1502-2

TP15,TP20,TP22

42 1 LP3972 version B Fab Bare board 4 Layer Rainbow Labs LP3972-B

SNVA235A–May 2007–Revised April 2013 AN-1621 LP3972 USB Evaluation Board Rev B

Powering and Jumpers Selection

www.ti.com

8 Powering and Jumpers Selection

The LP3972 USB evaluation platform offers several power connectors. These connectors are outlined on

the table below. In addition, the Evaluation board has jumpers for special modes and stand-alone use.

The default jumper settings are valid in normal operation and are also outlined below.

Component Use Comment

J5-1 Output for LDO1 Outside Pin of Connector is Grd

J5-2 Output for LDO2 Outside Pin of Connector is Grd

J5-3 Output for LDO3 Outside Pin of Connector is Grd

J5-4 Output for LDO4 Outside Pin of Connector is Grd

J5-6 Output for LDO5 Use LED Pad [Missed Pin]

J5-5 Output for RTC [Real time Clock] Outside Pin of Connector is Grd

J4-1 Input for external wakeup Outside Pin of Connector is Grd

J4-2 Output for nBATT Fault Outside Pin of Connector is Grd

J6-2 Output for nREST Outside Pin of Connector is Grd

J6-3 GPO 1 output Outside Pin of Connector is Grd

J6-4 GPO 2 output Outside Pin of Connector is Grd

J3-1 Cop8 microwire SO Used for Micro Flash Only

J3-2 Cop8 microwire SK Used for Micro Flash Only

J3-3 Cop8 microwire SI Used for Micro Flash Only

J3-4 Cop 8 Grd Used for Micro Flash Only

TP14-15 Output for Buck switcher 1 GRD is TP12-13

TP19-20 Output for Buck switcher 2 GRD is TP21-22

TP5-6 Output for Buck switcher 3 GRD is 7-8

USB USB connector Connect to PC via Supplied Cable

J1 Power usage selection Place Jumper for USB, NO JUMPER for

External Power Input

TP1-2 Connect external VCC supply here 3.5-5 volts Doubles for LI-ION Cell Input, Select

for high current testing Appropriate J1 Setting [2-3]

6AN-1621 LP3972 USB Evaluation Board Rev B SNVA235A–May 2007–Revised April 2013

Submit Documentation Feedback

www.ti.com

Demonstration Software Window

9 Demonstration Software Window

The demonstration software enables read and write to LP3972’s internal registers through PC’s USB port.

All the user controllable registers are usable through the software.

Installation: Run the codeloader for LP3972 version .202 or greater.

After startup the user can verify that successful USB communication has been established by selecting

“Read All”, the default programmed voltages should appear.

LDO’s can be enabled and disabled by clicking mouse left button on the square close to each LDO

voltage slider. Changing the virtual slider changes the LDO voltage. After the WRITE button is pressed

subsequent LDO changes are applied if the ‘autowrite’ feature is disabled.

Note ‘Autowrite’ enabled is default. In the case of the buck control, an option for ‘hold’ or ‘go’ can be

selected. Note voltage will not change until the ‘go’ selection is made.

The virtual voltmeters can be activated by selecting ‘Poll Status’, after which an A to D conversion is read

and displayed for each subsequent LDO and Buck output. Note that this feature is meant to be a general

measurement and “may” be subject to variations due to operations noise. Since there is a bi-directional

SDA feature, any register and its contents can be determined by entering the desired register address and

selecting ‘Read’. In addition, any corresponding register may be written directly to via the ‘Store’ selection.

All virtual sliders can be updated via the ‘Read All’ Tab. Direct register control is possible by entering the

desired address and value followed by a ‘Store’ command.

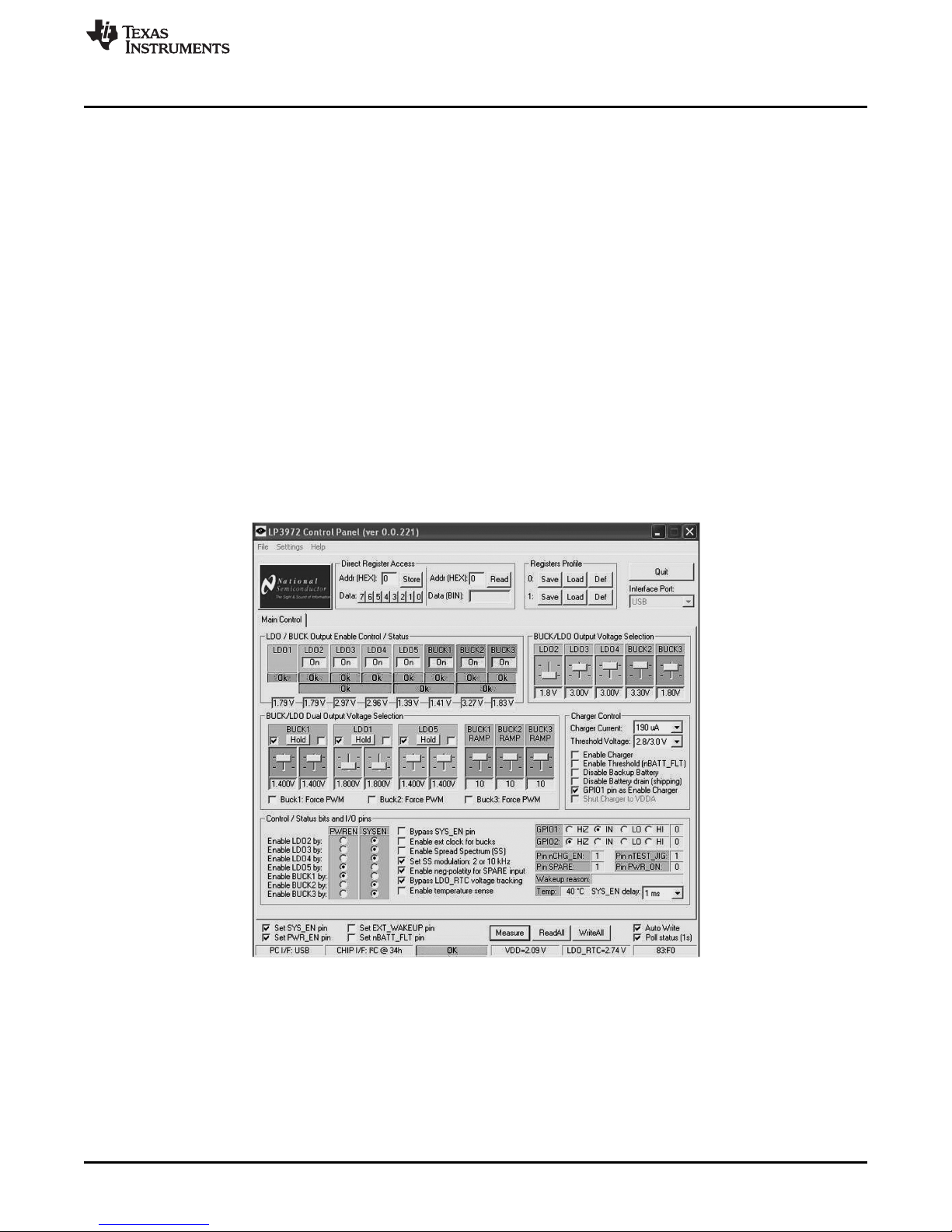

Figure 3. Control Panel

SNVA235A–May 2007–Revised April 2013 AN-1621 LP3972 USB Evaluation Board Rev B

Layout Details

www.ti.com

10 Layout Details

Figure 4. Top Silkscreen

Figure 5. Top Trace

8AN-1621 LP3972 USB Evaluation Board Rev B SNVA235A–May 2007–Revised April 2013

Submit Documentation Feedback

www.ti.com

Layout Details

Figure 6. Bottom Trace

Figure 7. Bottom Silkscreen

SNVA235A–May 2007–Revised April 2013 AN-1621 LP3972 USB Evaluation Board Rev B

Layout Details

www.ti.com

Figure 8. Ground Plane

Figure 9. Power Plane

10 AN-1621 LP3972 USB Evaluation Board Rev B SNVA235A–May 2007–Revised April 2013

Submit Documentation Feedback

Tabla de contenidos

Otros manuales de Placa madre de National Semiconductor

National Semiconductor

National Semiconductor ADC121S625B Manual de usuario

National Semiconductor

National Semiconductor ADC14071EVAL Manual de usuario

National Semiconductor

National Semiconductor LM48511 Manual de usuario

National Semiconductor

National Semiconductor SD303EVK Manual de usuario

National Semiconductor

National Semiconductor LMX2531LQ3010E Manual de usuario

National Semiconductor

National Semiconductor DS10CP152 Manual de usuario

National Semiconductor

National Semiconductor ADC121C021 Manual de usuario

National Semiconductor

National Semiconductor SERDES05-40USB Manual de usuario

National Semiconductor

National Semiconductor CLINK3V28BT-85 Manual de usuario

National Semiconductor

National Semiconductor LMX2531LQ1700E Manual de usuario

National Semiconductor

National Semiconductor LMX2531LQ1312E Manual de usuario

National Semiconductor

National Semiconductor ADC12010 Manual de usuario

National Semiconductor

National Semiconductor SD394EVK Manual de usuario

National Semiconductor

National Semiconductor TAS2557 Manual de usuario

National Semiconductor

National Semiconductor LM5072 Manual de usuario

National Semiconductor

National Semiconductor LM64 Manual de usuario

National Semiconductor

National Semiconductor LMX2531LQ2820E Manual de usuario

National Semiconductor

National Semiconductor ADC081500DEV Manual de usuario

National Semiconductor

National Semiconductor ADC121S101 Manual de usuario

National Semiconductor

National Semiconductor ADC10DV200 Manual de usuario

National Semiconductor

National Semiconductor ADC10040 Manual de usuario

National Semiconductor

National Semiconductor ADC122S655 Manual de usuario

National Semiconductor

National Semiconductor LMH1983 Manual de usuario

National Semiconductor

National Semiconductor ADC08200 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
