National Instruments NI FlexRIO PXI-7951R Manual de usuario

PXIe-7962R

NI FlexRIO FPGA Module

Installation Guide and Specifications

This document explains how to install your NI FlexRIO system, comprised of an NI FlexRIO

FPGA module (NI PXI/PXIe-79xxR) and an NI FlexRIO adapter module. This document also

contains the specifications for your NI FlexRIO FPGA module.

Contents

How to Use Your NI FlexRIO Documentation Set.................................................................. 1

Required Components .............................................................................................................. 2

Step 1. Install the Application Software and Driver................................................................. 4

Step 2. Install the NI FlexRIO devices ..................................................................................... 5

NI FlexRIO FPGA Module Signals.......................................................................................... 8

Specifications............................................................................................................................ 10

Where to Go for Support .......................................................................................................... 15

How to Use Your NI FlexRIO Documentation Set

Refer to the Figure 1 and Table 1- for information about how to use your NI FlexRIO

documentation set.

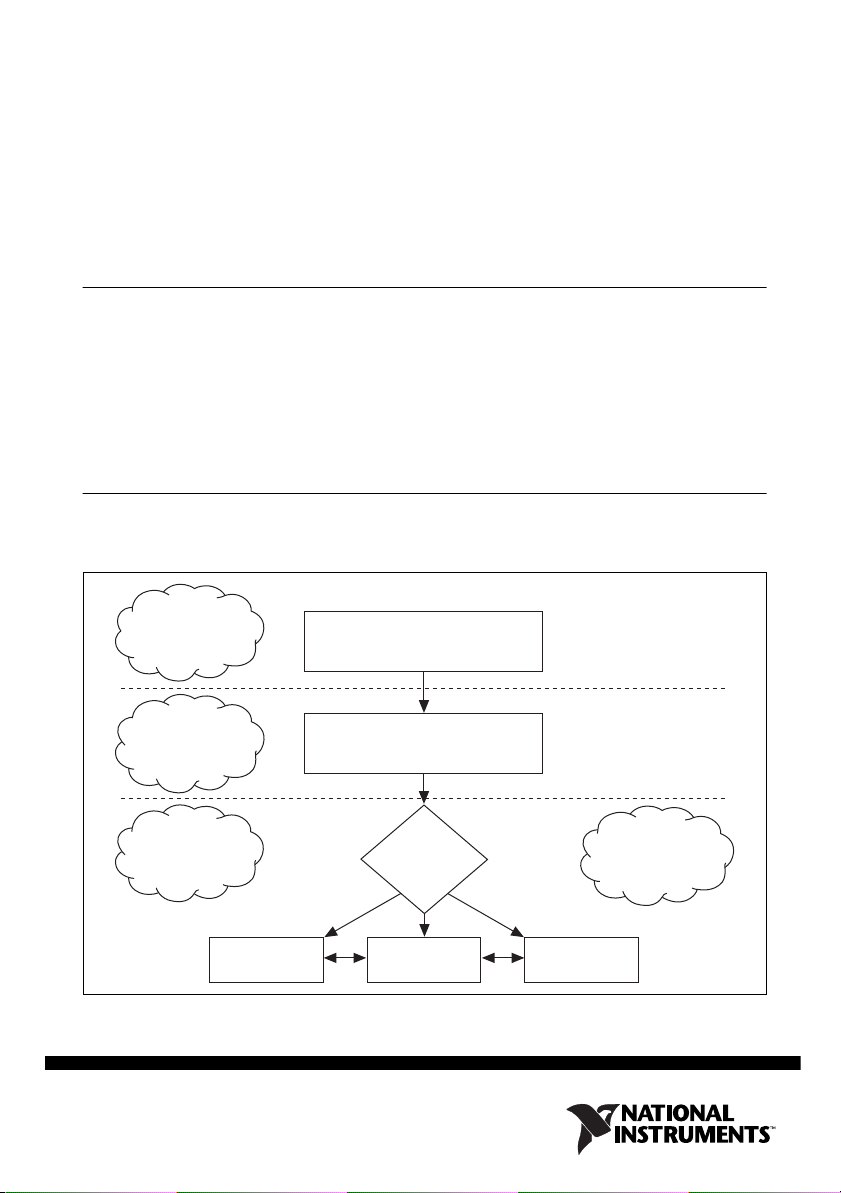

Figure 1. How to Use Your NI FlexRIO Documentation Set

™

LabVIEW FPGA

Module Help

NI FlexRIO

Help

LabVIEW

Examples

INSTALL Hardware

and Software

CONNECT Signals

and Learn About

Your Adapter

Module

LEARN About

LabVIEW FPGA

Module

PROGRAM Your

NI FlexRIO System

in LabVIEW FPGA

Module

NI FlexRIO FPGA Module

Installation Guide and Specifications

NI FlexRIO Adapter Module

User Guide and Specifications

Are

You New to

LabVIEW FPGA

Module?

Yes No

NI FlexRIO FPGA Module Installation Guide 2 ni.com

Required Components

The following items are necessary to set up and use your NI FlexRIO system:

❑The NI FlexRIO hardware device, comprised of the following items:

– NI FlexRIO FPGA module (PXI/PXIe-79xxR)

– NI FlexRIO adapter module

Note You can use the NI FlexRIO FPGA module without an adapter module for

coprocessing or peer-to-peer streaming. The adapter module installation instructions

in this document do not apply to these circumstances.

Table 1. NI FlexRIO Documentation Locations and Descriptions

Document Location Description

NI FlexRIO FPGA Module

Installation Guide and

Specifications*

Available in your FPGA

module hardware kit and

from the Start Menu.

Contains installation instructions for your

NI FlexRIO system and specifications for

your FPGA module.

NI FlexRIO Adapter

Module User Guide and

Specifications*

Available from the Start

Menu.

Contains signal information, examples,

and specifications for your adapter

module.

LabVIEW FPGA Module

Help*

Embedded in LabVIEW

Help.

Contains information about the basic

functionality of LabVIEW FPGA Module.

NI FlexRIO Help*Available from the Start

Menu.

Contains FPGA module, adapter module,

and CLIP configuration information.

LabVIEW Examples Available in LabVIEW

Example Finder.

Contains examples of how to run FPGA

VIs and Host VIs on your device.

Other Useful Information on ni.com

ni.com/ipnet Contains LabVIEW FPGA functions and intellectual property to share.

ni.com/flexrio Contains product information and data sheets for NI FlexRIO devices.

* These documents are also available at ni.com/manuals.

©National Instruments Corporation 3 NI FlexRIO FPGA Module Installation Guide

The form factor of the FPGA module (PXI or PXI Express) determines the form factor of the

combined module, as shown in Figures 2 and 3.

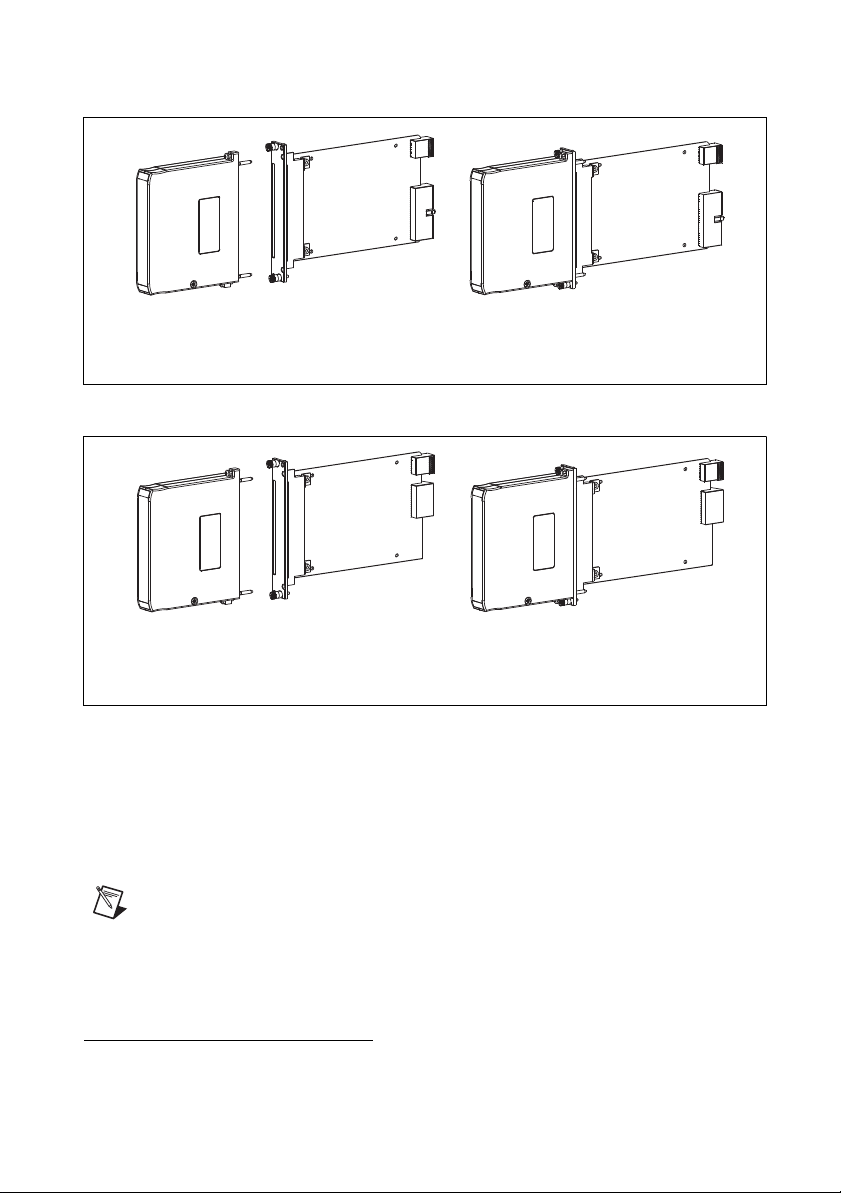

Figure 2. NI FlexRIO PXI Device

Figure 3. NI FlexRIO PXI Express Device

❑The following software packages:

–LabVIEW

– LabVIEW FPGA Module

– NI-RIO driver

– NI FlexRIO Adapter Module Support1

Note The most recent version of NI FlexRIO Adapter Module Support is available

at ni.com. Visit ni.com/info and enter famsoftware as the Info Code to

download the latest version of NI FlexRIO Adapter Module Support. You do not

need this software if you are not using an adapter module.

– (Optional) LabVIEW Real-Time Module

1 The NI 1483 adapter module requires the NI-IMAQ instrument driver instead of NI FlexRIO Adapter

Module Support.

NI FlexRIO

Adapter Module

+=NI FlexRIO PXI Device

NI FlexRIO FPGA

PXI Module

(NI PXI-795xR)

NI FlexRIO

Adapter Module +=NI FlexRIO PXI Express Device

NI FlexRIO FPGA

PXI Express Module

(NI PXI-796xR)

NI FlexRIO FPGA Module Installation Guide 4 ni.com

Refer to Step 1. Install the Application Software and Driver for more information about

NI FlexRIO software support.

❑One of the following chassis:

– PXI/CompactPCI chassis

– PXI Express/CompactPCI Express chassis

❑One of the following controllers:

– PXI/CompactPCI embedded controller

– PXI Express/CompactPCI Express embedded controller

– MXI kit and a PC

❑One of the following operating systems:

– Windows 7

– Windows Vista

– Windows XP Pro x32 Service Pack 1 or 2

❑At least one cable for connecting signals to the NI FlexRIO device. Refer to your adapter

module documentation for a list of applicable cables and accessories for your NI FlexRIO

system.

Step 1. Install the Application Software and Driver

Before installing your hardware, you must install the application software and instrument driver.

Visit ni.com/info and enter rdsoftwareversion as the Info Code to determine which

minimum software versions you need for your device. Install the software in the following order:

1. LabVIEW—Refer to the LabVIEW Release Notes for installation instructions for

LabVIEW and system requirements for the LabVIEW software. Refer to the LabVIEW

Upgrade Notes for additional information about upgrading to the most recent version of

LabVIEW for Windows.

Documentation for LabVIEW is available by selecting Start»All Programs»National

Instruments»LabVIEW»LabVIEW Manuals.

2. LabVIEW FPGA Module—Refer to the LabVIEW FPGA Module Release and Upgrade

Notes for installation instructions and information about getting started with the LabVIEW

FPGA Module.

Documentation for the LabVIEW FPGA Module is available by selecting Start»

All Programs»National Instruments»LabVIEW»LabVIEW Manuals.

3. (Optional) LabVIEW Real-Time Module—Refer to the LabVIEW Real-Time Module

Release and Upgrade Notes for system requirements, installation instructions, and

additional information about using the LabVIEW Real-Time Module.

4. NI-RIO—Refer to the NI-RIO Readme on the NI-RIO installation media for system

requirements and installation instructions for the NI-RIO driver.

Documentation for the NI-RIO driver software is available by selecting Start»

All Programs»National Instruments»NI-RIO.

©National Instruments Corporation 5 NI FlexRIO FPGA Module Installation Guide

Note If you are not using an adapter module, skip step 5.

5. NI FlexRIO Adapter Module Support—Refer to the NI FlexRIO Adapter Module

Support Readme on the NI FlexRIO Adapter Module Support installation media for system

requirements and installation instructions.

The LabVIEW documents are available from ni.com/manuals. You can also view the

LabVIEW Manuals directory that contains these documents by selecting Start»All Programs»

National Instruments»LabVIEW»LabVIEW Manuals.

Step 2. Install the NI FlexRIO devices

This section describes how to unpack and install the NI FlexRIO FPGA module and the

NI FlexRIO adapter module.

Note You must install the software before installing the hardware. For software

installation information, refer to Step 1. Install the Application Software and Driver.

Unpacking

The NI FlexRIO FPGA module and the NI FlexRIO adapter module are shipped in antistatic

packages to prevent electrostatic discharge from damaging device components. To prevent such

damage when handling the device, take the following precautions:

• Ground yourself using a grounding strap or by holding a grounded object, such as your

computer chassis.

• Touch the antistatic package to a metal part of the computer chassis before removing the

device from the package.

Caution Never touch the exposed pins of connectors.

Remove the device from the package and inspect the devices for loose components or any other

sign of damage. Notify NI if the device appears damaged in any way. Do not install a damaged

device into the chassis.

Store the NI FlexRIO FPGA module and NI FlexRIO adapter module in the antistatic envelopes

when not in use.

NI FlexRIO FPGA Module Installation Guide 6 ni.com

Installing the NI FlexRIO FPGA Module

Complete the following steps to install an NI FlexRIO FPGA module:

Note You must install the software before installing the hardware. For software

installation information, refer to Step 1. Install the Application Software and Driver.

Caution Refer to the Read Me First: Safety and Electromagnetic Compatibility

document packaged with your PXI/PXI Express chassis or device before removing

equipment covers or connecting or disconnecting any signal wires.

1. Power off and unplug the PXI/PXI Express chassis. Refer to your chassis manual to install

or configure the chassis.

2. Identify a supported PXI/PXI Express slot in the chassis. Figure 4 shows the symbols that

indicate the slot types in a PXI/PXI Express chassis.

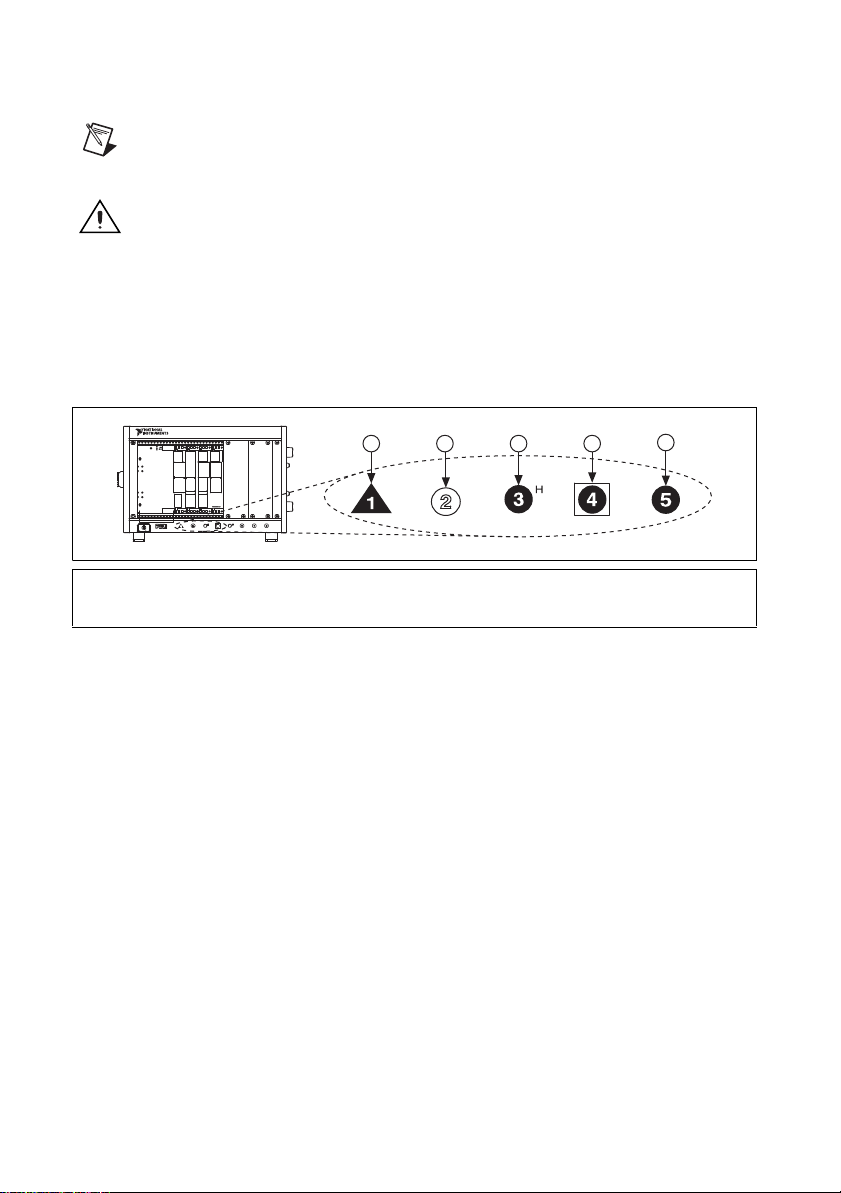

Figure 4. Symbols for PXI Express/PXI Express Hybrid/PXI Slots

If you are using a PXI Express chassis, you can place PXI devices in the PXI slots. If a PXI

device is hybrid slot compatible, you can use the PXI Express Hybrid slots. PXI Express

devices can be placed only in PXI Express slots and PXI Express Hybrid slots. Refer to the

chassis documentation for details.

3. Remove the filler panel of an unused PXI/PXI Express slot.

4. Touch any metal part of the chassis to discharge any static electricity.

1 PXI Express System Controller Slot

2 PXI Peripheral Slot

3 PXI Express Hybrid Peripheral Slot

4 PXI Express System Timing Slot

5 PXI Express Peripheral Slot

NI PXIe-1062Q

12345

©National Instruments Corporation 7 NI FlexRIO FPGA Module Installation Guide

Place the PXI/PXI Express module edges into the module guides at the top and bottom of

the chassis, and slide the module into the chassis until the module is fully inserted, as shown

in Figure 5.

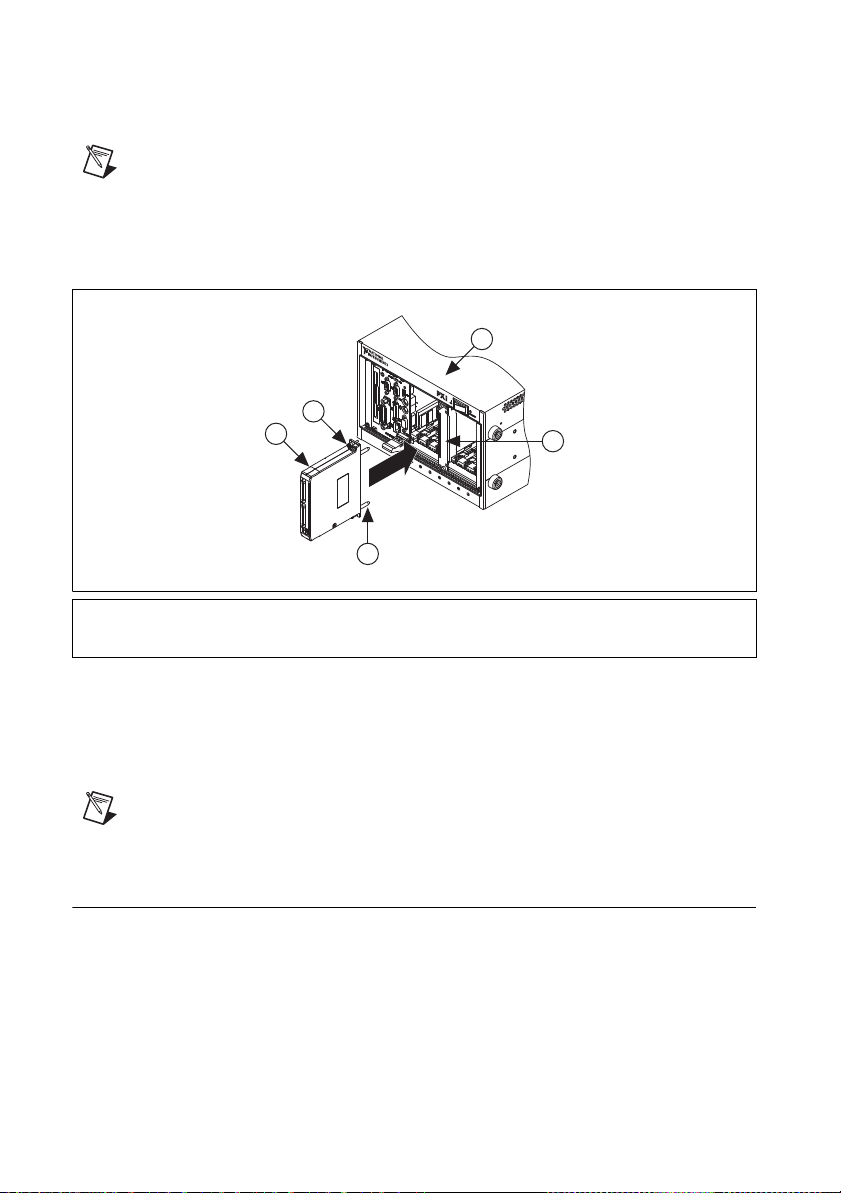

Figure 5. Installing an NI FlexRIO FPGA Module in the PXI/PXI Express Chassis

5. Secure the device front panel to the chassis front panel mounting rail using the front panel

mounting screws.

6. Plug in and power on the PXI/PXI Express chassis.

Confirming That the Device Is Recognized in Measurement &

Automation Explorer (MAX)

To confirm that your device is recognized, complete the following additional steps:

1. Select Start»All Programs»National Instruments»Measurement & Automation.

2. Expand Devices and Interfaces.

3. Verify that the device appears under Devices and Interfaces»RIO Devices, as shown in

Figure 6.

Figure 6. Confirming That the Device is Recognized

1 PXI/PXI Express Chassis

2 PXI/PXI Express System Controller

3 NI FlexRIO FPGA Module (PXI shown)

4 Front-Panel Mounting Screws

5Module Guides

6 Power Switch

PXI-1000B

NI FlexRIO FPGA Module Installation Guide 8 ni.com

Installing the NI FlexRIO Adapter Module

Complete the following steps to connect the NI FlexRIO adapter module to the NI FlexRIO

FPGA module.

Note Skip this step if you are not using an adapter module.

1. Gently insert the guide pins and the high-density card edge of the NI FlexRIO adapter

module into the corresponding connectors of the NI FlexRIO FPGA module, as shown in

Figure 7. The connection may be tight, but do not force the adapter module into place.

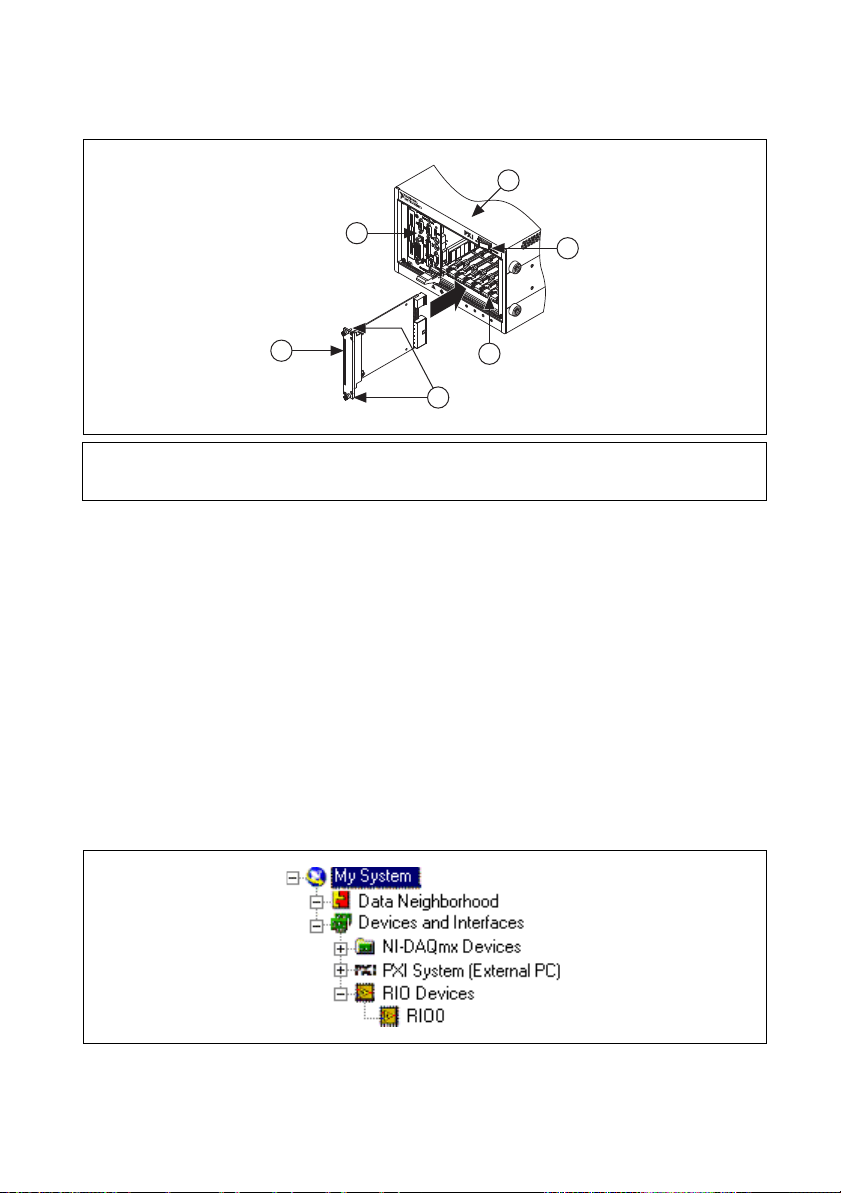

Figure 7. Installing the NI FlexRIO Adapter Module

2. Tighten the captive screws on the NI FlexRIO adapter module to secure it to the NI FlexRIO

FPGA module.

3. Launch LabVIEW to begin configuring your NI FlexRIO system.

Note MAX only recognizes which FPGA modules are in the chassis. Your adapter

module will not appear in MAX.

NI FlexRIO FPGA Module Signals

Figure 8 shows the available signals on the NI FlexRIO FPGA module. With the exception of

the two footnotes in the following image, the PXI and PXI Express FPGA modules have the

same pinouts. Refer to your adapter module specifications for your adapter module pinout.

1 NI FlexRIO Adapter Module

2Captive Screw

3Guide Pin

4 PXI/PXI Express Chassis

5 NI FlexRIO FPGA Module

PXI-1000B

©National Instruments Corporation 9 NI FlexRIO FPGA Module Installation Guide

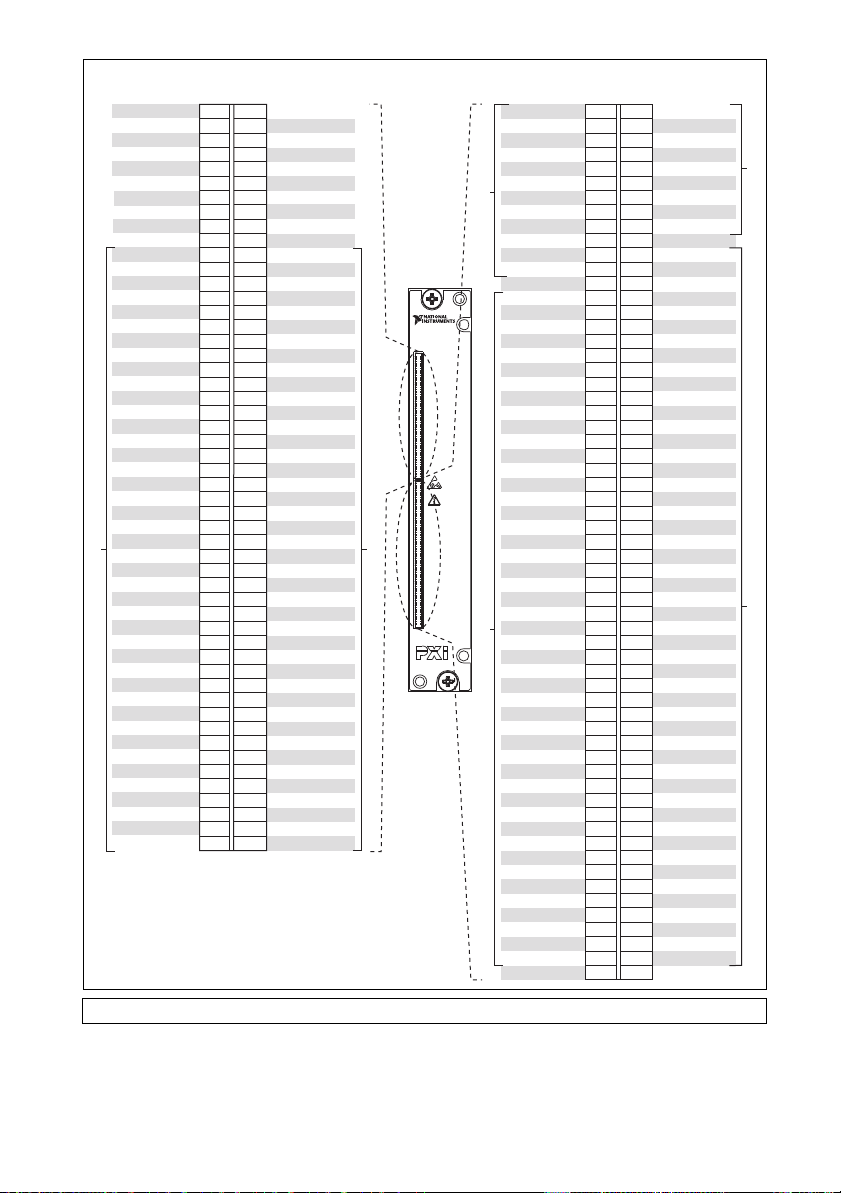

Figure 8. NI FlexRIO FPGA Module Front Connector Pin Assignments and Locations

1RSVD_B2 on the NI PXI-795xR2RSVD_B1 on the NI PXI-795xR

FlexRIO

NI PXI-795xR

Bank 1

PCB

Primary Side

+3.3V

SCL

TB_Present_n

+12V

VccoA

RSVD

GND

IoModSyncClk_n1

IoModSyncClk

GND

GPIO_0

GPIO_0_n

GND

GPIO_1

GPIO_1_n

GND

GPIO_2

GPIO_2_n

GND

GPIO_3

GPIO_3_n

GND

GPIO_4_CC

GPIO_4_n_CC

GND

GPIO_5_CC

GPIO_5_n_CC

GND

GPIO_6_CC

GPIO_6_n_CC

GND

GPIO_7_CC

GPIO_7_n_CC

GND

GPIO_8

GPIO_8_n

GND

GPIO_9

GPIO_9_n

GND

GPIO_10

GPIO_10_n

GND

GPIO_11

GPIO_11_n

GND

GPIO_12

GPIO_12_n

GND

GPIO_13

GPIO_13_n

S148

S147

S146

S145

S144

S143

G36

S142

S141

G35

S140

S139

G34

S138

S137

G33

S136

S135

G32

S134

S133

G31

S132

S131

G30

S130

S129

G29

S128

S127

G28

S126

S125

G27

S124

S123

G26

S122

S121

G25

S120

S119

G24

S118

S117

G23

S116

S115

G22

G37

S74

S73

S72

S71

S70

S69

G36

S68

S67

G35

S66

S65

G34

S64

S63

G33

S62

S61

G32

S60

S59

G31

S58

S57

G30

S56

S55

G29

S54

S53

G28

S52

S51

G27

S50

S49

G26

S48

S47

G25

S46

S45

G24

S44

S43

G23

S42

S41

G22

G37

+12V

+3.3V

SDA

TB_Power_Good

VccoB

Veeprom

RSVD_A2

RSVD_A1

GND

GPIO_16

GPIO_16_n

GND

GPIO_17

GPIO_17_n

GND

GPIO_18

GPIO_18_n

GND

GPIO_19

GPIO_19_n

GND

GPIO_20

GPIO_20_n

GND

GPIO_21

GPIO_21_n

GND

GPIO_22

GPIO_22_n

GND

GPIO_23_CC

GPIO_23_n_CC

GND

GPIO_24_CC

GPIO_24_n_CC

GND

GPIO_25_CC

GPIO_25_n_CC

GND

GPIO_26_CC

GPIO_26_n_CC

GND

GPIO_27

GPIO_27_n

GND

GPIO_28

GPIO_28_n

GND

GPIO_29

GPIO_29_n

GND

PCB

Secondary Side

Bank 0

PCB

Primary Side

GND

GClk_SE

GND

GPIO_14

GPIO_14_n

GND

GPIO_15

GPIO_15_n

GND

GPIO_49

GPIO_49_n

GND

GPIO_50

GPIO_50_n

GND

GPIO_51

GPIO_51_n

GND

GPIO_52

GPIO_52_n

GND

GPIO_53

GPIO_53_n

GND

GPIO_54

GPIO_54_n

GND

GPIO_55

GPIO_55_n

GND

GPIO_56_CC

GPIO_56_n_CC

GND

GPIO_57_CC

GPIO_57_n_CC

GND

GPIO_58_CC

GPIO_58_n_CC

GND

GPIO_59_CC

GPIO_59_n_CC

GND

GPIO_60

GPIO_60_n

GND

GPIO_61

GPIO_61_n

GND

GPIO_62

GPIO_62_n

GPIO_63

GPIO_63_n

GND

GPIO_64

GPIO_65

GPIO_64_n

GND

GPIO_65_n

G20

G21

S114

S113

S112

S111

S110

S109

G18

S108

S107

G17

S106

S105

G16

S104

S103

G15

S102

S101

G14

S100

S99

G13

S98

S97

G12

S96

S95

G11

S94

S93

G10

S92

S91

S90

S89

S88

S87

S86

S85

S84

S83

S82

S81

G19

S80

S79

S78

S77

S76

S75

G20

G21

S40

S39

S38

S37

S36

S35

G18

S34

S33

G17

S32

S31

G16

S30

S29

G15

S28

S27

G14

S26

S25

G13

S24

S23

G12

S22

S21

G11

S20

S19

G10

S18

S17

S16

S15

S14

S13

S12

S11

S10

G19

GND

GClk_LVDS_n

GClk_LVDS

GPIO_30

GPIO_30_n

GPIO_31

GPIO_31_n

GND

GPIO_32

GPIO_32_n

GND

GPIO_33

GPIO_33_n

GND

GPIO_34

GPIO_34_n

GND

GPIO_35

GPIO_35_n

GND

GPIO_36

GPIO_36_n

GND

GPIO_37_CC

GPIO_37_n_CC

GND

GPIO_38_CC

GPIO_38_n_CC

GND

GPIO_39_CC

GPIO_39_n_CC

GND

GPIO_40_CC

GPIO_40_n_CC

GND

GPIO_41

GPIO_41_n

GND

GPIO_42

GPIO_42_n

GND

GPIO_43

GPIO_43_n

GND

GPIO_44

GPIO_44_n

GND

GPIO_45

GPIO_45_n

GND

GPIO_46

GPIO_46_n

GND

GPIO_47

GPIO_47_n

GND

GPIO_48

GPIO_48_n

GND

PCB

Secondary Side

Bank 2

Bank 1

Bank 3Bank 0

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de National Instruments

National Instruments

National Instruments NI TB-4300B Manual

National Instruments

National Instruments NI 9210 Manual de usuario

National Instruments

National Instruments FP-AI-102 Manual de usuario

National Instruments

National Instruments PXIe-7902 Manual de usuario

National Instruments

National Instruments FieldPoint FP-1001 Manual de usuario

National Instruments

National Instruments PXIe-4466 Manual de usuario

National Instruments

National Instruments NI 9265 Manual de usuario

National Instruments

National Instruments NI 9503 C Series Manual de usuario

National Instruments

National Instruments sbRIO-9609 Manual de usuario

National Instruments

National Instruments NI 9234 Manual de usuario

National Instruments

National Instruments NI PXI-8840 Manual de usuario

National Instruments

National Instruments PXI-6683 Series Manual de usuario

National Instruments

National Instruments SCXI SCXI-1102 Instrucciones de instalación y funcionamiento

National Instruments

National Instruments PXIe-8821 Manual de usuario

National Instruments

National Instruments FIeldPoint FP-AO-200 Manual de usuario

National Instruments

National Instruments NI 9425 Manual de usuario

National Instruments

National Instruments 9861 Manual de usuario

National Instruments

National Instruments NI-SPEEDY-33 Manual de usuario

National Instruments

National Instruments NI 9425E Manual de usuario

National Instruments

National Instruments cRIO-9068 Manual de usuario

National Instruments

National Instruments NI PXIe-7976R Manual de usuario

National Instruments

National Instruments NI PXIe-4080 Manual de usuario

National Instruments

National Instruments 7330 Manual de usuario

National Instruments

National Instruments NI 9269 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
