National Instruments NI 6013 Guía de inicio rápido

SCB-68A

NOTE TO USERS

NI 60xx/60xxE Pinout Label for

the SCB-68A

Multifunction I/O E Series Modules/Devices Using the 68-Pin

Shielded Connector Block

If you are using an NI 60xx/60xxE (formerly referred to as E Series) multifunction I/O device

or module with the SCB-68A, you can print and attach a connector-specific pinout label to the

cover of the connector block for easy connection reference. This document provides the label for

the following models:

• NI 6011E

• NI 6013

• NI 6014

• NI 6015

• NI 6020E

• NI 6023E

• NI 6024E

• NI 6030E

• NI 6032E

• NI 6034E

• NI 6035E

• NI 6036E

• NI 6040E

• NI 6052E

• NI 6062E

• NI 6070E

• PCI-MIO-16E-1 (PCI-6070E)

• PCI-MIO-16E-4 (PCI-6040E)

• PCI-MIO-16XE-10 (PCI-6030E)

• PCI-MIO-16XE-50 (PCI-6011E)

371807A-01 Jul17

Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for more information on NI trademarks. Other product and company

names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI products/technology, refer to the

appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patents Notice at

ni.com/patents. You can find information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your

NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the NI global trade compliance policy

and how to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO THE

ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS. U.S. Government Customers: The data

contained in this manual was developed at private expense and is subject to the applicable limited rights and restricted data rights as set forth in

FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015.

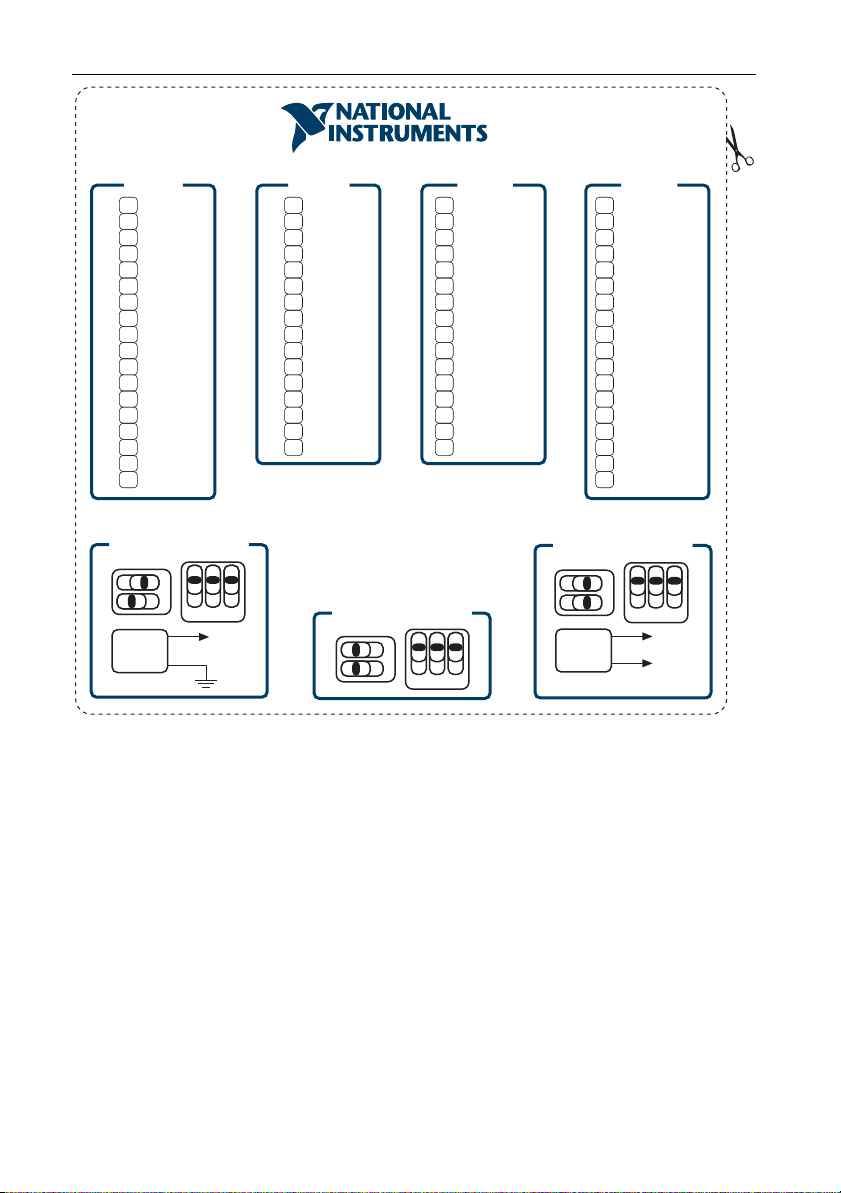

Figure 1. NI 60xx/60xxE

FREQ OUT

D GND

CTR 0 OUT

D GND

PFI 9/CTR 0 GATE

PFI 8/CTR 0 SOURCE

D GND

PFI 7/AI SAMP CLK

PFI 6/AO START TRIG

D GND

PFI 5/AO SAMP CLK

CTR 1 OUT

D GND

PFI 4/CTR 1 GATE

+5V

PFI 3/CTR 1 SOURCE

D GND

PFI 2/AI CONV CLK

DIGITAL

SCB-68A Quick Reference Label

NI 60xx/60xxE

E Series Devices

P0.5

P0.1

D GND

P0.6

P0.2

D GND

P0.7

+5V

P0.3

D GND

AI HOLD COMP

D GND

EXT STROBE

PFI 0/AI START TRIG

D GND

PFI 1/AI REF TRIG

DIGITAL

AI GND

AI 6 (AI 6+)

AI 14 (AI 6-)

AI GND

AI 7 (AI 7+)

AI 15 (AI 7-)

AI GND

AO 0

AO GND

AO 1

AO GND

AO EXT REF

D GND

P0.4

P0.0

D GND

ANALOG/

DIGITAL

AI 0 (AI 0+)

AI 8 (AI 0-)

AI GND

AI 1 (AI 1+)

AI 9 (AI 1-)

AI GND

AI 2 (AI 2+)

AI 10 (AI 2-)

AI GND

AI 3 (AI 3+)

AI 11 (AI 3-)

AI GND

AI SENSE

AI 4 (AI 4+)

AI 12 (AI 4-)

AI GND

AI 5 (AI 5+)

AI 13 (AI 5-)

ANALOG

Temp Sensor Disabled

(Factory Default)

Temp Sensor Enabled

(Differential)

–

AI 0+

Tem p

Sensor

AI 0–

123

S1 S2

123

S1 S2

Temp Sensor Enabled

(Single-Ended)

–

AI 0

AI GND

Tem p

Sensor

12 3

S1 S2
