Quick Start Guide

FieldPoint cFP-21xx

What You Need to Get Set Up

•cFP-21xx LabVIEW RT controller

• Mounting hardware (DIN rail,

panel-mount, or rack-mount

accessory)

• I/O module(s)

•cFP-BP-xbackplane, connector

blocks, cables

• 11–30 VDC power supply

• Accessories: Ethernet cable,

number 2 Phillips screwdriver

• PC running Windows

• FieldPoint software 4.1.1 or later

• LabVIEW Real-Time Module

™

cFP-21xx Quick Start Guide 2 ni.com

1. Mount the Compact FieldPoint Backplane

You can mount the cFP-BP-xbackplane on a 35mm DIN rail, on a panel, or in a

standard 19 in. rack. Before using any of these mounting methods, record the serial

number from the back of the backplane.

Each set of mounting instructions in this document includes an instruction to

connect the protective earth (PE) ground terminal on the cFP-BP-xbackplane to

the system safety ground. The backplane PE ground terminal has the following

symbol stamped beside it: . Connect the backplane PE ground terminal to the

system safety ground using 14 AWG (1.6 mm) wire with a ring lug. Use the

5/16 in. panhead screw shipped with the backplane to secure the ring lug to the

backplane PE ground terminal.

Caution Keep in mind these requirements for space and cabling

clearance:

• Allow at least 51 mm (2 in.) all around the backplane for air

circulation.

• Allow 38 mm (1.5 in.) below and 51 mm (2 in.) above the controller.

Caution If you are using UL Recognized I\O modules with the Compact

FieldPoint system, you must install the entire system in a suitably rated,

UL Listed NEMA or IP enclosure.

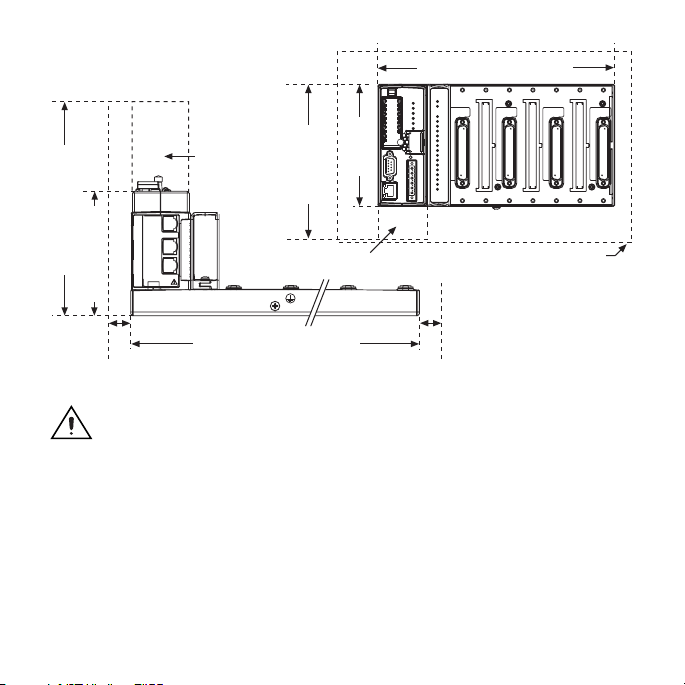

Cabling Clearance Cooling Outline 51 mm (2 in.) All Around

4 slots = 246 mm (9.68 in.)

8 slots = 441 mm (17.4 in.)

127 mm

(5.00 in.)

Min. 165 mm

(6.50 in.)

Cabling

Clearance

4 slots = 246 mm (9.68 in.)

8 slots = 441 mm (17.4 in.)

Cooling Outline 51 mm (2 in.) Cooling Outline 51 mm (2 in.)

Min. 182 mm (7.18 in.)

106 mm (4.18 in.)

cFP-21xx Quick Start Guide 4 ni.com

Caution NI recommends that you use one of the mounting systems

described in this document. If you decide to use a custom mounting

solution, make sure that the screws you use are short enough to fit in the

holes in the backplane. The screw holes are 5 mm (0.2 in.) deep.

Mounting the Backplane on a Panel

1. Fasten the panel-mount plates to the back of the cFP-BP-xusing a

number 2 Phillips screwdriver and the 8-32 ×5/16 in. countersink screws

shipped with the kit.

Caution Do not use screws longer than 5/16 in. to fasten the

panel-mount plates to the backplane.

NATIONAL

INSTRUMENTS

102 mm

(4 in.)

457 mm (18 in.)

cFP-21xx Quick Start Guide 6 ni.com

104.78 mm

(4.1 in.)

63.50 mm

(2.5 in.)

22.23 mm

(0.9 in.)

33.15 mm

(1.3 in.)

129.54 mm

(5.1 in.)

311.40 mm

(12.3 in.)

387.60 mm

(15.3 in.)

407.80 mm

(16.1 in.)

127.00 mm

(5.0 in.)

440.94 mm

(17.4 in.)

260 mm (10.25 in.)

102 mm

(4 in.)

2. Bolt or screw the panel-mount accessory to a panel.

3. Connect the PE ground terminal on the cFP-BP-xto safety ground.

Caution Disconnect power before removing the backplane from the

panel.

Mounting the Backplane on a DIN Rail

NI recommends DIN rail mounting for the cFP-BP-4 only. Use panel mounting or

rack mounting for the cFP-BP-8. The DIN rail mounting kit is NI part number

778614-01.

1. Fasten the DIN rail clip to the cFP-BP-4 using a number 2 Phillips screwdriver

and the 8-32 ×5/16 in. countersink screws shipped with the clip.

104.74 mm

(4.1 in.)

63.46 mm

(2.5 in.)

127.00 mm

(5.0 in.)

22.19 mm

(0.9 in.)

34.04 mm

(1.3 in.)

84.84 mm

(3.3 in.)

161.04 mm

(6.3 in.)

211.84 mm

(8.3 in.)

245.87 mm

(9.6 in.)

cFP-21xx Quick Start Guide 8 ni.com

Caution Do not use screws longer than 5/16 in. to fasten the DIN rail

clip to the backplane.

2. Insert one edge of the DIN rail into the deeper opening of the DIN rail clip.

3. Press down firmly on the backplane to compress the spring until the clip locks

in place on the DIN rail.

4. Connect the PE ground terminal on the cFP-BP-4 to safety ground.

Caution Disconnect power before removing the backplane from the

DIN rail.

NATIONAL

INSTRUMENTS

Mounting the Backplane in a Standard 19 in. Rack

1. Fasten the rack-mount bracket to the back of the cFP-BP-xusing the captive

screws on the bracket.

2. Bolt the rack-mount accessory to a standard 19 in. rack.

NATIONAL

INSTRUMENTS

cFP-21xx Quick Start Guide 10 ni.com

3. Connect the PE ground terminal on the cFP-BP-xto safety ground.

Caution Disconnect power before removing the backplane from the

DIN rail.

NATIONAL

INSTRUMENTS
