MuxLab ProDigital 500485 Manual de usuario

HDMI 2.0 Fiber Extender Kit,

Single Mode

Operation Manual

(500485)

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual
MuxLab © 2022                                                  2                                      94-000971-A/SE-000971-A

                      Table of Contents

Safety Precautions...................................................................................3
Introduction.............................................................................................4
Features....................................................................................................4
Package Contents ....................................................................................4
Specifications...........................................................................................5
Panel Descriptions...................................................................................6
1 Transmitter Unit.........................................................................6
2 Receiver Unit ..............................................................................7
Connection Diagram...............................................................................8
HDMI Pin Definition ..............................................................................9
Troubleshooting.......................................................................................9



HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual

1. Safety Precautions

To ensure the best performance from the product, please read all instructions carefully before using

the device. Save this manual for future reference.

⚫Follow basic safety precautions to reduce the risk of fire, electrical shock, and injury.

⚫Do not dismantle the housing or modify the module. It may result in electrical shock or burns.

⚫Do not open or remove the housing of the device as you may be exposed to dangerous voltage

or other hazards.

⚫To prevent fire or shock hazard, do not expose the unit to rain, moisture and do not install this

product near water. Keep the product away from liquids.

⚫Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object

or liquid falls or spills on the housing, unplug the module immediately.

⚫Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device

before cleaning.

⚫Using supplies or parts not meeting the product specifications may cause damage, deterioration

or malfunction.

⚫Refer all servicing to qualified service personnel.

⚫Install the device in a place with adequate ventilation to avoid damage caused by overheat.

⚫Unplug the power when left unused for a long period of time.

⚫Information on disposal of devices: do not burn or mix with general household waste, please

treat them as normal electrical waste.

All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the

express permission of MuxLab Inc. Product specifications and information in this document are for

reference only, and the content may be updated from time to time without prior notice.

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual

2. Introduction

The HDMI 2.0 Fiber Extender Kit, Single Mode (model: 500485) allows one HDMI 2.0 and one USB

1.1 channel to be transmitted up to 10km (6.25miles) at all resolutions up to 4K2K@60Hz over single

mode fiber optic cable in a point-to-point configuration. In addition, the HDMI 2.0 Fiber Extender

Kit, Single Mode is HDCP 2.2 compliant and supports IR and RS-232 pass-through and

keyboard/mouse USB signal transmission.

3. Features

⚫Supports HDMI 4K @ 60fps (4:4:4 8bits)

⚫Supports HDR, which is 4K @ 60fps (4:2:0 10bits)

⚫Supports HDCP 2.2

⚫Extends HDMI signals up to 10km over single mode fiber optic cable

⚫Supports USB 1.1 for keyboard and mouse only

⚫Supports full frequency IR signal from 20KHz to 60KHz

⚫Bi-directional IR pass-through

⚫Link LED indicator light

⚫Wall mounting housing design for easy and robust installation

○

!The RS-232, IR and USB function cannot be used at the same time

4. Package Contents

⚫One (1) HDMI 2.0 Fiber Extender Kit, Single Mode [TX & RX]

⚫One (1) IR Blaster

⚫One (1) IR Receiver

⚫Two (2) PSU 12V DC

⚫Two (2) Single Mode Modules

⚫One (1) Wall bracket kit (with screws)

⚫One (1) User manual (available via download)

Notes：Confirm that the product and accessories are all included. If not, please contact the supplier from

which you purchased the unit.

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual

5. Specifications

Technical

HDMI compliance

HDMI 2.0a

HDCP compliance

HDCP 2.2

Video bandwidth

Single-link 594MHz [18Gbps]

Video support

HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)

Audio support

Surround sound [up to 7.1ch] or stereo digital audio

Input TMDS signal

1.2 Volts [peak-to-peak]

Input DDC signal

5 Volts [peak-to-peak, TTL]

ESD protection

Human body model

±15kV [air-gap discharge] & ±8kV [contact discharge]

PCB stack-up

4-layer board [impedance control — differential 100Ω; single

50Ω]

IR pass-thru

Bi-directional

RS-232 support

Yes

Input Ports

Transmitter [TX] 1x HDMI, 1x 3.5mm

Receiver [RX] 1x Fiber, 1x 3.5mm

Output Ports

Transmitter [TX] 1x Fiber, 1x 3.5mm

Receiver [RX] 1x HDMI, 1x 3.5mm

In / Out Ports

Transmitter [TX] 1x RS-232, 1x USB

Receiver [RX] 1x RS-232, 2x USB

HDMI source control

Controllable via IR pass-through from RX to TX with IR

extenders

HDMI connector

Type A [19-pin female]

USB connector

Type A

3.5mm connector

Transmitter [TX] IR receiver / IR blaster

Receiver [RX] IR receiver / IR blaster

Mechanical

Housing

Metal enclosure

Unit Dimensions (DxWxH)

Transmitter [TX] 4.9" x 4.4" x 1.1" (125mm x 112mm x 28mm)

Receiver [RX] 4.9" x 4.4" x 1.1" (125mm x 112mm x 28mm)

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual

Unit Weight

Transmitter [TX] 1.02 lbs (0.46Kg)

Receiver [RX] 1.00 lbs (0.45Kg)

Wall-Mounting Hardware

Wall-mount bracket kit, with screws

Power supply

12V2A

Power consumption

Max 10W

Operation temperature

0~40°C [32~104°F]

Storage temperature

-20~60°C [-4~140°F]

Relative humidity

20~90% RH [no condensation]

Warranty

2 years

Order Information

500485 HDMI 2.0 Fiber Extender Kit, Single Mode

(UPC: 627699004852)

6. Panel Descriptions

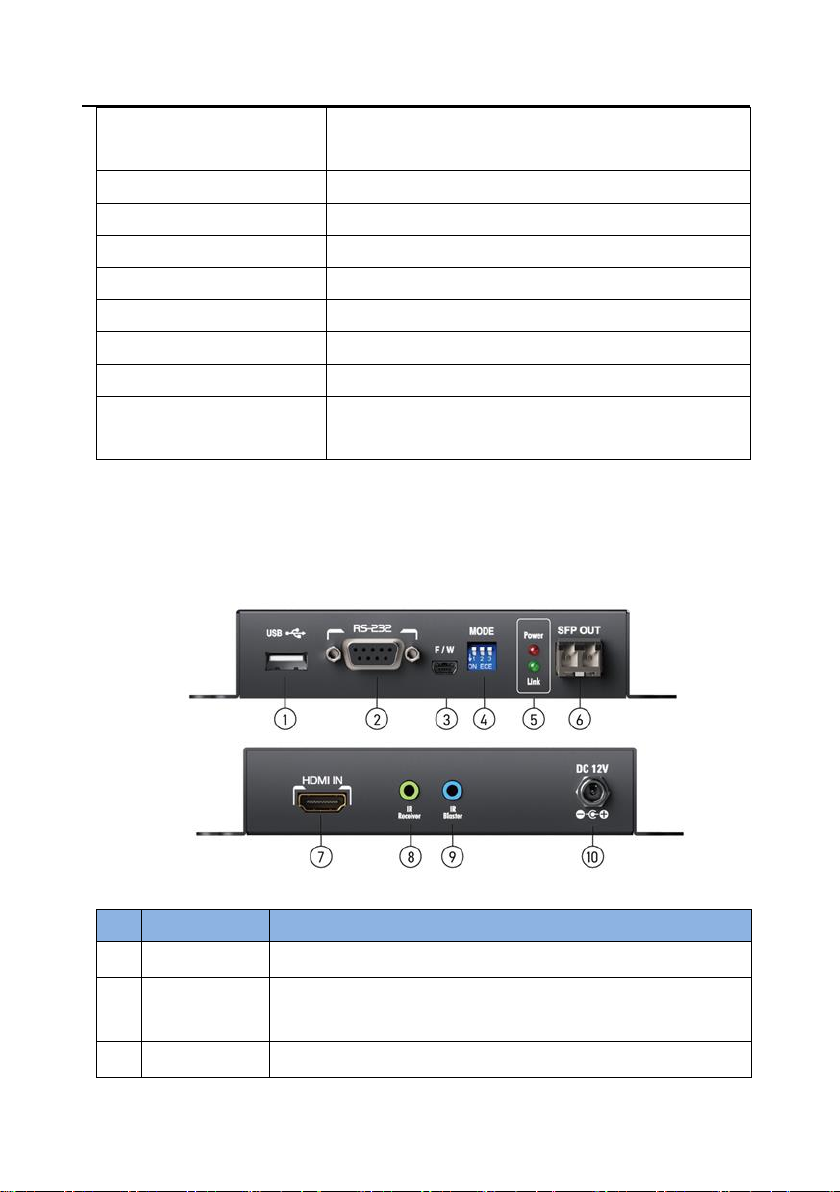

6.1 Transmitter Unit

Name

Function Description

USB [Host]

Connect to a USB port to the computer for keyboard & mouse control

RS-232

Connect to serial port of the device with a DB-9 male-male or male-

female cable

Mini USB

For technical support only [firmware update]

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual

Dip Switch

PIN # 1

ON []

For system firmware update

OFF []

Normal

PIN # 2

ON []

USB function ON

OFF []

RS-232/IR function ON

PIN # 3

ON []

Disable IR function

OFF []

Enable IR function

LED Indicator

[Red]: Power LED indicator [Green]: Link LED indicator

SFP OUT

Plug in single mode fiber optic cable that needs to be linked to the

receiver unit

HDMI IN

Connect to a HDMI source with a HDMI male-male cable

IR Receiver

3.5mm IR socket to plug in the IR receiver extension cable

IR Blaster

3.5mm IR socket to plug in the IR blaster extension cable

+12V DC

Connect to a 12V power supply unit

6.2 Receiver Unit

Name

Function Description

USB [Device]

Connect to USB keyboard & mouse

RS-232

Connect to serial port of the device with a DB-9 male-male or male-

female cable

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual

Mini USB

For technical support only [firmware update]

Dip Switch

PIN # 1

ON []

For system firmware update

OFF []

Normal

PIN # 2

ON []

USB function ON

OFF []

RS-232/IR function ON

PIN # 3

ON []

Disable IR function

OFF []

Enable IR function

LED Indicator

[Red]: Power LED indicator [Green]: Link LED indicator

SFP IN

Plug in single mode fiber optic cable that needs to be linked to the

transmitter unit

HDMI OUT

Connect to a HDMI display with a HDMI male-male cable

IR Receiver

3.5mm IR socket to plug in the IR receiver extension cable

IR Blaster

3.5mm IR socket to plug in the IR blaster extension cable

+12V DC

Connect to a 12V power supply unit

7. Connection Diagram

(Note: IR sensor and emitter not shown in above diagram.)

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual

8. HDMI Pin Definition

9. Troubleshooting

The following table describes some of the symptoms and possible solutions regarding the HDMI 2.0

Fiber Extender Kit, Single Mode

Symptom

Probable Cause

Possible Solutions

No Image

No Power

Check power connections

No Image

Fiber optic cable

Check the fiber optic cable

No Image

HDMI Cable

Check the HDMI cable

No Image

Cable length

Check cable length, check with another monitor.

Flickering Image

or bad sound

Cable length

Check cable length / Check the HDMI cable.

USB not working,

but audio/video

USB cable, or too

much power required

for USB peripheral.

Check USB cable or try another USB device.

If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689-

5228 (toll-free in North America) or (+1) 514-905-0588 (International).

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual

MuxLab Inc.

2321 Rue Cohen

Montreal, Quebec

Canada H4R 2N7

Tel.: +1 (514) 905-0588 Fax: +1 (514) 905-0589

Toll Free (North America): 877 689-5228

URL: www.muxlab.com

E-mail: inf[email protected]
