Munters WS55 Manual de usuario

1© Munters Corporation, November 2019 QM1232r2

Instruction Manual

WS55 Exhaust Fan

Fiberglass w/ Plastic Cone - 1-Pack Quick Kit

Models: WS55xKxCP •WS55xKxGP • WS55xPxCP-PE •

WS55xPxCT-PE

WS55

Exhaust Fan

Fiberglass w/

Plastic Cone

1-Pack Quick Kit

2QM1232r2

Thank You:

Thank you for purchasing a Munters WS55 Exhaust Fan. Munters equipment is designed to be the highest

performing, highest quality equipment you can buy. With the proper installation and maintenance it will provide

many years of service.

Please Note:

To achieve maximum performance and insure long life from your Munters product it is essential that it be installed

and maintained properly. Please read all instructions carefully before beginning installation.

Warranty:

For Warranty claims information see the “Warranty Claims and Return Policy” form QM1021 available from the

Munters Corporation office at 1-800-227-2376 or by e-mail at [email protected].

Conditions and Limitations:

• Products and Systems involved in a warranty claim under the “Warranty Claims and Return Policy” shall have

been properly installed, maintained and operated under competent supervision, according to the instructions

provided by Munters Corporation.

• Malfunction or failure resulting from misuse, abuse, negligence, alteration, accident or lack of proper installation

or maintenance shall not be considered a defect under the Warranty.

WS55 Exhaust Fan; Fiberglass w/ Plastic Cone

Instructions for Use and Maintenance

3© Munters Corporation, November 2019 QM1232r2

Index

Chapters Page

1. Unpacking the Equipment 4

1.1 Parts List 4

1.2 Fan Dimensions 6

1.3 Tools for Installation 6

2. Installation Instructions 7

2.1 Wall Framing 7

2.2 Fan Assembly 8

2.3 Motor Mounting 10

2.4 Cone Installation 14

3. Electrical Wiring 20

3.1 Recommended Wire Routing 21

4.Operation 22

5.Maintenance 23

6.Winterizing 25

6.1 Winterizing 25

6.2 Winter Weather Protection 25

7.Troubleshooting 26

8. Exploded View and Parts List 28-29

4QM1232r2

1.1 Parts List

Unpacking the Equipment 1.

Broiler Fan (WS55xK)

Each Crate Includes

1 – 55” Fiberglass Fan, Sub-Assembly

1 – Plastic Shutter

1 – Motor

4 – Cone Sections, PL

4 – Cone Support Brackets, PC Type, Galvanized

1 – Cone Guard (Round)

1 – Bulk Parts Package (BK1170)

BK1170 – Bulk Parts Package for WS55xK

1 – Motor Plate, Powder Coated

1 – Motor Bracket Brace, Powder Coated

1 – Belt Tensioner Bracket, Powder Coated

1 – V-Belt, A-Section

1 – Motor Sheave

1 – 3” Idler Pulley, A-Section C.I., Blue

1 – Rotary Tensioner Arm, AL

1 – Hardware Package (HP1440)

1 – Hardware Package (HP1441)

Swine Fan (WS55xP)

Each Crate Includes

1 – 55” Fiberglass Fan, Sub-Assembly

1 – Plastic Shutter

1 – Motor

4 – Cone Sections, PL

4 – Cone Support Brackets, PC Type, Powder Coated

1 – Cone Guard

1 – Bulk Parts Package (BK1172)

BK1072 – Bulk Parts Package for WS55xP

1 – Motor Plate, Powder Coated

1 – Motor Bracket Brace, Powder Coated

1 – Belt Tensioner Bracket, Powder Coated

1 – V-Belt, A-Section

1 – Motor Sheave

1 – 3” Idler Pulley, A-Section C.I., Blue

1 – Rotary Tensioner Arm, AL

1 – Hardware Package (HP1440)

1 – Hardware Package (HP1442)

5© Munters Corporation, November 2019 QM1232r2

[A]

[B]

[C]

[D]

[E]

[F]

[G]

[H]

[J]

Unpacking the EquipmentChapter 1

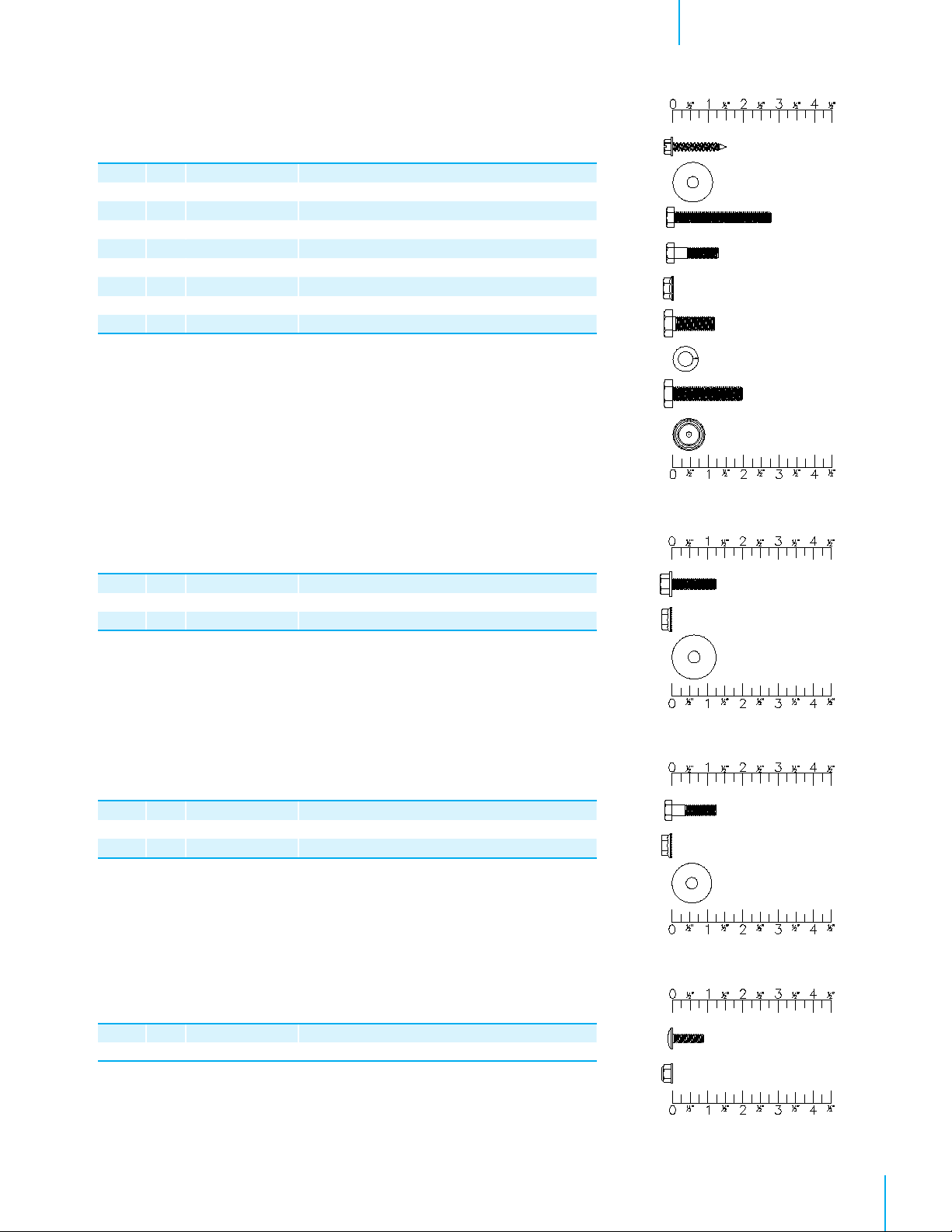

HP1442 – Hardware Package for 1 – WS55xP Cone Assembly

ID Qty. Cat. No. Description

[D] 20 KS1007 5⁄16”-18 x 1.25” Hex Head Bolts, SS

[E] 24 KN0704 5⁄16”-18 SRTD Flange Nuts, SS

[B] 4 KW3011 5⁄16” x 1¼” O.D. Flat Washer, SS

HP1440

HP1441

[K]

[L]

[M]

HP1440 – Hardware Package for 1 – WS55xK/P Fan Assembly

ID Qty. Cat. No. Description

[A] 12 KS2105 #14 x 1.5” Hex Washer Tap Screw, SS

[B] 2 KW3011 5⁄16” x 1¼” O.D. Flat Washer, SS

[C] 3 KS1075 5⁄16”-18 x 2.75” Hex Head Bolts, SS

[D] 5 KS1007 5⁄16”-18 x 1.25” Hex Head Bolts, SS

[E] 8 KN0704 5⁄16”-18 SRTD Flange Nuts, SS

[F] 1 KS1931 M10-1.5 x 25mm Hex Bolt, ZP

[G] 1 KW3509 10mm Splitlock Washer, ZP

[H] 1 KS1046 M10-1.5 x 50mm Hex bolt, ZP

[J] 3 KX1158 Hole Plug, 0.73”-0.76” Dia., BLK PL

HP1442

[D]

[E]

[B]

HP1441 – Hardware Package for 1 – WS55xK Cone Assembly

ID Qty. Cat. No. Description

[K] 20 KS1167 5⁄16”-18 x 1.25” SRTD Flange Head Bolts, ZP

[L] 24 KN0706 5⁄16”-18 SRTD Flange Nuts, ZP

[M] 4 KW4908 M8 x 32mm Flat Washer, ZP

HP1210

[N]

[P]

HP1210 – Hardware Package for 1 – WS55xKxGP Guard Attachment

ID Qty. Cat. No. Description

[N] 8 KS0650 1⁄4”-20 x ⁷⁄₈” Truss Head Bolt, SS

[P] 8 KN1717 1⁄4”-20 Hex Flange, Nylock Nut, SS

6QM1232r2

1.2 Fan Dimensions

Fan Specifications: 60Hz shown (50Hz available)

Power: 115/230 VAC* or 208-230/460 VAC

Phase: 1 or 3

*Available voltages vary depending on HP

Unpacking the EquipmentChapter 1

1.3 Tools Required For Installation

10mm [3⁄8”] Socket

13mm [½”] Socket

17mm [11⁄16”] Socket or Wrench

27mm [1-1⁄16”] Wrench

3⁄8” Socket

Phillips Screwdriver, #3 Size

5⁄32” Hex Wrench

Dimensions:

Size A B C D - Dia. E F G

Above W.O.

Below W.O. Wall Openings (W.O.)

55” 635⁄8”62

3⁄4”64

7⁄16”66

1⁄4”25

5⁄16”11

3⁄4”5⁄8”4

3⁄8” 60”W. x 611⁄4”H.

Wall Opening H. (W.O.)

D - Dia.

Guard

Wall Opening W. (W.O.)

7© Munters Corporation, November 2019 QM1232r2

2.1 Wall Framing

Installation Instructions 2.

Minimum Spacing

'Z'

Chart A

Wall Opening

(W. x H.)

Fan Dia.

12” recommended; 8” minimum

55” 60” W. x 61¹⁄₄” H.

Center To Center

Dimension

68” Minimum

Figure 1B 4 x 4 Post Construction - Elevation View

Ceiling

Framing

(See Chart A)

12"

(See Chart A)

See minimum spacing-

notes in Chart A

2 x 8 Header boards

4 x 4 or

4 x 6 Posts

2 x 4

Framing

2 x 8 Banner boards

Ceiling

4 x 4 or 4 x 6 Posts

(See Chart A)

Figure 1A Frame Construction

W x H Wall Opening

Sheet Metal Opening

Stud Wall

Step 1

Construct framed opening to correct size according to the Wall Opening listed in Chart A below.

See Figure 1A and 1B. When installing exterior sheet metal before fan, leave 2” of the framing

exposed on all sides so the orifice can mount flush to the frame.

8QM1232r2

Step 2A

Remove the Cone Pieces, Guard, BK1170/BK1172 Box and Motor from the front of the crate. See Figure 2A.

Figure 2A

Installation InstructionsChapter 2

Step 2B

Remove the Shutter from the back of the crate. See Figure 2B.

Figure 2B

Cone Pieces

and Guard

BK1170/BK1172

2.2 Fan Assembly

Motor

Shutter

9© Munters Corporation, November 2019 QM1232r2

Step 3

Insert fan into framed opening from the inside. While lifting the fan up tight to framing, fasten top of

fan with (3) Lag Screws [A]. See Figure 3A and 3B. Next fasten bottom of fan, then both sides with

remaining (9) Lag Screws [A]. Install flashing around opening tight to fan and caulk around fan to seal.

2x4 Framing

Step 4

Attach the Motor Plate and the Belt Tensioner Bracket to the Tube Strut using (3) Long Bolts [C], (2)

Washers [B] and (3) Nuts [E]. See Figure 4.

Figure 3A

Frame Construction

Figure 4

Installation InstructionsChapter 2

Long Bolt [C]

Nut [E]

Motor Plate

Belt Tensioner Bracket

Lag Screw [A]

2x8 Banner Boards

Post

2x8 Header Boards

Lag Screw [A]

Figure 3B

Post Construction

Washer [B]

10 QM1232r2

Motor Key

Motor

Motor Sheave

Step 5

Attach the 3” Idler Pulley to the Tensioner Arm using Bolt [H]. Then attach the Tensioner/Pulley Assembly to the

Tensioner Bracket using Bolt [F] and Splitlock Washer [G]. Finger tighten only at this time. See Figure 5.

Step 6

Find the Key provided with the Motor and place it in the Keyway on the motor shaft. Place the Motor Sheave

on the Motor shaft with the hub facing towards the motor. See Figure 6. ONLY tighten the set screw enough

to hold the Sheave in place at this time. See Figure 6.

Figure 5

Figure 6

Installation InstructionsChapter 2

Bolt [F]

Splitlock Washer [G]

3” Idler Pulley

Tensioner Arm

Bolt [H]

2.3 Motor Mounting
