Instruction Manual
Munters Drive Retrofit Kit
AT36/VX36 or AT48/VX48 Retrofit Kit
Models: RF- VX36xx-Hx •RF-VX48xx-Hx
Munters Drive*
AT36/ VX36
AT48/VX48
Retrofit Kit
*Patents Pending
© Munters Corporation, March 2017
2QM1226r3
Munters Drive AT36/48 & VX36/VX48 Retrofit Kit
Manual for use and Maintenance
Thank You:
Thank you for purchasing a Munters Drive Retrofit Kit. Munters equipment is designed to be the highest performing,
highest quality equipment you can buy. With the proper installation and maintenance it will provide many years
of service.
Please Note:
To achieve maximum performance and insure long life from your Munters product it is essential that it be installed
and maintained properly. Please read all instructions carefully before beginning installation.
Warranty:
For Warranty claims information see the “Warranty Claims and Return Policy” form QM1021 available from the
Conditions and Limitations:
• Products and Systems involved in a warranty claim under the “Warranty Claims and Return Policy” shall have
been properly installed, maintained and operated under competent supervision, according to the instructions
provided by Munters Corporation.
• Malfunction or failure resulting from misuse, abuse, negligence, alteration, accident or lack of proper installation
or maintenance shall not be considered a defect under the Warranty.
3
© Munters Corporation, March 2017 QM1226r3
Index
Chapters Page
1. Unpacking the Equipment 4
1.1 Parts List 4
2. Installation Instructions 5
2.1 Install 5
2.2 Fan With X-Strut 7
2.3 Installation with Munters Drive H-Strut 8
3. Electrical Wiring 12
3.1 Recomended Wire Routing 12
3.2 Electrical Wiring 15
4. Operation and Maintenance 21
5. Troubleshooting 22
6. Exploded View 23
© Munters Corporation, March 2017
4QM1226r3
Unpacking the Equipment 1.
1.1 Parts List
Each Munters Drive Retrofit Kit includes:
1 – Left Tube Strut
1 – Right Tube Strut
4 – Strut Spacer
1 – Munters Drive Motor
1 – Munters Drive Controller
1 – Hardware Package as follows:
HP1317 – Hardware package
[A]…..16 – ¼” x 1.75” Hex Bolt, SS
[B]…..16 – ¼” Type-A Narrow Flat Washer, SS
[C]…..16 – ¼” Hex Flange Nut, SS
[D]……8 – 5⁄16” x 3” Hex Bolt, SS
[E]……8 – 3⁄8” Flat Washer, SS
[F]…..16 – 5⁄16” Splitlock Washer, SS
[G]……8 – 5⁄16” x 1” Hex Bolt, SS
[H]……8 – 5⁄16” x 1¼” OD Flat Washer, SS
[J]…….4 – 5⁄16” Wing Nut, NY
[K]……4 – #10 x ¾” TEK Screw, HXWSR, SS
[L]……4 – 3⁄8” Dia. Wire Clamp, BLK, NY
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
[J]
[K]
[L]
Before beginning installation, check the overall condition of the equipment. Remove packing materials, and examine all
components for signs of shipping damage. Any shipping damage is the customer’s responsibility and should be reported
immediately to your freight carrier. Fan is shipped complete with all accessories. Remove shutter, guard and cone sections
before proceeding with installation.
5
© Munters Corporation, March 2017 QM1226r3
Installation Instructions 2.
2.1 INSTALL
Step 1
Disconnect power from fan before continuing. Remove the shutter from the back of the fan and the guard
from the cone and set safely aside to be reinstalled later. See Figure 1.
Figure 1
Figure 2
Step 2
Loosen the set screws holding the propeller to the shaft. Carefully remove the propeller from the fan and
set safely aside to be reused. A gear puller or prop puller may need to be used. See Figure 2.
© Munters Corporation, March 2017
6QM1226r3
Figure 3A
Bolt and Washer
Step 3
Disconnect the electrical power leads from the motor. For an X-Strut frame remove the bolts and washers
holding the fan struts to the fan housing and remove the fan drive unit in one piece, this includes the struts, motor,
bearings and strut brace. See Figure 3A. For an H-Strut frame remove the bolts and washers holding the fan
struts to the fan housing and remove the fan drive unit in one piece, this includes the struts, motor base, motor,
bearing base, and bearings. Make sure that all the washers are removed from the fan housing in all 4 locations
on the outside of the fan housing. See Figure 3B. Be sure not to damage the bolt holes in the housing, as these
holes will be reused.
Note: If your 48” fan was built before July 11, 2003 or 36” fan before March 15, 2004 and has the X-Strut the
proceed to Step 4. If your fan was built after July 11, 2003 for the 48” or after March 15, 2004 for the 36”
and/or has the H-Strut then proceed to Step 6.
Figure 3B
Bolt and Washer
48” Fan with X-Strut built before July 11, 2003
36” Fan with X-Strut built before March 15, 2004
48” Fan with H-Strut built after July 11, 2003
36” Fan with H-Strut built after March 15, 2004
Installation InstructionsChapter 2
7
© Munters Corporation, March 2017 QM1226r3
2.2 Fan With X-Strut
Step 4
Identify the top and bottom legs of the New Tube Struts (supplied). The top leg of the strut is the shorter leg with
the larger angle and the bottom leg is the longer leg with the smaller angle. See Figure 4A. Position the Tube
Struts into the fan housing and align the outermost holes in each strut leg with the outermost holes in the housing
and fasten in place using (4) bolts [D] and wing nut [J]. See Figure 4B.
Figure 4A
Wingnut [J]
Bolts [D]
Strut
Figure 4B
Strut
Short Leg
Long Leg
Small Angle
This Face Goes Against Housing
Large Angle
Installation InstructionsChapter 2
© Munters Corporation, March 2017
8QM1226r3
Step 5
From the inside of the housing, use a drill and 5⁄16” bit to drill a hole in each corner of housing using
the inner most holes in each strut. Be sure to center the hole. See Figure 5. Once all 4 holes are
drilled remove the struts by removing the wing nuts and bolts. Bolts will be reused.
Figure 5
Figure 6
Step 6
Locate box and make sure it is facing up and open the box. Remove the top section of the
foam packaging to reveal the Munters Drive motor and Controller and leave them in the foam
packaging. Carefully remove the lower section of foam packaging with the motor and controller
still in it and set on a flat surface for assembly. See Figure 6.
Installation InstructionsChapter 2
Top Foam Packaging
2.3 Installation with Munters Drive H-Strut
Bottom Foam Packaging
9
© Munters Corporation, March 2017 QM1226r3
Step 7
Remove the top section of the foam packaging to reveal the Munters Drive motor and Controller and
leave them in the foam packaging. With the Motor sitting in the foam packaging, position the Strut on
the motor with the short leg towards the controlletr and the long leg away from the controller and line
up the offset hole pattern in the struts with the offset hole pattern in the motor. When the struts are in the
correct position the 4 extra holes will be towards the controller. See Figure 7.
Figure 7
Step 8
Fasten Struts to motor using (8) bolts [A], washers [B] and nuts [C]. See Figure 8.
FINGER TIGHTEN ONLY AT THIS TIME.
Figure 8
Motor
Foam Packaging
Controller
Short Leg
Long Leg
Nut [C]
Bolt [A]
Washers [B]
Offset Hole pattern
Installation InstructionsChapter 2
© Munters Corporation, March 2017
10 QM1226r3

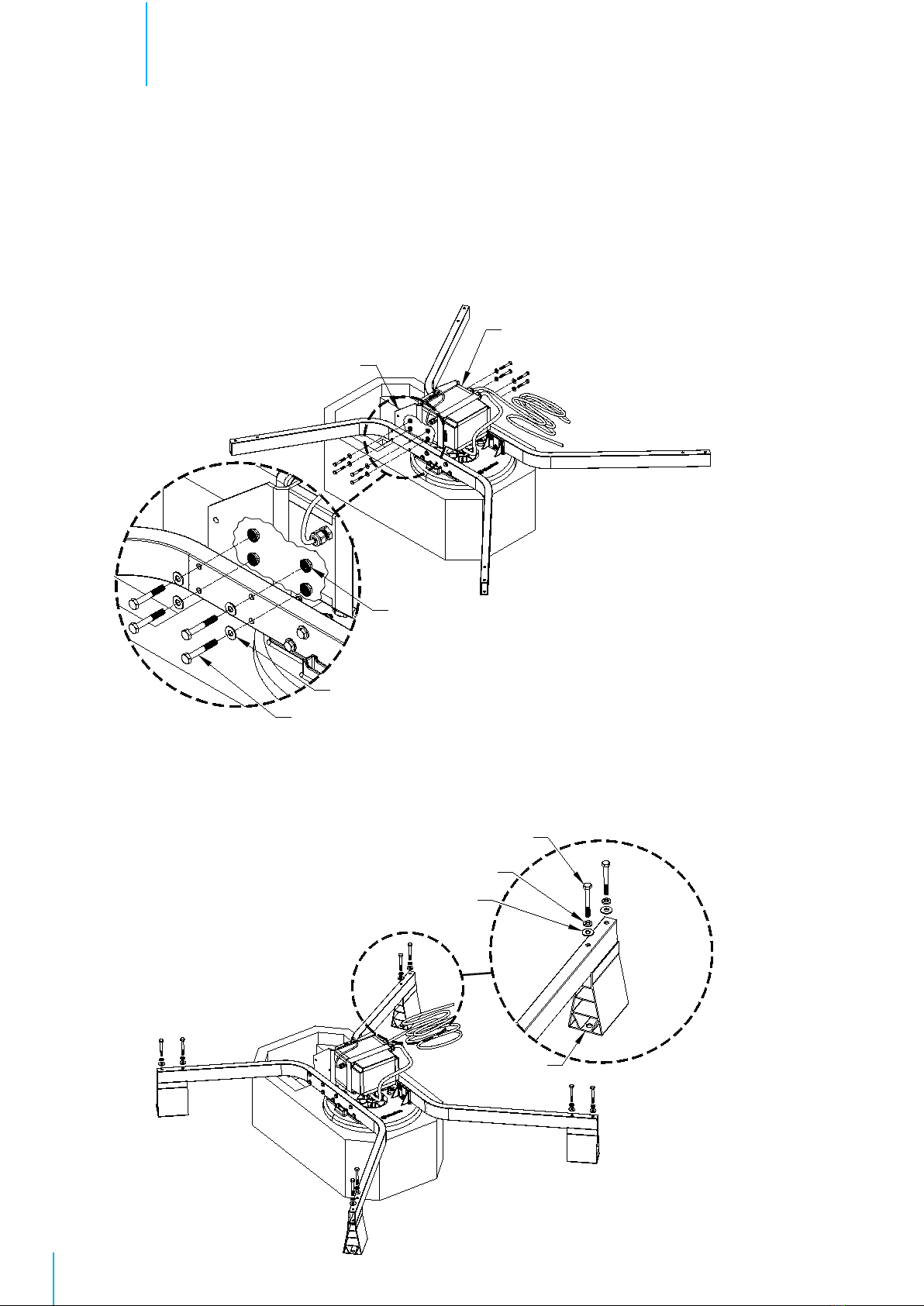

Step 9
Carefully pull the Munters Drive controller out of the foam packaging and slide it between the struts so that
the 4 holes in each strut line up with the holes in each side of the controller bracket and fasten with (8) bolts
[A], washers [B] and nuts [C]. See Figure 9. Tighten all bolts and nuts at this time.
Figure 9
Washer [B]
Bolt [A]
Controller
Nut [C]
Installation InstructionsChapter 2
Step 10
With the Munters Drive motor/strut assembly still sitting in the foam packaging attach the (4) Strut Spacers
to the under side of the tube strut using (2) bolts [D], washers [E] and splitlock washers [F]. See Figure 10
Bolt [D]
Washers [E]
Spitlock Washers [F]
Figure 10
Strut Spacer
Controller Bracket
