Munters EM52 Manual de usuario

Assembly manual

Spare part list + Assembling guideline

EM52

Exhaust fan

EM52

Ag/MIT/IGB-2207-09/14 rev 1.0

EM52

Assembly manual

Original instructions

This document is destined for the user of the apparatus: it may not be reproduced in whole or in part, committed

to computer memory as a file or delivered to third parties without the prior authorisation of the assembler of the

system.

Munters Italy S.p.A. reserves the right to effect modifications to the apparatus in accordance with technical and

legal developments.

Index

chapter page

1. SPARE PART LIST 4

EM52 exploded view 4

Spare parts 5

2. ASSEMBLING TOOLS 13

3. ASSEMBLING GUIDELINES 15

Housing assembling 15

Centrifugal system and pulley to propeller assembling 17

Shutter blades assembling 20

Motor assembling 21

CE Kit assembling 22

Optional pyramidal shape mesh assembling 23

All the components and spare parts MUST be storaged in dry and clean

environment.

WARNING

2223

38 37

36 29

17 18

315

39 26

50 51

Spare part list

EM52

fig.1

Spare part listChapter1

Spare parts

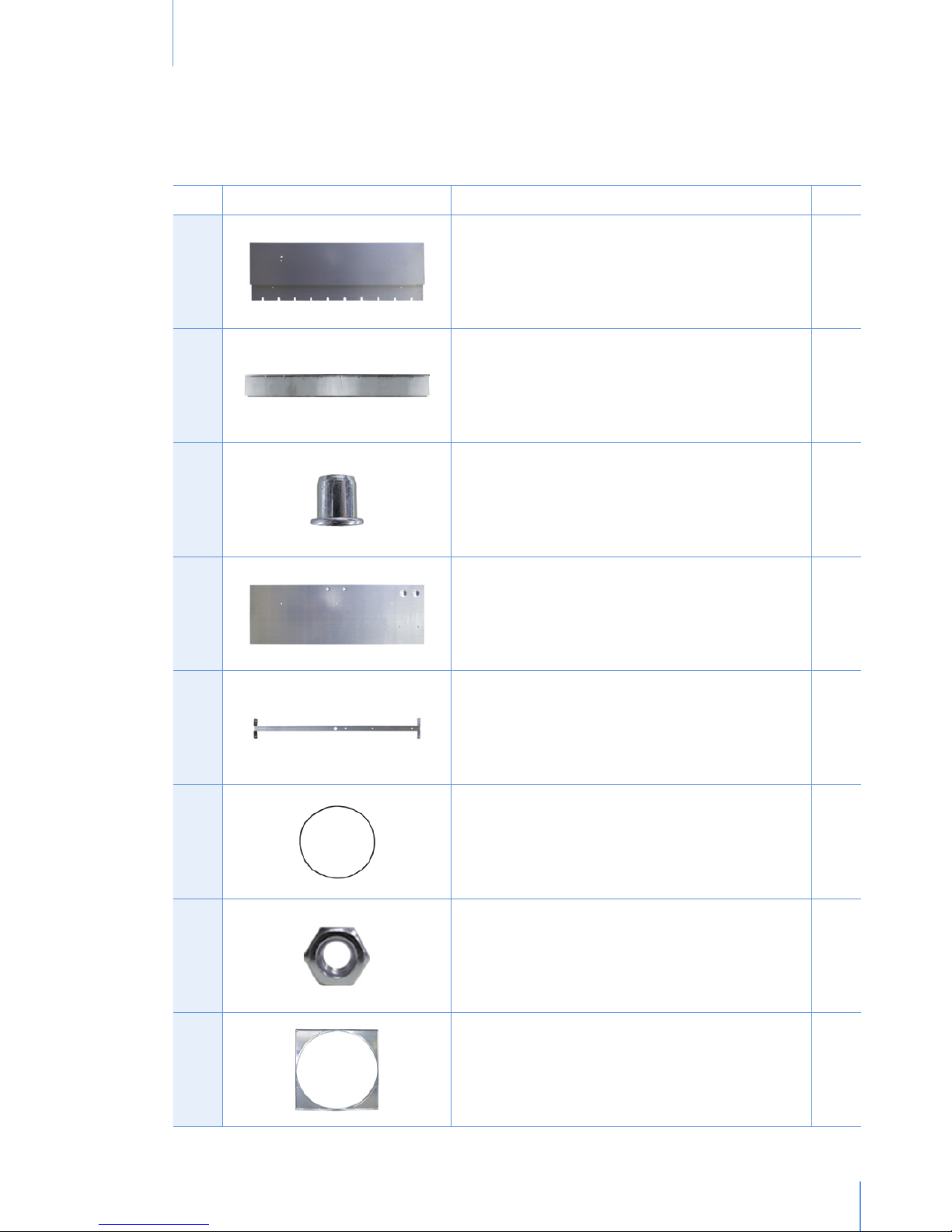

Ref. Picture Description Q.ty

1 SIDE PANEL 2

2 CARTER 2

3 THREADED BUSH M8X12.5 2

4 TOP PANEL 1

5 CENTRAL SUPPORT 1

6 V-BELT A90 1

7 HEXAGONAL NUT M8 6

8 CONVEYOR 1

Spare part listChapter1

9 MOTOR 1

10 EXT TOOTHED WASHER D8 4

11 HEXAGON SCREW M8x25 4

12 PLASTIC FORK 1

13 HEXAGON NUT M6 THIN 2

14 HEXAGONAL SCREW M6X16 2

15 STOP COLLAR D7X17 2

16 CENTRAL RIGHT BEARING 1

17 RIGHT BEARING 9

Spare part listChapter1

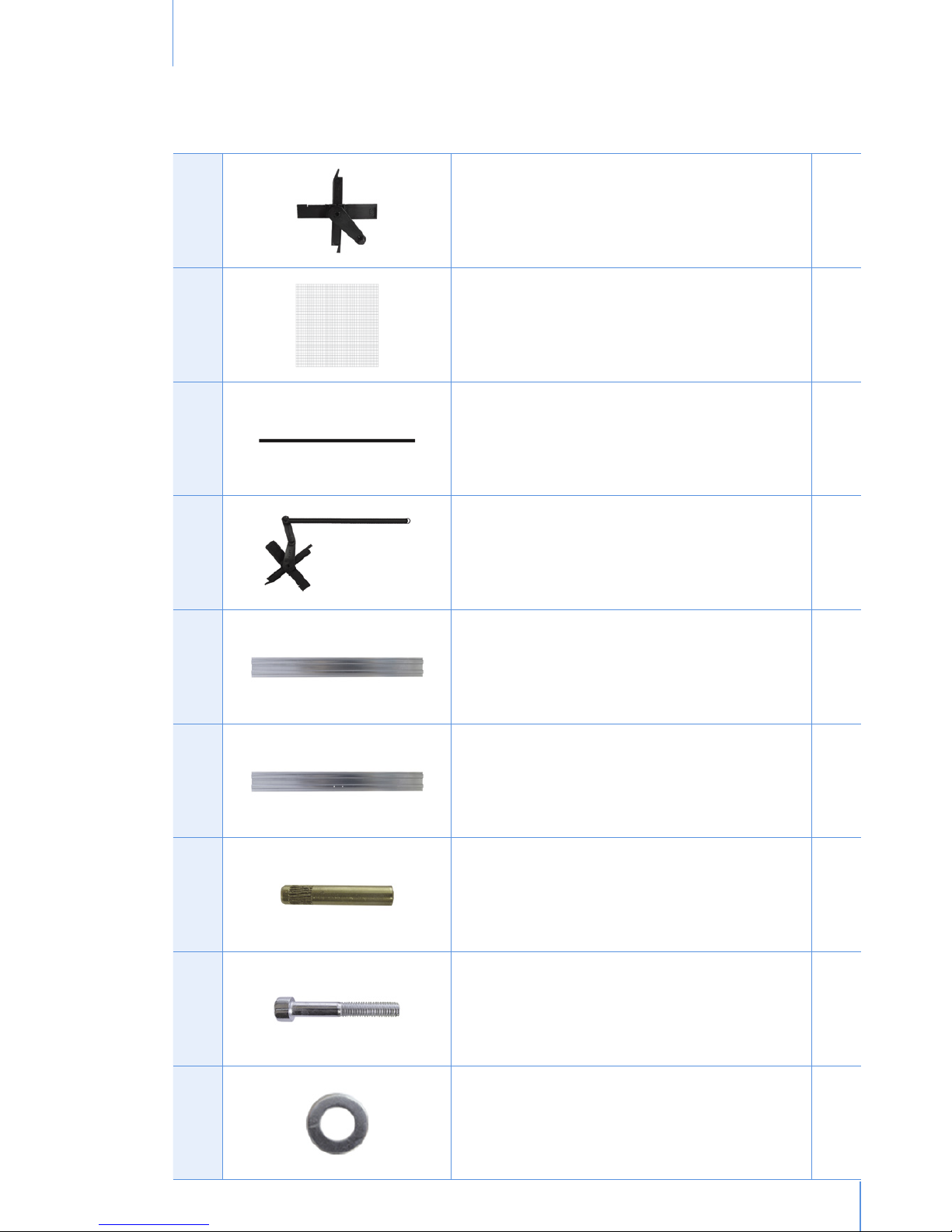

18 LEFT BEARING 9

19 PYRAMIDAL REAR SAFETY MESH 1

20 TIE ROD 2

21 CENTRAL LEFT BEARING 1

22 SHUTTER BLADE 9

23 CENTRAL SHUTTER BLADE 1

24 KNURLED AXLE 1

25 HEXAGON SOCKET HEAD CUP SCREW M8X55 2

26 PLAIN WASHER D8,4X17 2

Spare part listChapter1

27 CENTRIFUGAL SYSTEM 1

28 PROPELLER 1

29 HEXAGONAL NUT M10 4

30 COMPLETE CENTRAL HUB 1

31 HEXAGONAL SCREW M6X30 4

32 HEXAGONAL NUT M6 WITH FLANGE 4

33 CENTRAL PULLEY 1

34 WATERPROOF DISTANCE PIECE 1

35 HEXAGONAL NUT M25 1

Spare part listChapter1

36 EXT TOOTHED WASHER D10,5X18 4

37 OVAL PLATE 2

38 HEXAGON SOCKET COUNTERSUNK SCREW M10X30 4

39 SPRING HOOK 2

40 BOTTOM PANEL 1

41 POP UP RIVET D4.8X7 20

42 THREADED BUSH D8X17.5 8

43 RUBBER GROMMET 1

44 CAP COVER NUT 1

Spare part listChapter1

45 REAR SAFETY MESH 2

46 METAL CLIP FOR MESHES 2

47 PLAIN WASHER D6X24 + SEALING 1

48 SELF TAPPING SCREW D6.3X19 25

49 PLASTIC CLIP FOR MESHES 16

50 HEXAGONAL SCREW M8X16 2

51 PLAIN WASHER D8X32 2
