MTX MUD65PL Manual de usuario
MTX.COM
MUD65PL
CAGE MOUNT SPEAKER WITH RGB LEDS
OWNER’S MANUAL
MTX.COM
2
PRODUCT INFORMATION
Model #
Serial #
Dealer’s Name
Date of Purchase
IN THE BOX
• Speaker and Enclosure
• Brackets
• For mounting the bracket base to the enclosure
• (8) M6-1.0x14mm stainless steel Hex Bolt
• (8) M6 at washer stainless steel
• (8) M6 split lock washer stainless steel
• For tightening the bracket strap to the base
• (2) M6-1.0x50mm stainless steel Hex Bolt
• (2) M6 serrated ange lock nut stainless steel
INTRODUCTION
Thank you for purchasing this MTX Audio cage mount speaker pod. This high performance speaker
features all-weather construction designed to deliver exceptional sound quality and volume for high
output systems for those that love to hear their music wherever they are. Additionally, each speaker
enclosure includes a RGB LED light kit that enables customization of the speaker lighting color on the
grille. Congratulations and enjoy the ultimate audio experience with MTX!
FEATURES
• Integrated RGB LED Lighting
• Includes Rotating Brackets for 1.5", 1.75", and 2" Bars
• ABS Impact Resistant Enclosure and Grille with UV Inhibitor
• Polypropylene Woofer and Mylar Dome Tweeter
• Tested 500 Hrs to ASTM B117, D4329 Standard
• IP67 Rated for Outdoor Use
SPECIFICATIONS
RMS Power Handling: 50-Watts
Peak Power Handling: 100-Watts
Sensitivity (2.83V/1m): 89.9dB
Sensitivity (1W/1m): 85.6dB
Frequency Response: 70Hz - 20kHz
Impedance: 4Ω
Fits Bars 1.5", 1.75", and 2"
WIRE COLOR
Grey / Black: +/- speaker wire
Black / Red / Green / Blue: +/ground speaker illumination
MTX.COM 3
INSTALLATION
1. Choose appropriate bracket clamp, 1.5", 1.75", and 2", for the application. If using the MUD65P
with a ProFit or Prole style enclosure, use optional bracket MUDPFC, to attach speaker
enclosure to cage.
2. Attach bracket base to enclosure at desired angle using a minimum of two (2) M6-1.0x14mm Hex
bolts and M6 lock washers. If only two (2) bolts are used, ensure there is a bolt on each side of
the round base for secure mounting.
3. Slide bracket clamp over pipe or bar at desired mounting location.
4. Hold the enclosure in place where the base ts in the open section of the clamp. Then place the
M6-1.0x50mm Hex bolt through making sure the threads are towards the front of the enclosure.
See Figure 1.
5. Tighten the M6 serrated nut onto the bolt until the bracket is tight. The nut is serrated and will lock
in place. The speaker will not rotate on the bar if it is mounted when these are fully tightened.
6. Adjust and tighten the bolts to the desired position making sure to use a minimum of two bolts.
Depending on the position of the speaker, only two (2) insertion points will be usable.
7. Attach the MTX badge to the rear recess of the enclosure with the included double stick tape.
8. Connect the speaker wires to your amplier ensuring correct polarity Grey to positive and
Black to negative. The MUD65PL includes speaker illumination. When hard-wiring the RGB
lighting, the Black lead is +12V and the Red, Green, and Blue leads are ground. There are seven
colors available, depending on the wiring conguration. MTX recommends using the MUDLEDC
remote control (sold separately) for more colors, patterns and special effects. See Figure 2.
Figure 1
MTX.COM
4
Figure 2
RGB Ground
+12V –
2A Fuse (max)
(sold separately)
<7"
(17.5cm)
+12V
Color Combinations: Splice and combine the ground wires to yeild a different color.
Red Red
Green Green
Blue Blue
Red / Green Lime Green
Red / Blue Magenta
Green / Blue Aquamarine
Red / Green / Blue Blue-White
MTX.COM 5

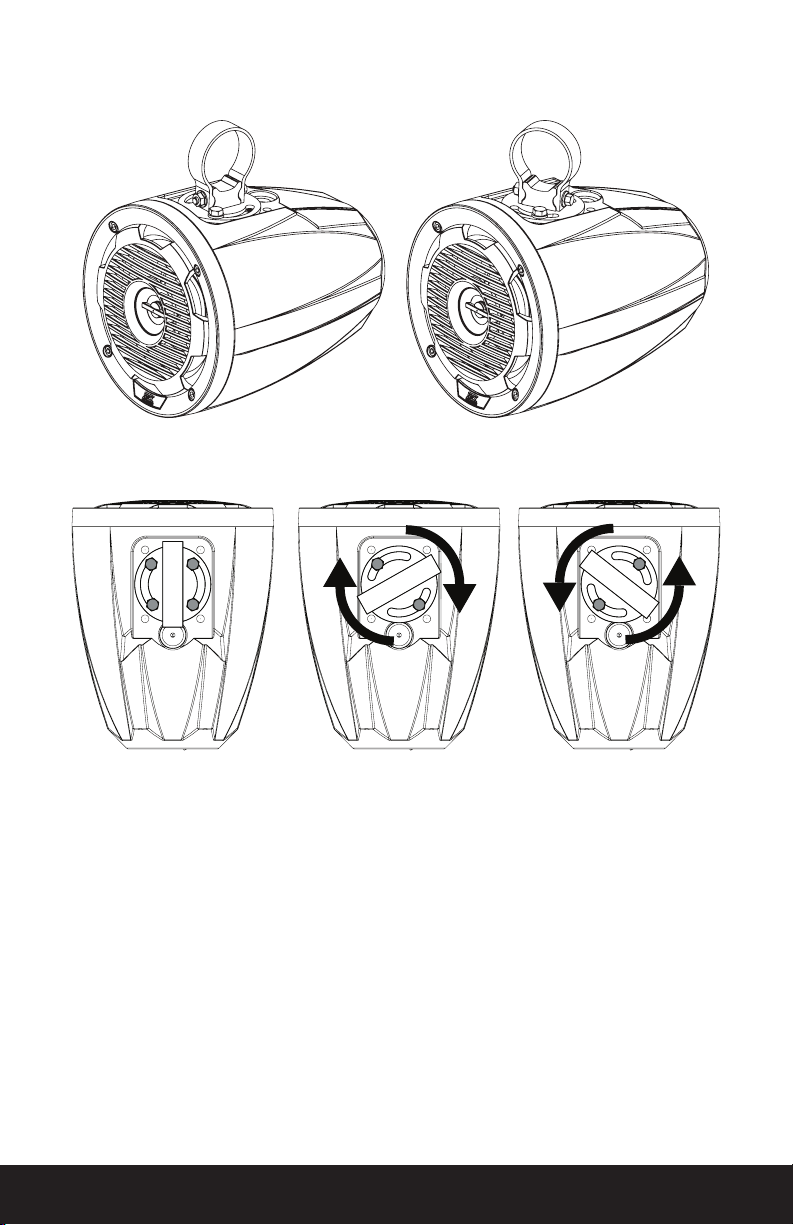

The bracket base can rotate in any direction desired, a minimum of 2 bolts must be used, 1 on each side.
MTX.COM
6
NOTES:
MTX.COM 7
NOTES:
MTX.COM
8
© 2018 Mitek Corporation. All rights reserved. MTX, Mud Nation, and Let’s Do Something Dirty are trademarks
of Mitek Corporation. All other trademarks are property of their respective owners. Designed and Engineered in
the U.S.A.
Due to continual product development, all specications are subject to change without notice.
MTX Audio, 4545 East Baseline Rd. Phoenix, AZ 85042 U.S.A. 1-800-225-5689
MTX005835 RevA 9/18 •21A10686 • AW0015692
