OWNER’S MANUAL

MODEL 625W / MODEL 825W

1 Mitek Plaza

Winslow, IL 61089

815-367-3000

800-225-5689

CONGRATULATIONS

We appreciate your choice of MTX In-Wall Speakers. Properly installed and

operated, MTX In-Wall Speakers should provide years of worry-free listening

pleasure. It’s important that you follow each step in this guide carefully to insure

proper installation.

SPECIFICATIONS MODEL 625W MODEL 825W

Frequency Response 48Hz-20kHz 36Hz-20kHz

±3dB ±3dB

Impedance 8 ohms nominal 8 ohms nominal

Power Handling 55 Watts RMS 60 Watts RMS

110 Watts Peak 120 Watts Peak

Music Music

Sensitivity (1W/1m) 85dB 86dB

Woofer Diameter 6-1/2” 8”

Tweeter 25mm Soft Dome 25mm Soft Dome

Mounting Depth 2-7/8” 3-1/4”

Baffle Size (H x W) 12” x 8-9/16” 14” x 10”

PAINTING YOUR MTX IN-WALL SPEAKERS

MTX In-Wall Speakers are designed to accept all types of interior and exterior

paints. Spray or roller application should provide excellent results. A paint shield

is included with all MTX In-Wall Speakers speakers to protect the speakers during

the painting process.

MTX WARRANTY INFORMATION

MTX In-Wall Speakers purchased in the United States from an authorized MTX

dealer are guaranteed against defects in material and workmanship for a period ten

years from the date purchased by the end user, and limited to the original retail pur-

chaser of the product.

MTX disclaims any liability for other incurred damages resulting from product defects.

Any expenses incurred in the removal and reinstallation of product is not covered by

this warranty. MTX's total liability will not exceed the purchase price of the product.

This warranty is valid in the United States only.

Proof of purchase is required when requesting service, so please retain your sales

receipt and take a moment to register your warranty on line at www.mtx.com.

LOUDSPEAKER PLACEMENT

MTX In-Wall Speakers are designed to work within any interior decorating scheme.

They can be installed in virtually any location where flush mounting is possible.

To maximize their sound performance however certain guidelines should be fol-

lowed. For the best stereo reproduction the two loudspeakers should be placed

an equal distance from your listening position and separated so that the angle

between them, at the listening position, is between 40 and 60 degrees.

For best stereo imaging, we recommend that the units be placed so that the

tweeters are as close as possible to the ear level of a seated listener. As this is

not always possible in keeping with aesthetic design of a particular room, MTX

In-Wall Speakers were designed with a pivoting tweeter which rotates to allow you

to “aim” the high frequencies toward the listening position.

TWEETER LEVEL ADJUSTMENT

The output of the tweeter can be adjusted to compensate for speaker placement/

listening positions that are less than ideal. The 0dB position is designed to pro-

vide the smoothest frequency response on axis. If the high frequency response is

considered to be too strong or too weak, the tweeter level can increased (+3dB

position) or decreased (-3dB position) to suit the listeners preference.

Normal Dispersion

Dispersion After Tweeter Adjustment

MODEL 520C

5-1/4” Coaxial In-Ceiling Speaker w/

swivel tweeter

Impedance: 8 ohms nominal

Sensitivity: 85dB

50W RMS/100W Peak Music

Frequency Response: 60Hz-20kHz

7-3/4”Dia. x 3-3/4”D

MODEL 825C

8” Coaxial In-Ceiling Speaker w/

swivel tweeter

Impedance: 8 ohms nominal

Sensitivity: 85dB

60W RMS/120W Peak Music

Frequency Response: 40Hz-20kHz

10-3/4”Dia. x 4”D

MODEL 625C

6-1/2” Coaxial In-Ceiling Speaker w/

swivel tweeter

Impedance: 8 ohms nominal

Sensitivity: 85dB

55W RMS/110W Peak Music

Frequency Response: 50Hz-20kHz

9”Dia. x 3-1/2”D

OTHER PRODUCTS FROM MTX

In-Ceiling Loudspeakers

Home Loudspeakers

MONITOR6

6-1/2” Two-Way Home Loudspeaker

19mm Dome Tweeter

Impedance: 8 ohms nominal

Sensitivity: 89dB

100W RMS/200W Peak Music

Frequency Response: 55Hz-20kHz

12 3/4”H x 7 1/2”W x 8 1/2”D

MONITOR10

10” Three-Way Home Loudspeaker

19mm Dome Tweeter

Impedance: 8 ohms nominal

Sensitivity: 92dB

200W RMS/400W Peak Music

Frequency Response: 30Hz-20kHz

31 7/16”H x 11 1/8”W x 14 5/16”D

MONITOR6C

6-1/2” Center Channel Loudspeaker

19mm Dome Tweeter

Impedance: 8 ohms nominal

Sensitivity: 92dB

100W RMS/150W Peak Music

Frequency Response: 60Hz-20kHz

7 1/2”H x 17 5/8”W x 8”D

MONITOR12

12” Three-Way Home Loudspeaker

19mm Dome Tweeter

Impedance: 8 ohms nominal

Sensitivity: 94dB

250W RMS/500W Peak Music

Frequency Response: 25Hz-20kHz

35”H x 13 1/8”W x 16 1/16”D

TECHNICAL ASSISTANCE

For additional technical assistance you can visit our website at www.mtx.com.

Otherwise, our technical service representatives can be reached by phone: 1-800-

CALL-MTX or by email: technical@mtx.com.

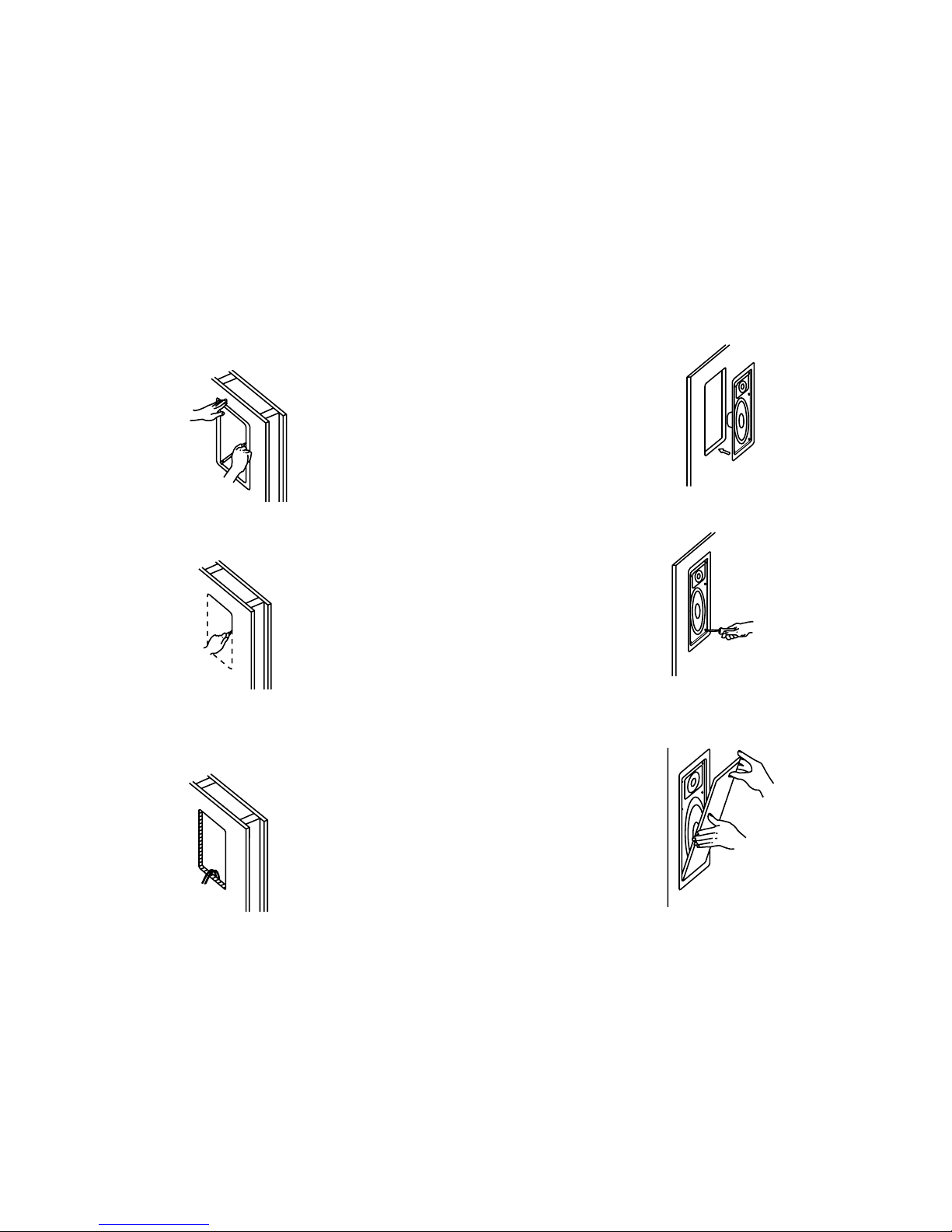

STEP 1

Using a stud finder (available at low cost at most hardware stores) or other accu-

rate method, locate center point between two studs and mark. Using template

provided, trace hole pattern on surface of wall. Placing a bubble level on either

the horizontal or vertical guidelines of template will assist you in leveling the hole

pattern.

STEP 2

Using a sabre saw, keyhole saw or very sharp utility knife, cut hole in wall, fol-

lowing traced pattern.

STEP 3

Run loudspeaker wires to sound source location. There are several methods you

can use to accomplish wiring,depending on the construction characteristics of the

room or house. You can add a professional touch to your installation by using a

speaker terminal plate at the source location. Leave sufficient amount of wire at

speaker location (8 to 10 inches) to complete connection.

STEP 4

Attach loudspeaker wires to speaker terminals, observing correct polarity (posi-

tive to positive and negative to negative), and position speaker frame into cutout

as shown. Be careful not to pinch wires in the process.

STEP 5

Carefully tighten the six mounting screws. This will cause the mounting wings to

rotate out behind the mounting surface and secure the speaker in place.

STEP 6

After the speaker panel is secured tightly, test for sound. When you are satisfied

the speaker is operational, affix grill. As grill is designed for a snug fit, you’ll need

to position one edge into slot first, and press or squeeze around perimeter of grill,

while pushing leading edges into grill slot.
